145 WALKING, HOPPING, SPHERICAL, WSL ROBOTS AND VEHICLES 4

Walking Machine of Selenokhod Group

Walking machine of 'Selenokhod' group for the competition Google Lunar X-Prize. Bottom of the machine is an inverted U. https://www.youtube.com/watch?v=09fk4vG4Pxo.
Leg wheel hybrid quadruped robot

Leg-wheel hybrid quadruped robot, 2006, from Shigeo Hirose. In this mechanism, load distribution control is realized by a torque of twisting joint at the center of the body, and a forward/backward shift of the body. It can ride over 230 mm step. https://www.semanticscholar.org/paper/Rough-terrain-locomotion-of-a-leg-wheel-hybrid-qua-Takahashi-Yoneda/74cd42a4ed934a26b6e21b28d56c54dd3e66d2e0/figure/5

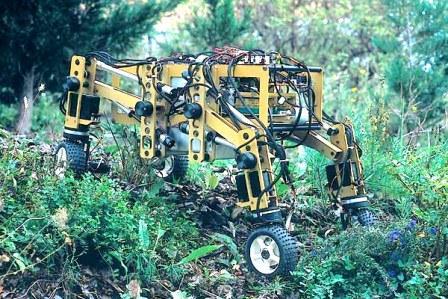

Hylos Robot

Hylos robot, 2007, wheeled-legged robot to move off-road. https://www.semanticscholar.org/paper/Motion-kinematics-analysis-of-wheeled-legged-rover-Grand-Amar/3a4b20580c6b581ba8d32515ff14eb07f59d2025, http://www.dailymotion.com/video/xm45gm
Passive Leg Robot

Passive Leg Robot, 2015. The transformable wheel robot is able to overcome obstacles yet it can still move quickly over flat ground thanks to wheels. https://www.semanticscholar.org/paper/A-transformable-wheel-robot-with-a-passive-leg-She-Hurd/bae02ed470c783f343301e788a2d88fe42ea1433
Wheel Leg Hybrid Robot

Wheel leg hybrid robot, 2009.The proposed mechanism can compose large wheel diameter compared with the previous hybrid robot to realize high ability to climb obstacles. https://www.semanticscholar.org/paper/Armadillo-inspired-wheel-leg-retractable-module- https://www.semanticscholar.org/paper/Recent-Advances-on-Locomotion-Mechanisms-of-Hybrid-Lim/7735159903314bbb7ff47e27f2abc5d37d7fb691Tadakuma-Tadakuma/70b57af7eb5085af6b0368a099c17371ea4396ef
Velociroach Robotic Cockroaches

VelociRoACH Robotic cockroaches, working in tandem to overcome obstacles, of University of California, Berkeley, https://finance.yahoo.com/news/robot-hordes-one-step-closer-181546616.html, https://www.youtube.com/watch?v=X78FWHc2pLg
Claw Wheel Transformable Robot

Claw-Wheel transformable robot, 2016, transforms between the claw mode and the wheel mode. The transformation process is done by simply folding or unfolding the front body through the active transformation mechanism. The claw mode driven by four unique claws is used to overcome rough terrain. For enhancing the stability during climbing steep stairs in the claw mode, the body length is extended. https://www.semanticscholar.org/paper/The-Claw-Wheel-transformable-hybrid-robot-with-rel-Pan-Kuo/9a7974c274e1371f200a146d2db613fcdfe8547b
Claw Wheel Transformable Robot

Claw-Wheel transformable robot
Dante II robot

Dante II walking robot.  In 1994, Dante II was deployed and successfully tested in a remote Alaskan volcano. Human operators were located 120 km distant during the mission. https://www.semanticscholar.org/paper/Dante-II-Technical-Description-Results-and-Lessons-Bares-Wettergreen/40550c1728adbe4a9580702d40045cb7c2395abe
Whegs II of Case university

Whegs II of Case University. This Whegs is fitted with an articulated chassis. http://biorobots.case.edu/projects/whegs/
Euromach Walking Excavator

Euromach walking excavator. If these walking excavators are called like that, they are not really walking machines. Picture from J M M at Euroforest, St Bonnet-de-Joux, 2018 06 21. http://www.euromach.com/eng/
Kaiser Walking Excavator

Kaiser walking excavator. Picture from J M M at Euroforest, St Bonnet-de-Joux, 2018 06 21.  https://www.kaiser.li/category/114-mobile-walking-excavator/
Menzi Muck Walking Excavator

Menzi Muck walking excavator.  Picture J M M at Intermat, Villepinte, 26 Apr 2018. https://www.menzimuck.com/en/product-groups/menzi-muck-walking-excavators/
Walkchair Walkchair by Martin Harris

Walk chair by Martin Harris, University of Derby, inspired by Theo Jansen's beach-roaming kinetic sculptures, 2011. This system is very impressing. Is it more off-road than medium wheels? This interesting walk chair was reported by Vjekoslav Banić. http://students.egfi-k12.org/student-invents-walking-chair/, https://www.youtube.com/watch?v=JqEasWKcJYY&hd=1, https://www.youtube.com/watch?v=yg5cwalYbxg
Walking Tractor of S T Corbitt 1922

Walking tractor of S T Corbitt, 1922. http://cyberneticzoo.com/tag/walking-tractor/, an excellent site
Patent of Corbitt Walking Tractor, 1917

Patent of Corbitt-Walking-Tractor, 1917, http://cyberneticzoo.com/tag/walking-tractor/
Hyundai Project Elevate

Hyundai Project Elevate cradle is a concept car of walking vehicle, shown here in his unexceptional environment : rocks. It is only a project. Even walking robots cannot walk like that on rocks. But a prototype is in construction and we hope it will be like on videos. Information of Vjekoslav Banic, https://www.youtube.com/watch?v=A33Yu-9rgxo&feature=youtu.be,https://siamagazin.com/the-project-elevate-hyundais-walking-car-concept/, https://www.theverge.com/2019/1/9/18173742/hyundai-walking-car-concept-elevate-ces-2019, https://www.youtube.com/watch?time_continue=1&v=hQ5Xib6sFp4
Hyundai Project Elevate

Hyundai Project Elevate
Walking robot at crossing obstacles 2018

Walking Robot at 'Crossing Obstacles 2018'. There were many walking robots at 'Crossing Obstacles 2018' near Beijing. https://www.youtube.com/watch?v=0pzkOpN0ftk and see http://www.unusuallocomotion.com/pages/more-vehicles-iv/142-wheeled-robots-and-lunar-cars-4.html
