30 SCREW VEHICLES AND ROBOTS

	RUC Riverine Utility Craft. See Chap 'Screw Vehicles' in group Locomotion.

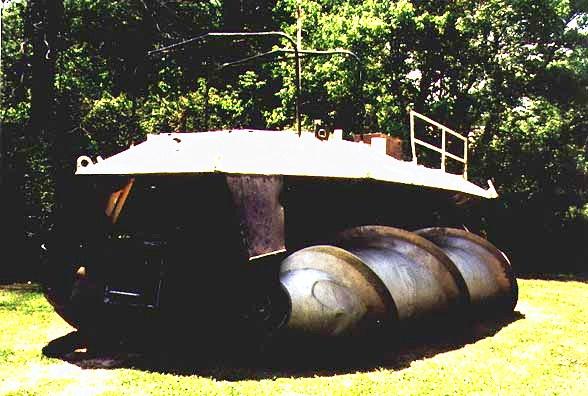

	Riverine Utility Craft, screw vehicle staying at WES Waterways Experiment Station, Vicksburg, Mississippi. http://www.americansab batical.com/ART/Logart/ Logart096/MudAuger.jpg and http://www.com-central.net/index.php?name=Forums&file=viewtopic&t=15161
	Q. A. Peavey locomotive patent US864106, 1907, was articulated.
	Wormobile screw vehicle, jeep-engine-powered, modified. http://cr4. globalspec.com/thread/ 48565/ford-son-sno-motor, http://www.ewillys.com/2017/12/18/worm-mobile-denmark-wi-no-price/comment-page-1/

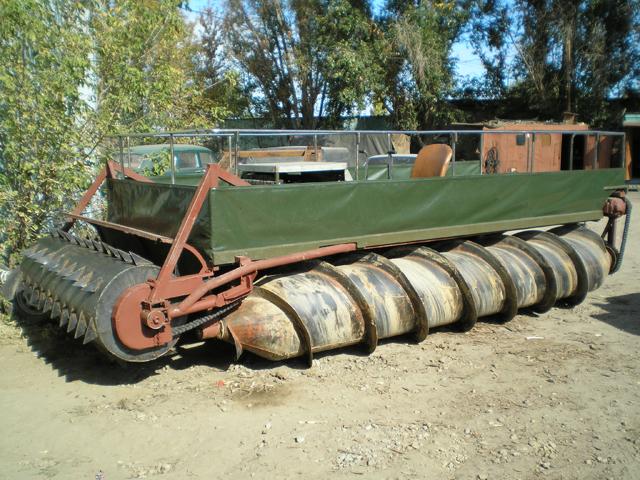

	Screw vehicle in Russia. http://www.youtube.com /watch?v=n5OjIPlIkZE Screw vehicle 'Arhelon' from AVTOMASTER 61 from Anatoly Gorbunov workshop. http://automaster61.ru/other/

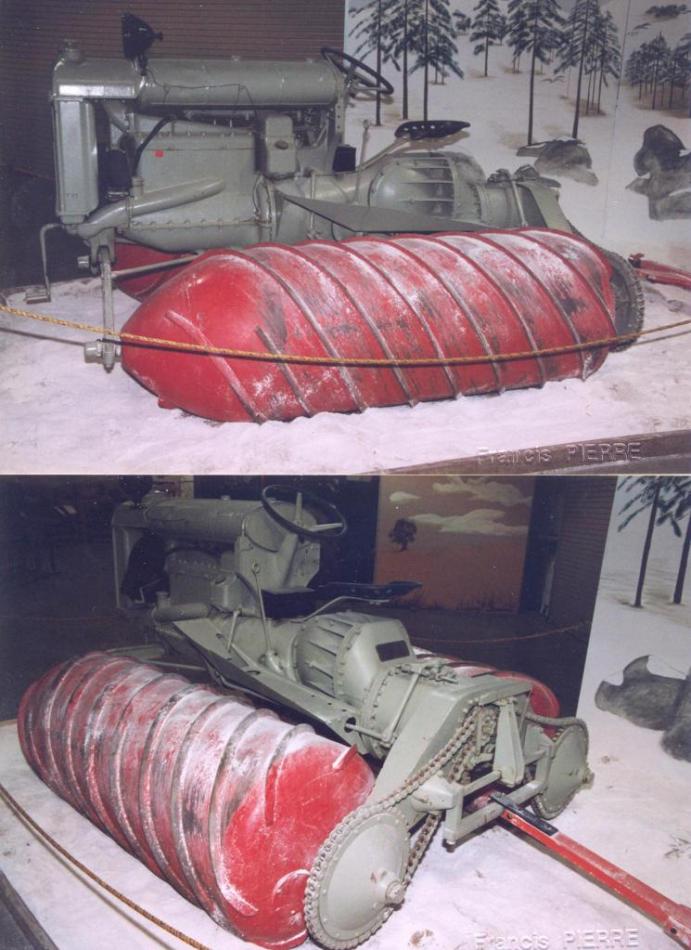

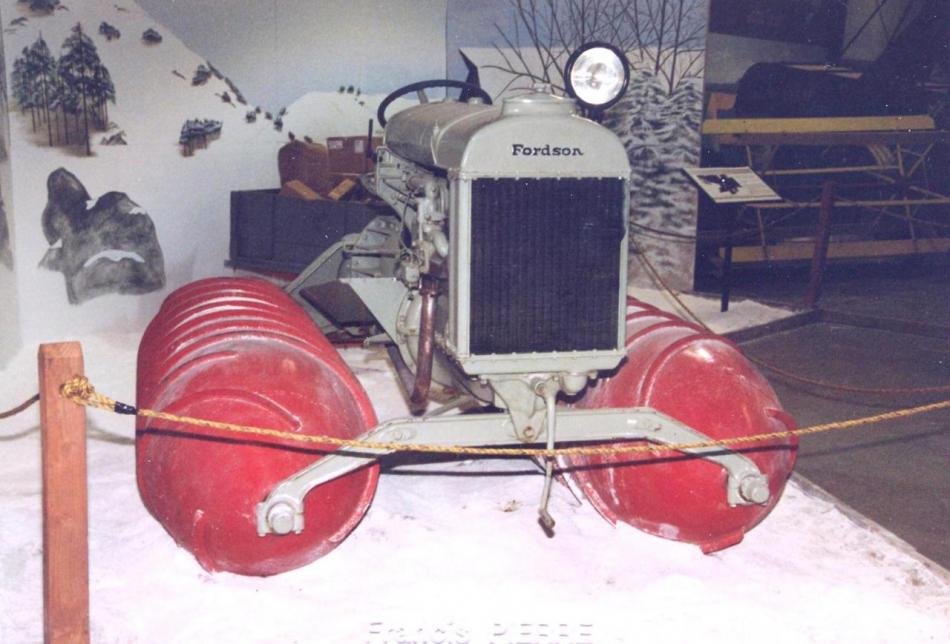

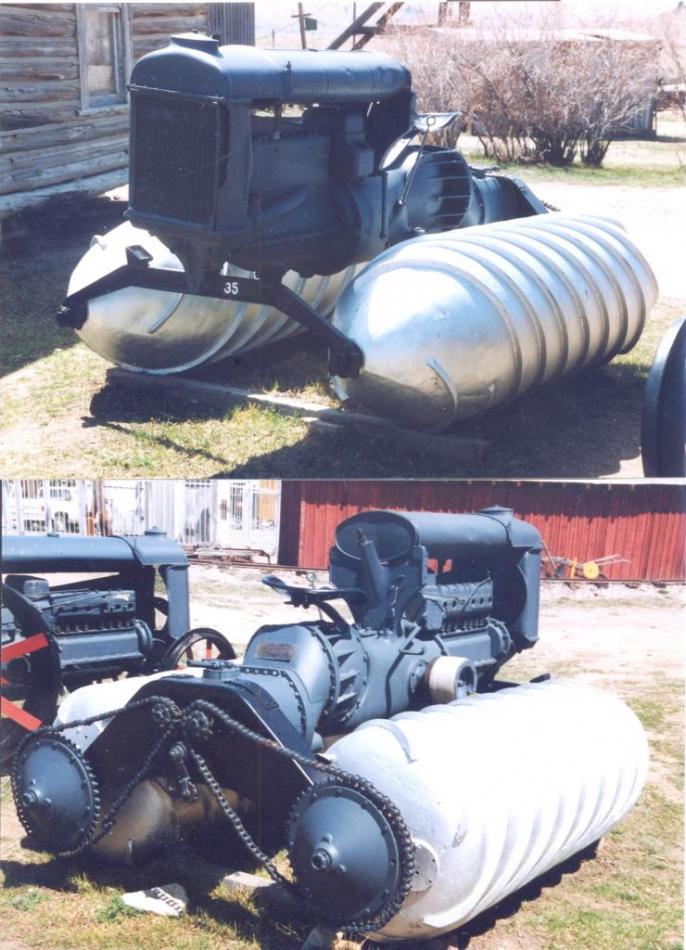

	Armstead Snow-Motor Fordson. Pict Francis Pierre, Heidrick Museum, Woodland, CA, 2000.
	Armstead Snow-Motor Fordson. Pict Francis Pierre, Heidrick Museum, Woodland, CA, 2000.
	Armstead Snow-Motor, 1926, of Snow-Motor Company, issued of a Fordson tractor. See Chap 'Screw Propelled Vehicles'. Pict Francis Pierre, Mine Museum Butte, Montana, 1998.

Locomotion Studies from a video, 1987, showing a

comparison test between Archimean screw and tracks in soft mud, at CEA, Commissariat à l'Energie Atomique, Fontenay-aux-Roses. J M M archives.

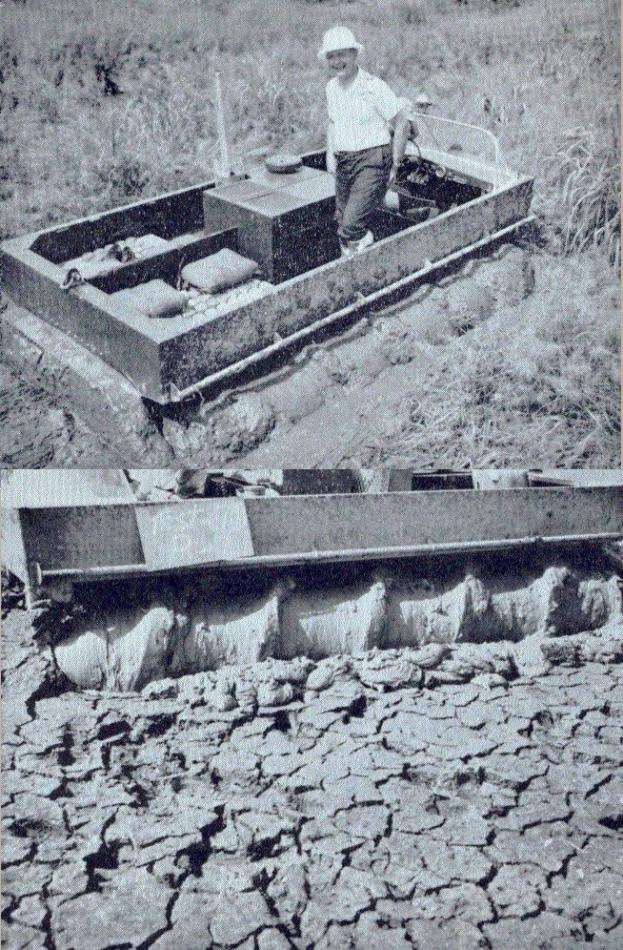

Marsh Screw Amphibian of Chrysler immobilized in mud and dry land. Pict from 'Journal of Terramechanics', vol 2, n°4, 1965, Trafficability of Marsh Screw Amphibian.

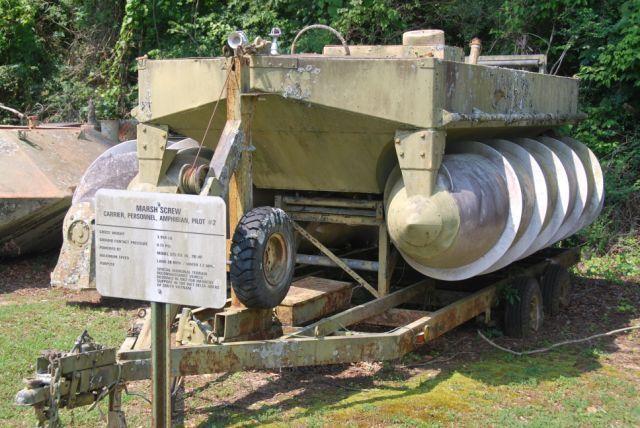

Marsh Screw staying at Waterways Experiment Station, Vicksburg, Mississippi, in 2012. http://www.com-central.net/index.php?name=Forums&file=viewtopic&t=15161

Screw vehicle of the 60s of Gorki Institute, Russia. Pict from review 'Tout Terrain 82, Auto Loisirs', Editions P.A.L., 1982, by Jean Gabriel Jeudy.

ZIL screw vehicle prototype, 1966. ZIL-4904 will be produced later and is now staying in Auto Museum (in open air). See site denisovets.narod.ru.

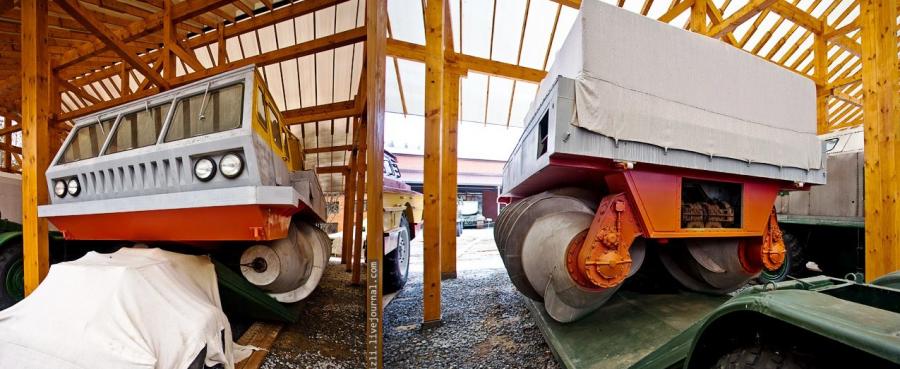

ZIL-4904, restored by the

Technical Military Museum at Chernogolovka (Ivanovo) 40 km from Moscow. http://misha-grizli.livejournal.com/93935.html?thread=1904623

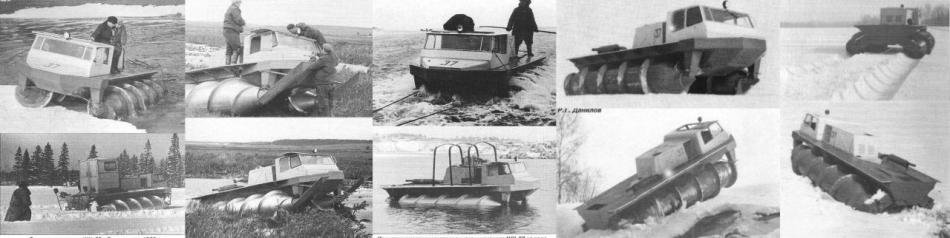

ZIL Screw Vehicles prototypes designed by SBK and tested between 1966 and 1970. They performed well in mud and water but were unable to move on hard surfaces as road. see : www.alternathistory.org.ua

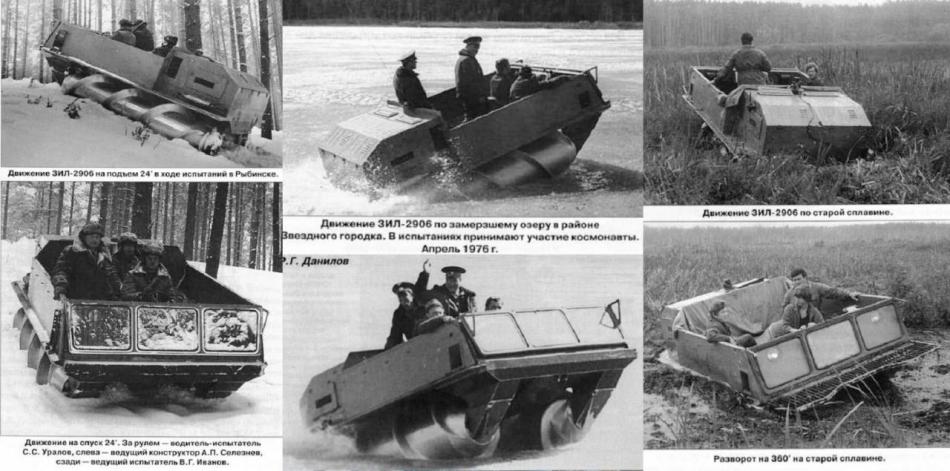

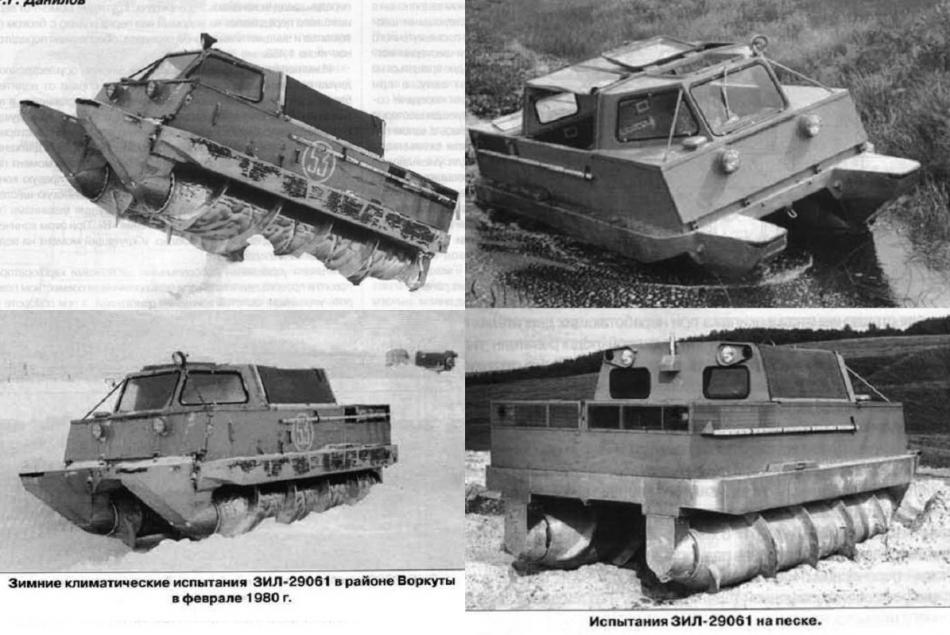

	ZIL 29061 screw-vehicle, 1980. http://voprosik.net/shnekoxod-zil-29061/

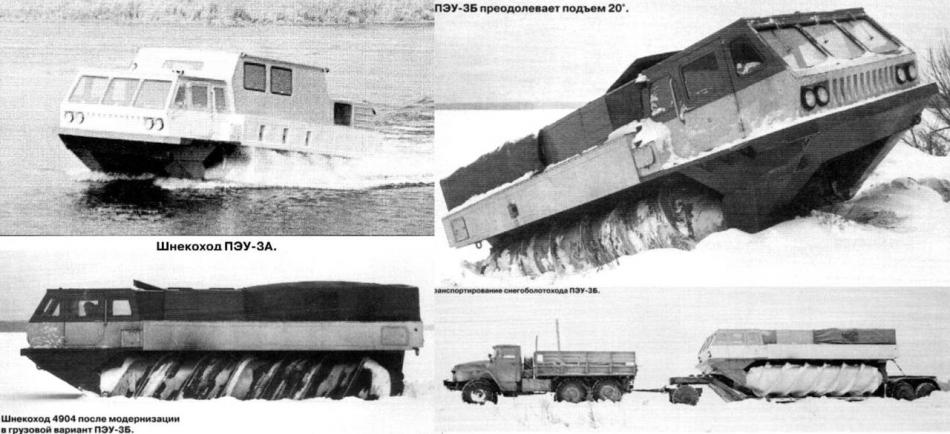

	ZIL PSE-ST screw-vehicle http://alternathistory.org.ua/avtomobili-dlya-bezdorozhya-shnekovyi-snegobolotokhod-peu-3 http://www.youtube.com/watch?v=fswEnJtUVDc
	ZIL 29061 screw-vehicle, 1980. http://voprosik.net/shnekoxod-zil-29061/

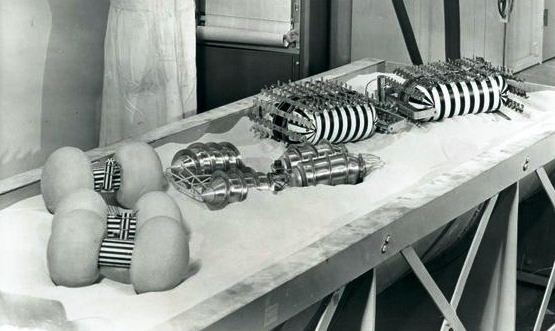

	Wheels, Tracks and Screws of Bekker, 1961, at Santa Barbara, Ca, at GM DRL, for testing mobility in different soils of the Moon. http://www.ebay.com/itm/1961-Scientist-Testing-Lunar-Vehicle-Orig-Press-Photo-/260807789206 from Historic Images 6073 Mount Moriah Ext Suite 12 Memphis, TN 38115

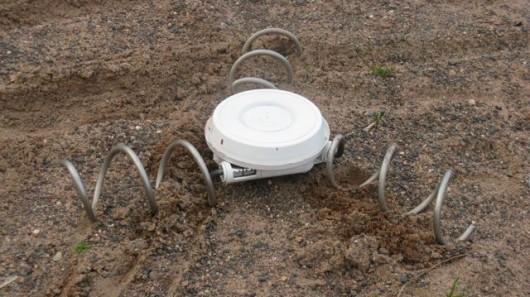

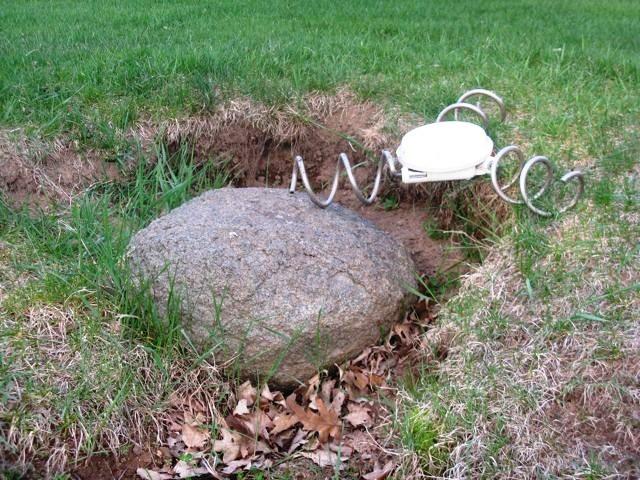

	Three screws micro robot of Tim Lexen. Three rotating steel coils enable this robot to move on uneven terrain or around obstacles sideways. http://www.gizmag.com/ominidirectional-rover-robot/18699/
	Three screw robot of Tim Lexen fitted with omnidirectional screw drive system. http://www.gizmag.com/ominidirectional-rover-robot/18699/

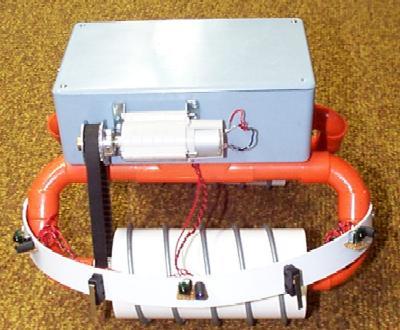

Screw propelled STAR, Spiral Track Autonomous Robot, from 1995, at Lawrence Livermore National Laboratory, LLNL. National Laboratory of Masey University, California. STAR 2, nowadays is lighter. See Chap. 'Screw Propelled vehicles'. http://www.pbs.org/wgbh/nova/robots/hazard/meetstar.html

STAR 2, nowadays is lighter. See Chap. 'Screw Propelled vehicles'. http://www.massey.ac.nz/~wlxu/mechatronics1999/group1/main.htm

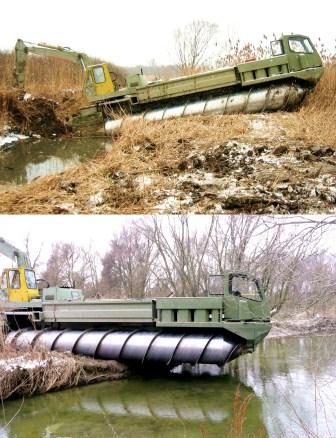

Amphi-Cat screw propelled vehicle, a work-boat for swamps. Technology by J.Pasteiner. Length=12,3 m, Mass 19 t, 240 kw diesel engine, hydrostatic transmission. http://www.amphi-cat.com/

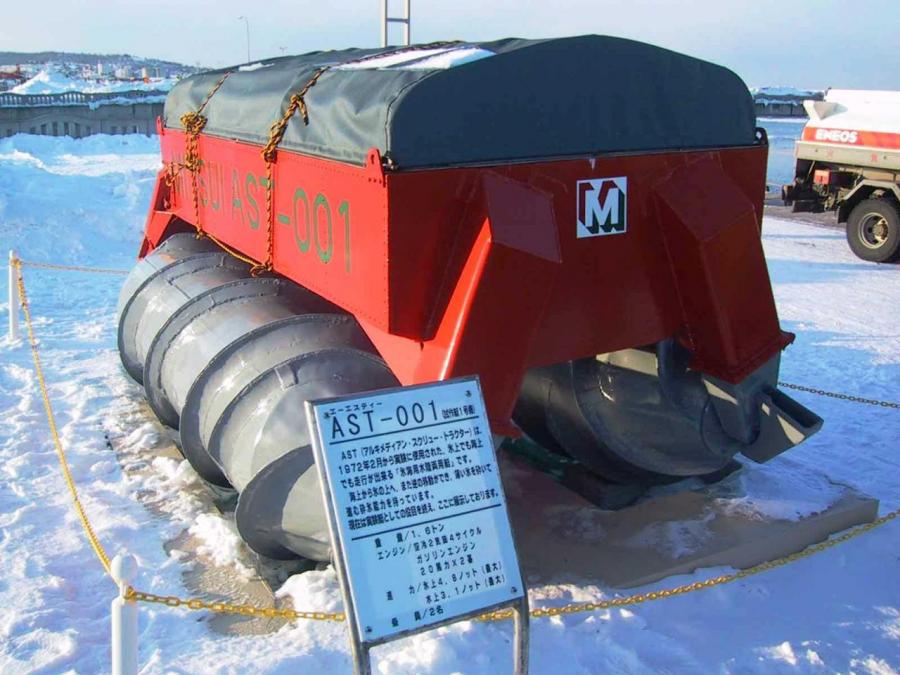

	ATS-001 of Mitsui http://forum.buschtaxi.org/habe-was-gefunden-t10148-15.
	AST-001 of Mitsui http://maruta.be/HotEyesOffice/794

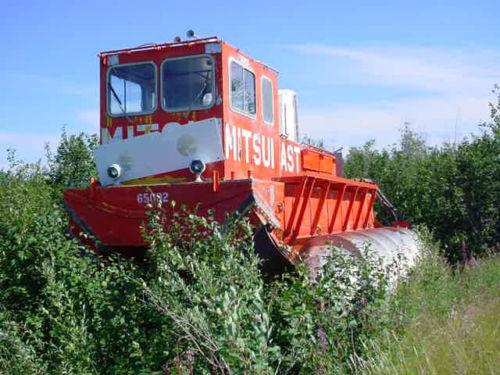

	AST-002 Mitsui http://bangshift.com/blog/ebay-find-an-alaskan-archimedean-screw-tractor.html

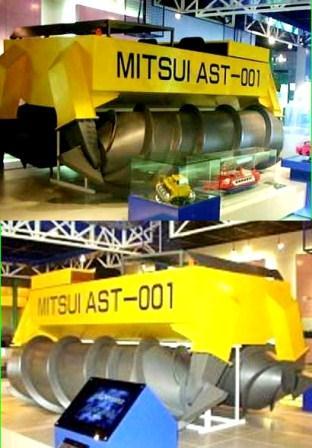

Mitsui AST-001 built around 1970 in Japan seen here in 2005 at a show. See Chap. 'Screw propelled vehicles'. http://forum.buschtaxi.org/habe-was-gefunden-t10148-15.html

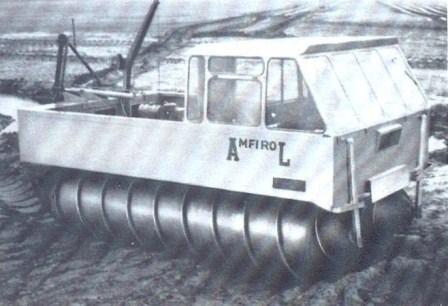

Amphiroll screw vehicle built by J. J. De Bakker, Hulst, The Netherland, after WWII. It had 2 screws for propulsion in mud and water. Moving forward and sideward, it was equipped with Variomatic transmission DAF and had a payload of 2,5 t at a speed of 30 km/h. It could not travel on roads.

Picture from book of Nick Baldwin 'The Illustrated History of Off-Road Vehicles' Haynes Publishing, 1987.

Amfirol

Amfirol for Rescue

Amfirol for rescue at Shannon Airport.

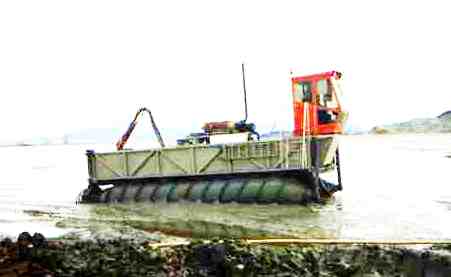

Amphirol Screw Vehicle

Amphirol screw vehicle completely redesigned with up-to-date technology. Versions are : Amphirol 800 : length 9 m, total mass 10 t, and the Amphirol 500 : length 5,6 m, total mass 4 t. It was originally designed in 1960 by J J Bakker. See chap : 'Screw vehicles'.

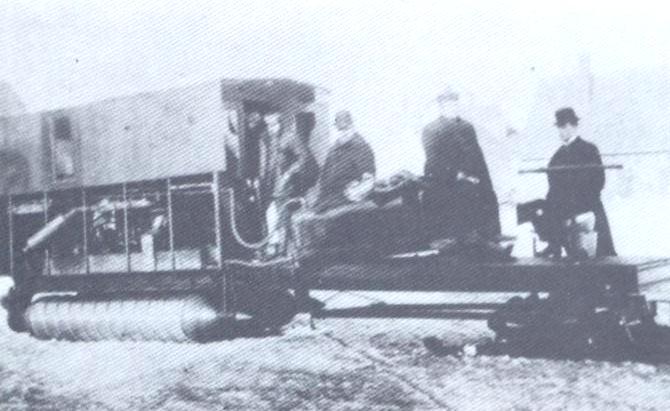

Peavey Brothers Screw Log Hauler

Peavey Brothers screw log hauler, first decade of the 20th century. Tests were conducted at Bangor, Maine. In 1926, a screw propelled snow tractor issued from a Fordson was available for several years during the 30s.

Pict from the book of James A. Young & Jerry D. Budy : ‘Endless Tracks in the Woods’, Crestline, Motorbooks, Osceola, 1989.

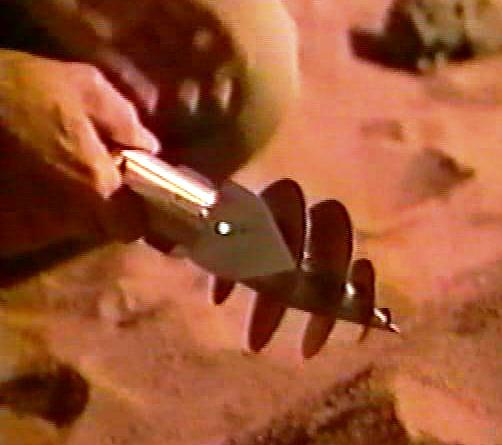

Screwing-in-sand by Brian Wilcox

Screwing in sand by Brian Wilcox in the 2000s. This is a test for possible planet locomotion in sand. J M M archives.

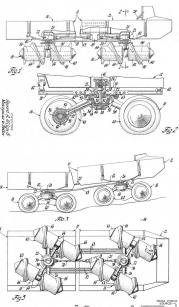

US003354861-001 Screw-vehicle-of Wilcox and Bekker

US003354861-001 Screw vehicle of H.A. Wilcox and M. G. Bekker.
