24 FOUR TRACKS RIGID VEHICLES, MEDIUM

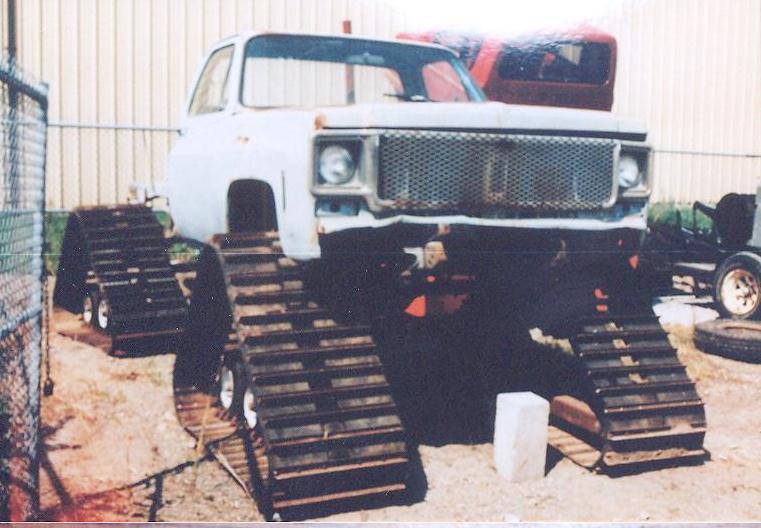

Four tracked vehicle. Picture Francis Pierre, late 90s.

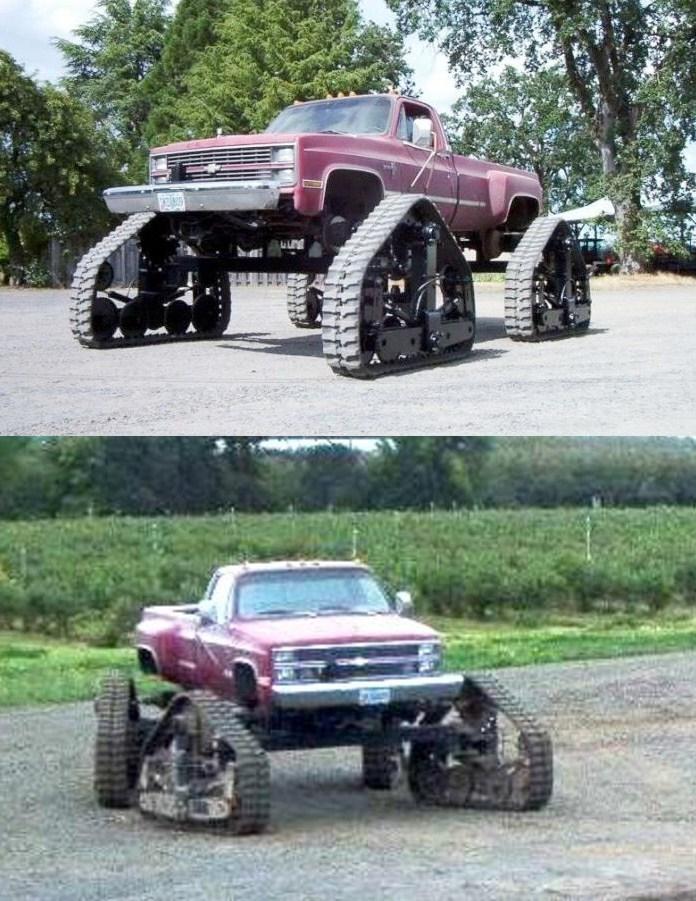

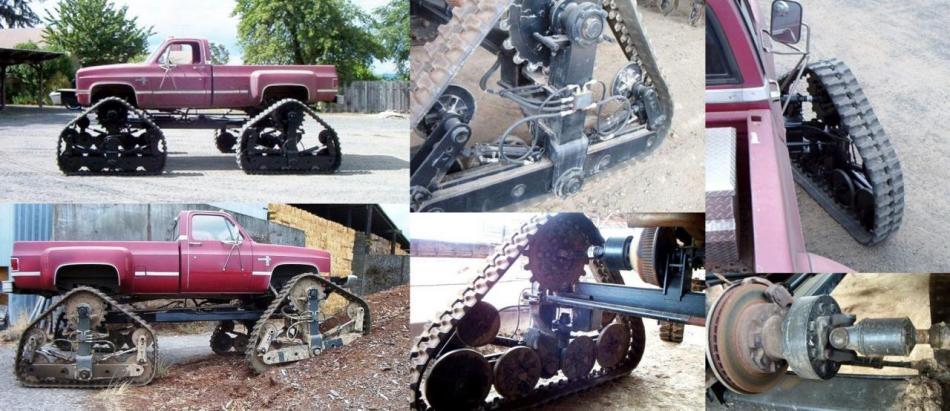

Donzilla Four Tracks Vehicle was built for agricultural use in 2002 by Don Kauer in a small farm near Hillsboro, Oregon. Four rubber tracks, of Taeryuk Rubber Company, were fitted on a sub frame, itself bolted on a street pickup without any cuts and drilling holes. Speed reached 40 km/h without overheating of the tracks and the tests were good. Nevertheless, tracks were noisy, too heavy and unsprung mass too high. Unfortunately, it was dismantled the same year. A video is owned by Taeryuk Rubber Co. Pict. Don Kauer.

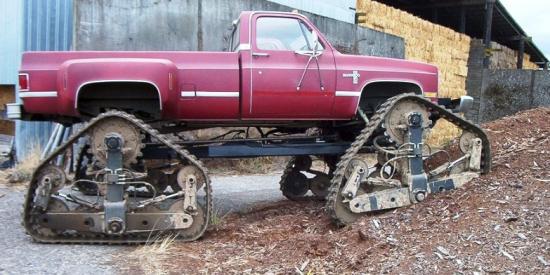

Donzilla side view. Impressive !

Pict Don Kauer.

Donzilla tracked vehicle made by Don Kauer, Oregon, 2002.

Pict. Don Kauer.

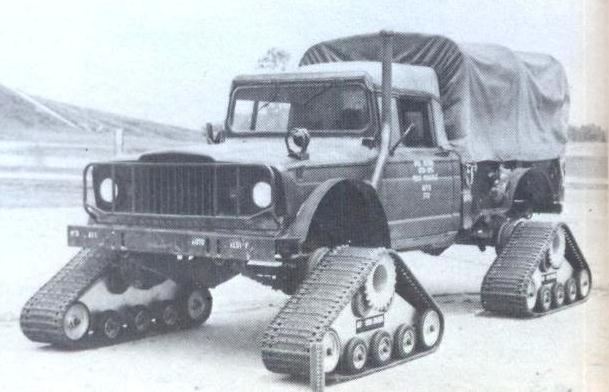

M 715 with Una-Track kit from early 70s, to replace wheels in snow, mud or swamps. Picture from the book of Fred Crismon : ‘US Military Wheeled Vehicles’, Crestline Publishing (Motorbook), 1983.

Una-track-h.pdf http://www.forumsforums.com/3_9/showthread.php?t=10246

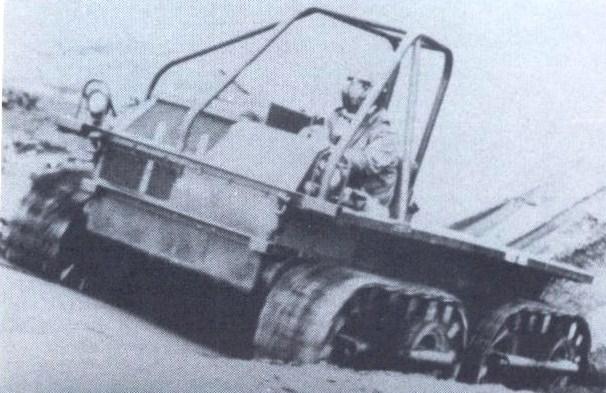

Wheel-Track Convertible 3/4 t Test Rig of mid-70s carrier designed by Army, could be converted from wheels to tracks in less than one hour. Skid steering whether on wheels or tracks. Picture from book of Fred Crismon : ‘US Military Wheeled Vehicles’, Crestline Publishing (Motorbook), 1983.

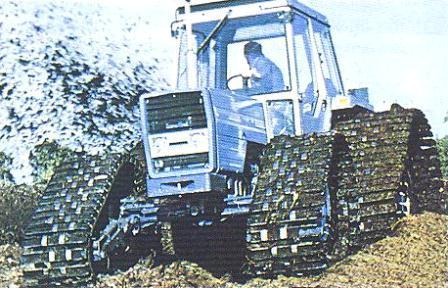

Flex-Track Dario additional tracks on front and rear wheels of an agricultural tractor. Dario, now DCMA Distribution, is an importer and seller near Toulouse. J M M archives.

Flex-Track Dario additional tracks

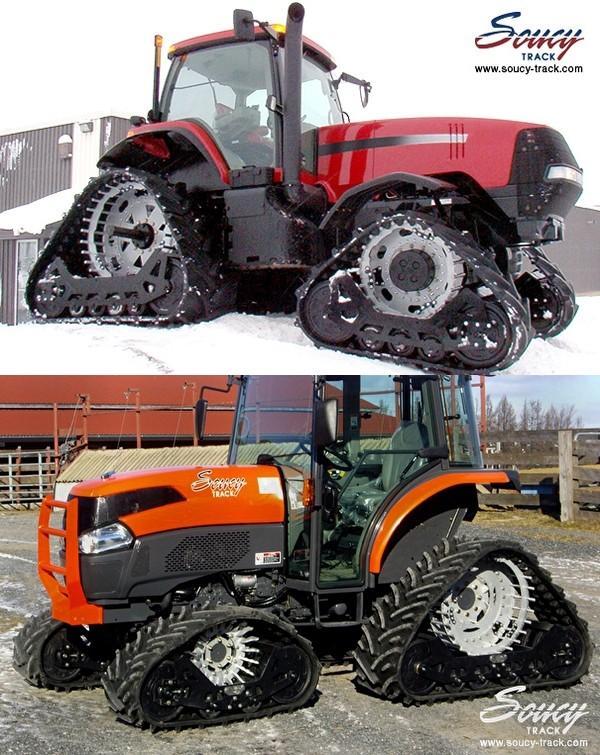

Soucy Tracks on tractors, from Quebec. http://www.soucy-track.com/accueil

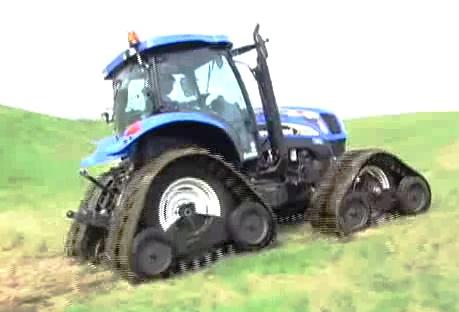

Sure Trac on New Holland Tractor seen on YouTube : SurTrac_Snowmobile_Trail_Groomer

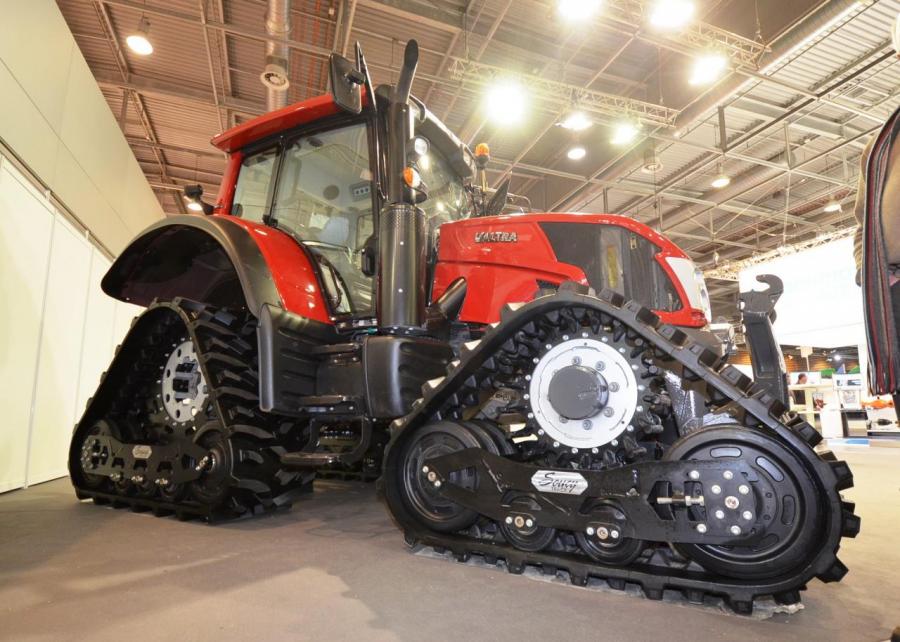

Valtra tractor with Soucy tracks. Pict J M M at SIMA, Villepinte, 2013 02.

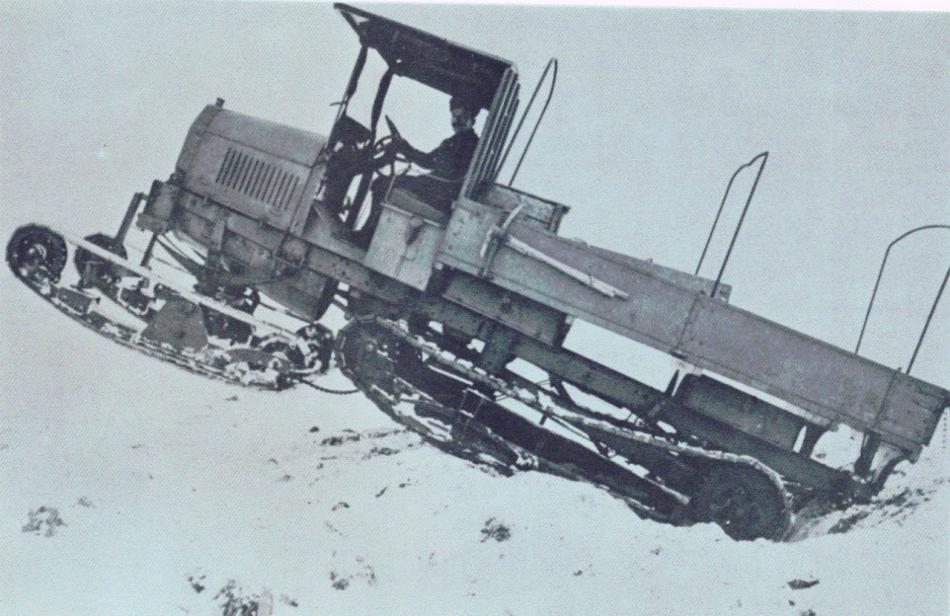

Bremerwagen experimental conversion, of Daimler in 1915. 45 HP, 4 ton truck. Mass 6,6 t, payload 2,5 t, speed 12 km/h on roads. Pict of book of Bart H Vanderveen ‘Half-Tracks’, Warne, 1970.

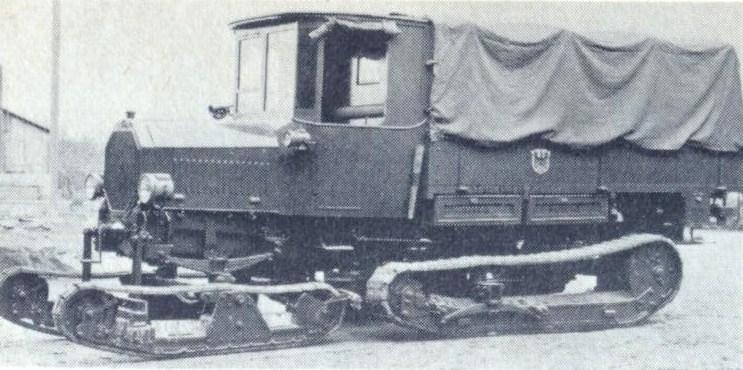

	Daimler Bremer 4 tracks, 1915-16 built by Hugo Bremer from a modified 4,5 t Daimler truck to semi-track configuration, then with un-driven front tracks, Pict from the book of Bart H. Vanderveen : ‘The Observers Army Vehicles Directory from to 1940’, Warne 1972.

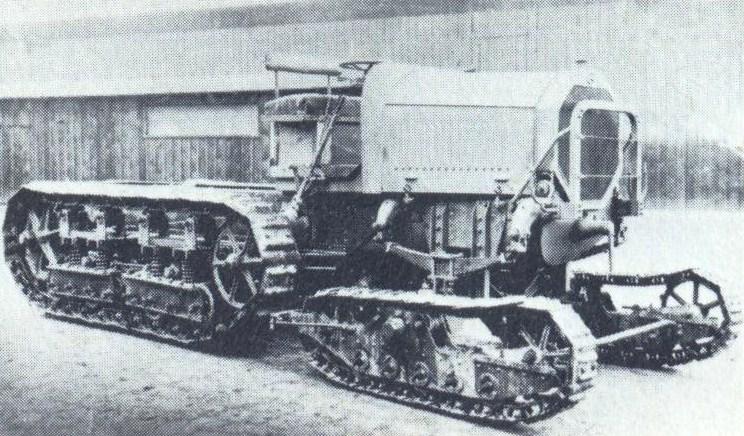

	Daimler Marienwagen, from Germany, four tracks, 1918, to improve Bremer-Wagen. It became heavier. Built as semi-tracked, four tracks and full track form. Rear track were from Holt. Pict from the book of Bart H. Vanderveen ‘The Observers Army Vehicles Directory from to 1940’, Warne, 1972.

Pinzgauer with tracks Re__Pinzgauer_with_

Mattracks_on_snow on Youtube

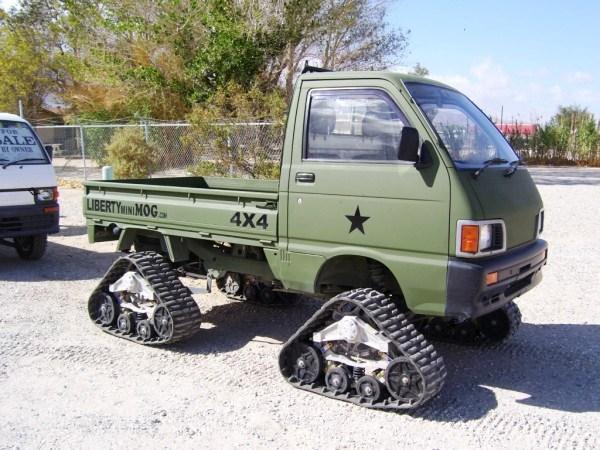

	Four tracks light minivan www.libertyminimog.com

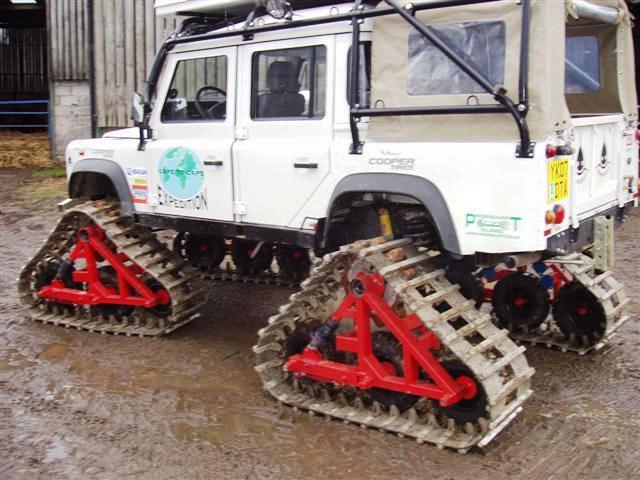

	Land Rover, from Cape to Cape Expedition. www.capetocape.org.uk

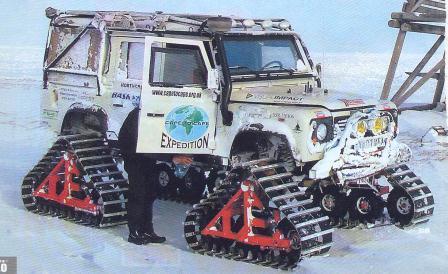

Tracked Land Rover crossing Bering Strait. Steve Burgess and Dan Evans (designer of tracks) ran 16700 km from England to Alaska during 50 days in 2008. They had also two floats on the vehicle.

http://www.capeto

cape.org.uk/

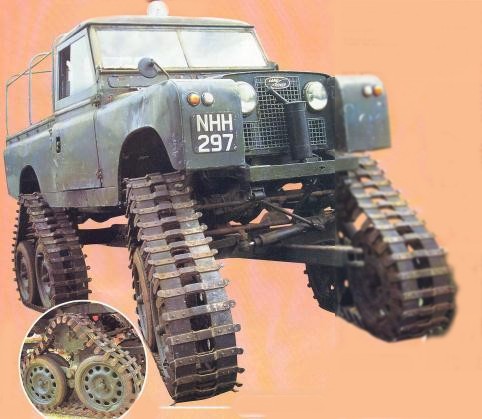

Cuthbertson Land Rover built between 1958 and 1972 at 15 copies by James A Cuthbertson & Sons, Biggar, Scotland. 50 km/h maxi with 77 hp engine, power assisted steering became necessary. Capabilities for climbing steps were poor but it greatly reduced ground pressure make it ideal for marshy and wet ground. Now, additional tracks of any brand are in rubber. Picture Hubert Cifloque and Nick Dimbleby of th e review : 'Land' of July-Aug-Sept 1998.

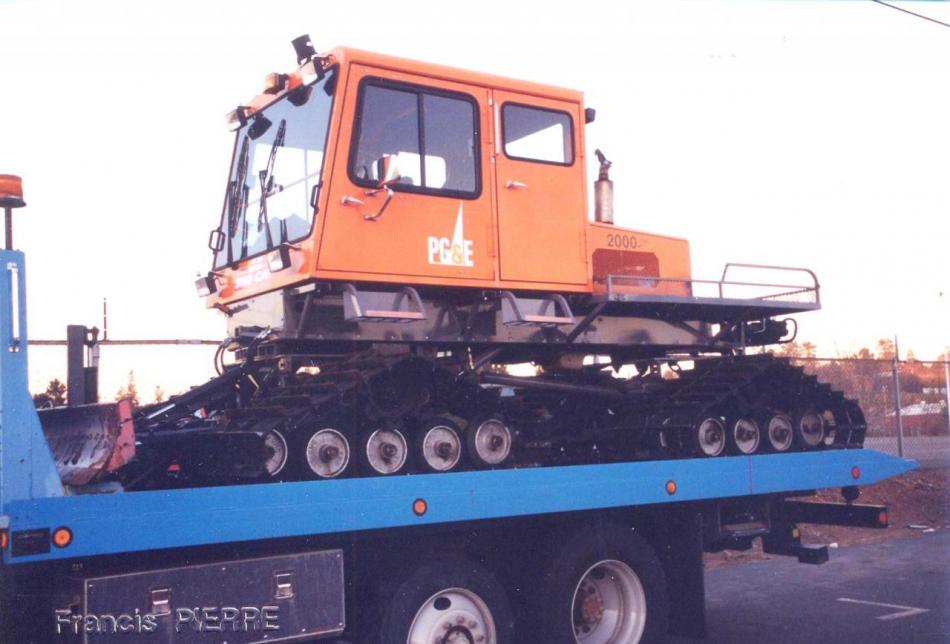

Tucker Sno-Cat. Pict. Francis Pierre in California, 2000.

Tucker Sno-Cat

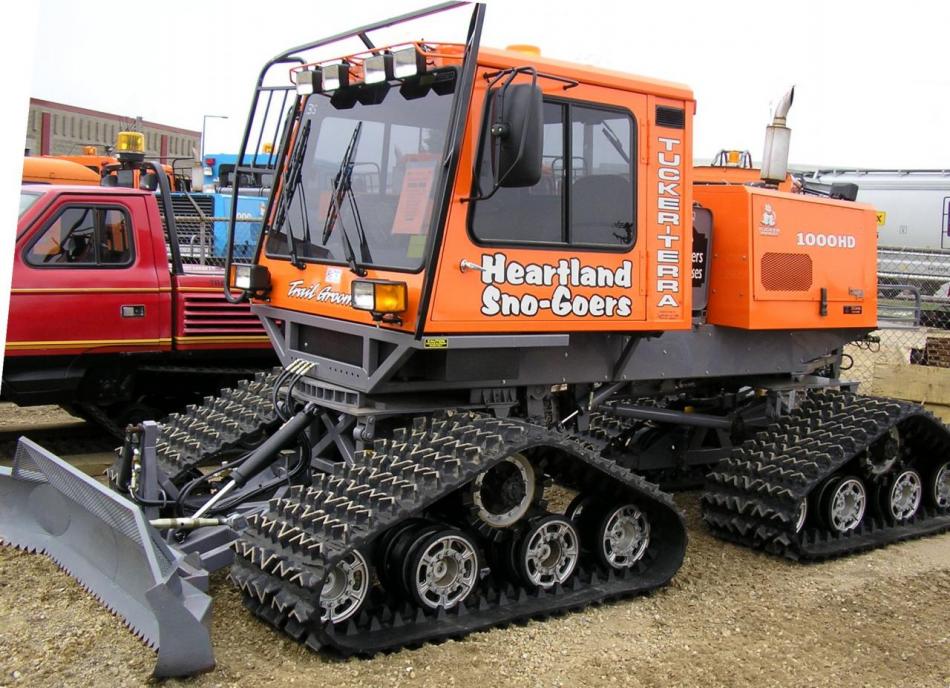

Snocat Tucker Terra Model 1000, 2005. Rubber tracks, 130 hp, http://tinc.qwestoffice.net/Newest_List_of_Used.html

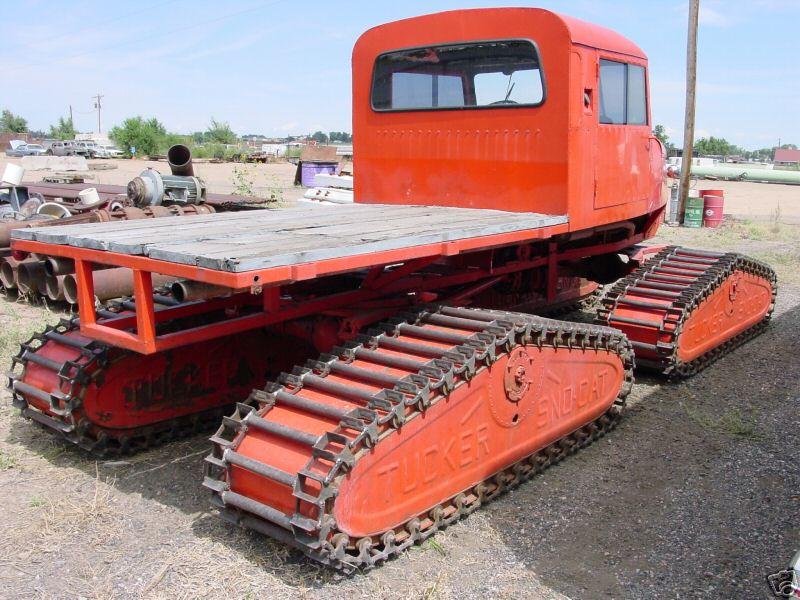

Sno-Cat, 1953 from eBay in 2007.

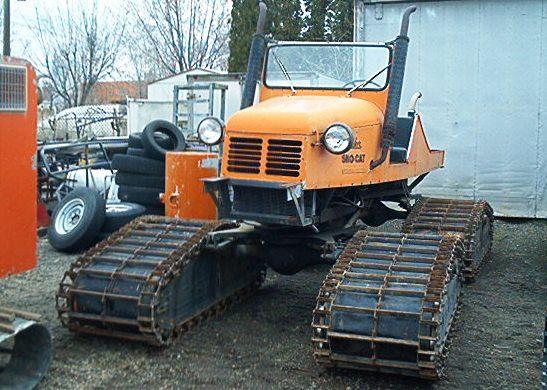

Tucker Sno-cat 543. From forums.forums.com

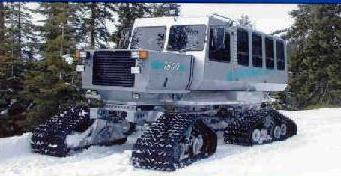

Tucker Sno-Cat Diplomat 2001 Model 1643EF-26-6 from Sno-Cat Corporation Medford, Oregon. All rubber tracks. http://www.sno-cat.com/

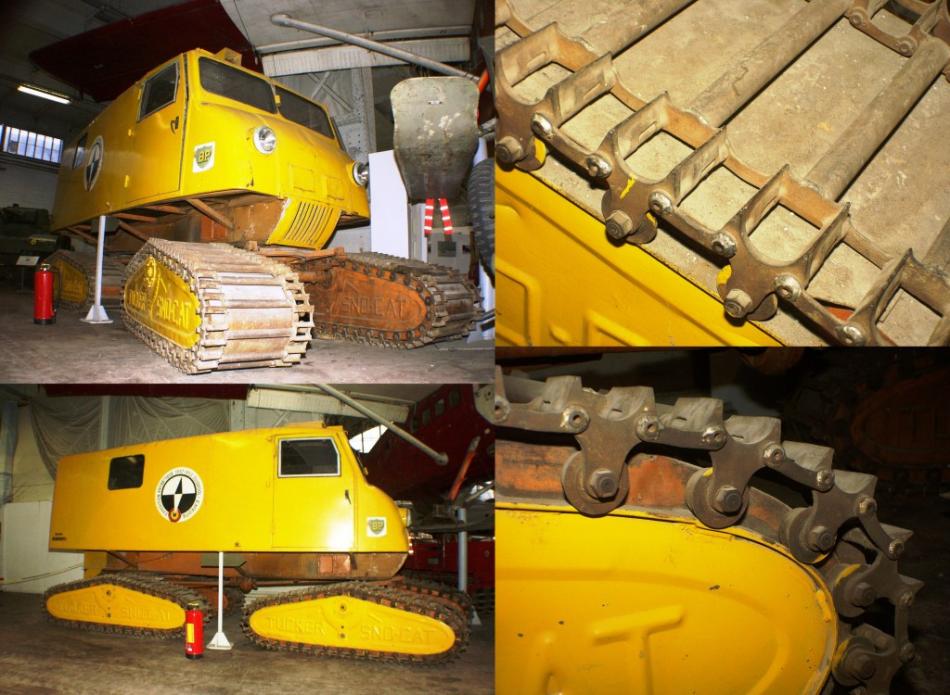

Sno-cat for International Polar Expedition in 1957 to South Pole. This one was for Belgium and stays now at Army Brussels Museum. Pict. J M M, 2008 02.

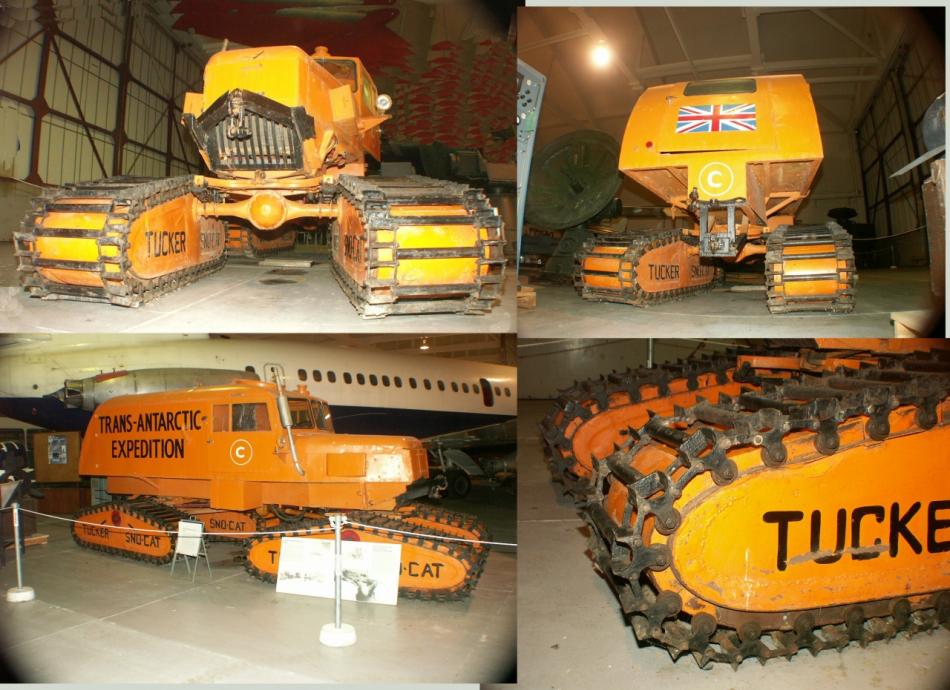

Tucker 743 Sno-Cat belonging to the Science Museum of

Wroughton, England, was employed by Sir Vivian Fuchs in 1957 during Commonwealth Trans-Antarctic Expedition. Pictures taken by J M M at Museum of Wroughton on 2005 04.

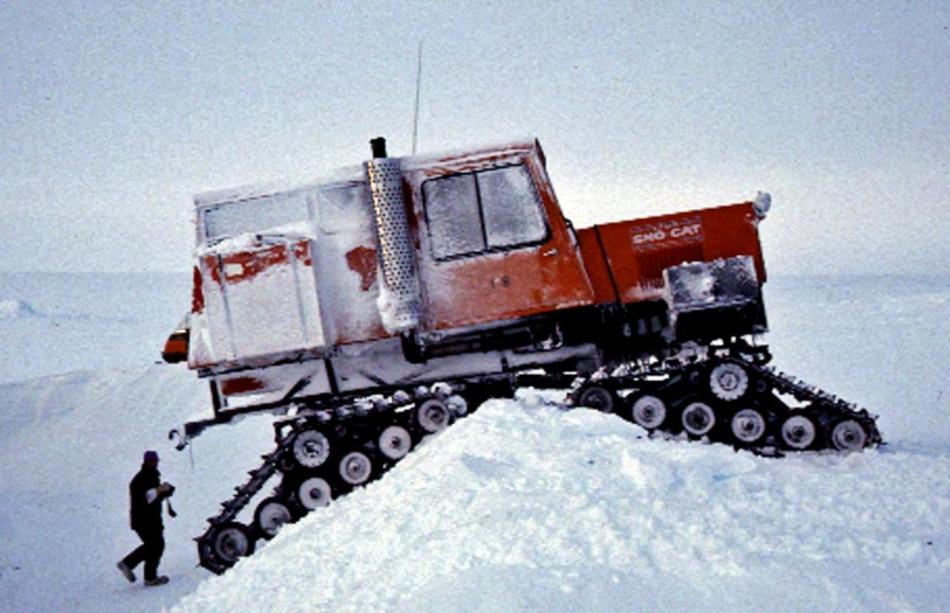

Sno-cat of Tucker, Medford, Oregon, in 1959, during International Antarctic Expedition. They arrived to take off this vehicle from its dangerous posture. This brand always exists at Medford Oregon. Well-known picture here on cover of the review 'Sciences et Vie', March 1960. J M M archives.

Sno-Cat

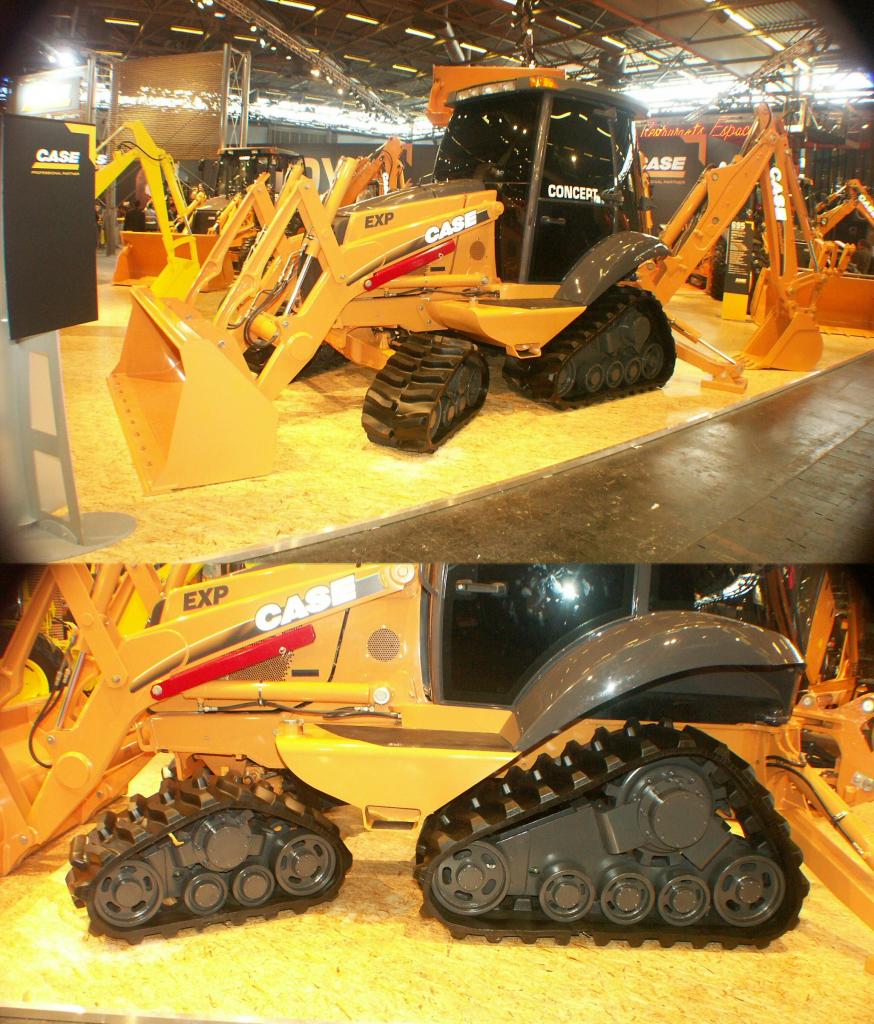

Case Loader with Tracks

Case Loader with tracks. Pict. J M M at Intermat, Villepinte, 2006 06.

Team Track NHTM2 on a New-Holland tractor

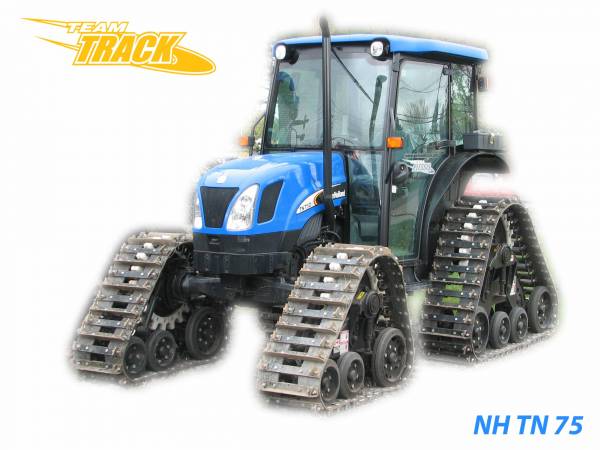

Team Track NHTN2 on a New-Holland tractor allows a high ground clearance.

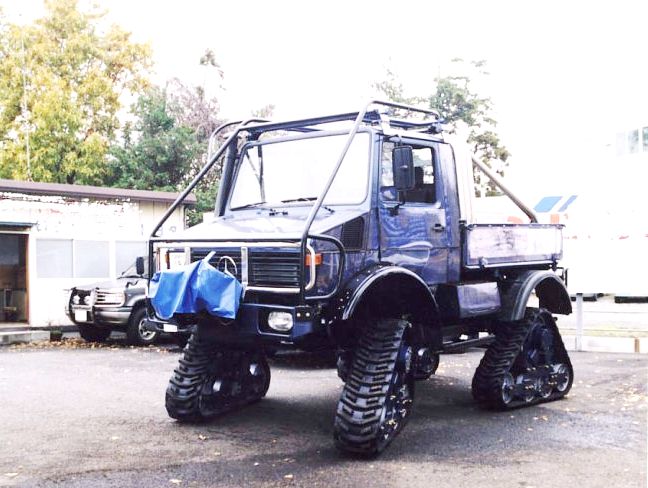

Mercedes-Unimog with Rubber Tracks

Mercedes Unimog with rubber tracks.

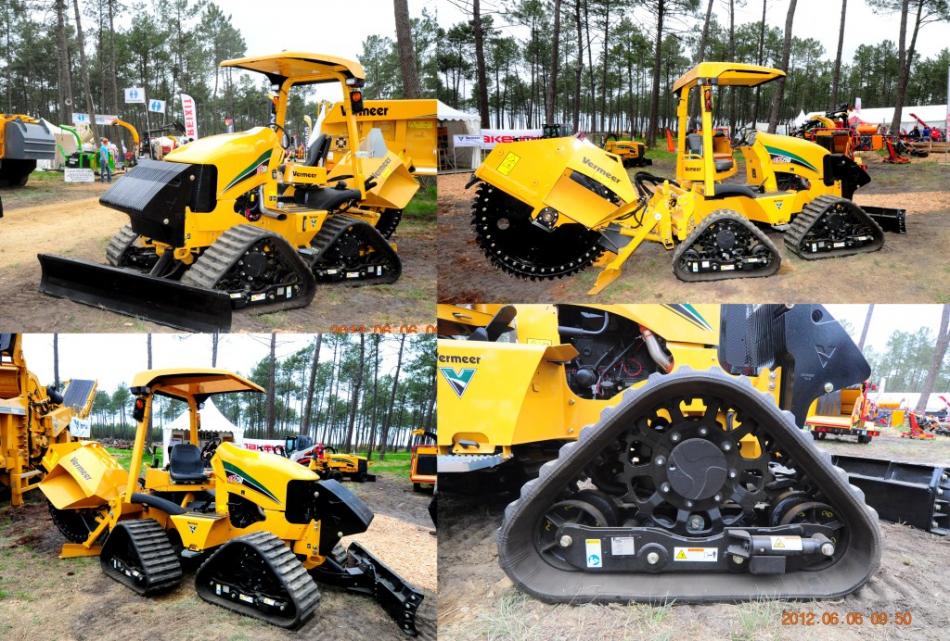

	Vermeer RTX 750 with Loegering tracks. Pict. J M M at Forexpo, Mimizan, France on 2012 06.
	Tracked vehicle, 2011, during a race near Aydashki, Russia. http://www.kmforum.ru/projects/NKVD44/blog/3727.html

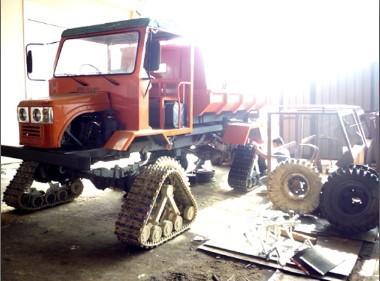

	Conversion-Systems-for-Tractor from Dezhou Leve Machinery Co., Shandong, China. http://www.made-in-china.com/showroom/levedz/product-detailBMyJsPFLkeRk/China-Rubber-Track-Conversion-Systems-for-Tractor-Agricultural-Machine-LEVE-GD360-.html

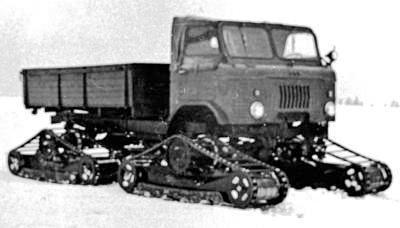

	Gaz-66B with tracks, proto of 1960. System looked like Tucker Sno-cats of 1948. It was found that the tracks of GAZ 66B were too large and complex for a non-significant increase off-road performance. http://fictionbook.ru/author/evgeniyi_kochnev/sekretnyie _avtomobili_ sovetskoyi_armii/read_online. html?page=5 http://lib.ec/b/351445/read
	Dongfeng with tracks http://www.xcar.com.cn/bbs/viewthread.php?tid= 11961211&page=3

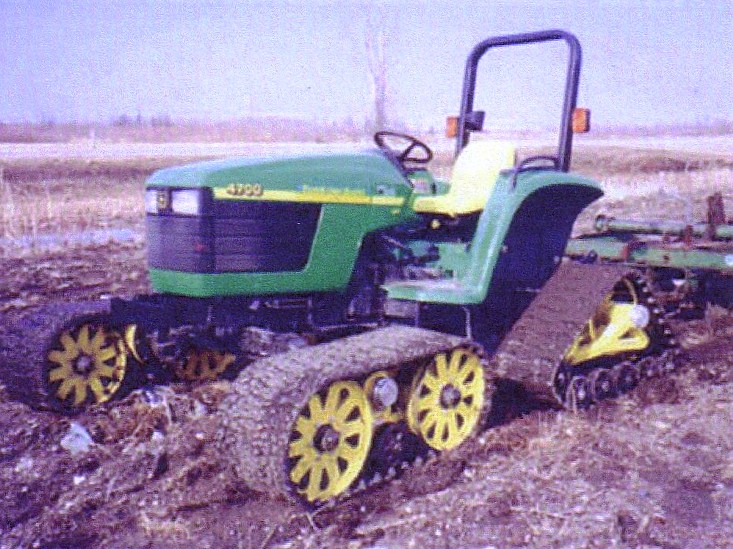

Mattracks Tracks on John-Deere Tractor

Mattracks tracks on a John-Deere tractor in the 2000s.
