25 FOUR TRACKS RIGID VEHICLES, HEAVY
 |

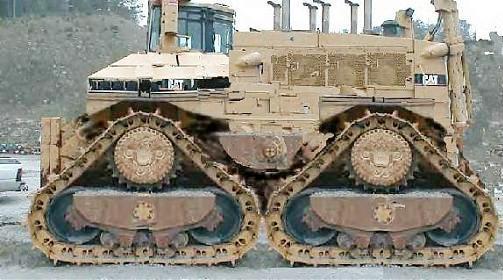

Caterpillar four tracks tractor, on Internet : http://www.jcccw.com/home.php?mod=space&uid=1&do=album&picid=72 |
 |

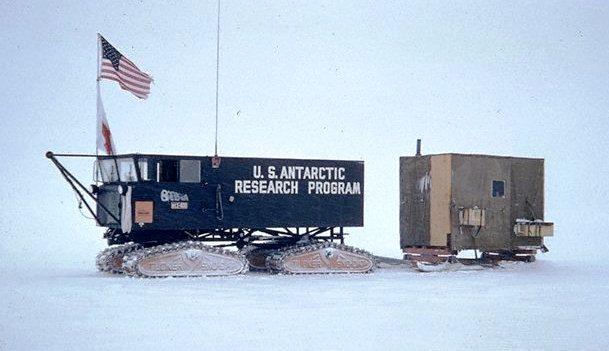

Tucker Model 843 with unusual configuration. Used for US Antarctic Research Program in 1968-69 in South Pole. 170 hp, speed 16 km/h.http://www.forumsforums.com/3_9/showthread.php?t=8977 |
 |

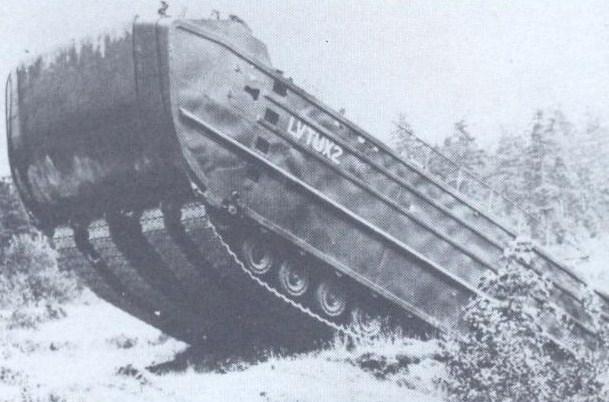

LVTU-X2 Amphibious, 1951, of Pacific Car and Foundry. Four tracks were spread under the belly of this big amphibian able to transport trucks until a capacity of 60 tons.Picture from book of Fred Crismon ‘US Military Tracked Vehicles’, Motorbook International Publishers & Wholesalers, 1992. |
 |

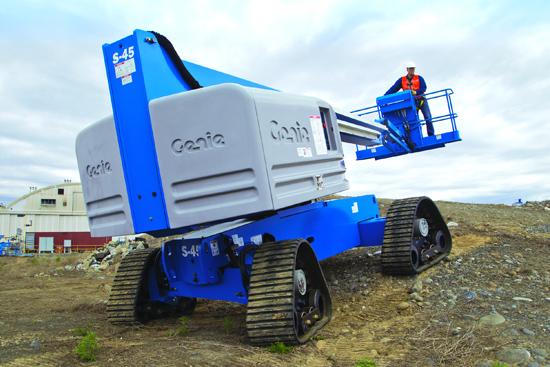

Genie S45 nacelle of Terex Group http://www.geniechina.com/news_content.asp?id=56 |
 |
TS-K tracked vehicle http://www.vsevezdehody.ru/menu-1-4.htm |
 |

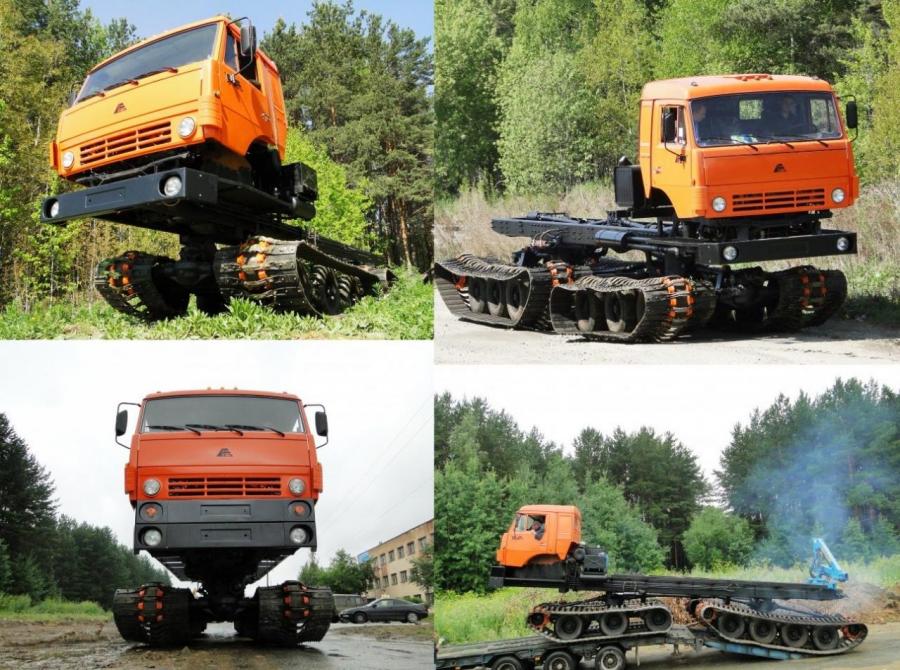

Ural TC cab over. http://ezsm66.ru/ site address given by industry peat : http://industry-peat.at.ua/news/5 |
  |

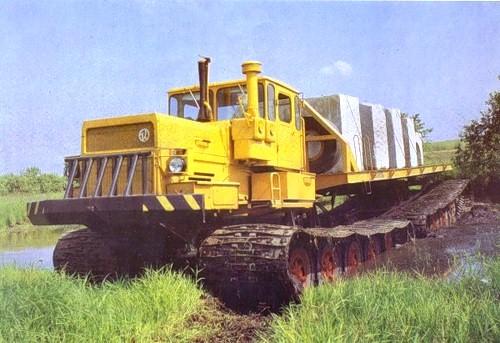

Tyumen BT-361A http://fotki.yandex.ru/users/alexpzkpfw6/view/439431/?page=35

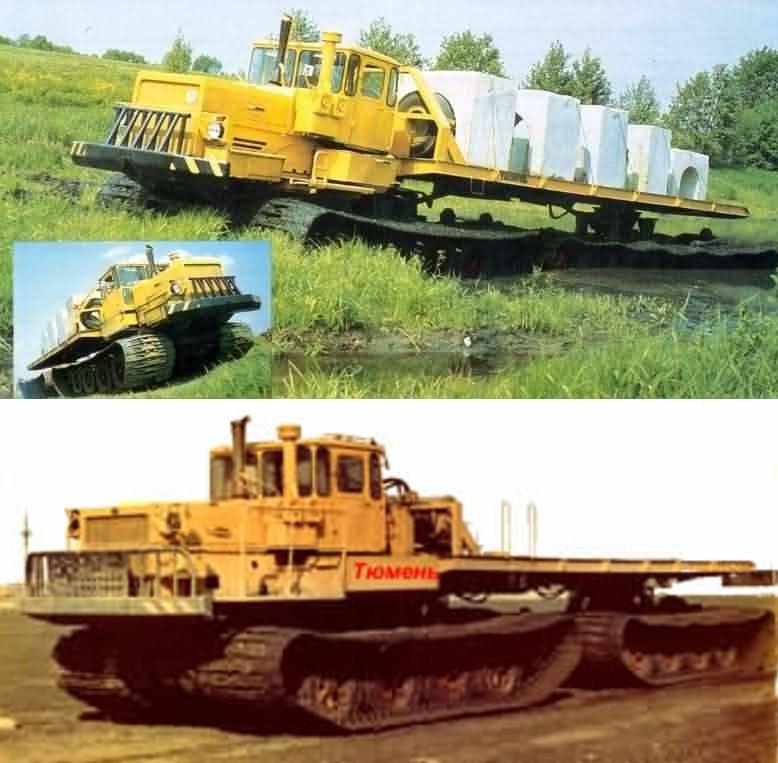

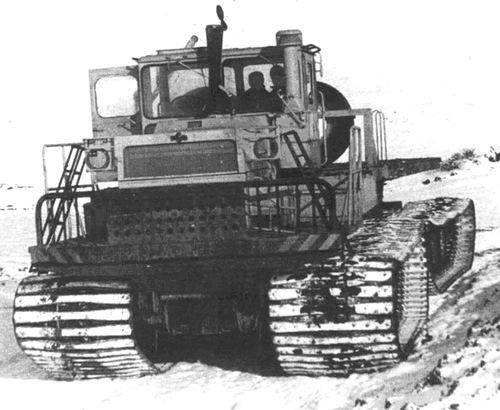

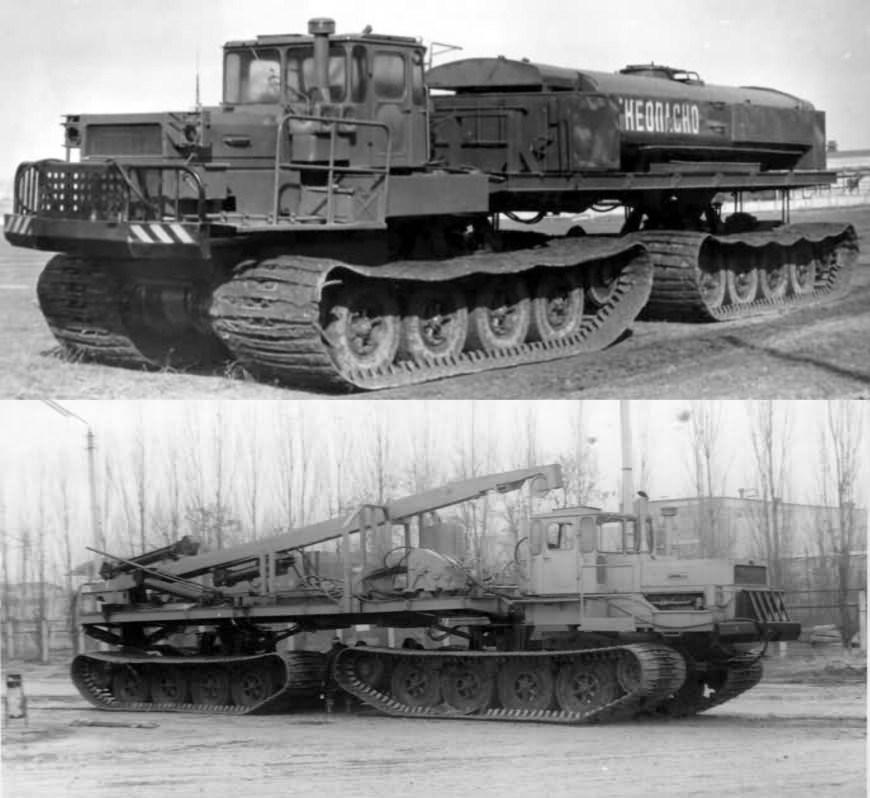

Tyumen BT 361 tracked vehicle built from 1982 at Kropotkinskii Mechanical Construction Plant at Tiumen. Payload 36 t, Total mass 42 t, length 17,3 m, wilderness 4,050 m, 200 hp, ground pressure 0,32 kg/cm². Pict from book of Alain Dupouy, Auto-éditeur : 'Tracteurs et Engins Spéciaux Chenillées Soviétiques’ Tome II'. 1986. |
 |

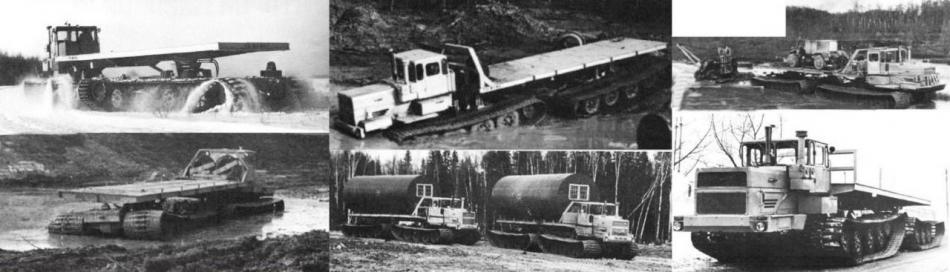

Tyumen BT361A from paper : Articulated wheeled and tracked vehicles by Alexei Stepanov http://vadimvswar.narod.ru/ALL_OUT/TiVOut0204/DzvVh/DzvVh001.htm
|
 |
Tyumen BT-361A from site : http://fotki.yandex.ru/users/alexpzkpfw6/view/322397?page= http://fotki.yandex.ru/tag/гусеничный трактор/ http://fotki.yandex.ru/users/alexpzkpfw6/?&p=9 |
 |

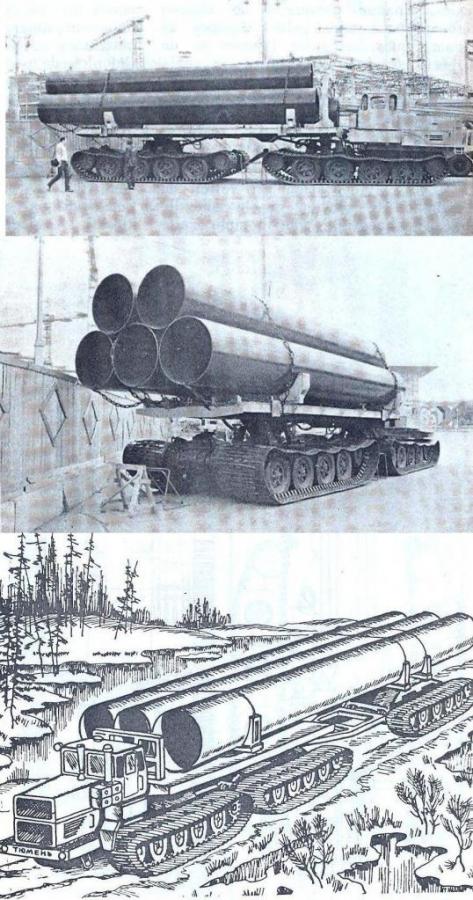

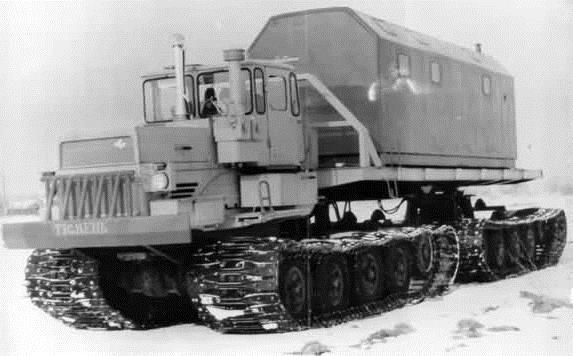

Tyumen BT 361, 1982. Pict of the book ‘Les Tracteurs et Engins Spéciaux Chenillés Soviétiques’, Tome II, by Alain Dupouy, Publisher A Dupouy, Grenoble, 1986. |
 |

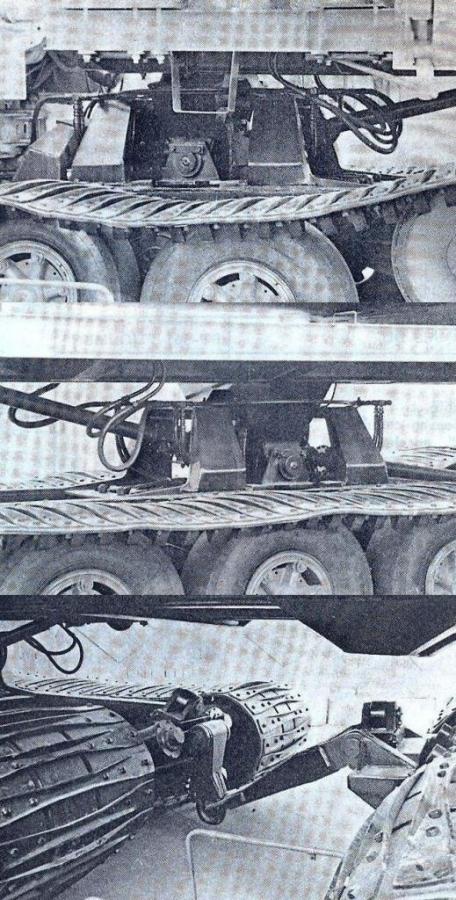

Tracks of Tyumen BT 361. Pict of the book ‘Les Tracteurs et Engins Spéciaux Chenillés Soviétiques’, Tome II, by Alain Dupouy, Publisher A Dupouy, Grenoble, 1986. |
 |
Tyumen BT 361 from www.kremz.narod.ru |
 |
Tyumen BT 361 |
 |
Tyumen BT 361http://ucrazy.ru/auto/1290016757-nastoyashhievnedorozhnikich4foremosthuskyi.html www.kremz.narod.ru |
 |

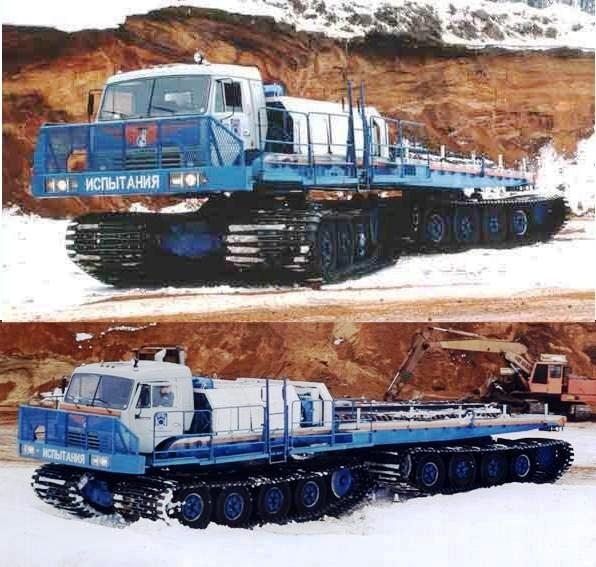

SHSG-401, 40 t capacity from Joint Stock Company Universalmash, subsidiary of JSC Kirov plant, St Petersburg http://www.universalmashinfo.ru/products/ http://www.ru.all.biz/en/g1037660/ |
 |

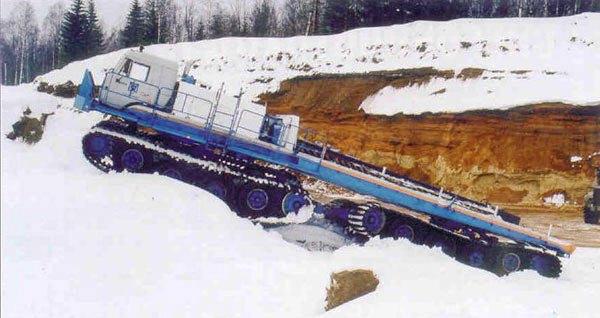

SHSG-401 four tracks vehicle from http://olbri2007.narod.ru/index/Text/Project/Carrier/Carrier60_e2.htm http://antal.spb.ru/universalmash/shsg-401.php http://51931.ru.all.biz/en/goods_welding-machines_904213 |
 |

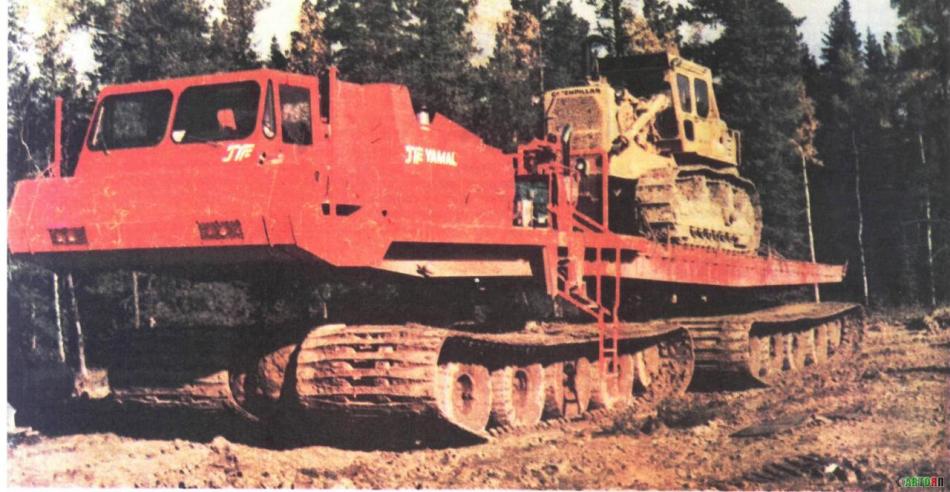

Tyumen tracked vehicle on www.autoyap.ru |
 |

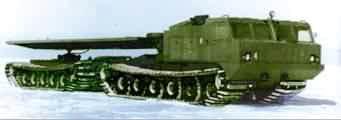

Four tracks from JSC Machine Building Company, Ishimbaï. www.rmz.ru |
  |

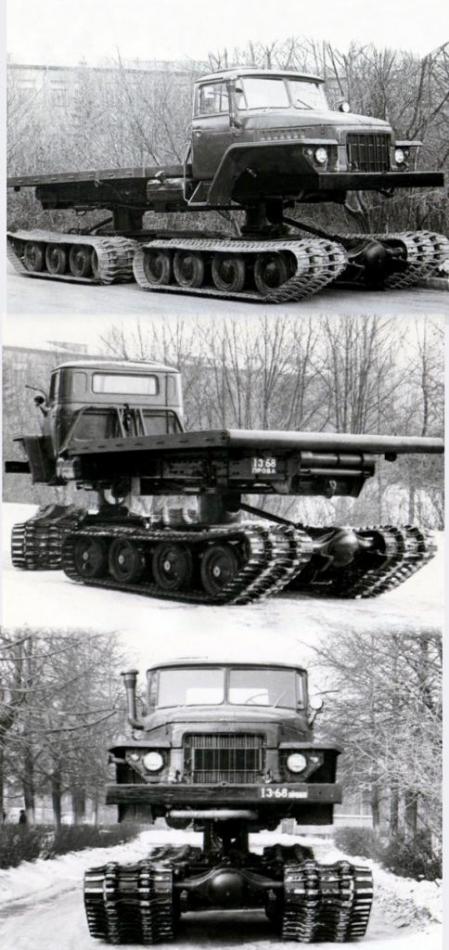

Nami-0157, 1973, which will be series produced under the name ZIL-5920. www.sovcarhistory.ruand : www.virtualmuseum.narod.ru/nami/

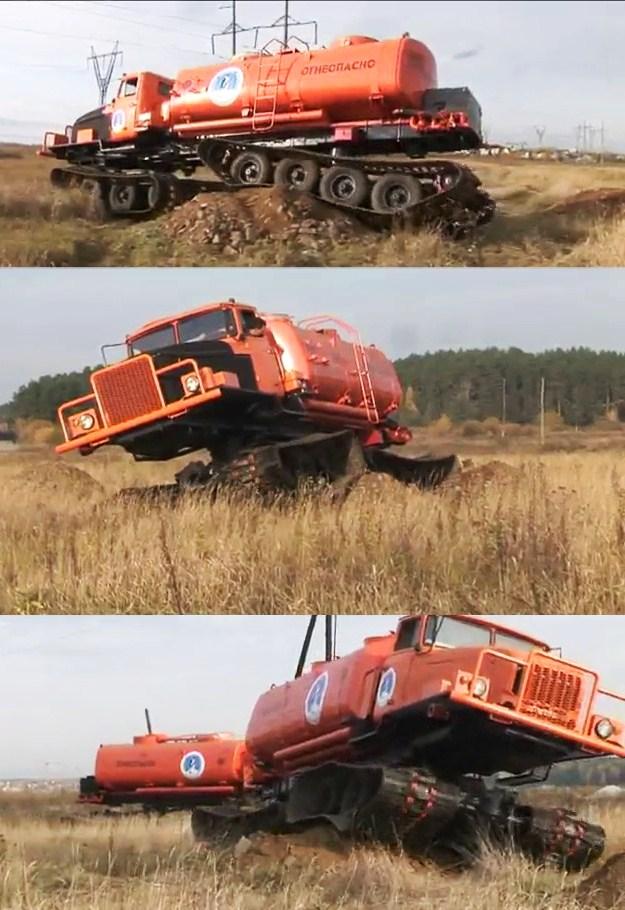

Ural 5920. See chap 'Changes around the track II'. Pict. from YouTube http://www.youtube.com/watch?v=_H-8o9Ke1kE
|
 |

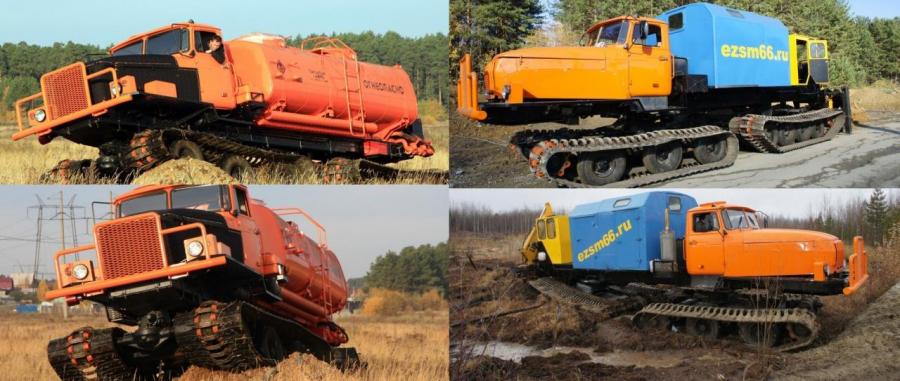

Ural 5920 manufactured at Yekaterinburg. http://ezsm66.ru/ site address given by industry peat : http://industry-peat.at.ua/news/5 |
 |
Ural 5920, http://www.youtube.com/watch?v=_H-8o9Ke1kE |
|
|

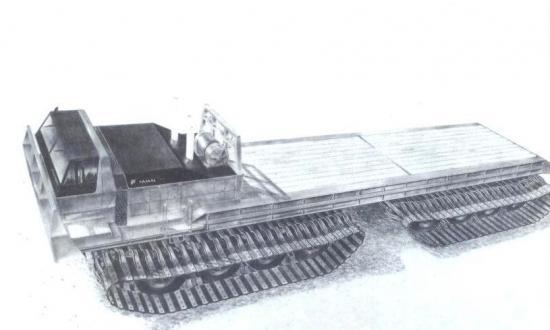

Foremost Project, 1985, of a huge four tracked transport. Very impressive ! J M M archives.
|
Foremost Husky 8
|
|

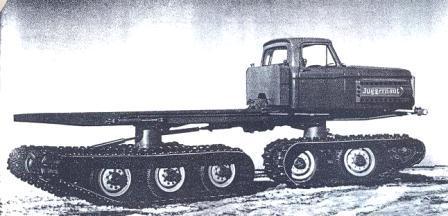

From Thiokol, Logan, Utah, the Juggernaut in the 60s was designed in fact by Nodwell, Calgary, Canada. J M M archives.
|
|
|

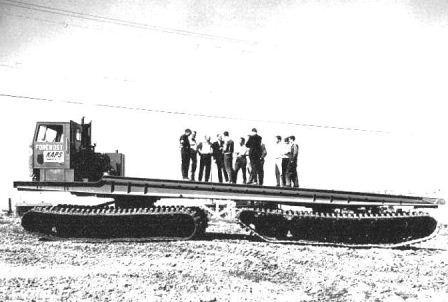

RN 400 of Nodwell about 1965, made also as Terraflex for Bombardier. This is a wagon-steer and not articulated tracked vehicle.
|
 |

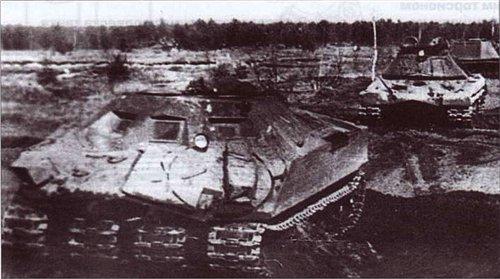

VN II-100 Transporter, 4 tracks proto, 1952 from Kirov plant, St Petersburg. 48 t, T 10 tracks, ground pressure 0,48 kg/cm². Tests of mobility and maneuverability in Great North were conclusive. It led to four tracks Obkiet 279 in 1959, which is now at Kubinka Museum. |
|
|

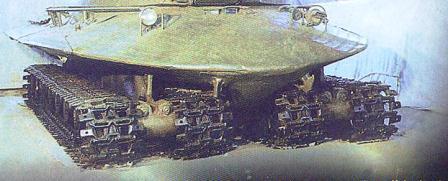

Four tracks tank Obiekt 279 in 1959 was very unusual since the vehicle had 4 tracks but a rigid chassis. Ground pressure lowered to allow move in swamps and snow. Some problems of reliability in final gears and the lack of space inside the vehicle dropped the project which is now exposed at the Kubinka museum near Moscow. |
 |
Welding station AEP-102 Chassis wheel-tracks. Tracks are 900 mm wide, hydromechanics transmission. http://www.universalmashinfo.ru/products/ |
 |

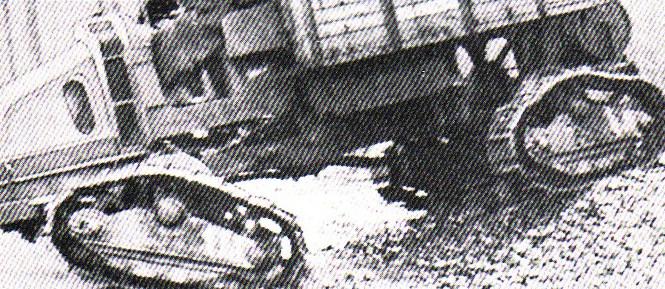

Latil TAR 4x4 with Chenille Delaye attachments, 1915. Pict from review 'Wheels and Tracks' N° 47, 1994. |
|
|

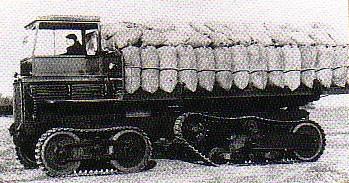

Vickers-Armstrong full track Truck Prototype during the 30s. The rear track is a positive-drive Kegresse type band. |
 |

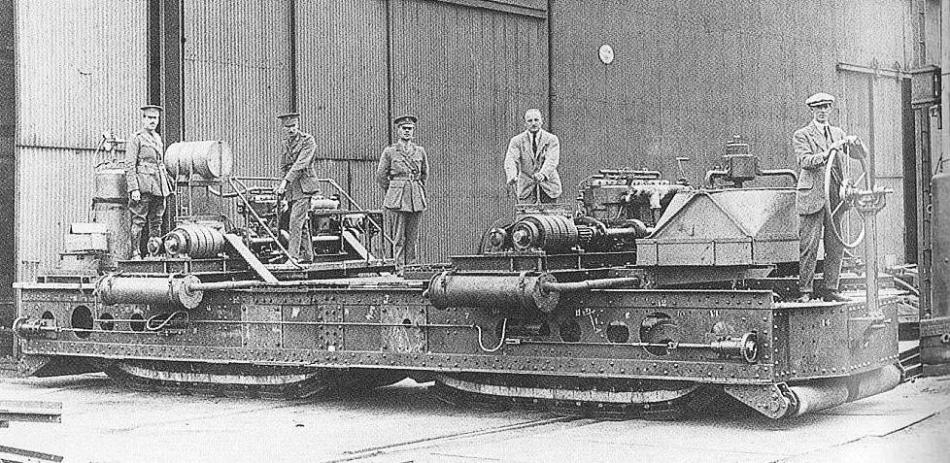

Pedrial Landship, 1915, with Diplock Tracks of Stothert and Pitt works, Bath, England. From the excellent site : http://www.practical machinist.com/vb/antique-machinery-history/ot-crawler-tractors-196276/index10.html |
 |

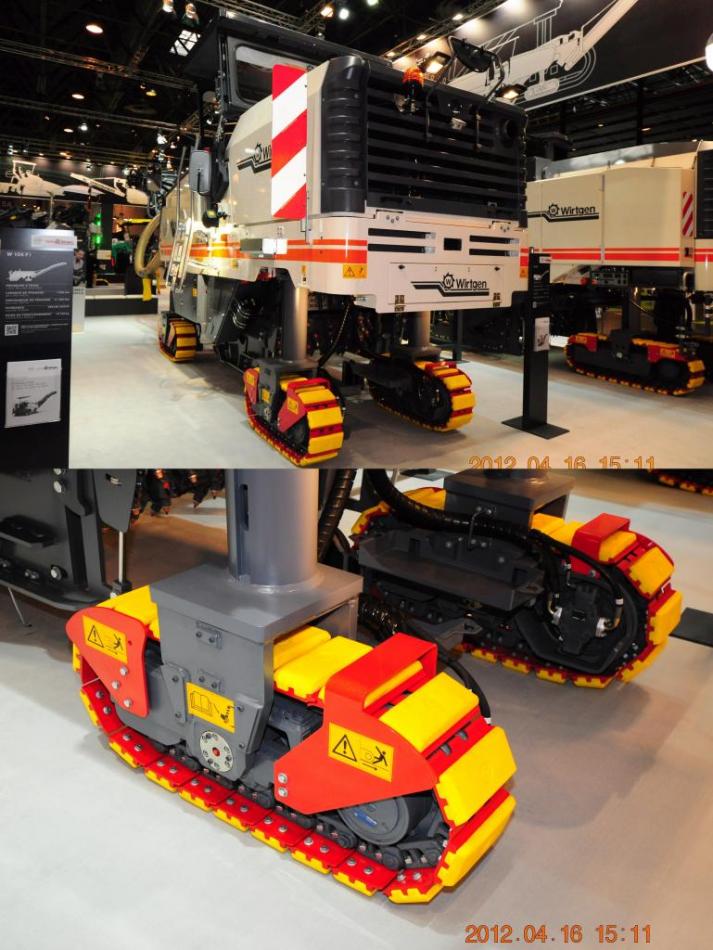

Cold Milling Wirtgen. Pict J M M at Intermat, Villepinte, 2012 04. |

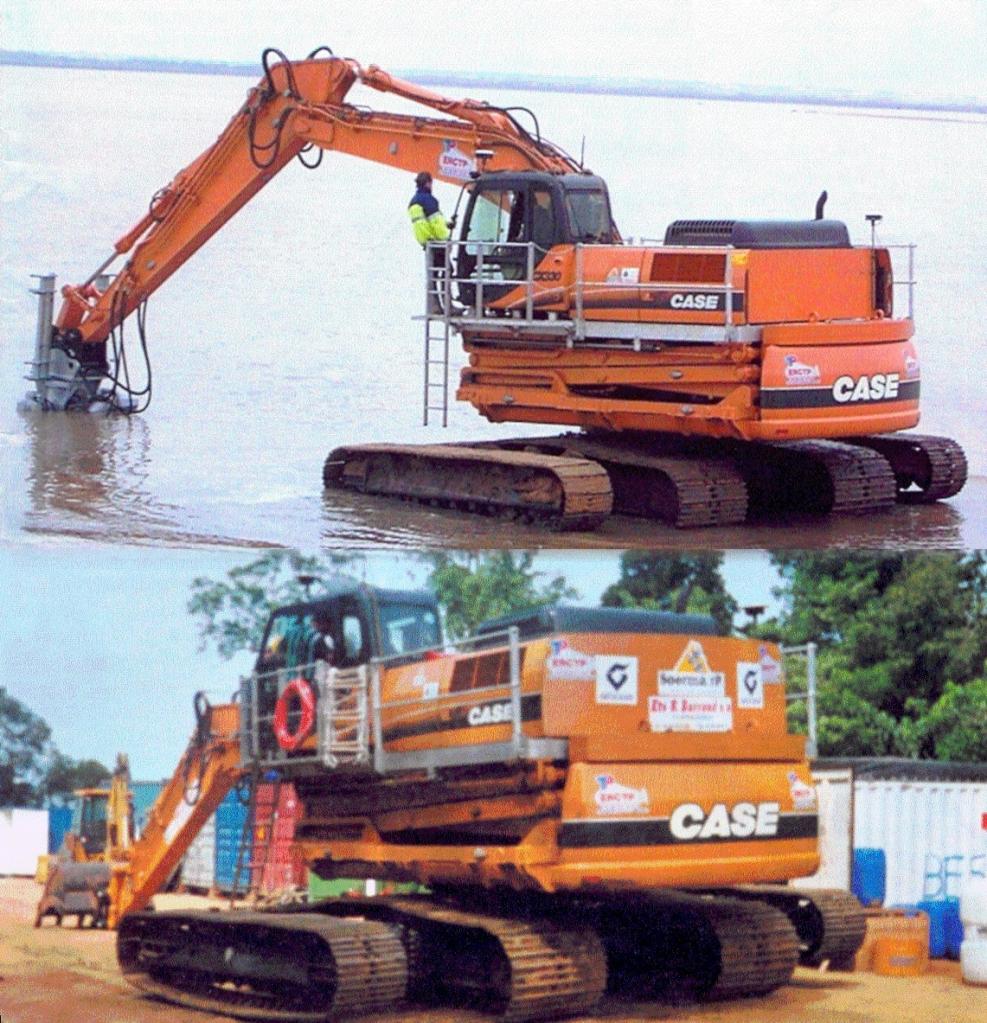

Case MAX CX 330 excavator early 2000. Additional tracks were added on both sides. Driver's cabin could be elevated above water, intended for a work in Cameroun. Pict from Ingo Business, May 2003.
Four tracks drawing of futuristic excavator from review IVT, 'Industrial Vehicle Technology', of Mach 1999. Tracks are mounted on arms.

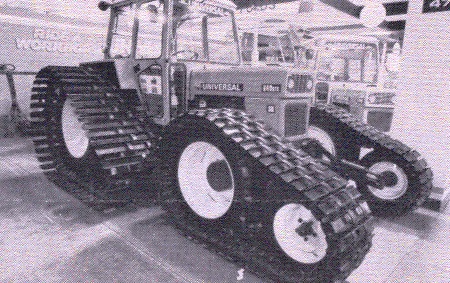

Half-tracks on Universal Tractors, 1982. Half-Tracks were from Lodo, Vercelli, Italy, pict. from 'Power Farming', 1983.
The Bruko Tracks from Grecav Group, Italy, are shown hereafter :
Grecav-tracks-h.pdf
  |

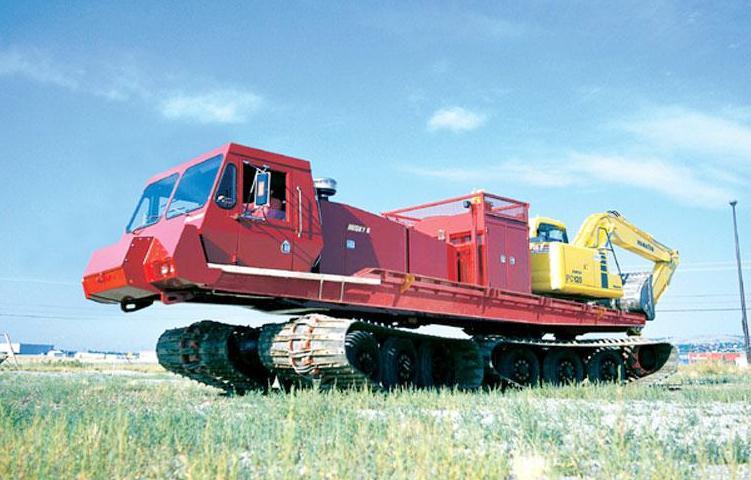

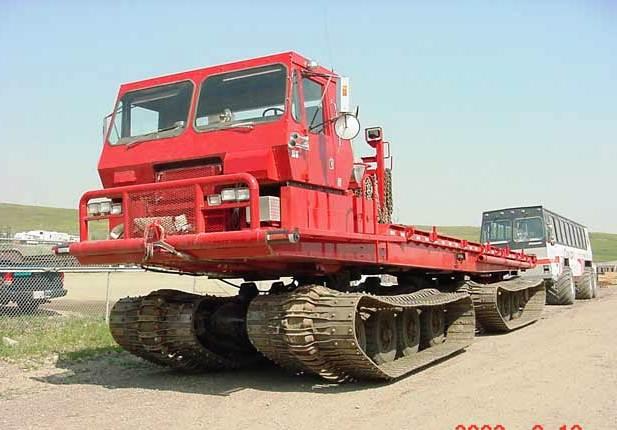

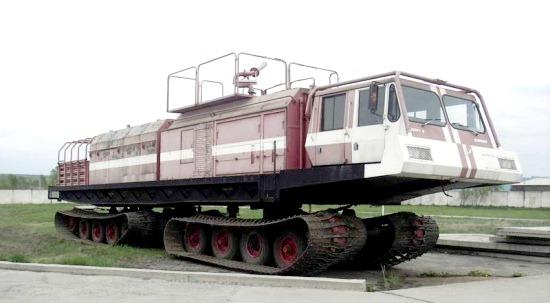

Husky 8 Foremost in 2003. Pict. from : www.foremost.ca
Husky 8 Foremost from www.crazys.info |
 |
Foremost Husky 8 |
 |

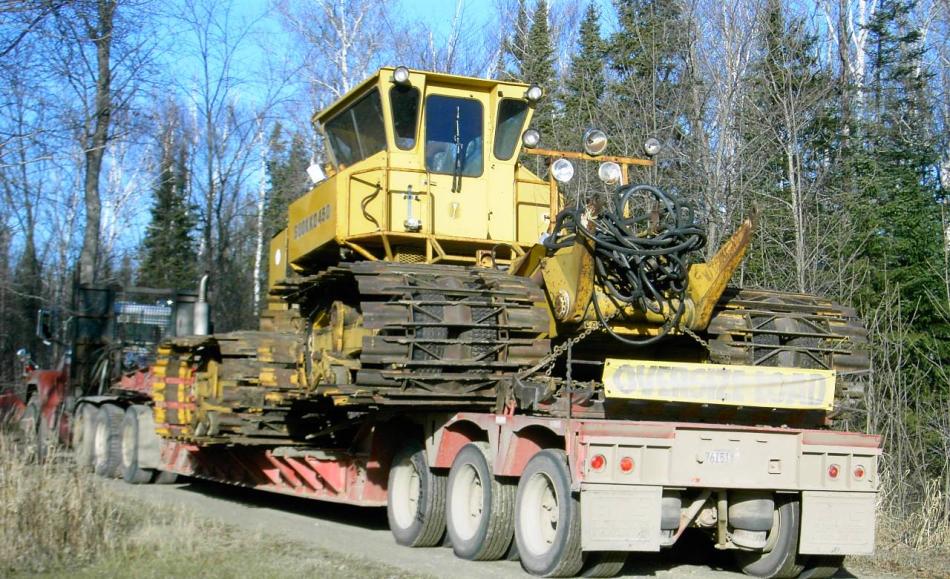

Forest Equipment from http://www.mn-outdoors.com/Misc.equipment.htm |
 |

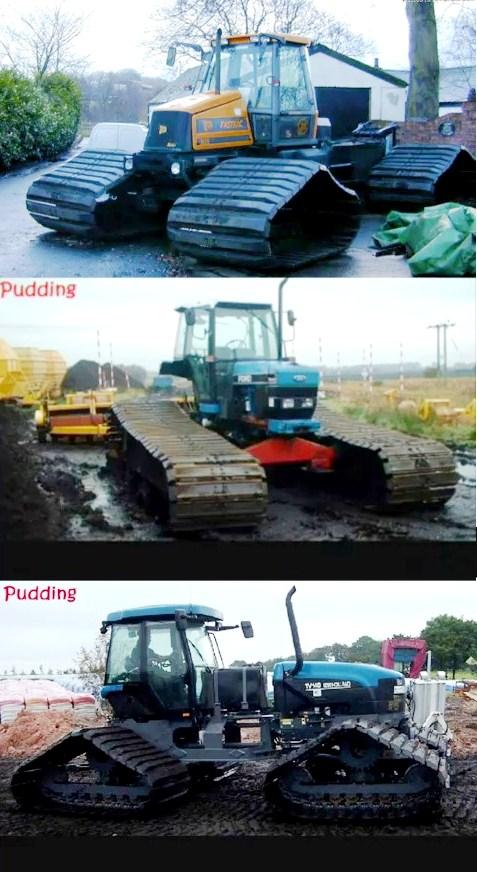

Tracks Ballintubber from Insolite tractors on YouTube |
