26 ARTICULATED TRACKED VEHICLES, LIGHT

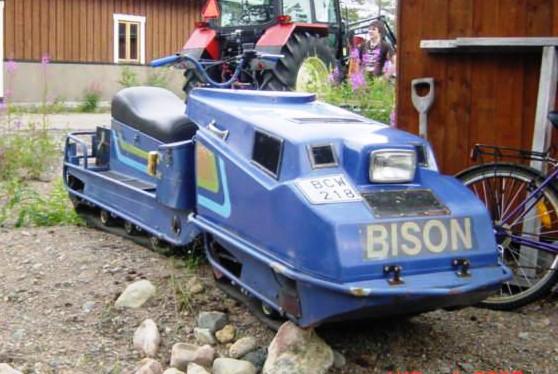

Myski snowmobile, 1981, from Finland seen on www.forumsforums.com. Picture was taken in 2007. See Chap 'Museum of Lusto in Finland : http://www.unusuallocomotion.com/pages/museums/museum-of-lusto-in-finland-forest-machinery.html

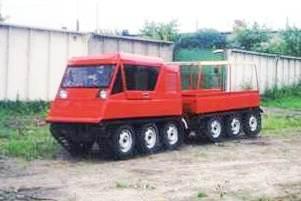

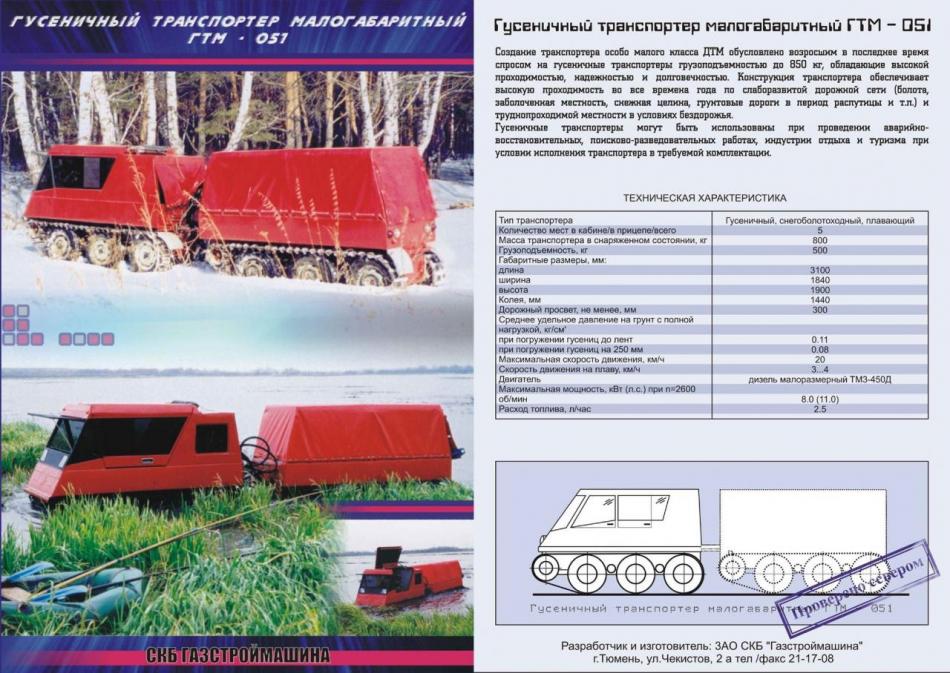

Gastroymashina TTM-051

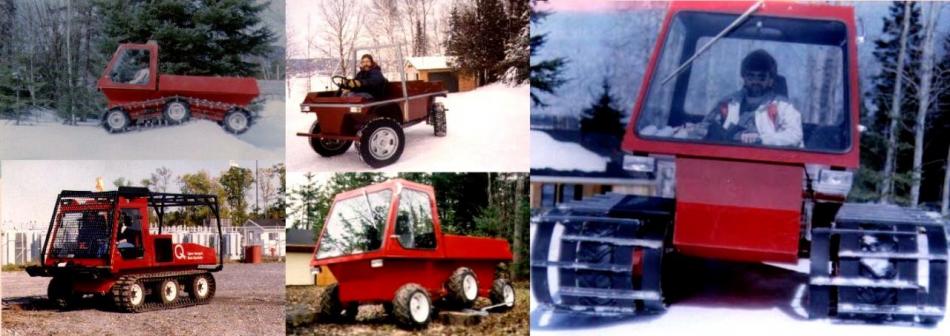

	ATV of Jean-Hugues Lagacé, Canada, built these off-road vehicles. One of them has independent suspension arms with 6 hydraulically driven wheels to follow the terrain. http://www.4-wheel-electric-scooter.com/the-designer.html

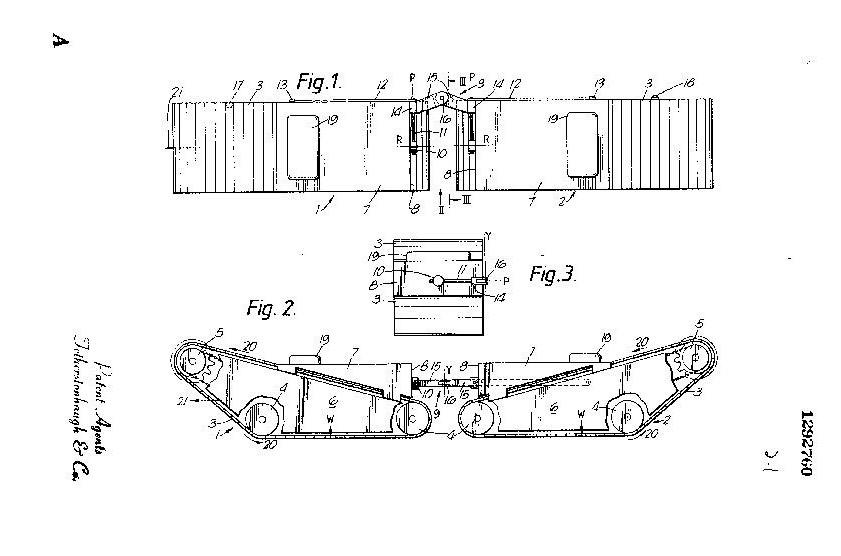

	1292760 Unmanned articulated vehicle, 1991, from Canadian patent, by Gibson and Rippingale, UK.

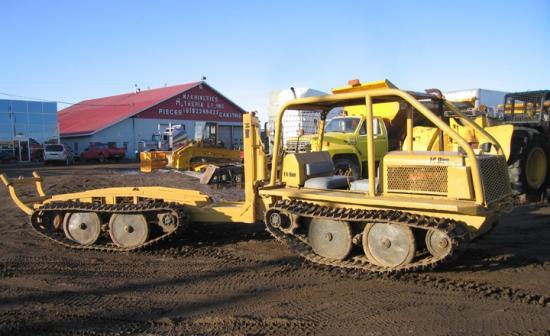

F4-Dion, forestry forwarder from Entreprises F4 Dion Inc., St Augustin De Desmaures, Québec. From the 80s, it is always built, on request. Company, headed by Fernand and Michel Dion, has 15 persons. Fitted with 166 hp engine and total mass of 8,7 t, it was sold in France in the early 80s by Cemet.

F4-Dion

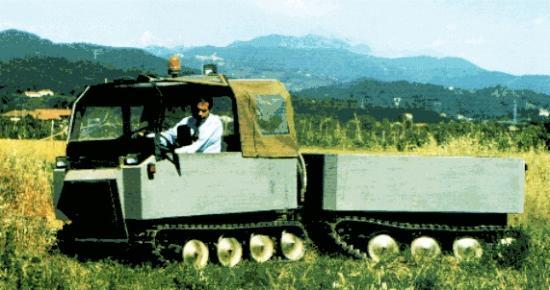

Climber amphibious articulated vehicle, hydrostatic transmission. Pict. from the interesting site : http://www.amphibiousvehicle

.net/frame.html

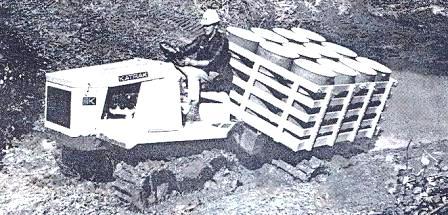

Katrak articulated vehicle of Portland, Oregon, in 1968. J M M archives.

Katrak.pdf

Katrak articulated vehicle.pdf

Katrak-1.pdf

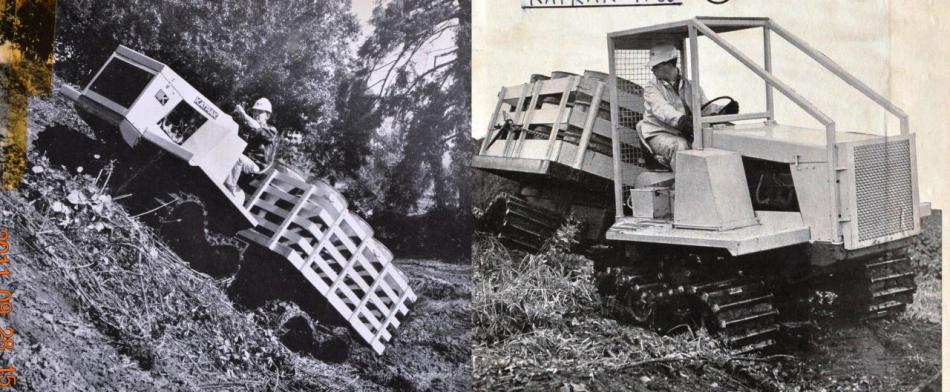

Katrak. F Pierre archives.

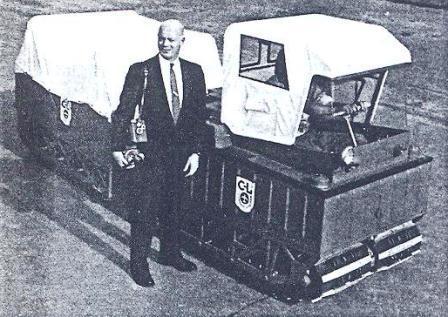

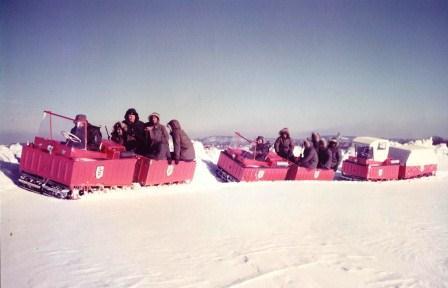

Jack Forbes and the RAT CL-70 of Canadair, 1956. It accompanied the RAT to make a photographic record of it carrying supplies between Wilkes Station and inland. Paddy Burke had been the project engineer. A total of 36 RAT were built. Pict J M M archives from Bombardier.

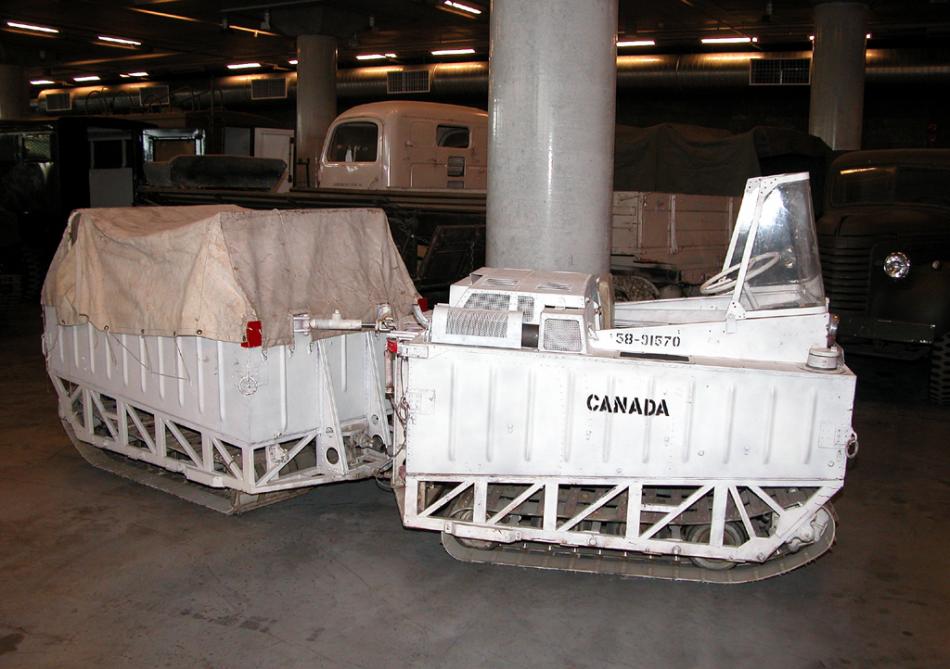

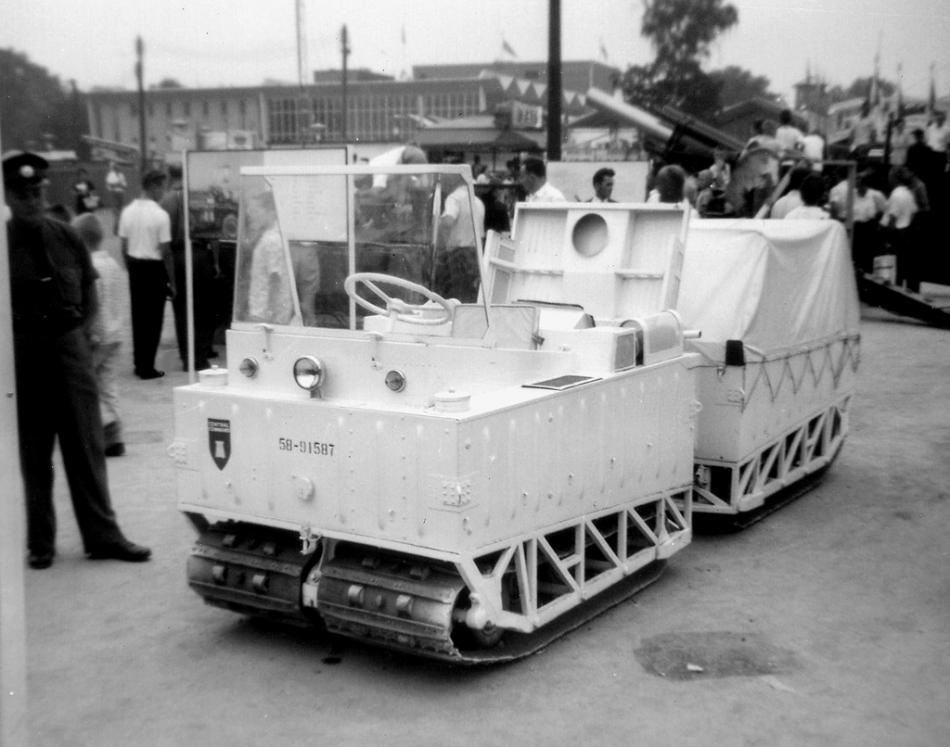

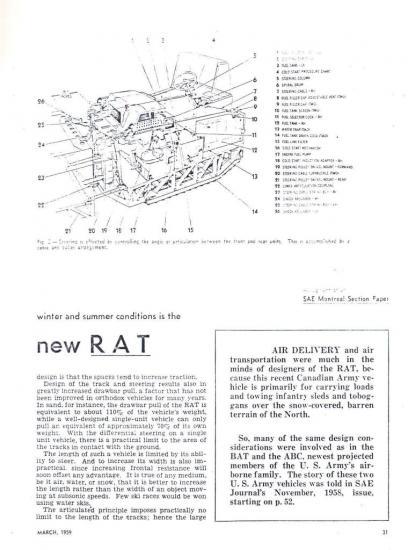

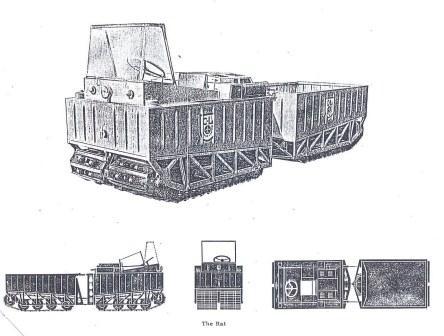

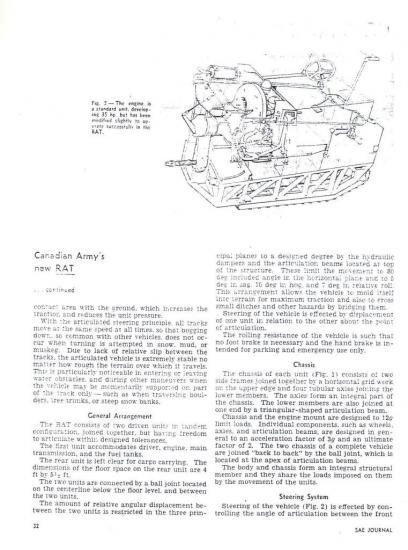

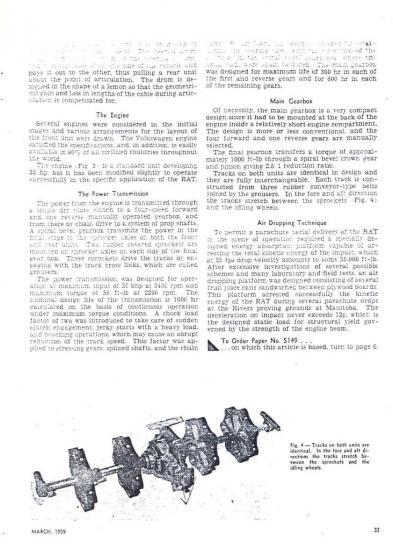

	Canadair RAT made in 1959 : this is the model CL 70, articulated amphibious over-snow vehicle with WW power train. Steering between sections was actuated by cables. There is a model at the Canadian Forces Base Military Museum at Borden, Ontario. See Chapter : 'Changes around the tracks I'. Pict J M M archives from Bombardier. Canadair RAT
	Canadair RAT
	Canadair RAT
	Canadair RAT
	Canadair RAT
	Canadair RAT from : www.CarDatabase.Net

Mouflon of Cinam moves on slopes, preserving soils, for forestry owner or contractor. A positive pitch control is provided. Today, Matrans Concept, Frontonas, continues to build little tractors and particularly this model. Engine 27 to 35 hp, mass 1500 kg. J M M archives.

Mouflon Cinam

Mouflon Cinam

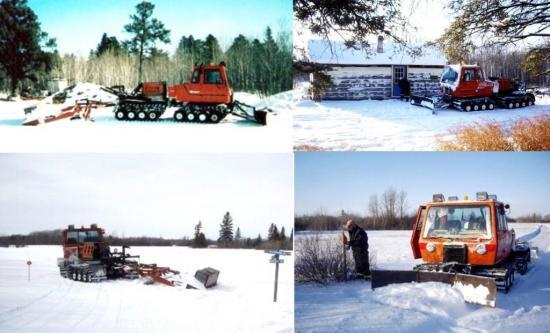

Quad track Groomer used until 2009 and pictured by Jay R.

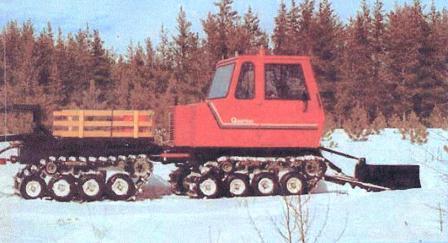

Quadtrac from PTE, Progressive Tool & Engineering, Mora, MN, in the 70s, for grooming. This Company always exists.

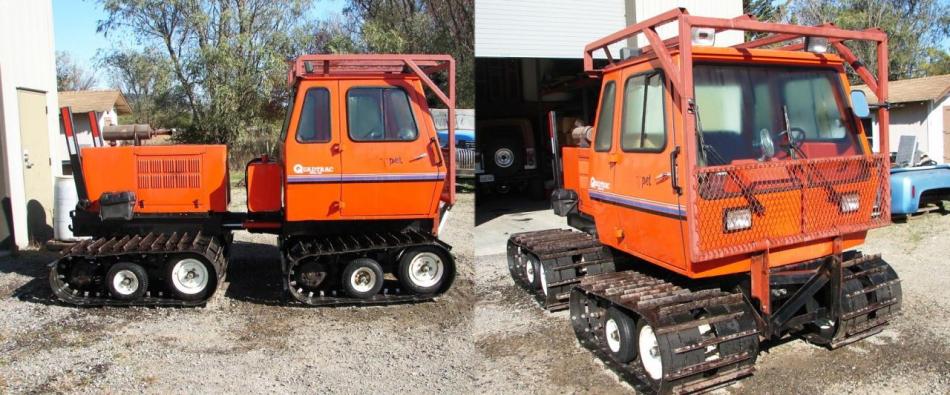

Quadtrac Snow-cat, 1989, from PTE, Progressive Tools and Engineering. http://www.spreadmyad.com/sacramento/vehicles/rvs/16543688-1989-quadtrac-snow-cat-north-of-downieville-ca-8000

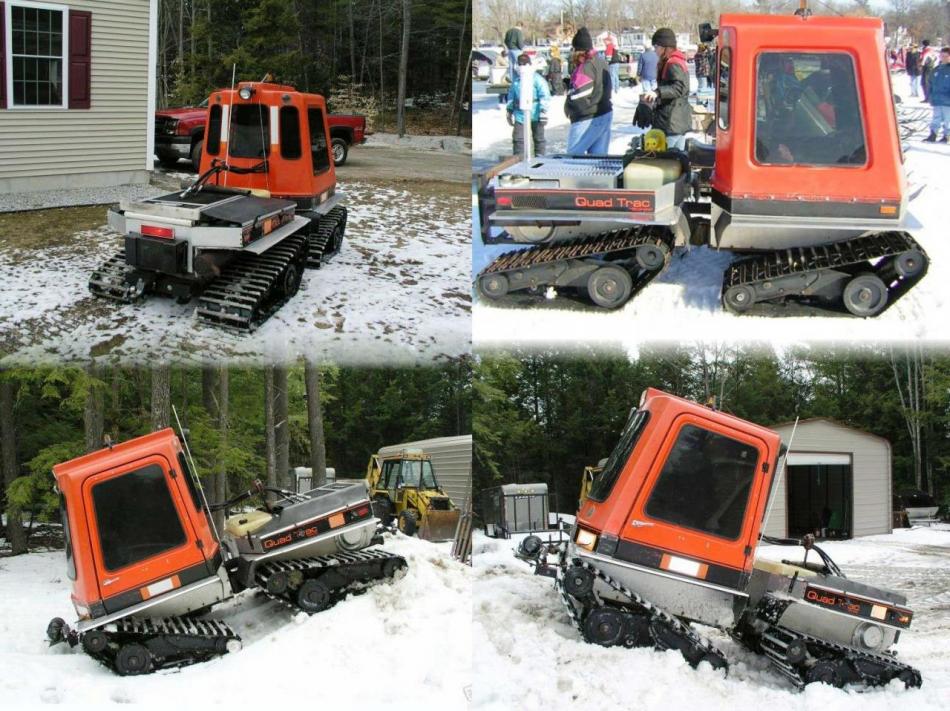

Quad-Trac from Arctic Entreprise, 1979, from http://www.bosscatlegacy.com/acproto/groomer/groomer.htm

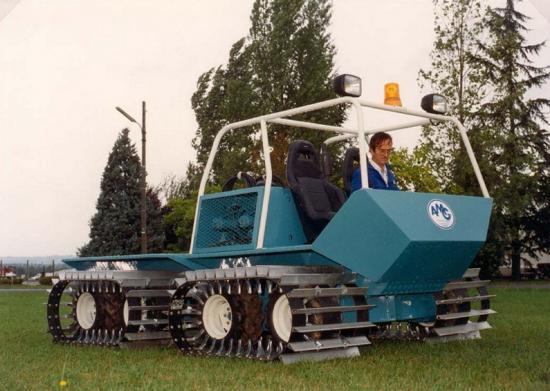

AMG Vahl HA 840 was in 1984 a 4 tracks articulated carrier for desert or mountains. It was articulated only in pitch. Engine Renault 144 hp, hydraulics motors in each font wheels, slope 100%, side slope 90%, payload 800 kg, front mass : 1000 kg, rear 600 kg. It could run without tracks, in option. A first proto was created for EDF by two engineers Alain Rossignol and Alain Desbons in Servau Company of Auch. AMG is now part of SERCEL (Compagnie Générale de Géophysique). J M M archives.

Vahl HA 840 of AMG

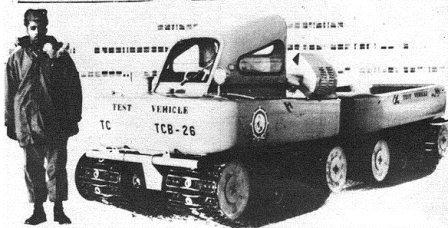

From WNRE Wilson Nuttall, Raimond, Engineers, Dinah prototype in 1961 was amphibious, payload 1/2 T. Engine was Panhard 42 hp, 3 road wheels, rubber torsion spring suspensions, rubber reinforced nylon tracks 0.5 m wide and steel grousers. Mass 1500 kg. http://www.jedsite.info/fulltrack-delta/delta/dinah_series/dinah-series.html

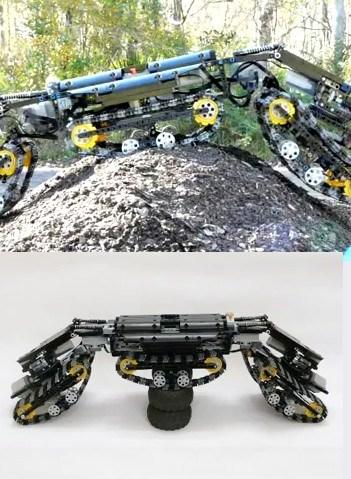

Trackinator in Lego on YouTube

RC Tamiya 4Tracked Crawler http://www.youtube.com/watch?v=QOLMCzuuA_4

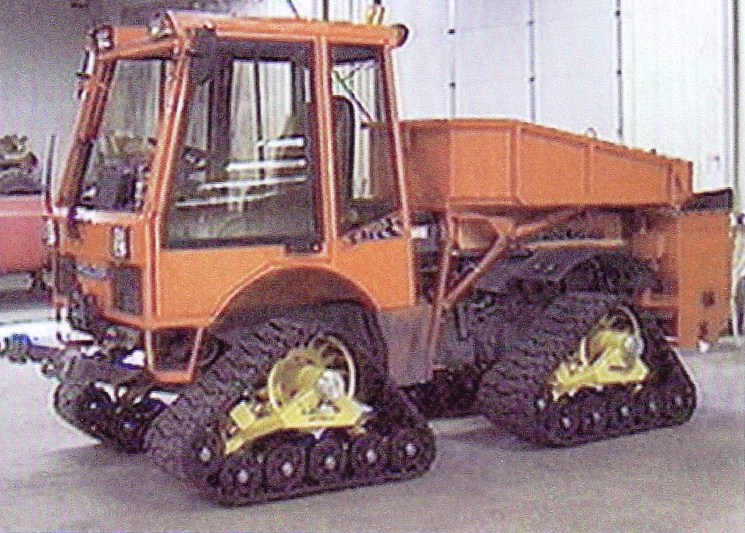

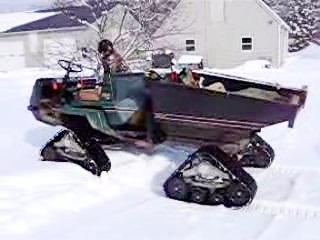

PUG with Mattracks tracks from YouTube : warren_maine_Millie

_solo_in_PUG_with_Mattracks

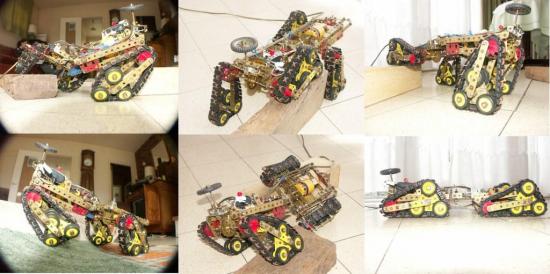

Articulated Model vehicle built with Meccano/Erector in 2004 by J M M.

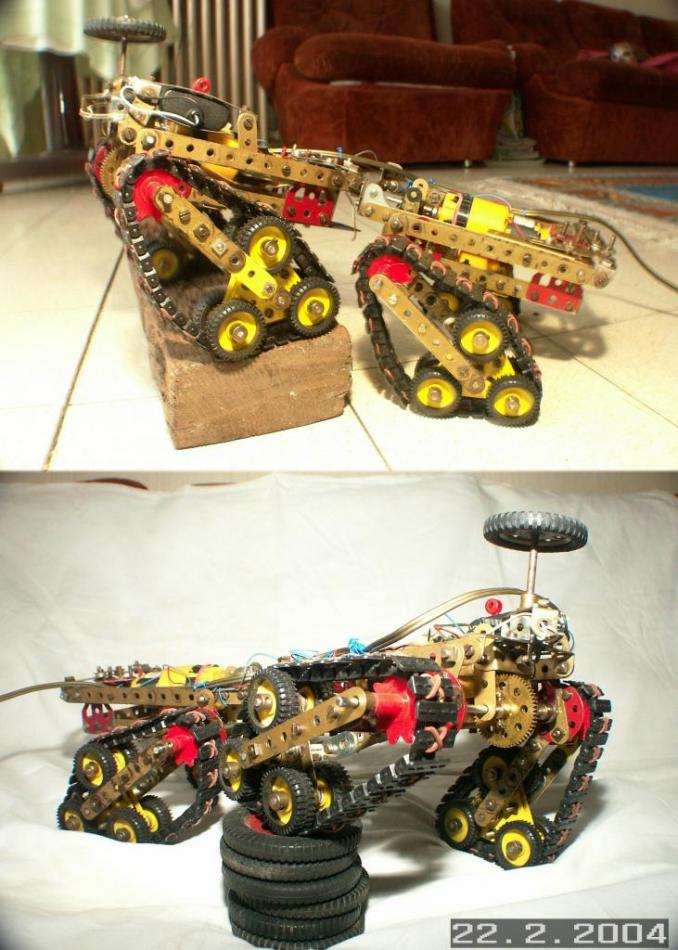

Four tracks Model by Meccano/Erector by J M M, 2004.

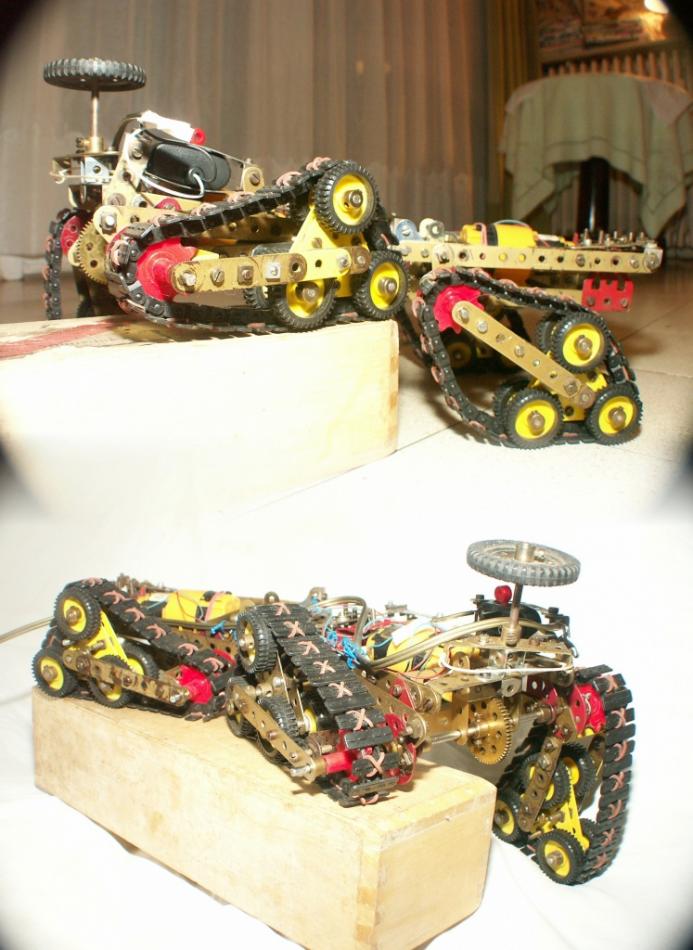

Meccano/Erector articulated 4 tracks Model from the author. Pict J M M , Paris, 2004.

.	Meccano-Erector tracked vehicle. Pict J M M, Paris, 2008 12.
	Meccano-Erector tracked vehicle moving down. Pict J M M, Paris, 2008 12.

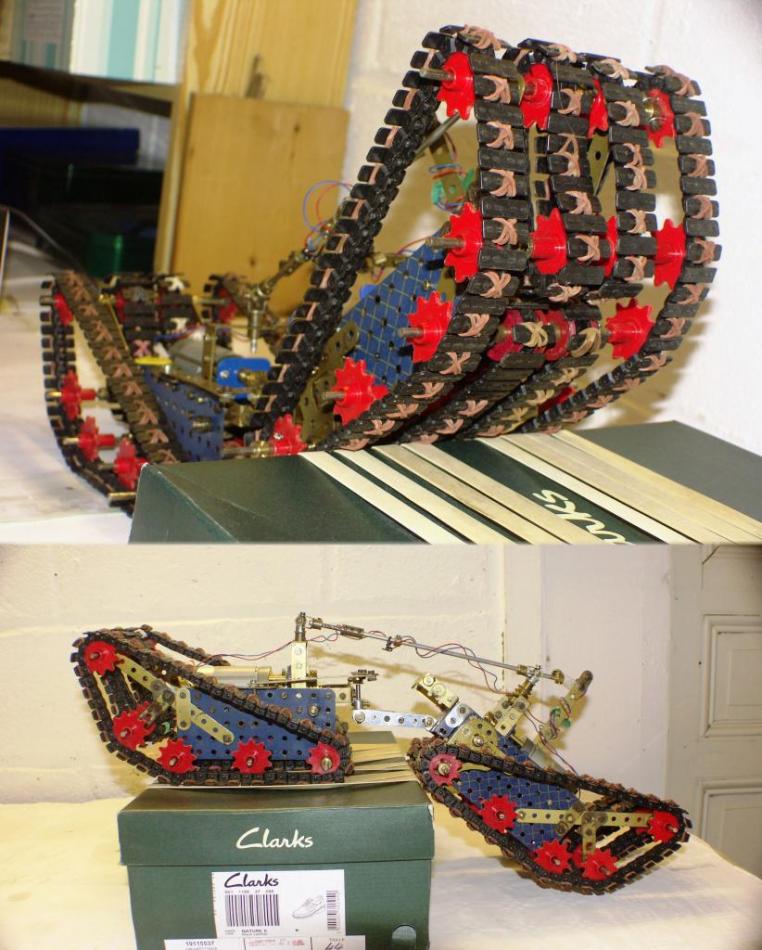

	Meccano-Erector articulated tracked vehicle. Pict J M M, Paris, 2008 12.

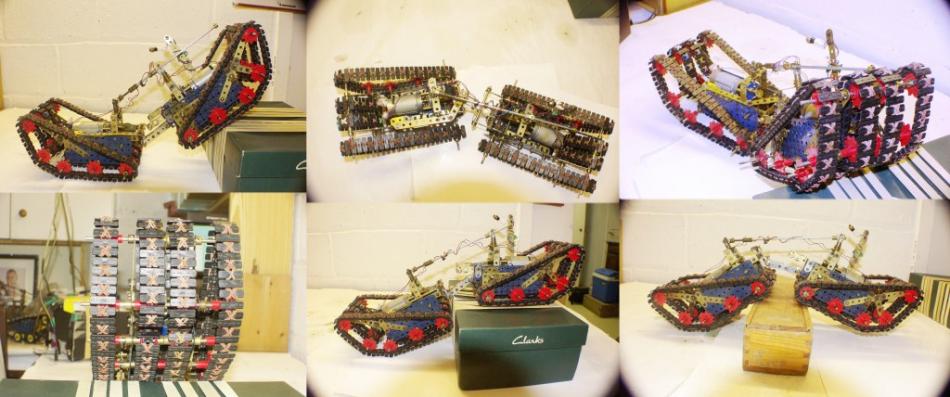

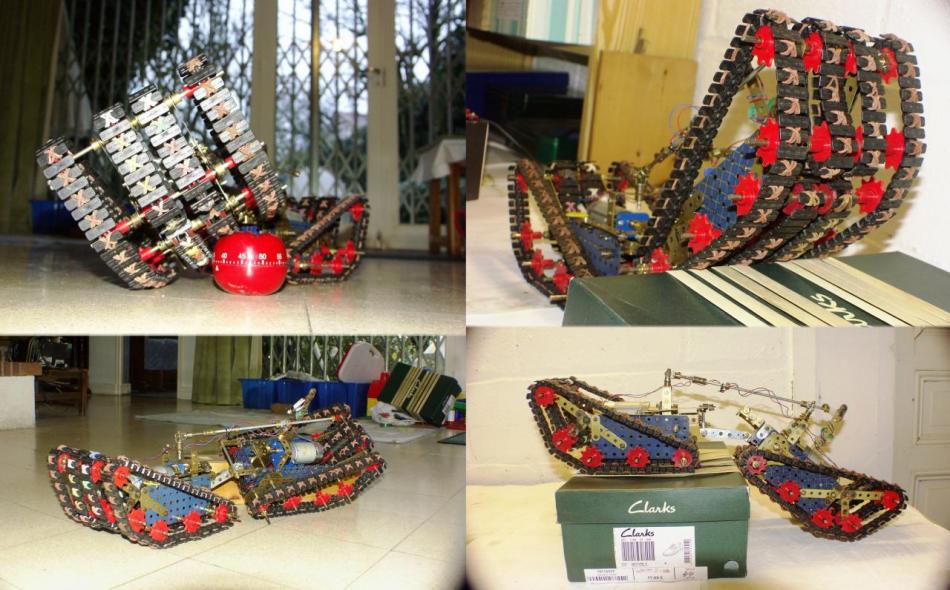

	Meccano-Erector articulated tracked vehicle. Built by the author. The belly is tracked. Pict J M M, Paris, 2008.
