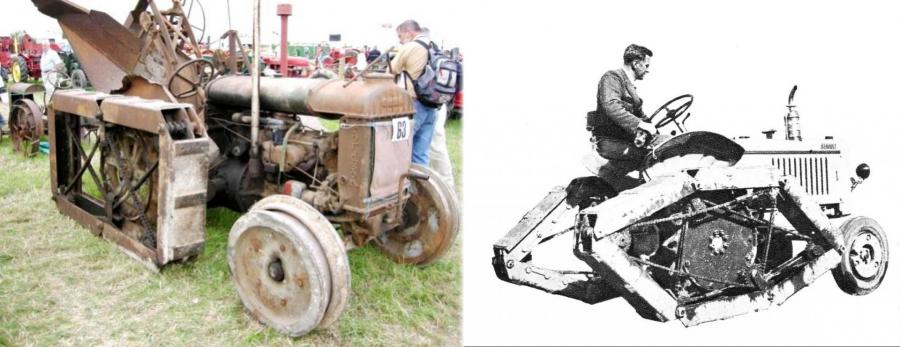

Rotaped on Ford and Renault tractors. The first conversion was on the Ford and Renault marketed the Rotaped in the 50s. From Reuben Hoggett of www.cybernetizoo.com.

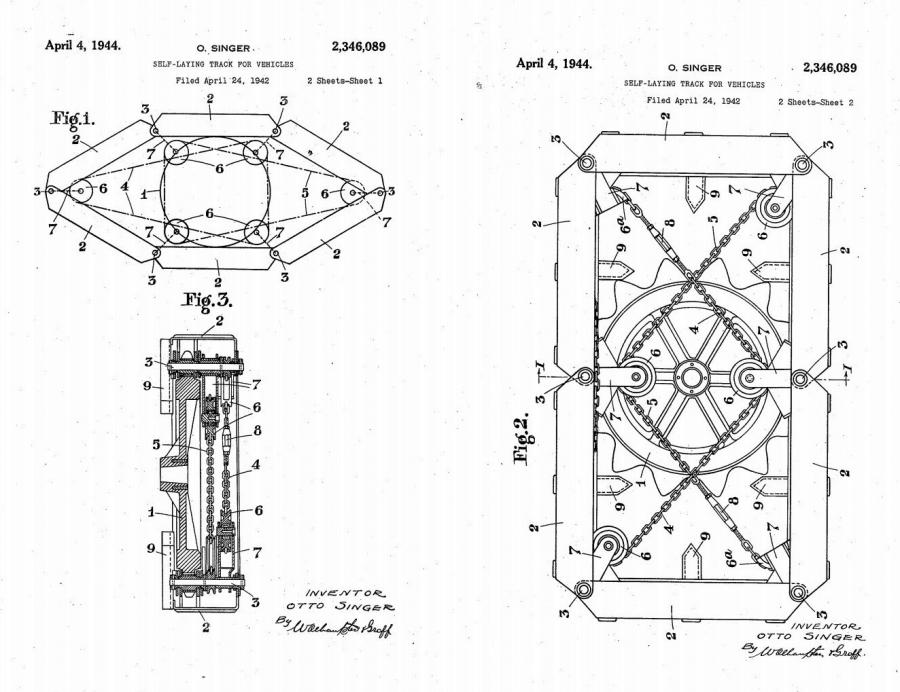

Rotaped patent, 1944, by Otto Singer, GB. From Reuben Hoggett of www.cybernetizoo.com        See also the Chapter : 'Pictures of the Author IV'

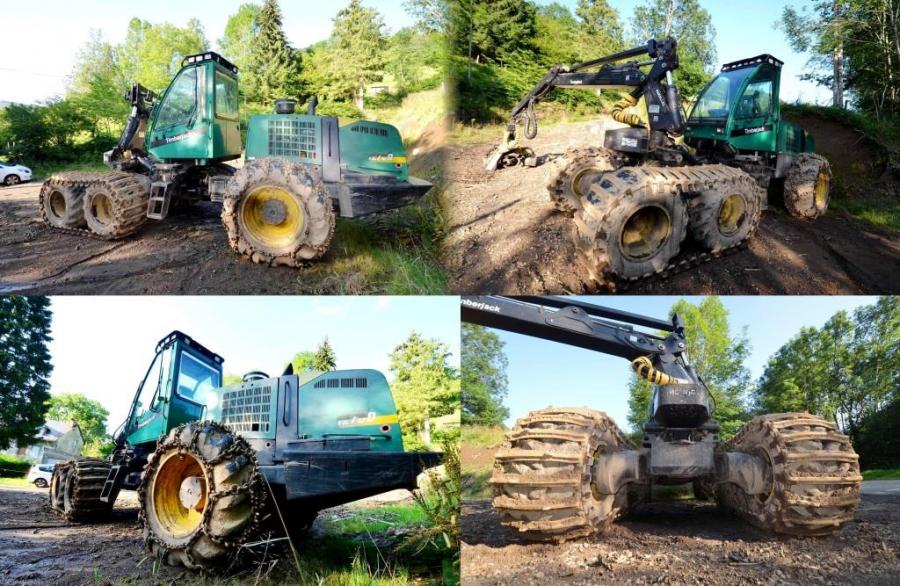

Timberjack Harvester. J M M in Cantal, France, 2014 07

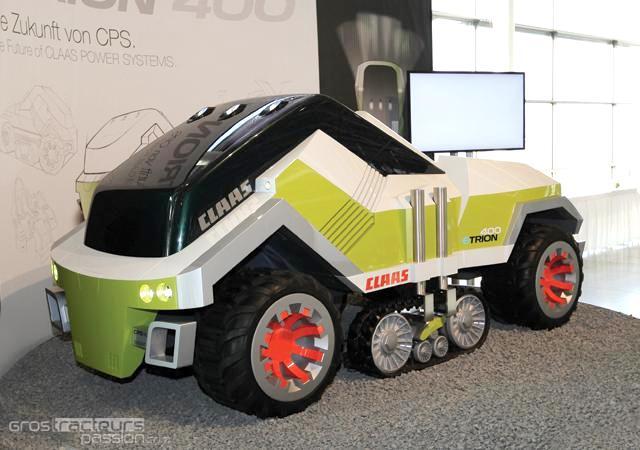

Claas Etrion 400, 2011, electric concept, 400 hp. With such power and wheels not very large, it is equipped with retractable Terra-Tracks. http://www.grostracteurs

passion.com/Actu/Le-futur-selon-le-concept-1123.html

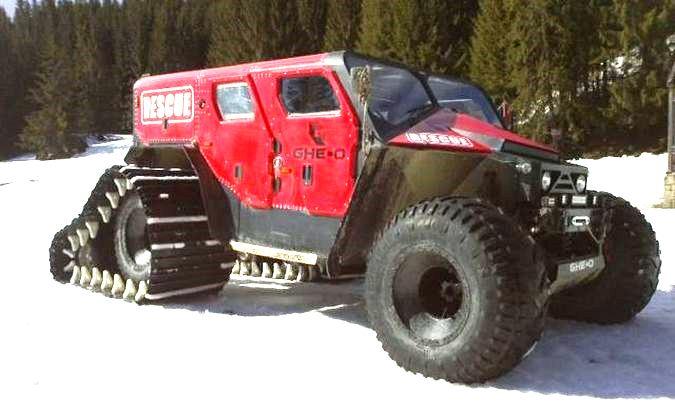

Ghe-o-Motors Rescue Vehicle with rear tracks, from Romania.                 http://coolpile.com/rides-magazine/ghe-o-motors-rescue-ultimate-utilitarian-vehicle-extreme-weather-terrain

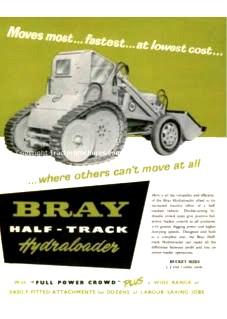

Bray Half-track Roadless Hydraloader in the 60s. http://www.tractor

brochures.com/update.html

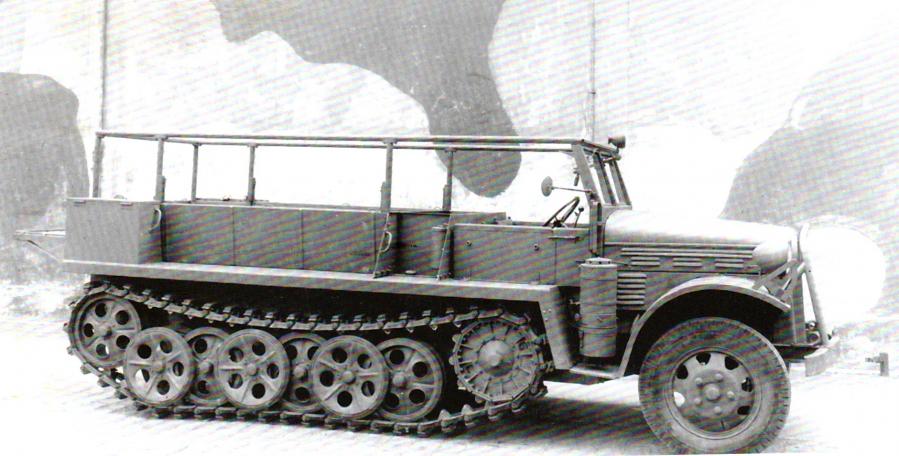

Volvo HBT (HalvBandTraktor, halftrack) Artilleritraktor m/43, built from 1942 to 1946 at 108 copies and remained in service until 1956. It was in fact a Swedish built Demag D7 (Sd.Kfz.10). Picture from the book : Volvo of Jean Christer Olsson, Bookwell, Finland, 2010.

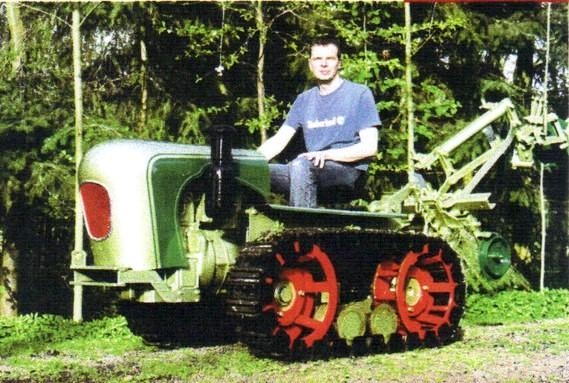

Blank tractor V228-230-232, 1965, of Karl Blank K.G., Dirmstein, Germany                    http://mototracteurs.

forumactif.com/t37346-quel-est-ce-modele-de-chenillard

Blank tractor 1965 (108.36 Ko)

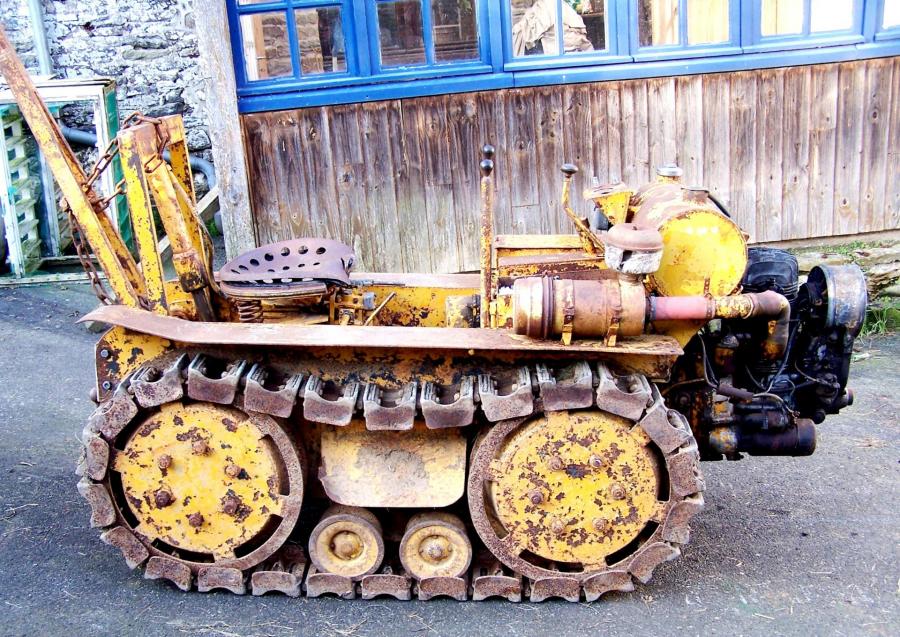

Le Vini Tractor, from Ets Antoine Blanc, Agde, 1950.                                    http://vieilles-soupapes.grafbb.com/t23051-docs-staub-lunic-motorise-jlo660

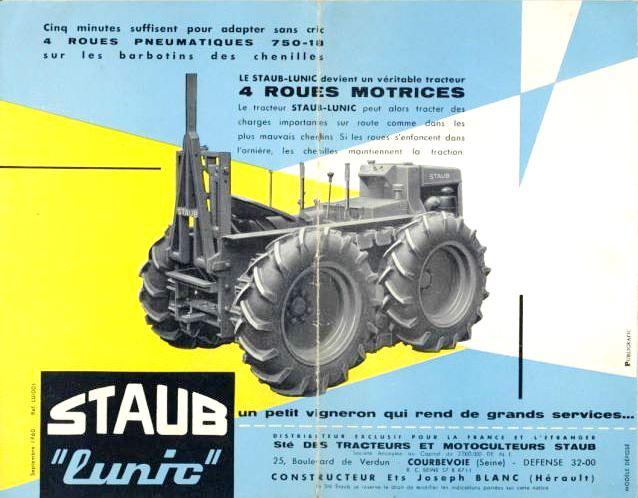

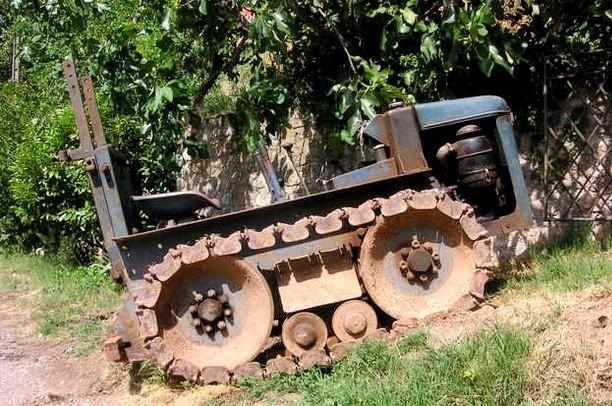

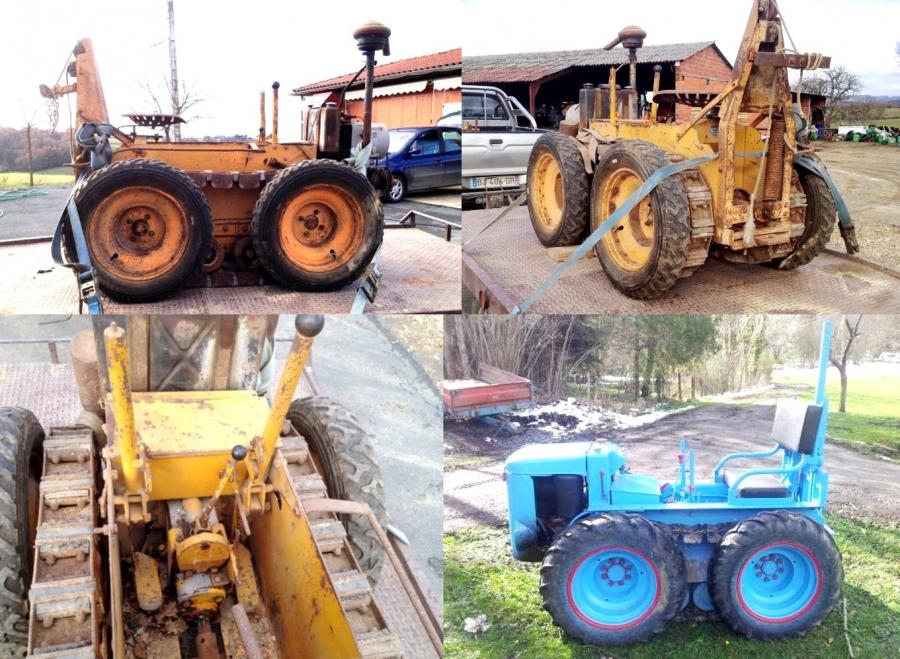

Staub Lunic, 1961. It was fitted with tracks and also wheels for moving on roads. It became a 4x4. Even in mud, when wheels dug, tracks prevented to bog down.                     http://mototracteurs.

forumactif.com/t37346-quel-est-ce-modele-de-chenillard                               http://vieilles-soupapes.grafbb.com/t29330-bonjour-je-me-presentedesigner-retraite-amateur-de-staub-lunic

Staub Lunic, 1961, built at Lunel, Hérault, by Joseph Blanc. It was issued from Unirag from Germany, then Blank, and from Staub, Courbevoie.                                  http://vieilles-soupapes.grafbb.com/

t23051-docs-staub-lunic-motorise-jlo660

Staub Lunic 1961 without its wheels.         http://tracteurdevigne.

jimdo.com/tracteur-lunic/

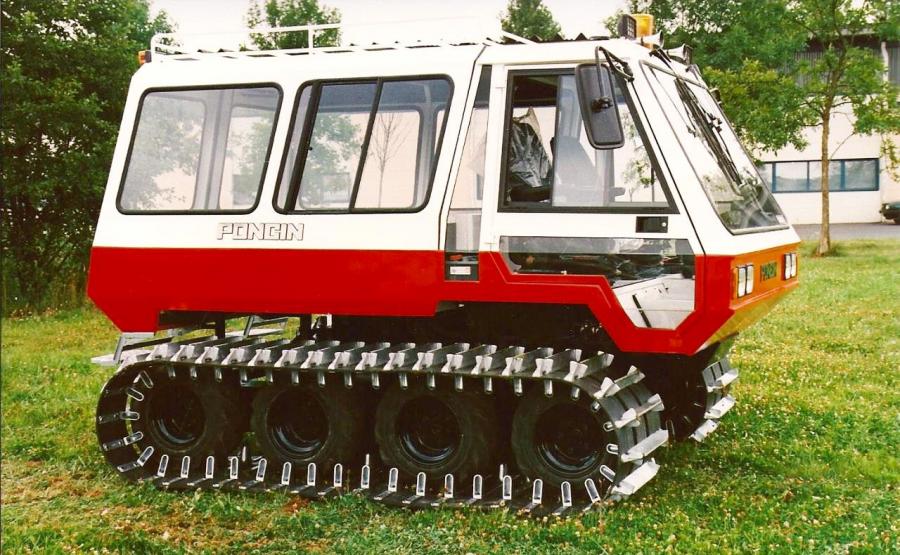

Poncin minibus for snow. Nice !                  http://vehiculesponcin.e-monsite.com/

Panther tractor, 1948.      http://www.tractor

brochures.com/update.html

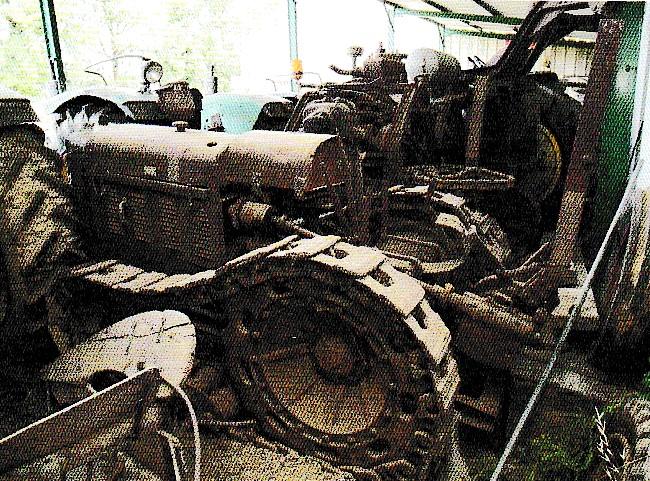

Tracked tractor to restore of Claude Gayraud collection. Pict from the review 'Tracteur Retro' sept-oct 2014.

Tracked toys from former East Germany  in the 60s.  httpwww.ebay.deitmlike17

1364956217clk_rvr_id=

657400836420&item=

171364956217&lgeo=1&vectorid=229487

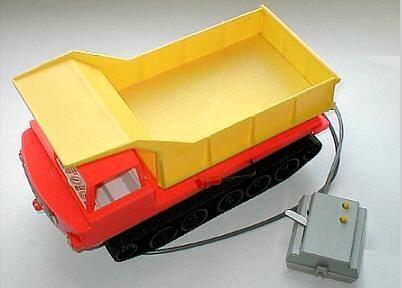

Mars dumper Piko              http://sammlerportal.de.tl/<font-face=Comic-Sans-MS-size=2-color=00B233><b>Mars-Muldenkipper<-s-b><-s-font>.htm

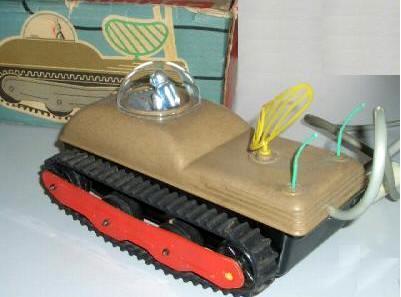

Omega of MS Weimar                  http://sammlerportal.de.tl/%3Cfont-face=Comic-Sans-MS-size=2-color=99B200%3E%3Cb%3EOmega-Raupe%3C-s-b%3E%3C-s-font%3E.htm

OVP of MS Weimar                 http://sammlerportal.de.tl/%3Cfont-face=Comic-Sans-MS-size=2-color=99B200%3E%3Cb%3EOmega-Raupe%3C-s-b%3E%3C-s-font%3E.htm

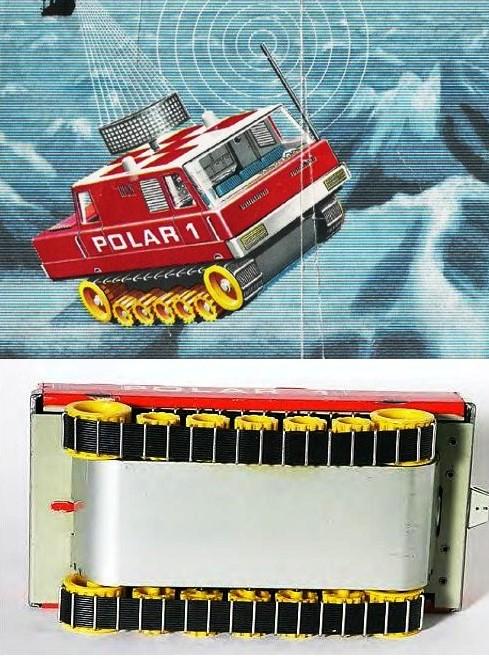

Polar 1 MS 3024 of MS Brandeburg.     http://sammlerportal.de.tl/%3Cfont-face%3DComic-Sans-MS-size%3D2-color%3D66B200%3E%3Cb%3EPOLAR-1---MS-3024%3C-s-b%3E%3C-s-font%3E.htm

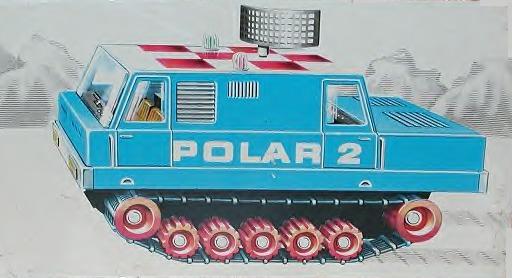

Polar 2 MS 3025 of MS Brandeburg, from former East Germany.       http://sammlerportal.de.tl/%3Cfont-face%3DComic-Sans-MS-size%3D2-color%3D66B200%3E%3Cb%3EPOLAR-2---MS-3025%3C-s-b%3E%3C-s-font%3E.htm

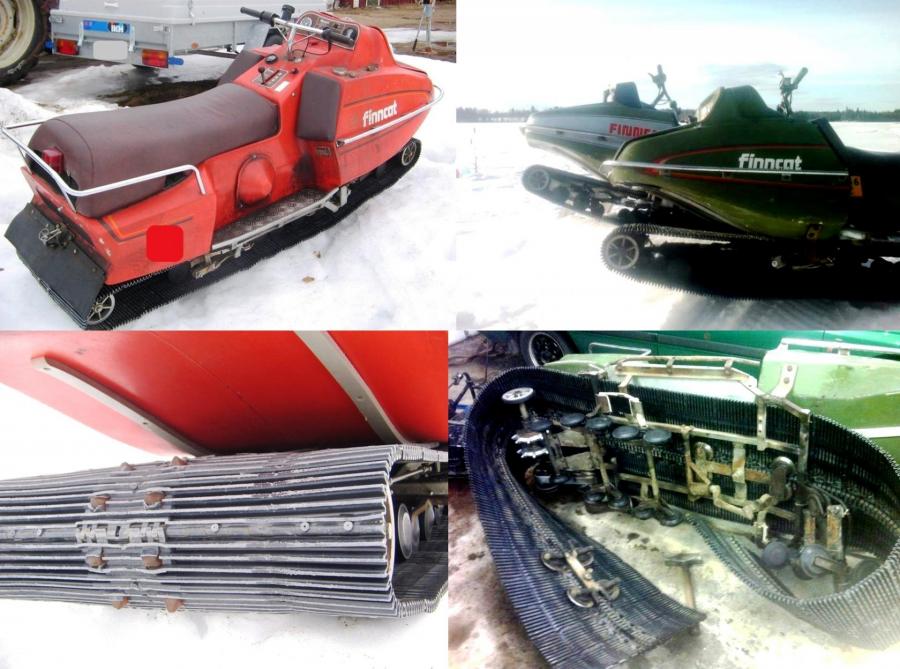

Finncat with bending tracks Finland.

http://translate.google.fr/translate?

hl=fr&sl=fi&u=http://kelkkalehti.

com/keskustelu/

index.php%3F

topic%3D59250.15&prev=/

search%3Fq%3Dhttp://

kelkkalehti.com/keskustelu/index.

php%253Ftopic%253D

59250.15%26client%3Dfirefox-a%26hs%3DPUJ%

26rls%3Dorg.

mozilla:fr:official%

26channel%3Dsb

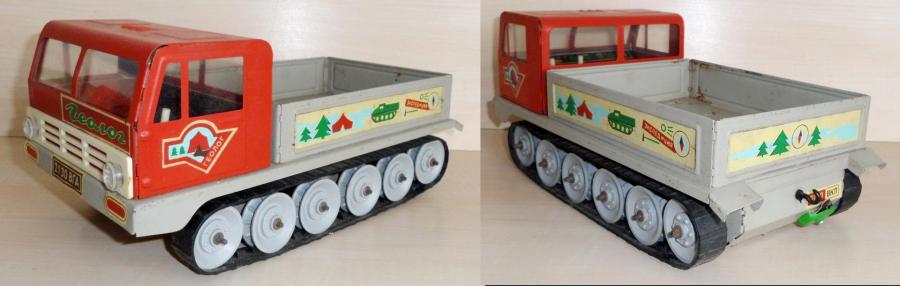

Tracked toy from former East Germany. Seen on ebay.

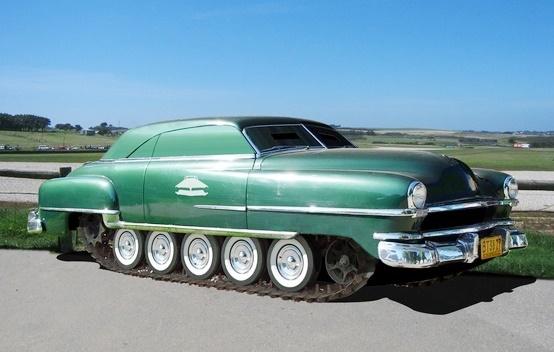

Chrysler Windsor tank   http://www.pinterest.com/pin/496592296384751711/

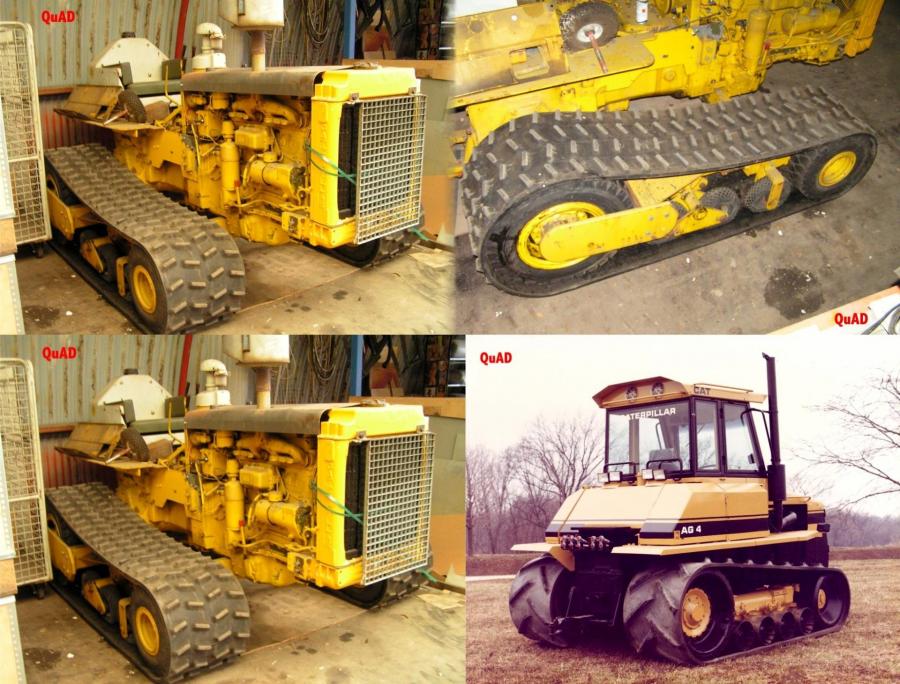

Rubber tracked Caterpilar tractors. 1953 Cat D4 modified in 1970 to rubber tracks, in The Netherlands, for use in sand dunes. Lower right, AG4 proto. Pictures of Ad QUad, a specialist of Caterpillar.   http://www.acmoc.org/bb/showthread.php?7641-Cat-D4-On-Rubber

Amphibious vehicle on the cover of Popuplar Science in the 30s.

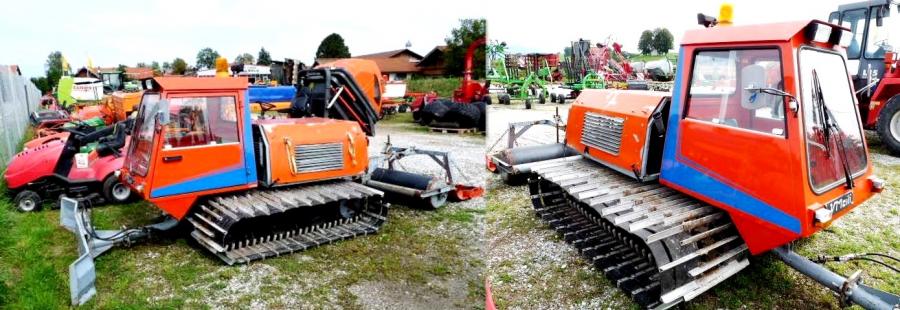

Meili VM 500 snow groomer       http://www.technikboerse.com/fr/view/machine-d-occasion/autres/826797/sonstige-meili-pistenraupe-vm-500-mini.html

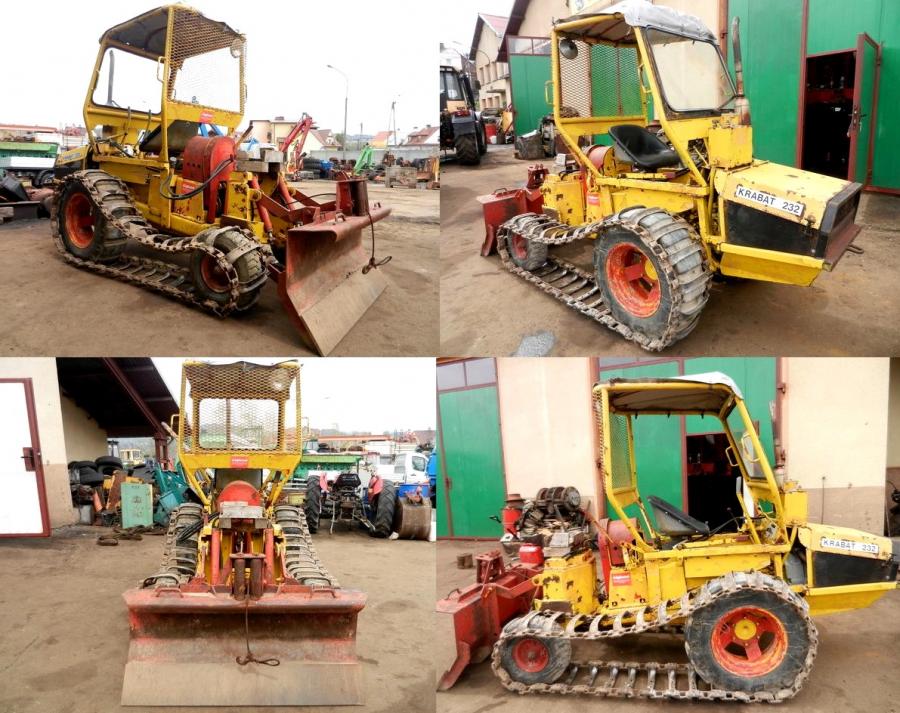

Krabat-232 agricultural and forestry tractor, built in Norway in 1985-86 by Reinhardt Maskin AS at about 400 units. Engine Farymann diesel 32 hp.   http://autoline.info/sf/agricultural-equipment-forestry-tractor-KRABAT-232-CIaGNIK-LEsNY-Nie-LKT--     http://translate.google.fr/

translate?hl=fr&sl=no&u=

http://www.viiagria.no/

phpBB3/viewtopic.php%3Ff%

3D31%26t%3D2879&prev=/

search%3Fq%3D

http://www.viiagria.no/phpBB3/

viewtopic.php?f=31&t=2879

http://www.reinhardt.no/

www.reinhardt.no/

Crossing Amphibious Tank FCM, 1927, to transport tanks over rivers. It will be abandoned in early 30's and replaced by a simple tray. Pictures from the review GBM, Jul,-Aug,-Sept 2014.

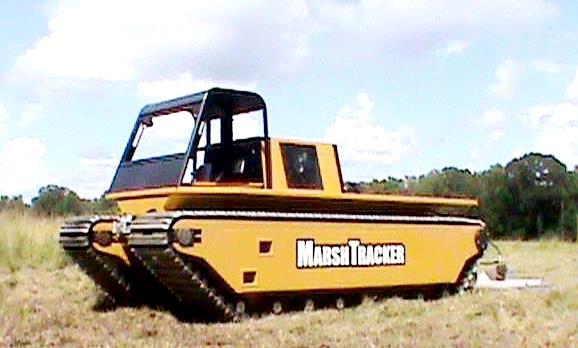

Marsh Tracker Amphibian of LLC of Lite Technologies, Francisville, LA, a new brand since 2013.            http://www.litetech

nologies.com/#!

Four tracks vehicle  http://www.pinterest.com/pin/423408802439554667/

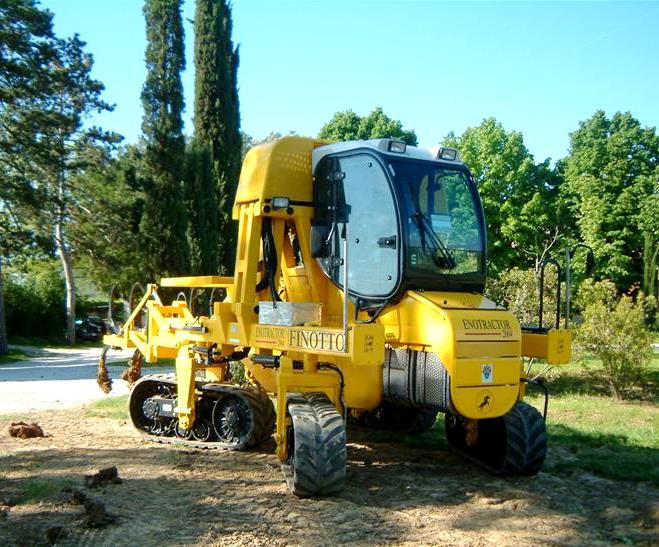

Machine for vineyard with Otica tracks to move on slopes and avoid compaction of soils. Otico treads are standard. http://www.otico.com/realisations.html

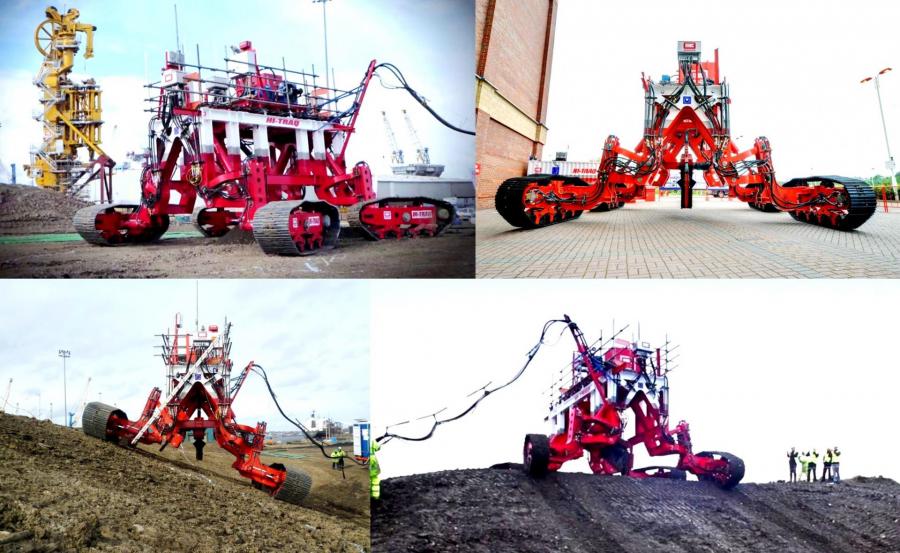

Hi-Traq IHC first model of Royal IHC, The Netherlands. 25 t, four tracks, the chain cutter cuts a channel of 2.5 m depth for cable. A high pressure jet of sea water is directed around the laid cable.             http://www.oedigital.com/component/k2/item/5820-traq-ing-underwater-trenching

Hi-Traq streamlined chassis with buoyancy grabs and tooling cylinder.      http://subseaworldnews.com/2013/07/03/uk-ihc-eb-develops-hi-traq-vehicle/      http://www.rivieramm.com/article/windfarm-challenges-demand-high-tech-trenchers-12247

Journal Hitraq (119.76 Ko)

Hi-Traq vehicle of IHC Merwede Group, now Royal IHC, The Netherlands, 3000 employees in many countries. They built all is necessary to work on see or under the see (vessels, dredging, mining, offshore and marine markets). The Hi-Traq is an underwater four tracks vehicle, revealed in June 2014, very maneuverable and automatically self-leveling, used for cable laying in offshore wind farms or maintenance. 1,25 MW, 50 t, sufficiently heavy to be stable in currents. The operator is remotely located, using a fiber optic passing by lift umbilical. Hi-Traq has been developed by Northeast England-based IHC Engineering Business. It was built with help of support from the European Regional Development Fund,

http://i.vimeocdn.com/video/479524168_960.jpg                  https://twitter.com/IHCEB

/status/476669886765469696       http://www.dredgingtoday.

com/2014/06/18/ihc-

merwede-presents-hi-traq-trencher/

http://www.offshorewind.

biz/2014/06/20/watch-ihc-

merwedes-new-subsea-

trencher-in-action-video/

See the video :

https://www.youtube.com/watch?v=wfqyCUgVSQ4

and the pdf page 70-71 :

http://www.ihceb.com/

downloads/press/

Journal_HiTraq.pdf

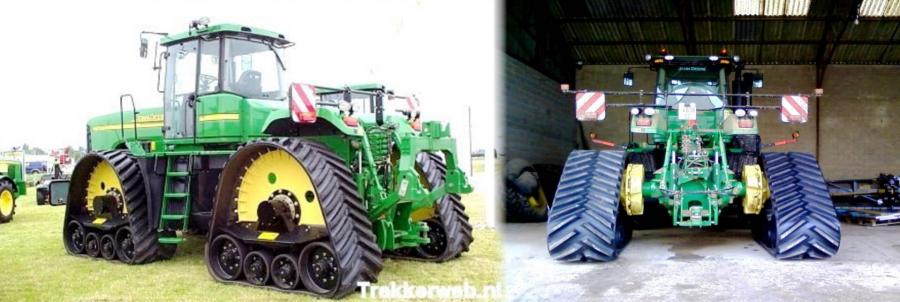

John Deere tracked tractors. There are here 2 kinds of tracks.      http://forum.grostracteurs

passion.com/viewtopic.

php?f=10&t=23478&start=480

Rogator Agco with Zuidberg tracks.      http://forum.grostracteurs

passion.com/viewtopic.

php?f=10&t=4455&start=280

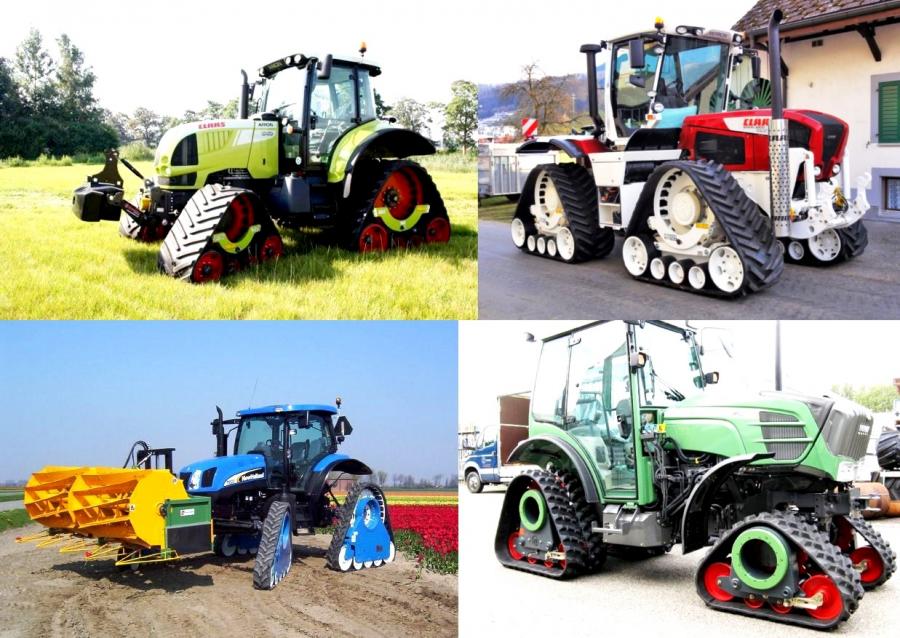

Tractors with Zuidberg tracks  http://forum.grostracteurs

passion.com/viewtopic.

php?f=10&t=4455&start=280     http://www.h-b.fr/zuidberg-tracks-photos.html

Mad Masher Monster Truck 12x12 in LEGO, articulated in pitch and yaw, apparently not  in roll.   http://www.flickriver.com/photos/50191917@N06/popular-interesting/

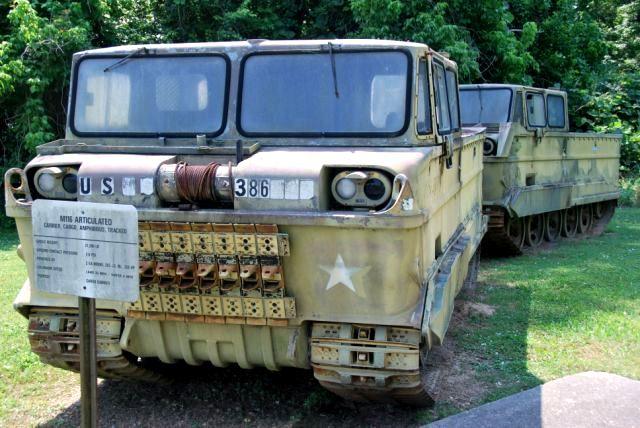

M116 articulated prototype. M 116 Husky amphibious cargo carrier was produced from the late 60s by Blaw-Knox Co, Matoon, Ill, at 197 units. This articulated proto is staying at WES Waterways Experiment Station, Vicksburg, Mississipi. http://smg.photobucket.com/user/baumgar/library/Waterways%20

Experimentation%20

Station?sort=3&page=1

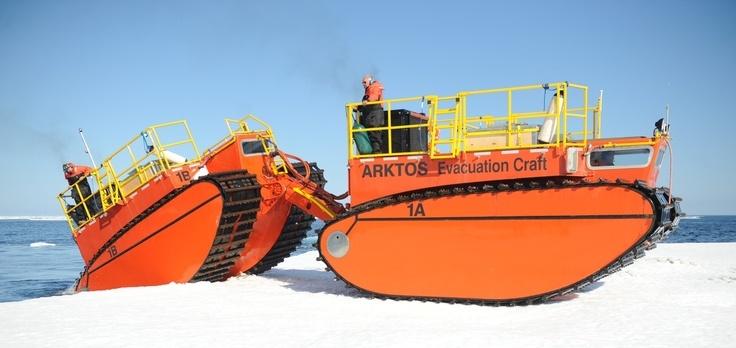

Arktos amphibious vehicle

http://www.pinterest.com/pin/201606520791170973/

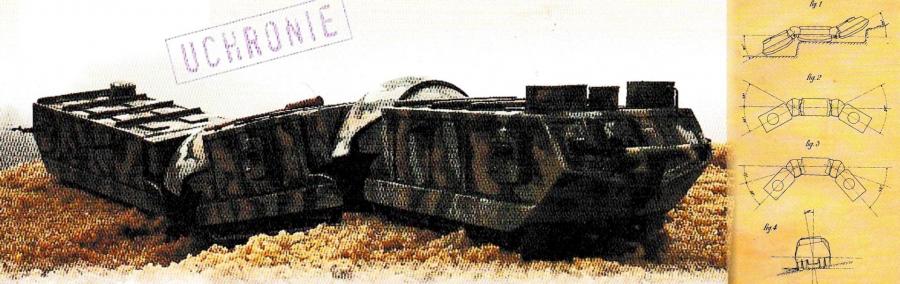

Armored Train Boirault, 1917-1918. It was conceived to cross easily trenches. Project of 72 t, 350 hp with 3 planned tanks St Chamond, was never built. Only a scale model is shown here. From review GBM N° 106, Oct, Nov, Dec 2013.

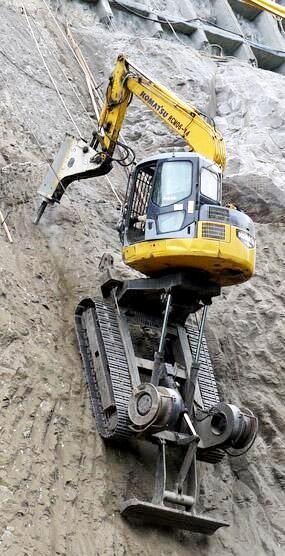

Komatsu Excavator on steep slope. Cables are necessary.

http://www.pinterest.com/pin/417216352951430414/

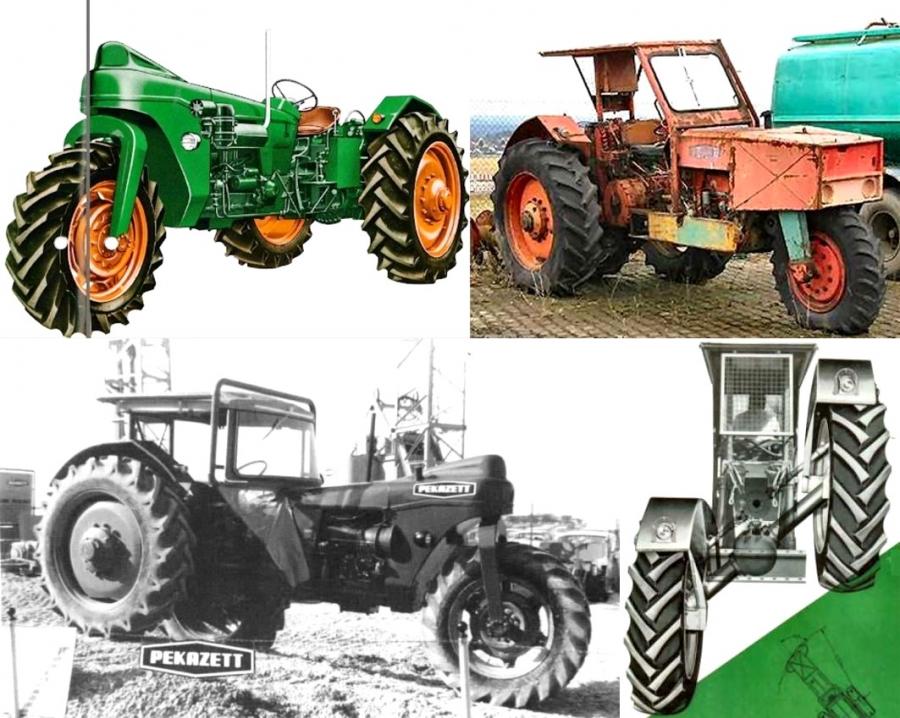

Pekazett of Pesche in the 60s, self-leveling tractor. Rear axle was coupled to a hydraulic pendulum using the tractor for forestry work on hilly landscape in Palatinate forest. About 12 were built. After many changes, Pesche Company, which built this tractor, always exists and build cranes.

Pekazett tractor journal of terramechanics vol 7 n 1 1970 (2.72 Mo)

 Pekazett Tractor of the 60s. Upper left : UFF260, Seeber System of Pesche GmbH and Co., Zweibrücken,  built probably from Deutz tractor. Upper right : UFF 360  Low right : 1965 UFF360 w/58 PS.        http://www.bungartz.nl/peschke.html     http://www.tractorfan.nl/picture/437359/    http://www.fwi.co.uk/blogs/black-sheep-blog/2006/04/vorsprung-durch-technik/  http://gardentractortalk.com/forums/topic/24651-caption-this-6-7-13/

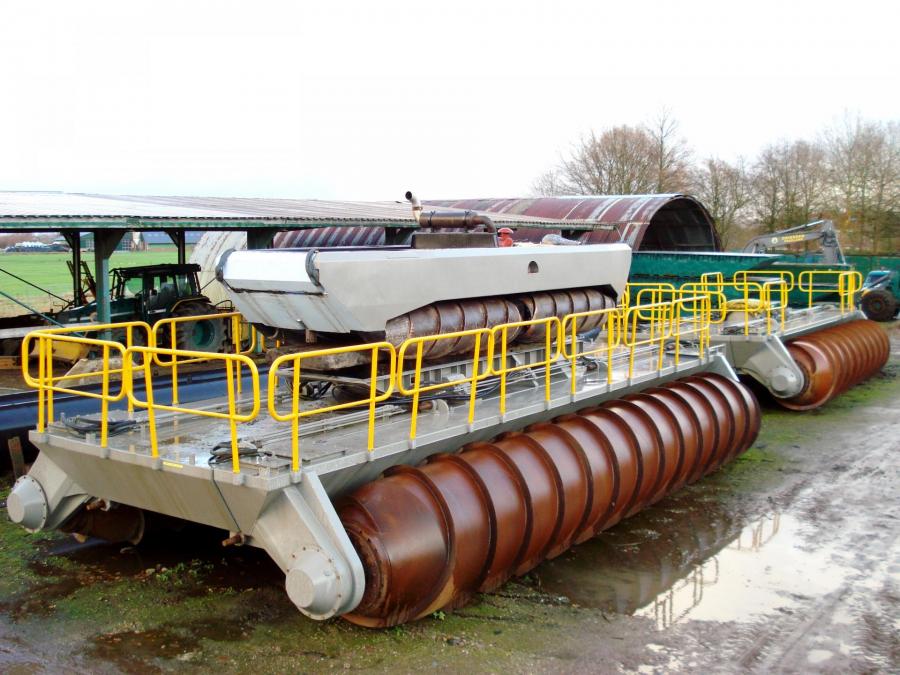

Swampcat Equipment from Driessen Vreeeland, The Netherlands.           http://www.swampcat.eu/      http://www.swamp-equipment.com/

Swampcat Equipment from Driessen Vreeeland. The Netherlands.              http://www.swampcat.eu/

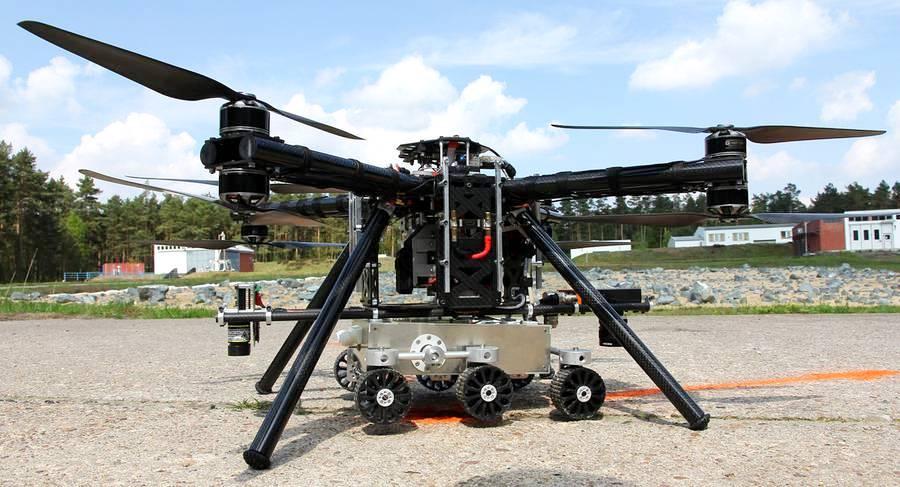

Star Tiger Terrestrial Dropship Demonstrator, flying robot carrying a 6x6 land robot by DFKI GmbH, ESA and Airbus.                           http://robotik.dfki-bremen.de/en/research/projects/startiger-dropship-1.html

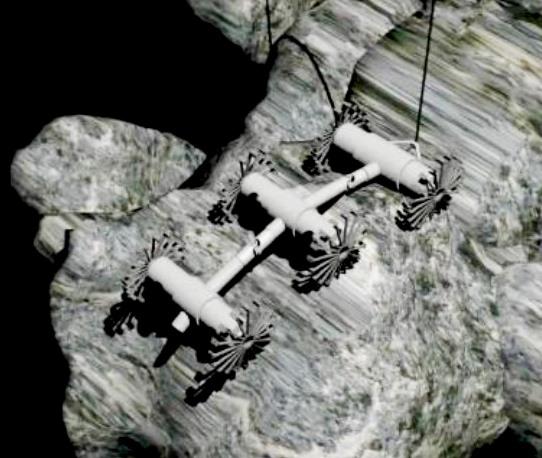

C88 6x6 articulated robot of NASA.

http://www.taringa.net/posts/ciencia-educacion/17656690/Es-posible-explorar-las-cuevas-de-Marte.html

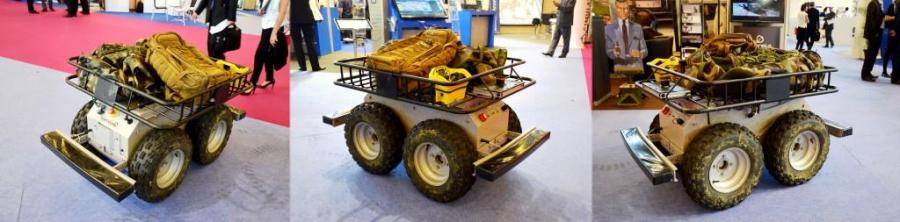

Robot 4mob of Sterela, Toulouse, France. Pict J M M at Villepinte, 2014 06.   http://www.presse-citron.net/innorobo-2014-4mob-ce-robot-4x4-deviendra-t-il-le-meilleur-ami-de-lagriculteur-ou-du-soldat/

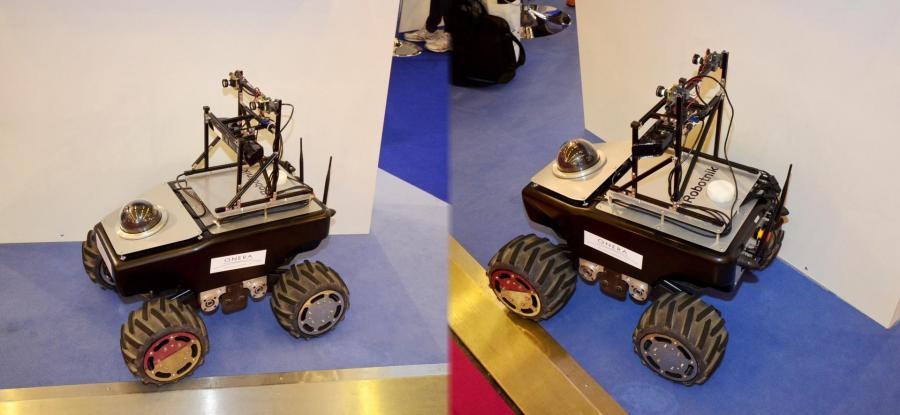

Robotnik robot from Onera, France. J M M at Villepinte, 2014 06.

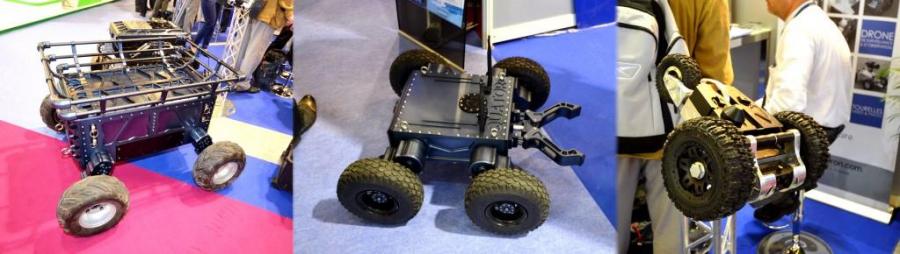

Wheeled robots of Tecdron, France. J M M at Villepinte, 2014 06.      http://www.tecdron.fr/fr/accueil/

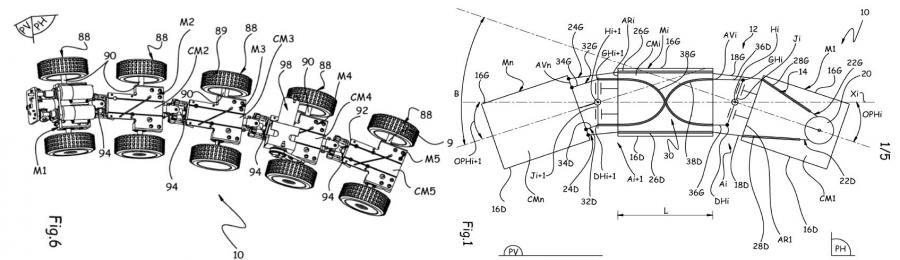

Robot poly-articulated – M-TECKS EAC. Patent of Julien Messonnier and Fabrice Marsaleix for steering an articulated robot, using cables.

Arthron robot of m trecks eac 1 (274.88 Ko)

Arthron robot of m trecks eac (418.23 Ko)

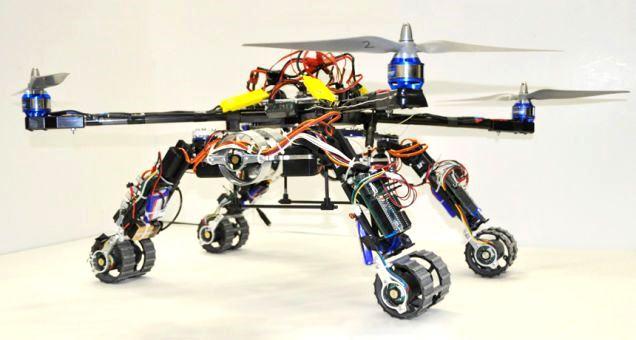

Hybrid robot HERALD of University of Pennsylvania. It can transport a snake like robot in unreachable locations.  http://gizmodo.com/smushing-three-robots-together-could-save-your-life-1638296455    http://modlabupenn.org/hybrid-exploration-robot-for-air-and-land-deployment-h-e-r-a-l-d/v=qxaG_KxTauY         https://www.youtube.com/watch?v=qxaG_KxTauY

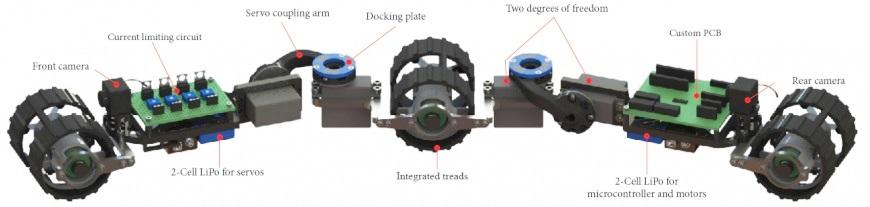

Snake robot for flying HERALD robot, https://atmelcorporation.

wordpress.com/2014/10/03/students-design-a-hybrid-exploration-robot-with-arduino/

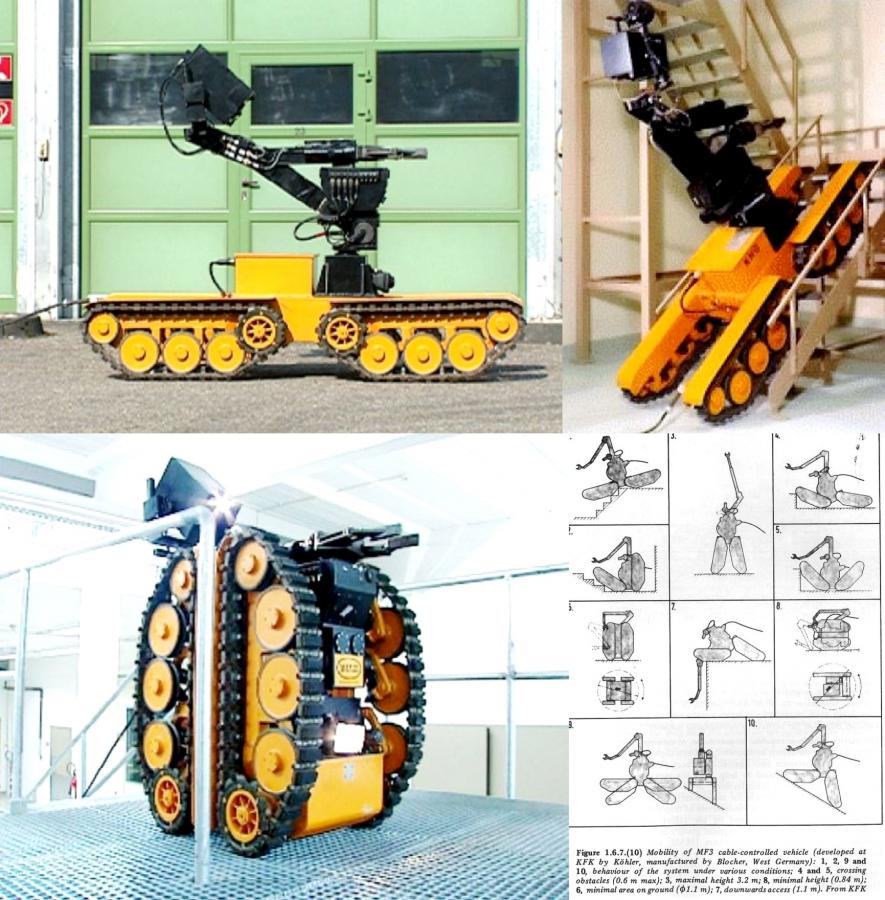

MF3 Manipulator Vehicle Köhler from Germany, 1976, built by Blocher-Motor GmbH & Co. KG, Metzingen, for nuclear industry. Electrically powered.                  http://cyberneticzoo.com/teleoperators/1976-mf3-manipulator-vehicle-kohler-german/

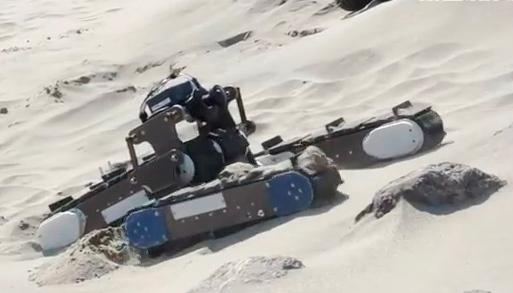

Track-Walker 2, 2012, from Tohoku University in Sendai. Tracks can be used as legs by lifting them over obstacles.   https://thehopefulmonster.

wordpress.com/page/2/

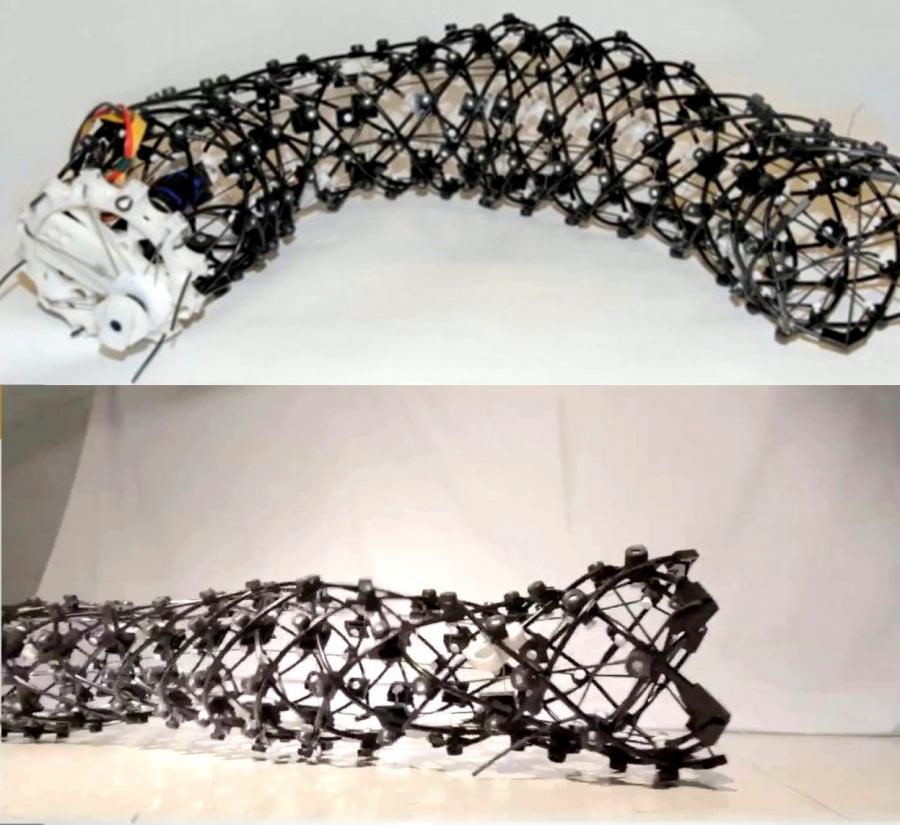

Peristaltic locomotion robot, 2012. This robot, built by Case Western Reserve University, has a structure allowing it to move like a worm. The concept uses a continuously deformable outer mesh that interpolates the body position between discrete actuators. This prototype uses a continuous braided mesh exterior to produce waves of motion along the body of the robot.

Such contraction movement and progressive relaxation is called peristalsis. The part where the diameter is high serves as support on the ground while the diameter decreases and elongates moving ahead slightly above the ground.   http://biorobots.case.edu/projects/softworm/   http://vimeo.com/67677015               https://www.youtube.com/watch?v=f6mA8walaSk

Worm like robot, 2012.    http://astronasty.blogspot.fr/2012/04/giant-worm-robot-santa-heard-me-finally.html

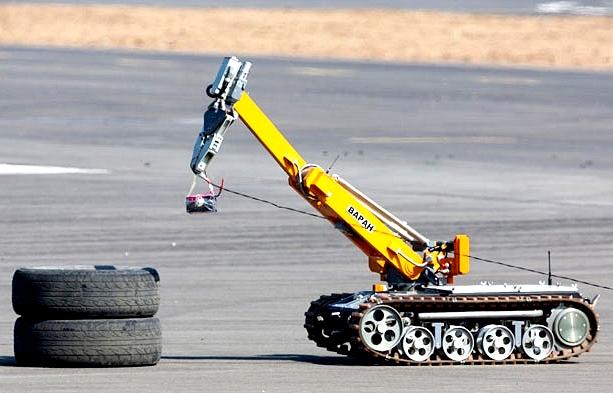

Varan Robot produced at the Kovrov Electromechanical Plant. The robot was designed by the Scientific Research Institute of SM MSTU named for N. E. Bauman, along with employees at the Special Design Bureau of Instrument of Automation in the city of Kovrov.

The mobile robot Varan was created to detect, disrupt, or destroy explosive devices on-site, or transfer them to a safe place in a special container.

 http://rpdefense.over-blog.com/tag/robotics/

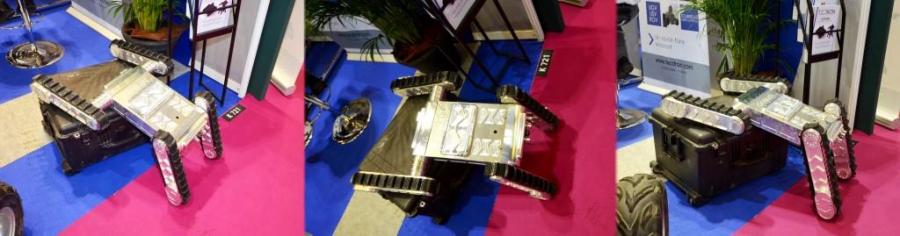

Cayman tracked of Tecdron, France.  J M M at Villepinte, 2014 06. http://www.tecdron.fr/fr/accueil/

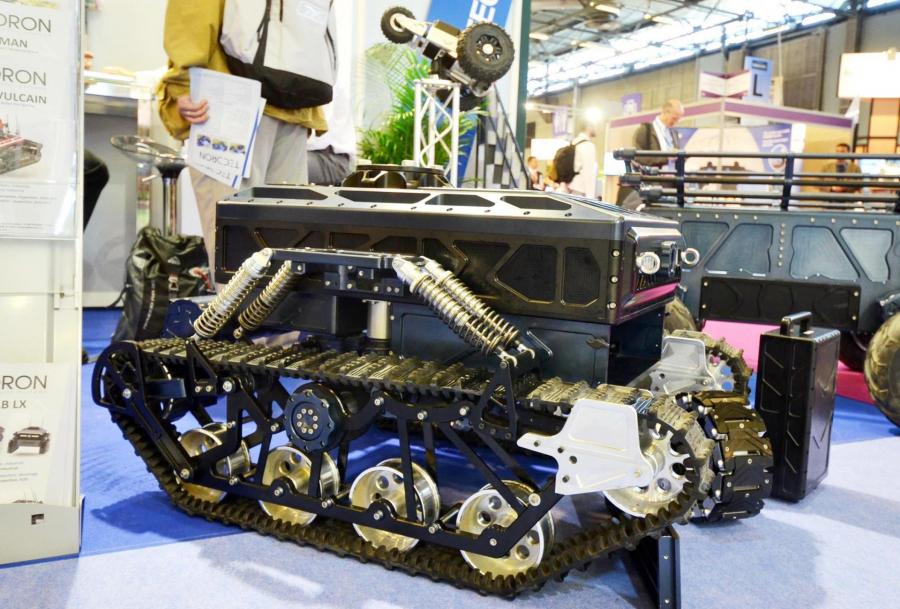

Scarab LX robot of Tecdron, France. J M M at Villepinte, 2014 06.

Tecdron robot (2.08 Mo)

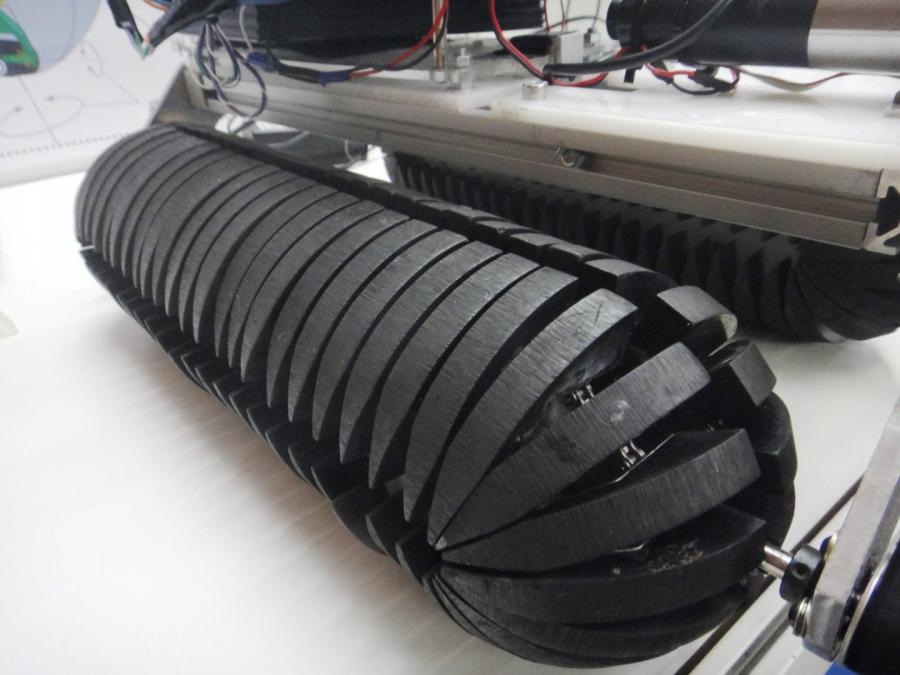

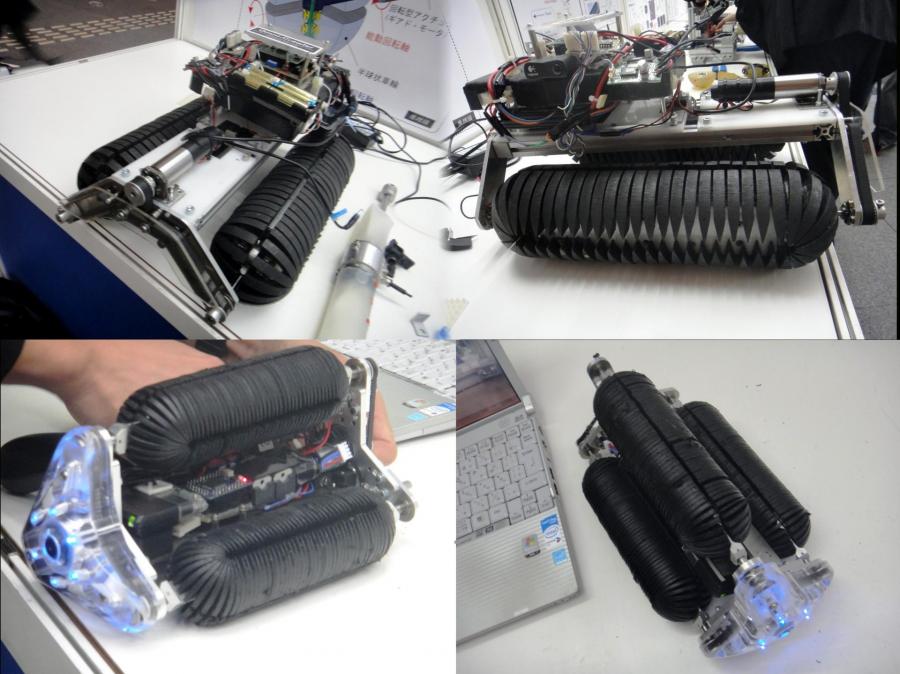

Omni-Crawler robot built first by Osaka University, Japan and modified by Raytech issued from University of Wels, Austria. J M M at Villepinte, 2014 06.

Omni-Crawler robot.

http://www.diginfo.tv/v/11-0191-r-en.php

Omni-Crawler robot.

http://www.diginfo.tv/v/11-0191-r-en.php

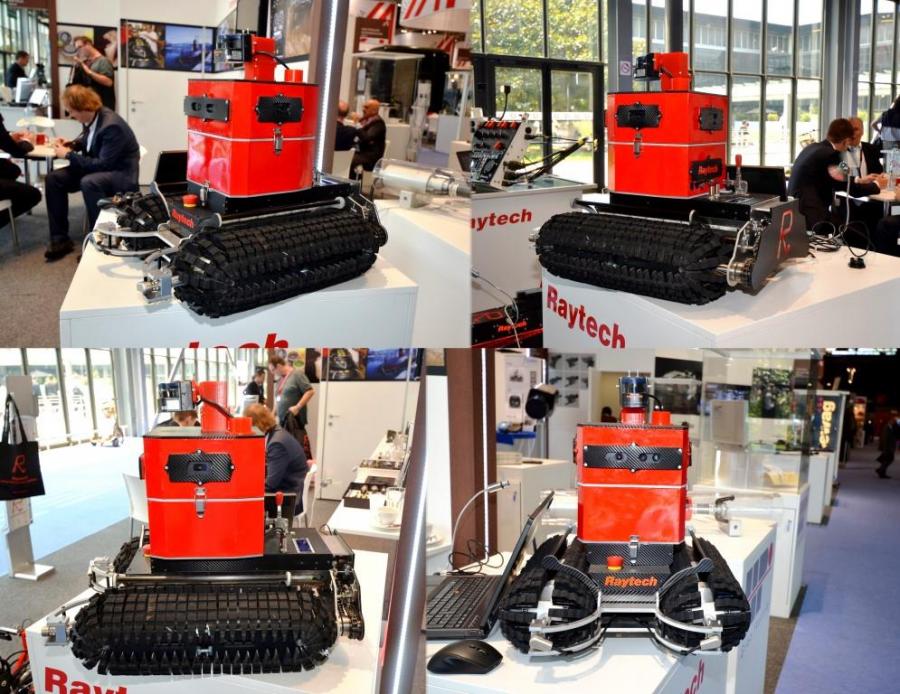

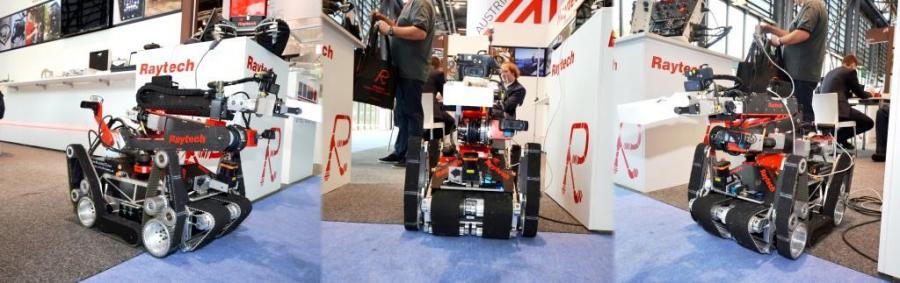

Raytech robot of Raimund Edlinger, University of Wels, Austria. Pict J M M at Villepinte, 2014 06.

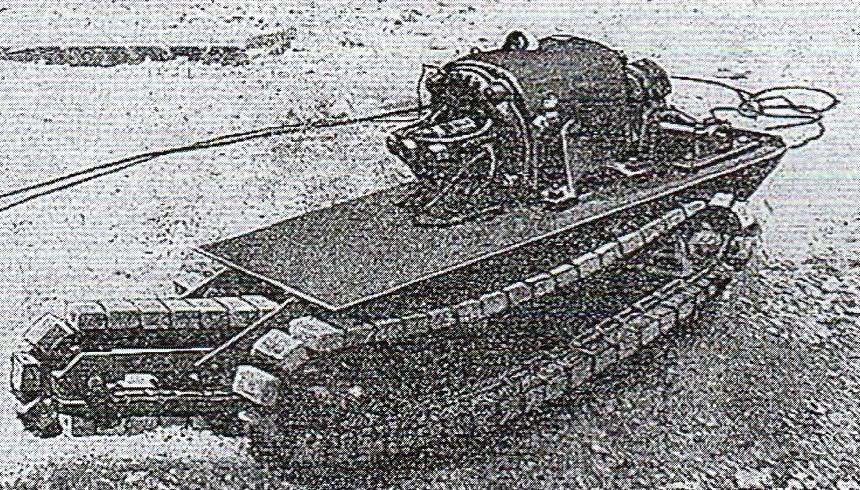

 Electric drone of Aubriot and Gabet, 1914-15 were also forerunner of tanks. Here is a little wire-guided vehicle for surveillance and destroying tasks. A third track helped to cross obstacles which prefigured nowadays off-road rescue robots. Pict from the review : 'Bulletin des Blindés', June 2014.

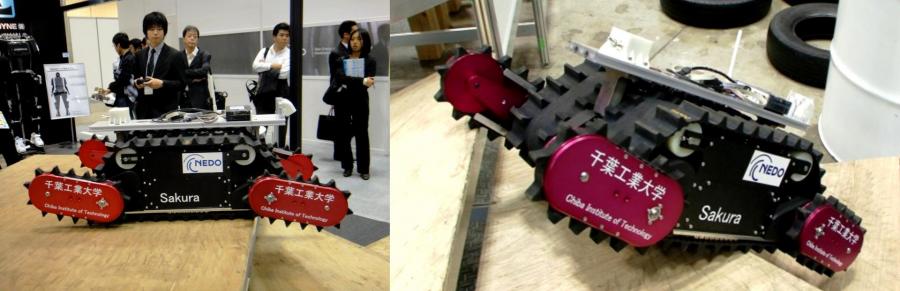

 Sakura rescue robot being developed by the Future Robotics Technology Center (FuRo) at the Chiba Institute of Technology, Japan.   http://robohub.org/disaster-response-robot-will-inspect-the-damaged-fukushima-nuclear-reactor-building/

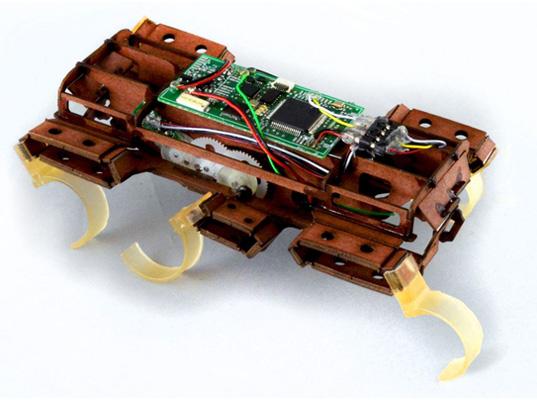

VelociRoACH robot built by Duncan Haldane and his colleagues that mimic cockroach at UC Berkeley’s Biomimetic Millisystems. Made of cardboard, it is the fastest robot (10 MIN a mile) of its size.

http://inhabitat.com/velociroach-a-tiny-super-fast-robot-cockroach-made-from-cardboard-that-can-save-lives/

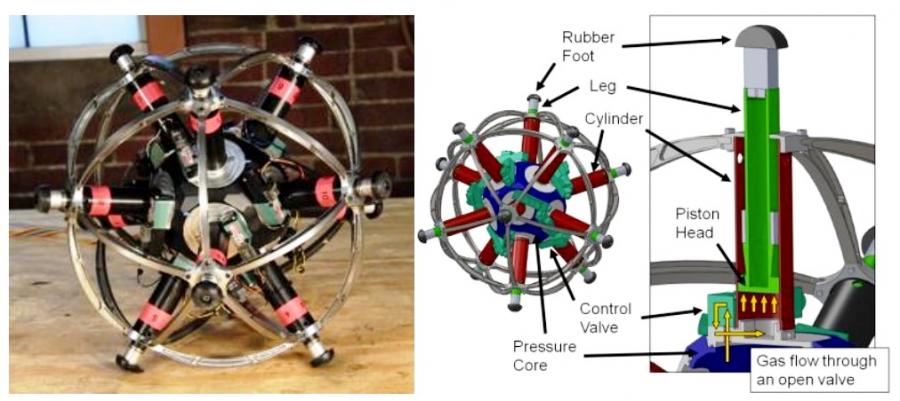

RATS, Robotic All-Terrain Surveyor, NASA, combines hopping and rolling to move around on rugged environment. For space, search and rescue, defense applications. http://www.taringa.net/posts/ciencia-educacion/17656690/Es-posible-explorar-las-cuevas-de-Marte.html                   http://www.nrec.ri.cmu.edu/projects/rats/

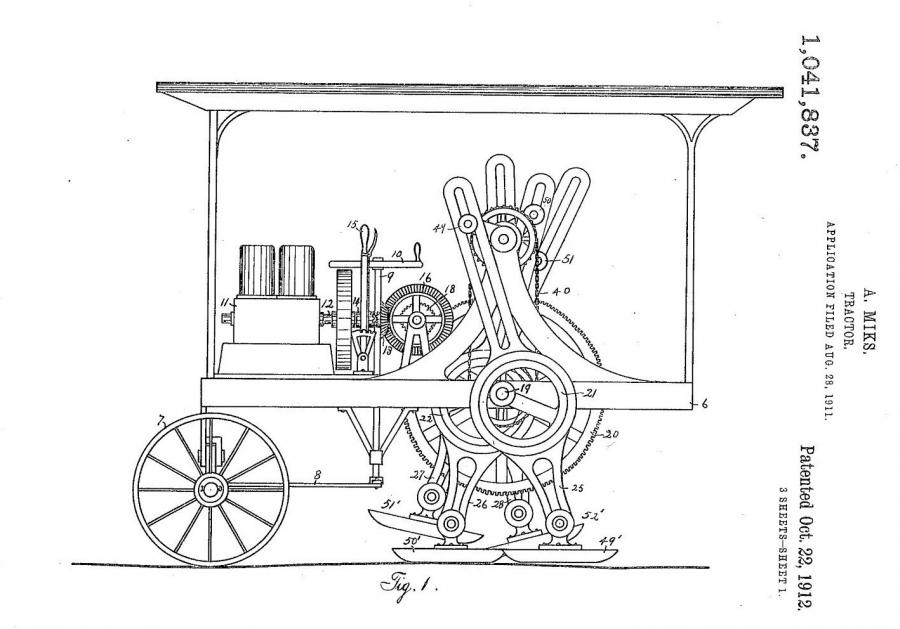

US1041837 Mikes walking tractor 1912. Reported by F Pierre.

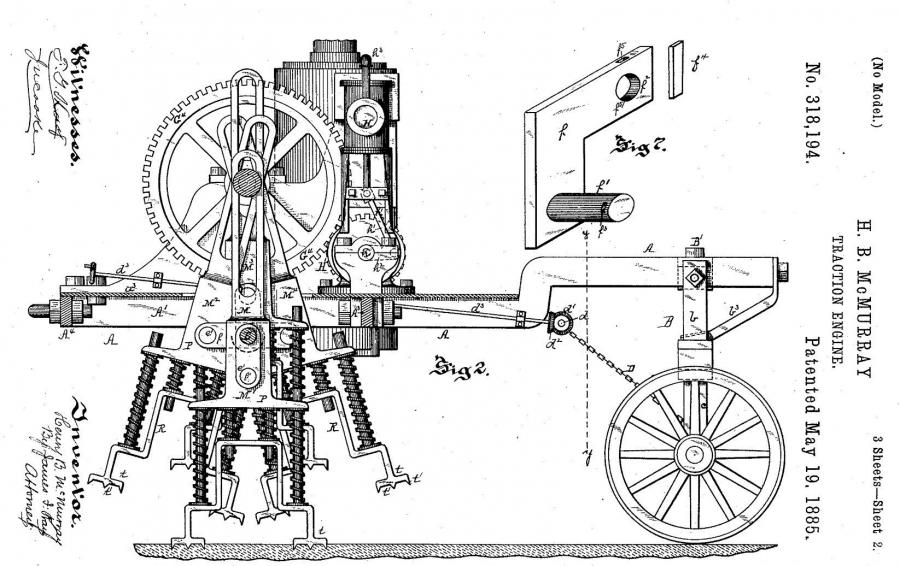

US318194 walking machine McMurray 1885. Reported by F Pierre.

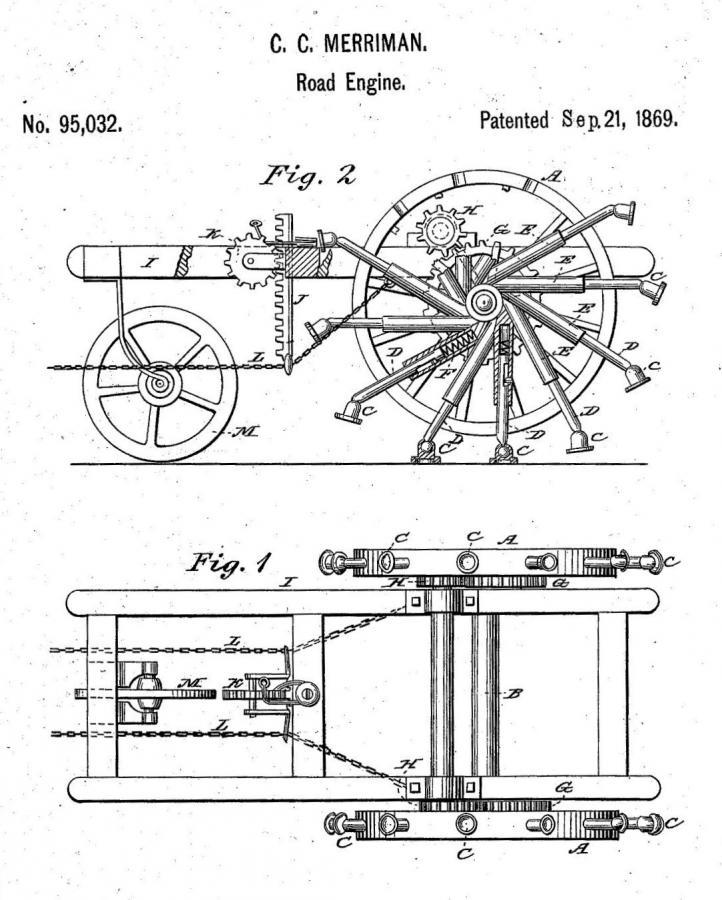

US95032 Meriman walking machine, 1869. Reported by F Pierre.

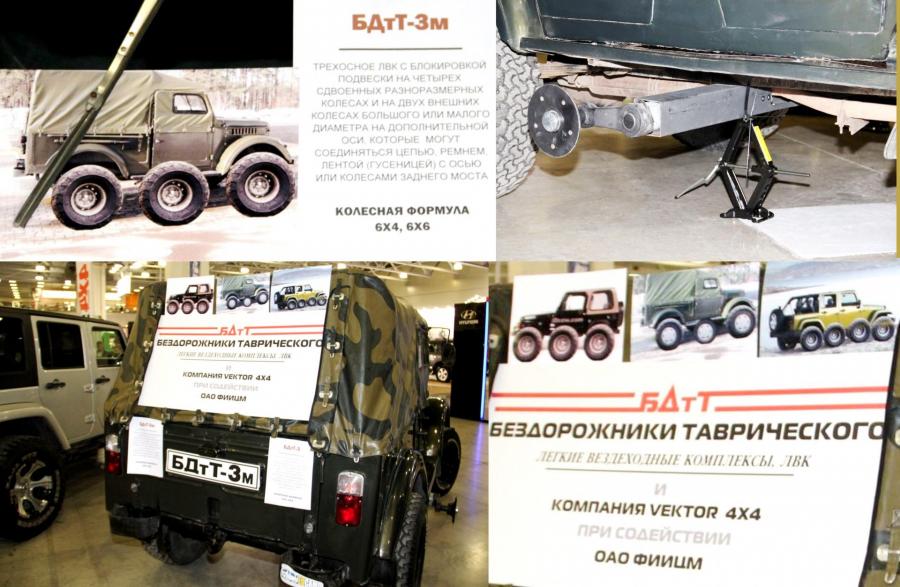

Additional wheels. It is a simple idea with un-driven wheels but much more complicated if they could be driven.     http://www.uazbuka.ru/models/vezdehod/vezdehod2014.html

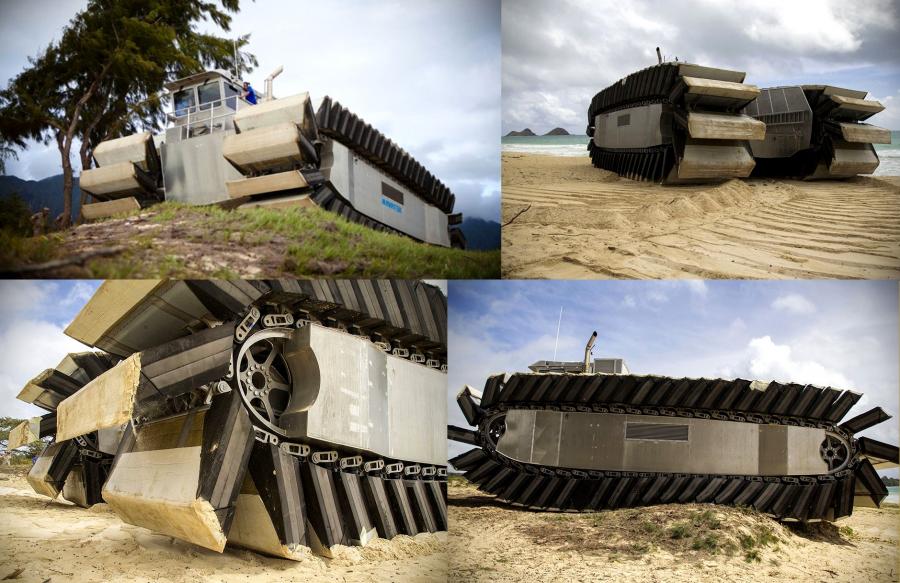

Ultra-Heavy-Lift Amphibious Connector, UHAC is a proto 1/2 scale to replace LCAC Air Cushioned. Speed is the same but range increases from 86 to 200 nautical miles. Payload is increased 3 times. This amphibian is able to go inland in mud, marshes thanks to its pneumatic tracks made of low pressure captive air cells. Air cells also propel it in water, behaving like blades. It remembers PATA, Scale Test Bed, AIROLL or Water Walk issued from Kristi KT-4  of the 60s. (See chapter 'Pneumatic Tracks'). Old projects, modernized, bring out cartons.

http://mikeshouts.com/

u-s-marines-ultra-heavy-lift-amphibious-connector/      https://www.youtube.com/results?search_query=The_

Warfare_Experiment_-_Combat_Paddle_Boat_UHAC

Baby Rhino RC was presented by Elie P. Aghnides issued from his Rhino scale 1 on June 10 1956.         http://www.ebay.ca/itm/290720CQ-THIS-

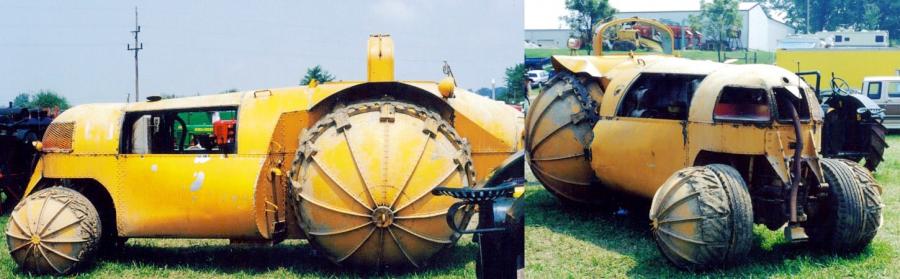

Rhino of Elie P. Aghnides, 1954, shown at the old Rushville, Indiana in 2008. It seems it was its last exhibition before its restauration.   http://www.smokstak.com/forum/showthread.php?t=60193

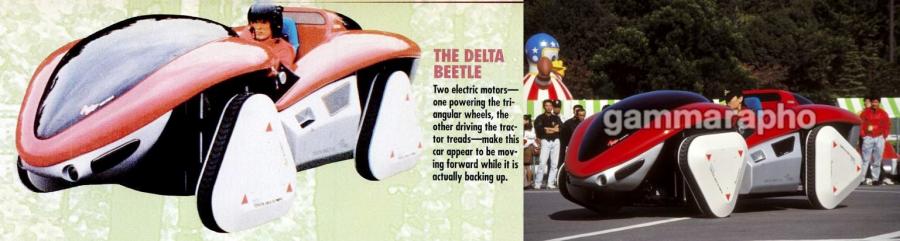

Delta Beetle, golden medal of 16th 'Toyota Olymplics Ideas' in 1991. A good way for off-road vehicles ? There were more than 5000 participants who presented their achievements, often revolutionary means of transportation.                     http://shushauto-ru.livejournal.com/43338.html
