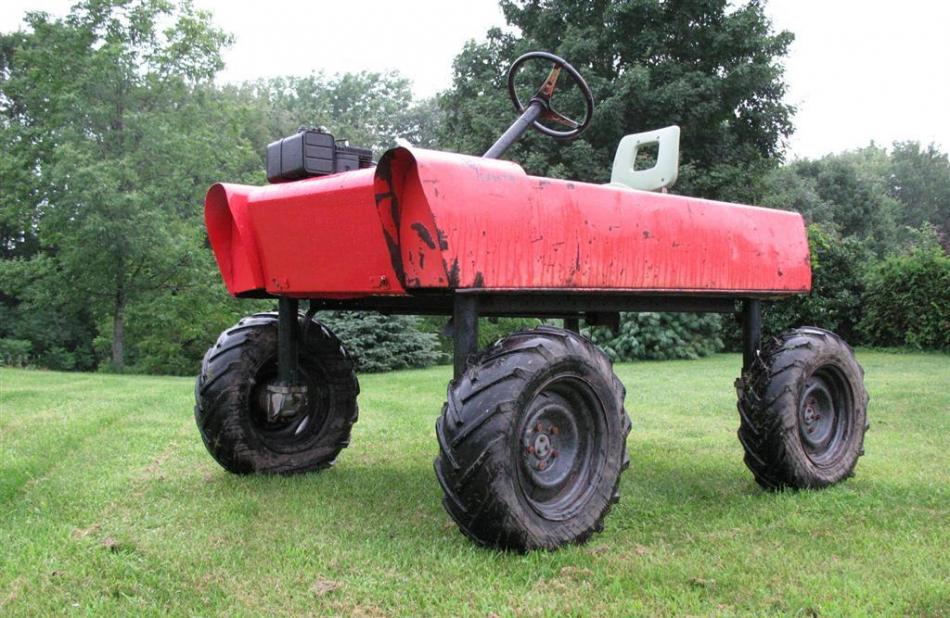

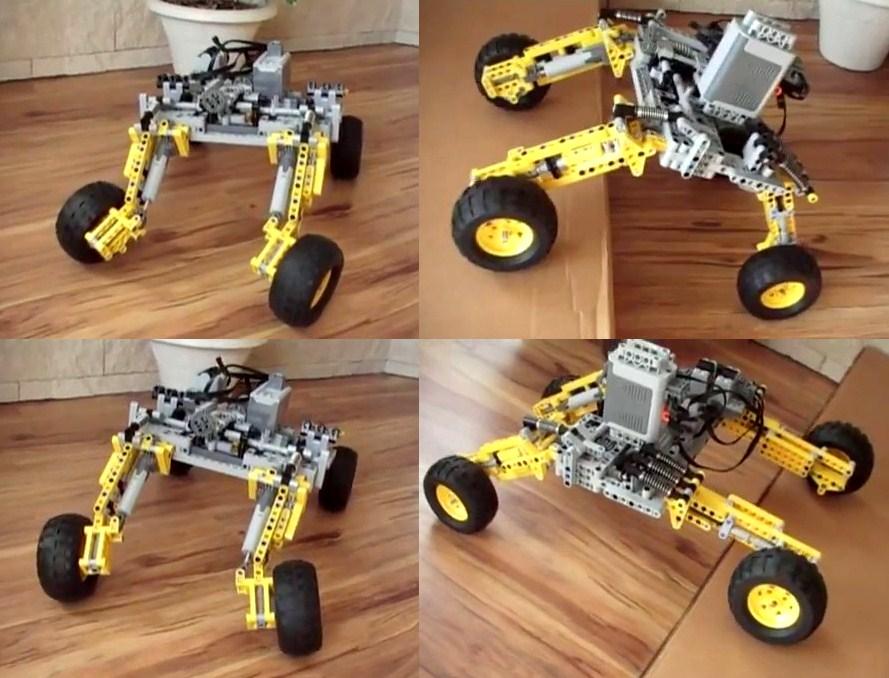

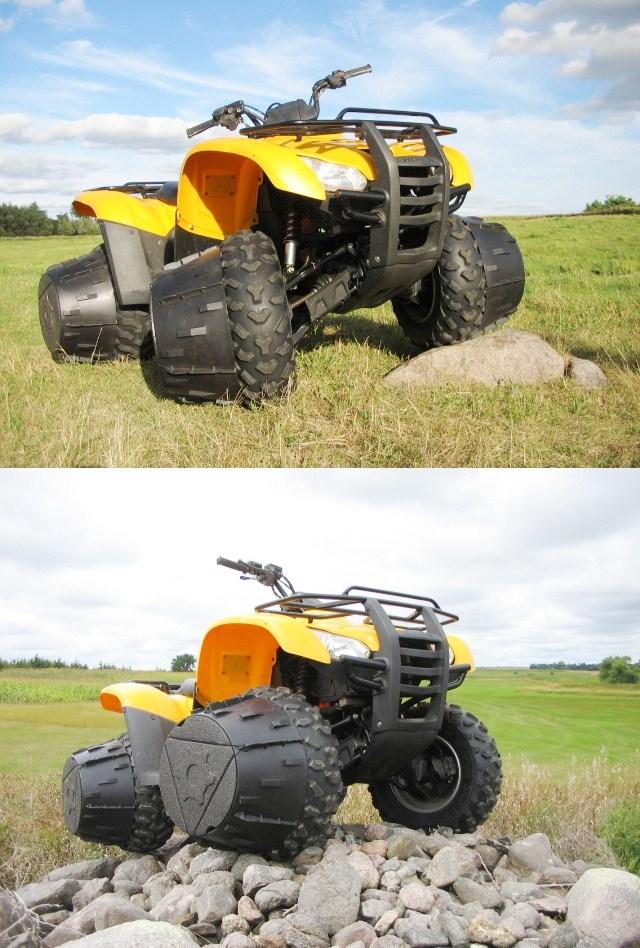

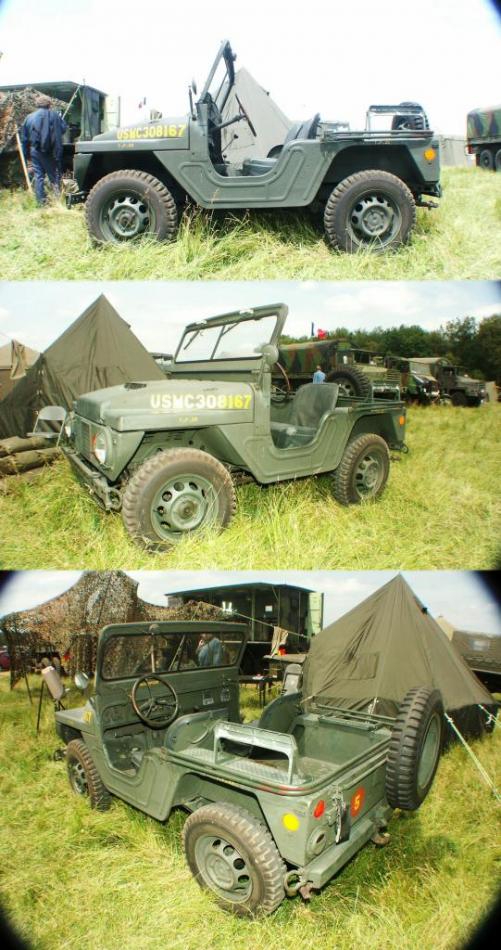

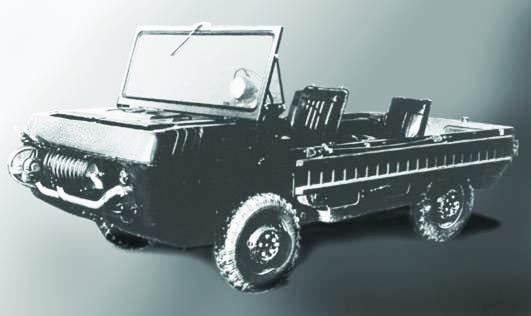

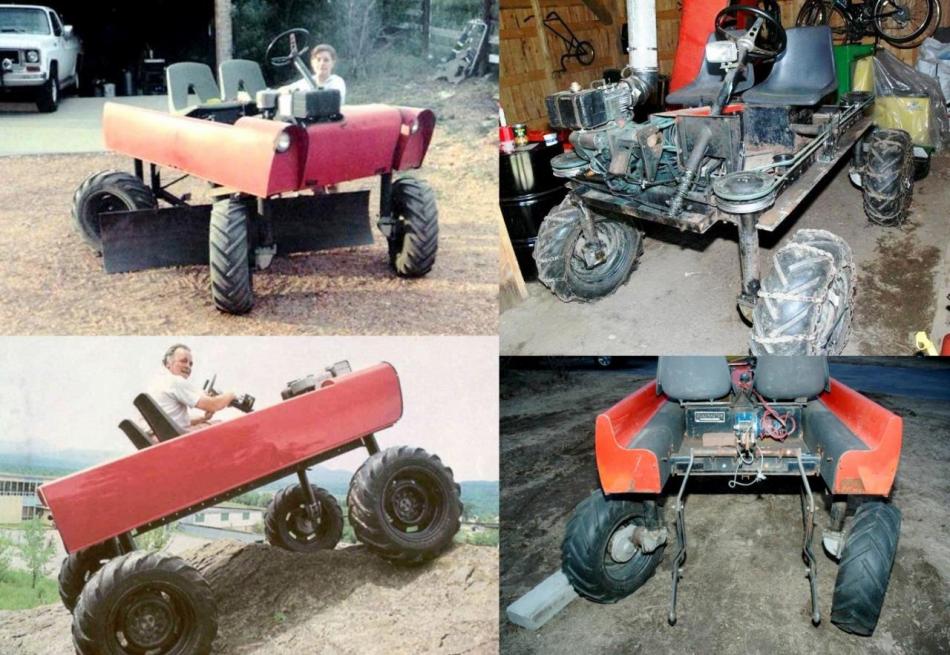

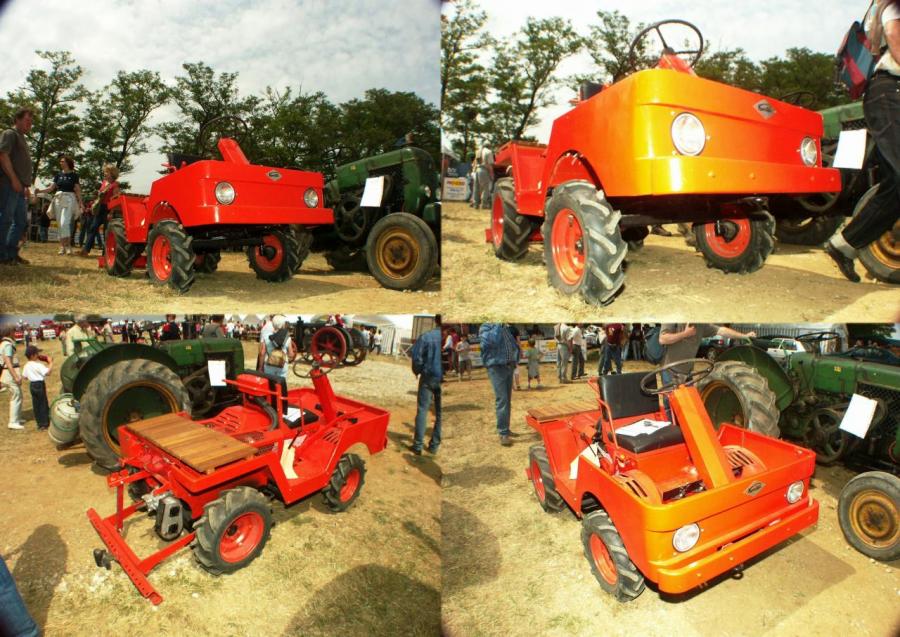

1 4X4 WHEELED RIGID VEHICLES, LIGHT

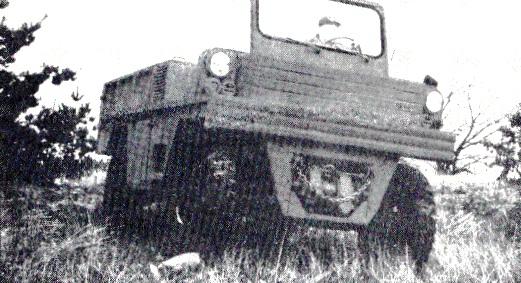

Chrysler RAM I 4x4 : Pict  from review 'Tout Terrain 82', 'Auto Loisirs', Editions P.A.L., 1982, by Jean Gabriel Jeudy.

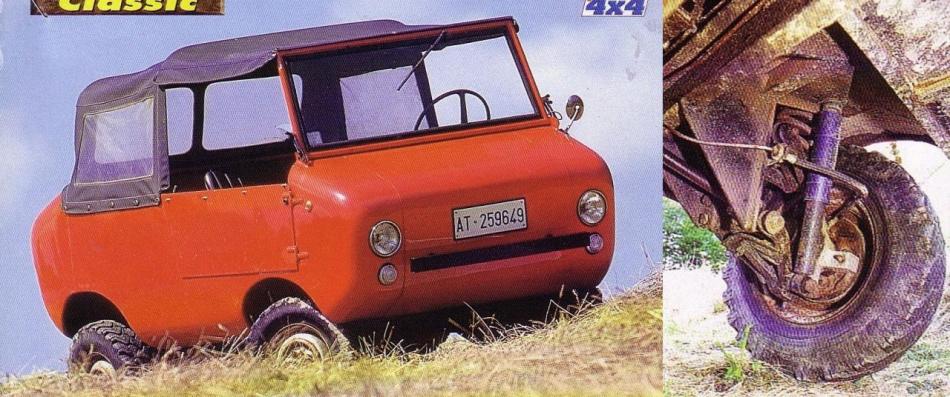

Ferves Ranger, 1968, from Torino, Italia. Pict from Passion 4x4 magazine, 1997.

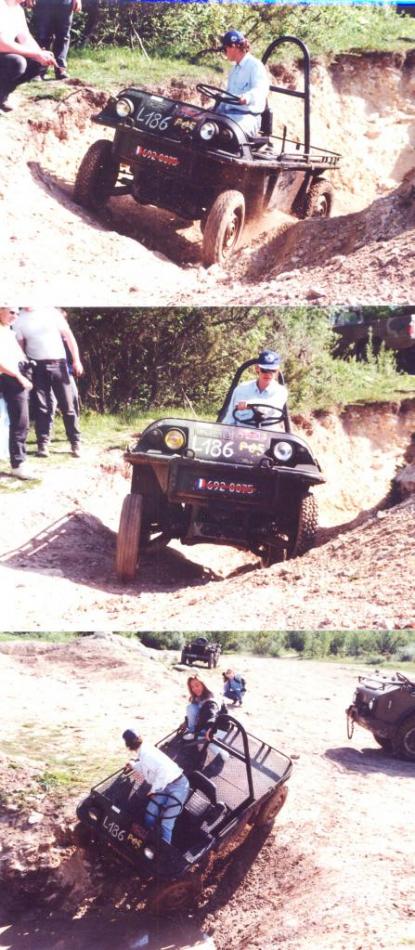

 Lohr Fardier FL 500, 4x4 built by Lohr Company, Hangenbieten, France, for airborne commando of the French Army. Mass 1100 kg, capacity 480 kg, Suspension was issued by those of Citroën 2 CV with coil springs interconnected front and rear. Engine was 25 and 36 hp Citroën, speed 42 km/h, fording 0,4 m. Differential locking was ensured by 2 trapezoidal belts between front and rear axles. 300 were in service from the end of the 70s to the end of the 90s. Pict from J M M at Magny en Vexin, May 1, 1994.

  fardier-lohr-fl-501-h.pdf

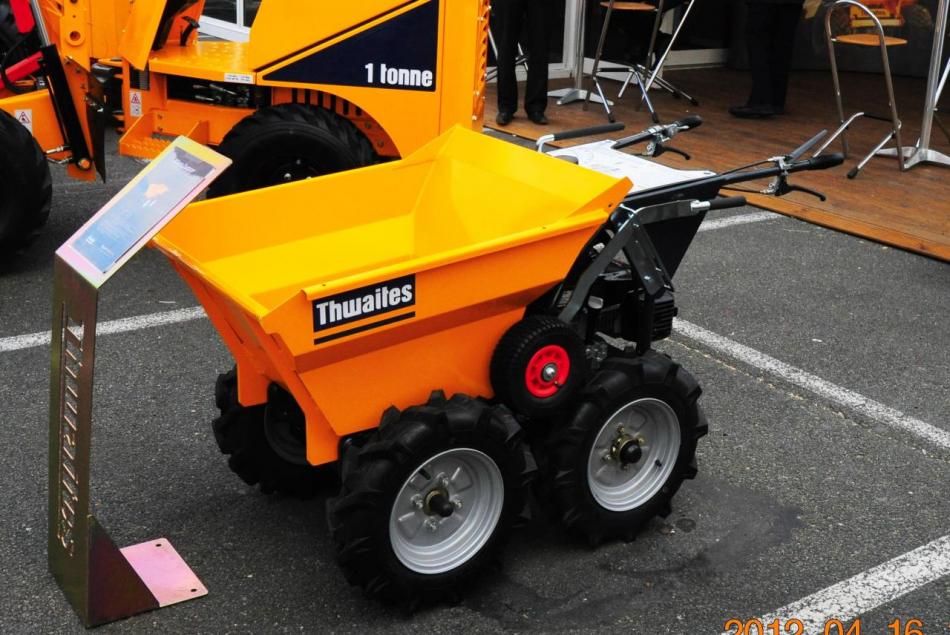

Twaites micro dumper. Pict J M M at Intermat, Villepinte, 2012 04.

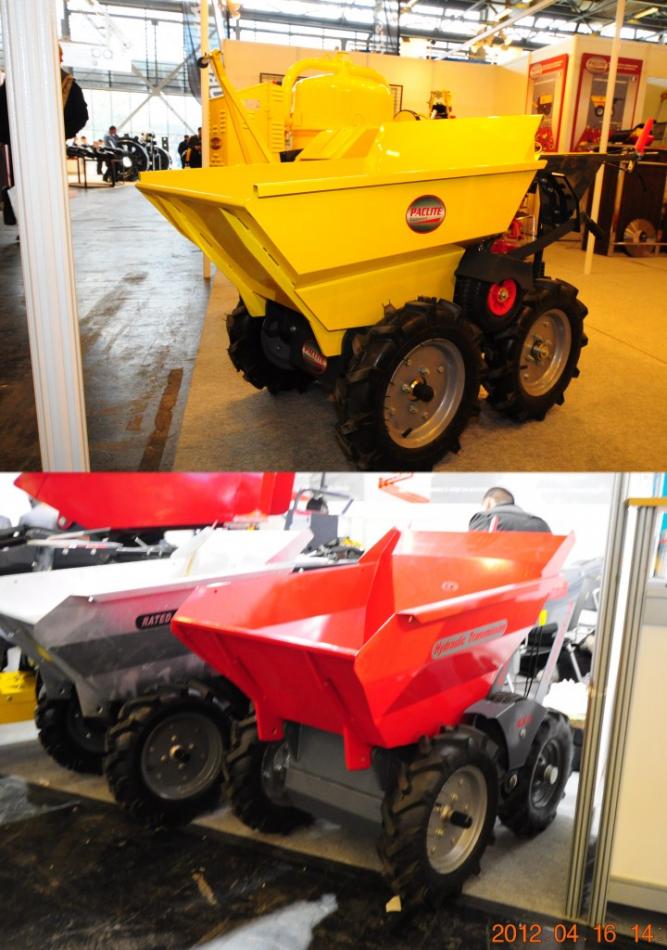

4x4 wheel-barrows, Paclite and Nantong. Pict J M M at Intermat, Villepinte, 2012 04.

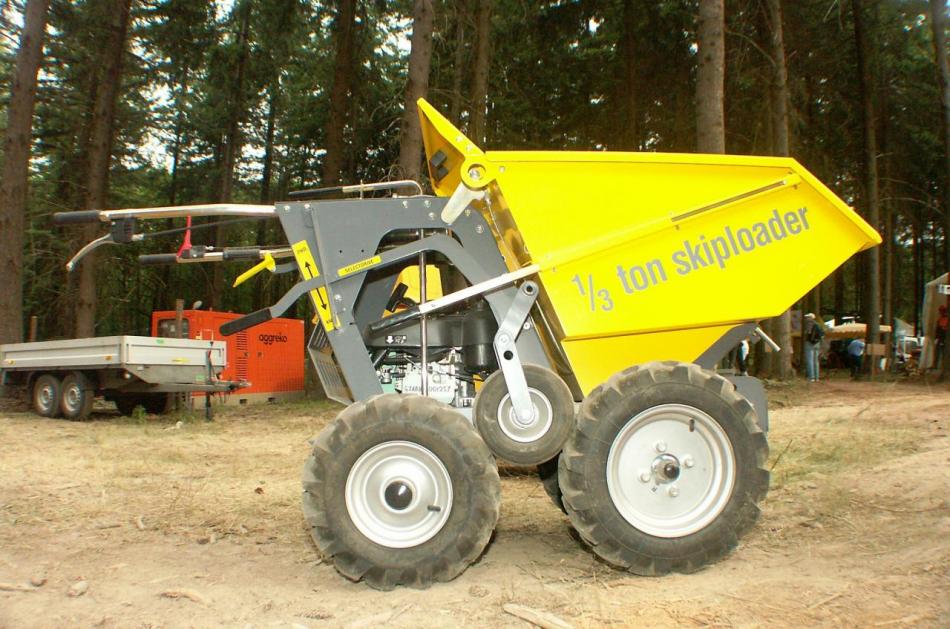

Skip loader 3/4 ton. It can be seen the economic FWD transmission by friction to the wheels. Pict J M M at Euroforest, St Bonnet de Jou, 2006 06.

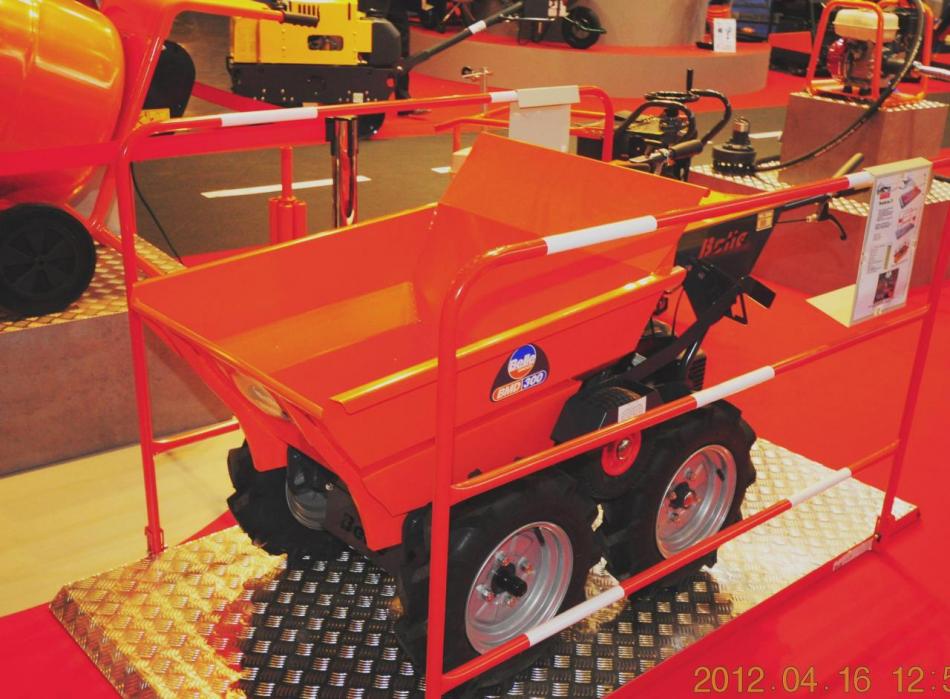

Motorised Wheel barrow BMD 300 of Belle Group. Pict J M M at Intermat, Villepinte, 2012 04.

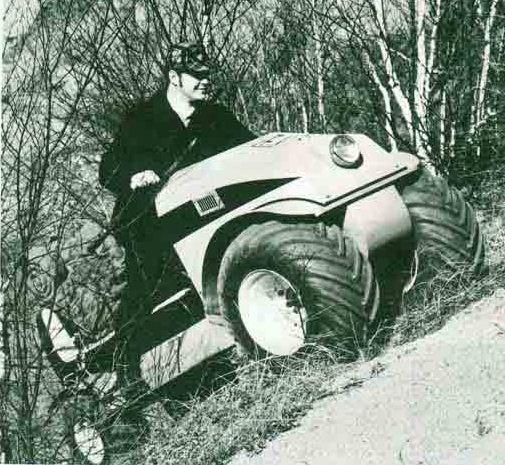

Motobrousse, 4x2, from Atelier Mécanique d'Alma LTD, Quebec, in the 60s.

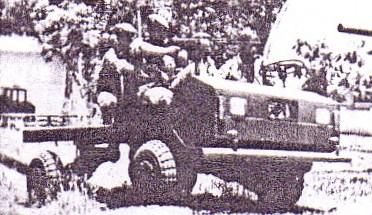

Platform 4x4, Jamy SAFO-1, 0,6 t, of Rio de Janeiro, late 70s. Pict from 'World Directory of Modern Military Vehicles' by Bart Vanderveen, Warne, 1983.

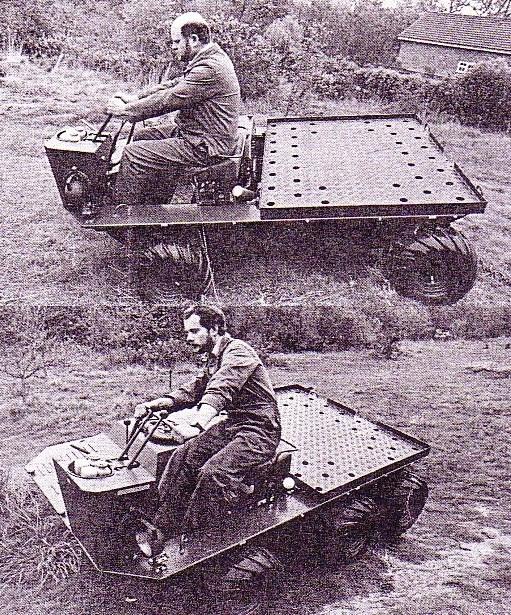

Rolba Goblin 4x4 (capacity 410 kg) and 6x6 prototypes load carriers from Rolba Limited, East Grintead, Sussex, UK. Built in 1983, 4x4 was based on the Austrian grass-cutting Rassant Bergtrack for mountains and fitted with 28 hp Citroën engine. Speed 15,5 km/h.  8 vehicles were built after tests at MVEE. Pict from 'Military Logistics' of Jane's Publications, 1989.

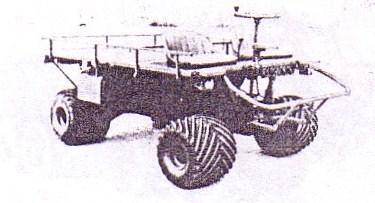

Platform 4x4, Piaggio, 0,6 t, 35 km/h, From Italia in early 70s, no suspension but three point suspension. From 'World Directory of Modern Military Vehicles' by Bart Vanderveen, 1983.

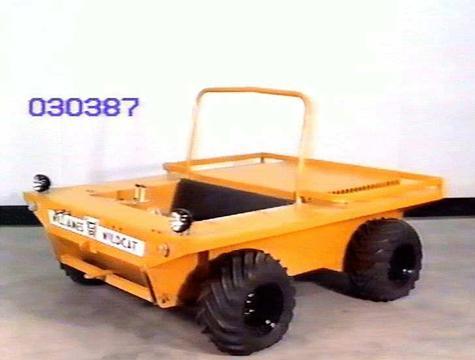

Williames Wildcat, 1973, designed by G.A. Geoffrey Williames Design & Construction, Warragul, Victoria, Australia, for agriculture. It was powered by a Sachs-Wankel rotary engine. Super Cat was an improved version. This design remembered the Croco 4x4 but is without articulation. It was manufactured 20 copies in Queenland from 1975 to 1981 and at Melbourne between 1978 and 1986. This one has been donated to the Victoria Museum in 1978.

Williames-supercat-tractor-h.pdf

Varimot tractor

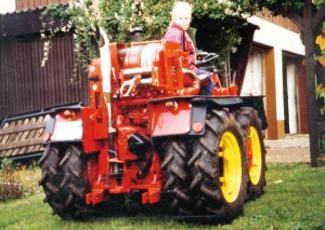

Varimot NA, 1964, with MWM engine. Historic of models : Adam Rodach presented at German South West Exhibition at Landau in 1949 the vine tractor Varimot 10 hp with Farymann engine. Then it marketed Typ 07 (1955-56), Typ 08 (1957), Typ 08/11 Bull-Loader (1958), Typ 09 (1958), Typ LA (1961), Typ 14 (1962), Typ NI (1966) with MWM engine, typ NI-F (1966), Typ RA (1964), Typ NA (1964) a new tractor built by Lanz Aulendorf Co. of Hermann Lanz, with HELA hydraulic system and MWM engine of 22 hp (then 28 hp). Only 15 built. The Typ NO (1968) and  Typ NV(1974) were the last : only 15 built.      http://www.varimot-diesel.de/2.html

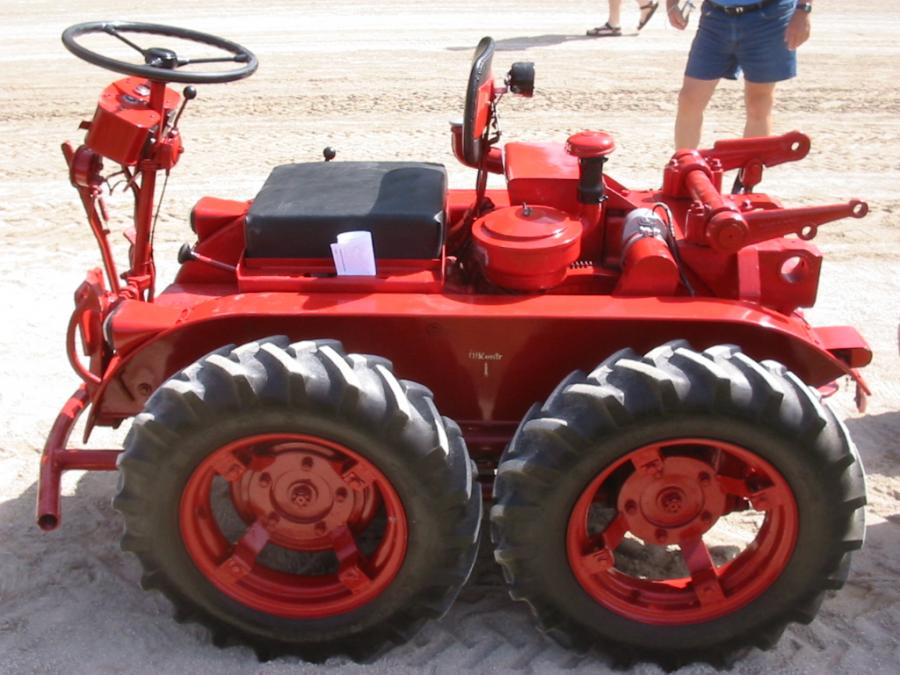

Varimot Typ 08, 1957       http://translate.google.com/?sl=de&tl=fr&js=n&prev=_t&hl=en&ie=UTF-8&layout=2&eotf=1&text=&file=#submit

Varimot Typ 07, 1955        http://www.unimog-community.de/index.php?name=PNphpBB2&file=printview&t=29407&start=1560

Varimot NA with double tires about 1959.    http://translate.google.fr/

translate?hl=en&sl=de&tl

=fr&u=http%3A%2F%2F

www.weinberg

schlepper.de%2Fhtml%2

Fleseprobe8.html

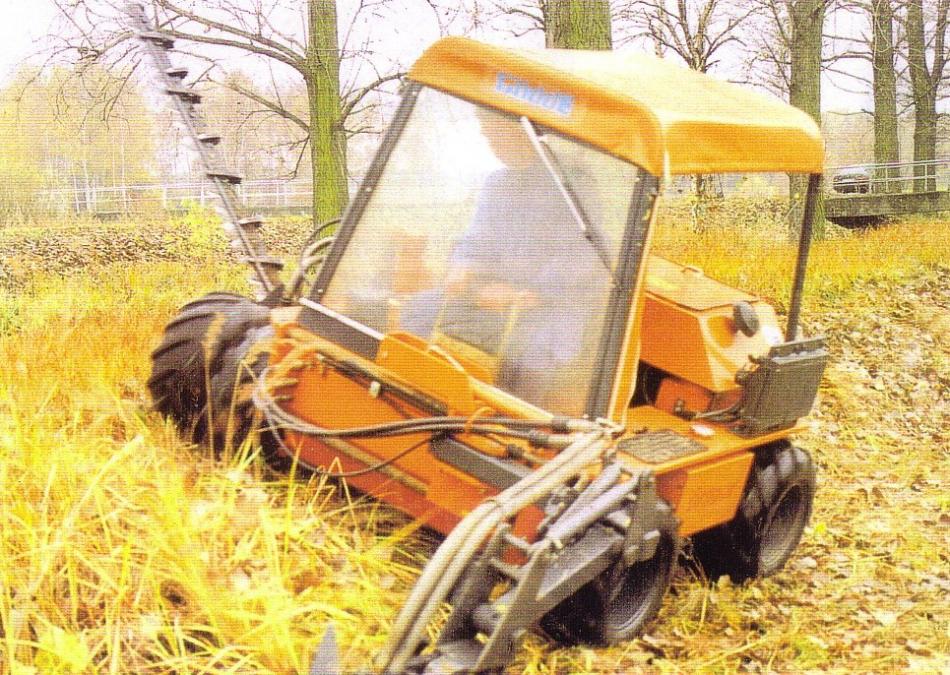

Mulag Ökoboy-1 4x4, from Germany.

Mulag-okoboy-1-4x4.pdf

Mulag-okoboy-4x4-h.pdf

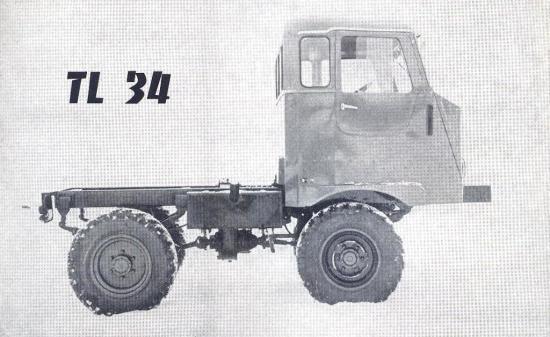

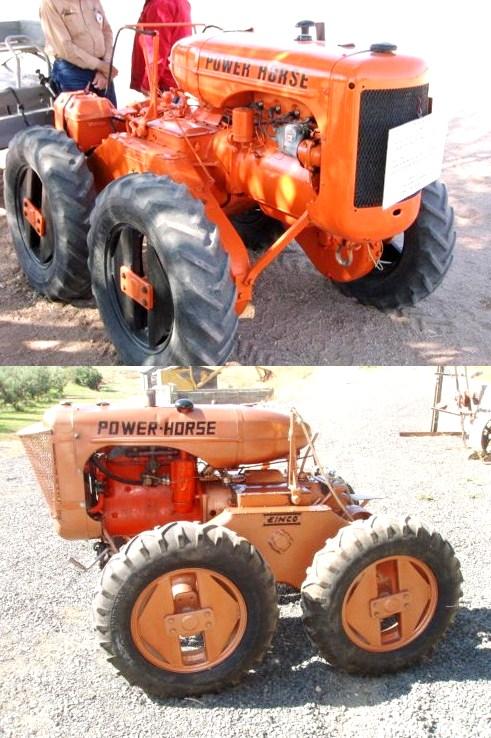

Buffle tractor 4x4 from Ateliers et Chantiers de la Manche, Dieppe, France, in the 50. Pict J M M collection.

Buffle-tractor.pdf

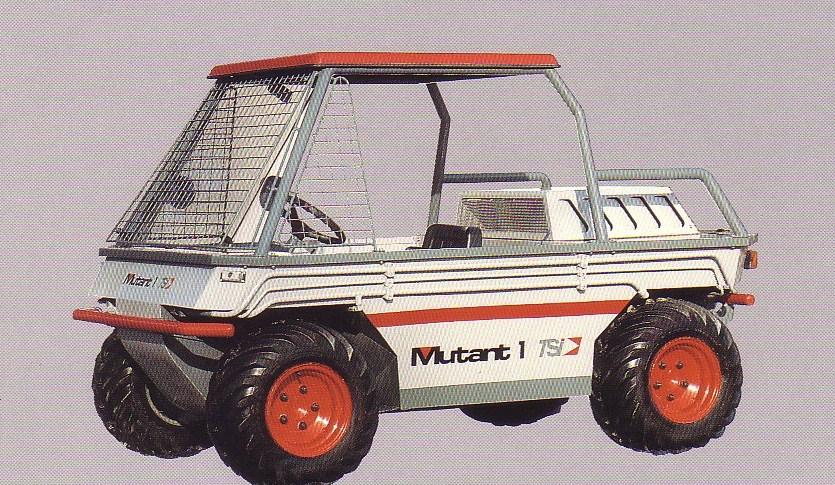

Mutant 1 of TSI, 1993, Triangle Service Industry, Eybens, France. J M M collection.

Tsi-mutant-1-h.pdf

Tsi-mutant-2-h.pdf

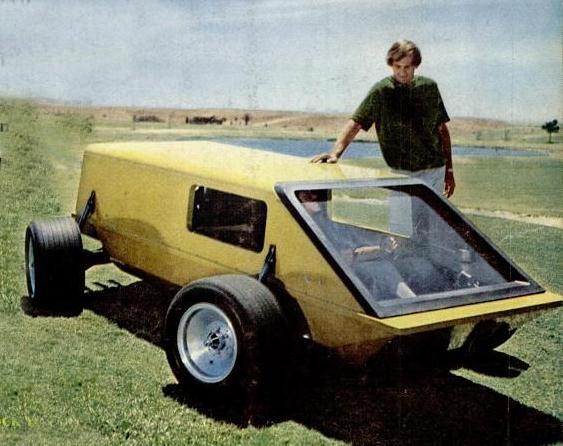

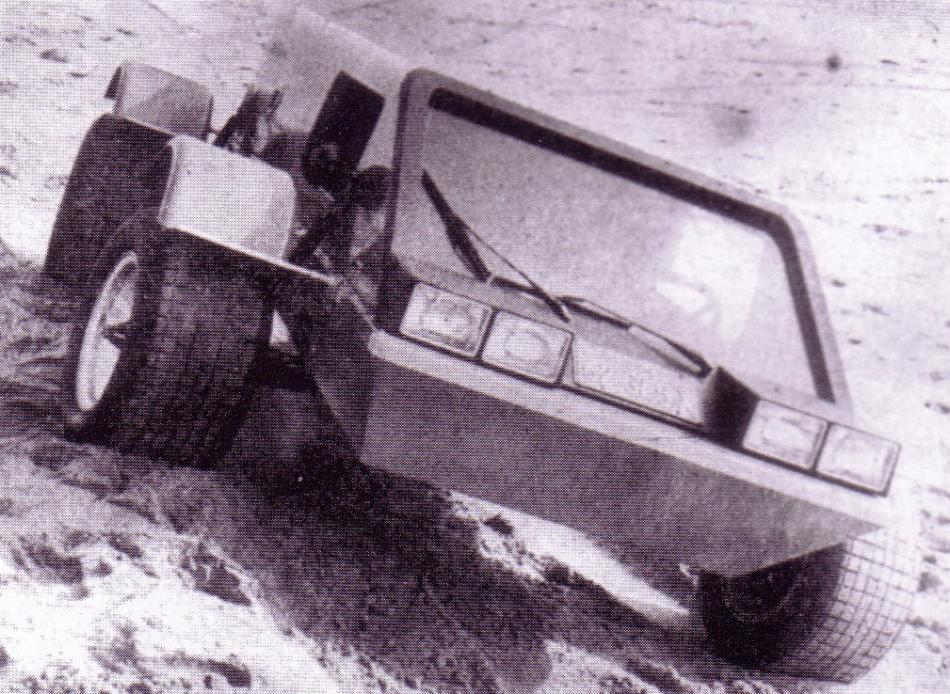

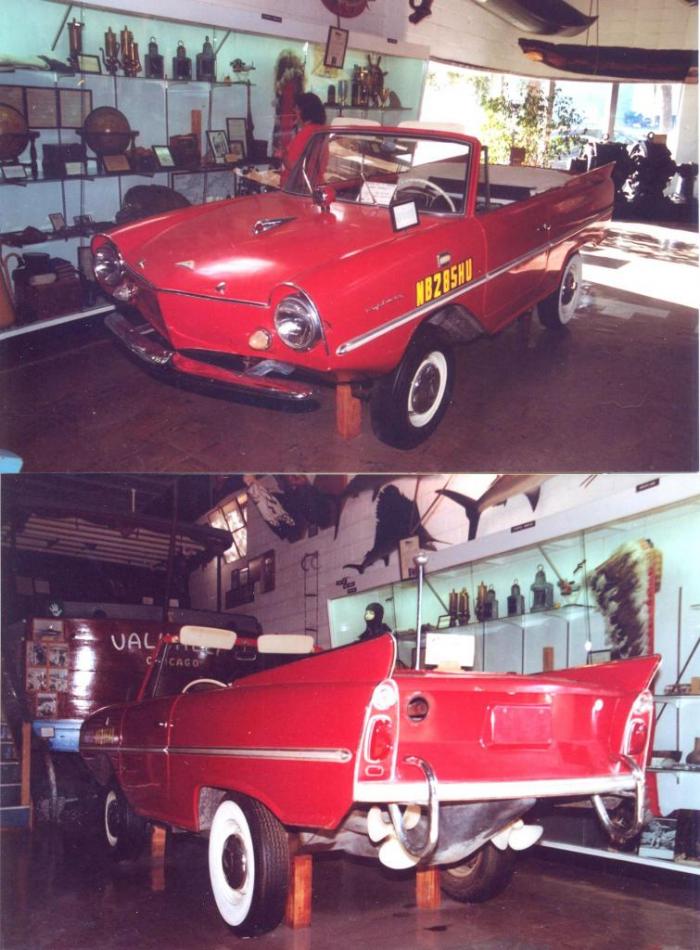

Box Amphibious car designed by Dan Hanebrink and Matt Van Leeuwen, Costa Masa, Calif. in the 70s. FWD and FWS, 60 hp engine of Kawasaki at rear allowing 160 km/h. Pict from Popular Science, Nov 1970.

The Box Amphibian off-road, 4x4, 1970.  Pict from book 'Mit Dem Auto Baden Gehen' by René Pohl, HC Heel-Verlag, 1998.

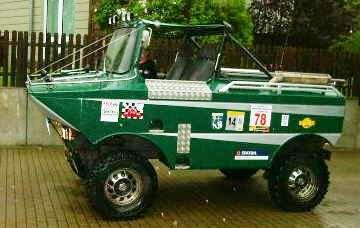

SAM amphibious proto, 2003, from Poland. Fiat engine.    http://www.amphibious

vehicle.net/amphi/Sa_Sea.html

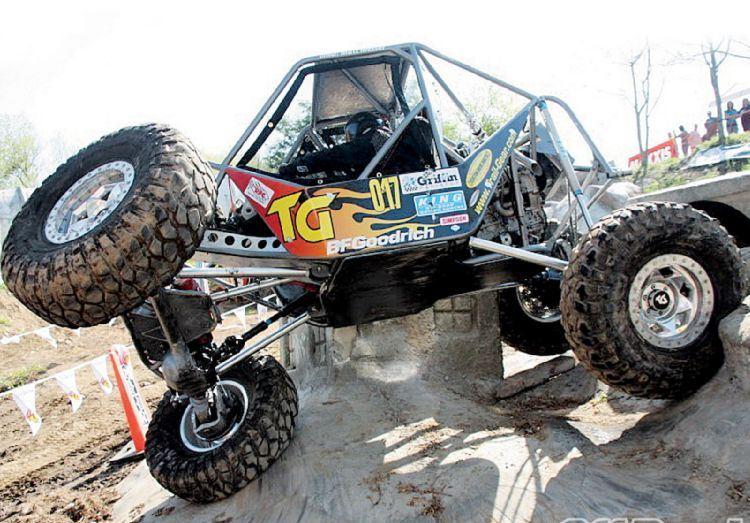

Yeager Supply Rock Dawg for rock crawling. Each wheel can be raised or lowered separately. Yeager Supply from Hendley, Nebraska.  http://www.

kisoffroad.com/rockdawg.html

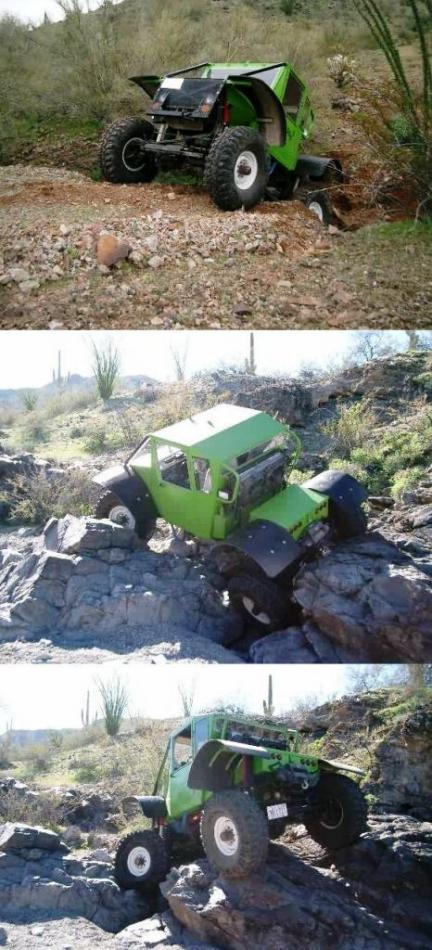

Yeager Supply Sidewinder II, a little smaller than Sidewinder.  http://www.kisoffroad.com/sidewinder.html

Yeager Supply Sidewinder. Sold in kit, it's a four wheel steer and drive. The frame is extensible and coil springs suspension can be doubled by computer controlled air cylinders so the vehicle can pitch up or down, right or left. Yeager Supply, Nebraska.   http://www.kisoffroad.com/sidewinder.html

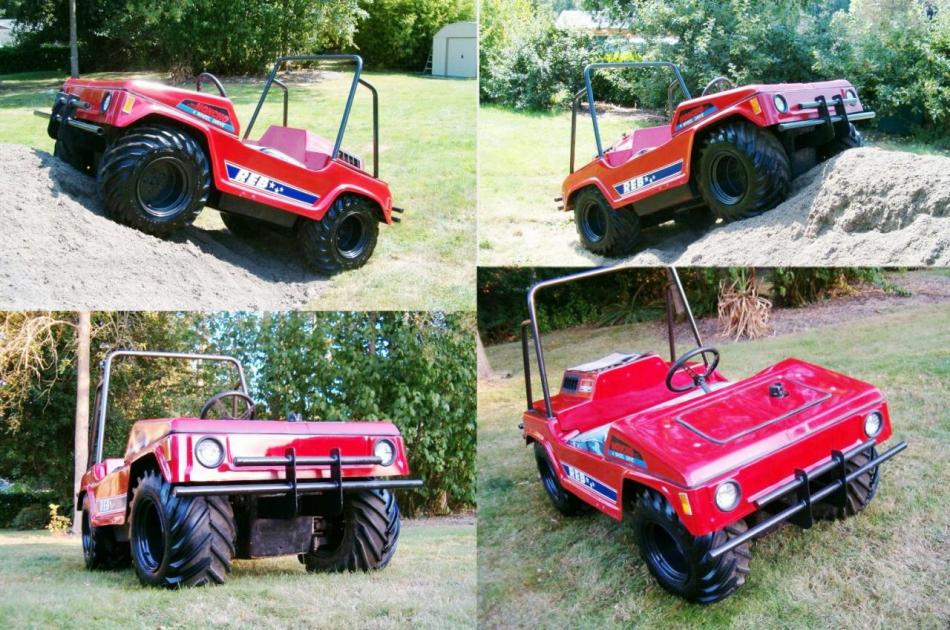

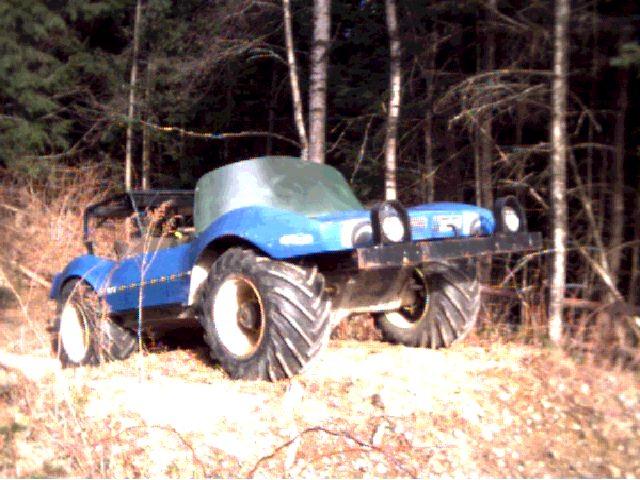

Terrajet, 1980, sold on eBay in 2006.

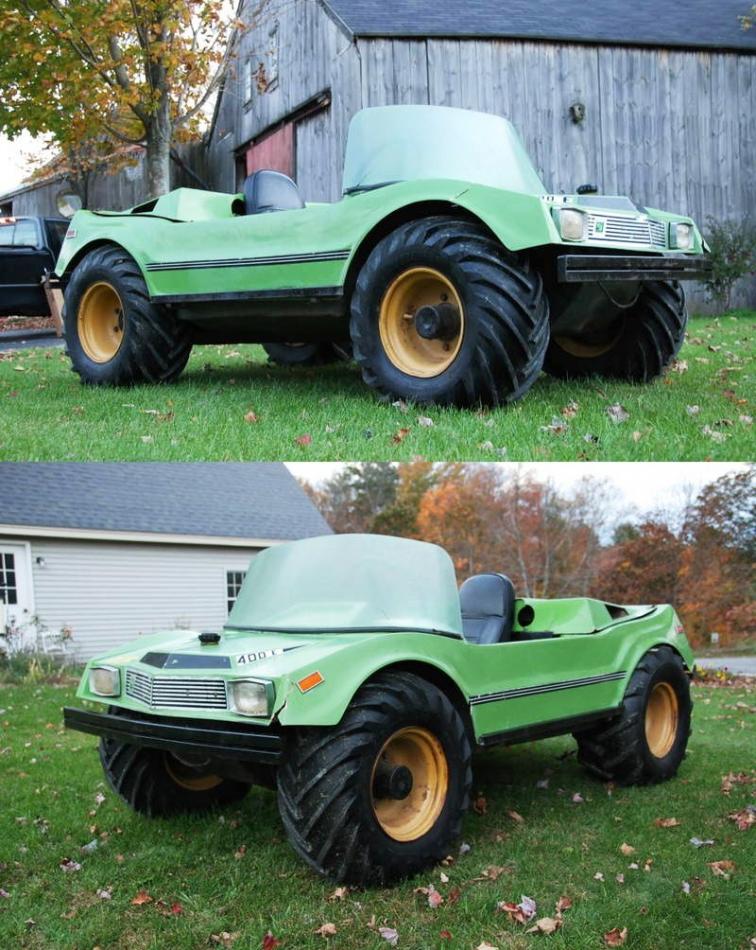

 Terrajet 1979 on eBay in 2006.

The Terra-Jet was originally manufactured in Drummondville, Quebec, Canada, in 1969. This was a 4x4 ATV without suspensions and differentials with very good off-road capabilities. Terra-Jet USA, Innis, Louisiana, bought all the rights and tools and continued to manufacture 4x4 and 6x6 from 1997. http://terrajet.tripod.com/id1.html

Terra-Jet

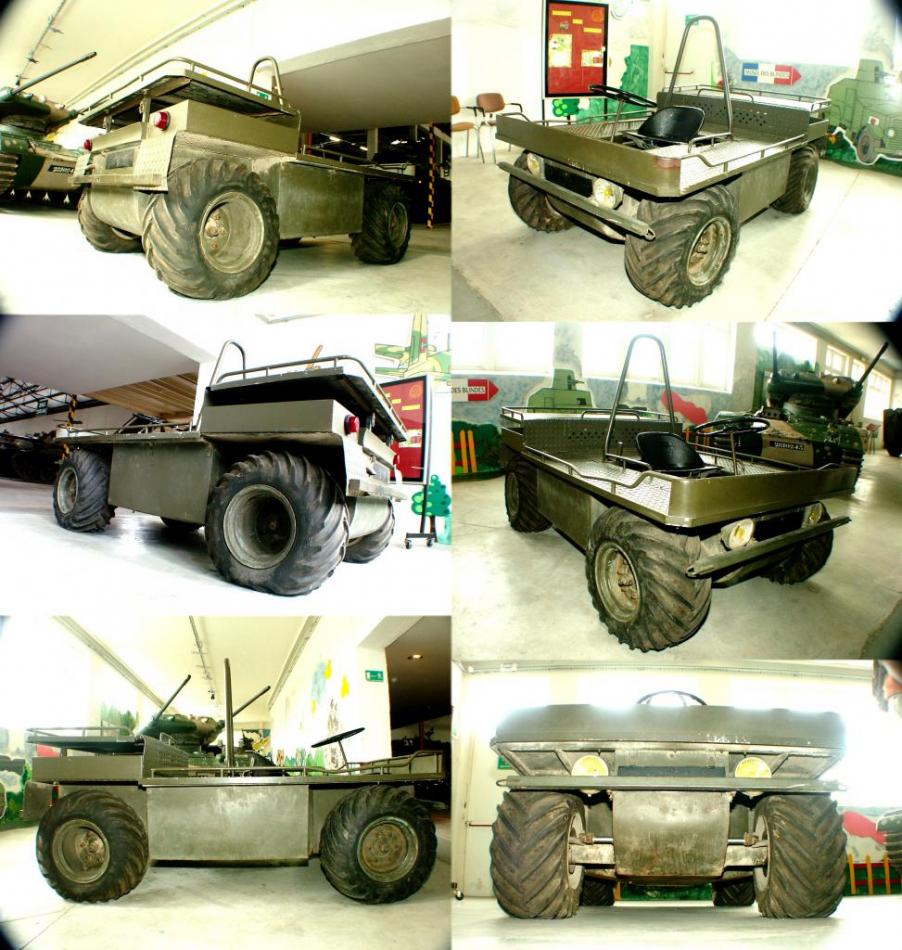

Terra-Jet M73 for military use about the 70. Pictures by J M M, Saumur Museum in 2006.

Terra-Jet

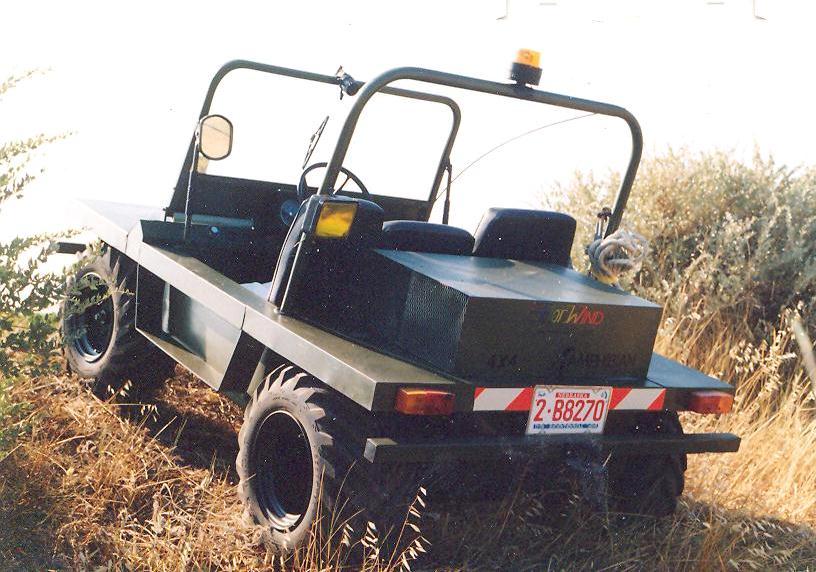

Terra-Jet VA-5 pictured in the 80s. Pict Collection J M M.

 Terra-Jet

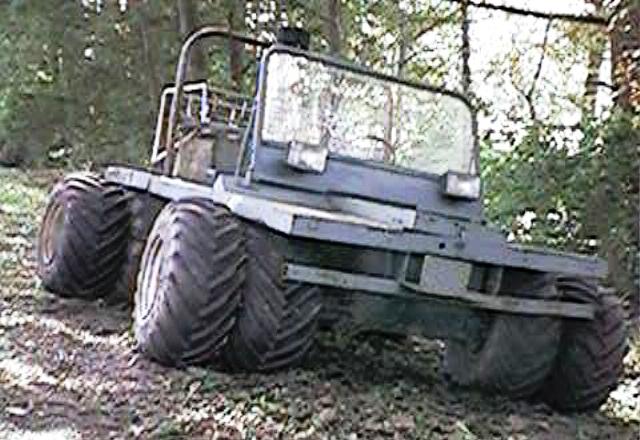

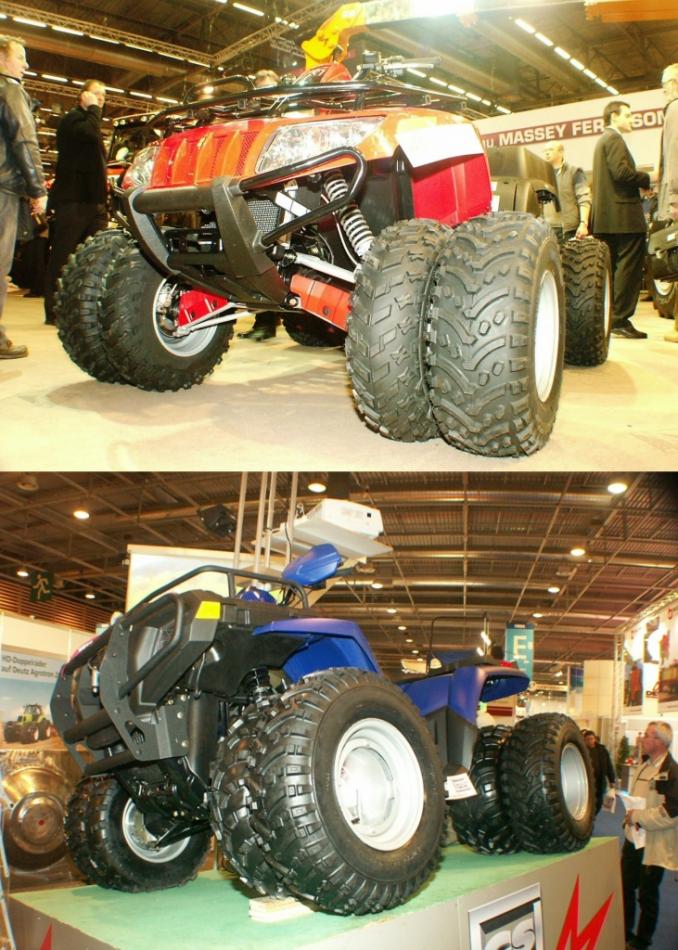

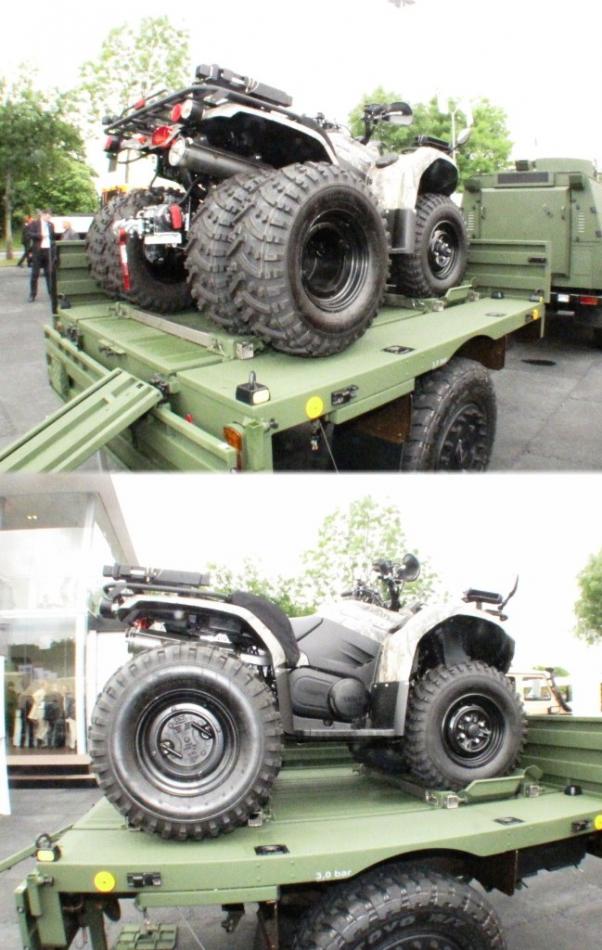

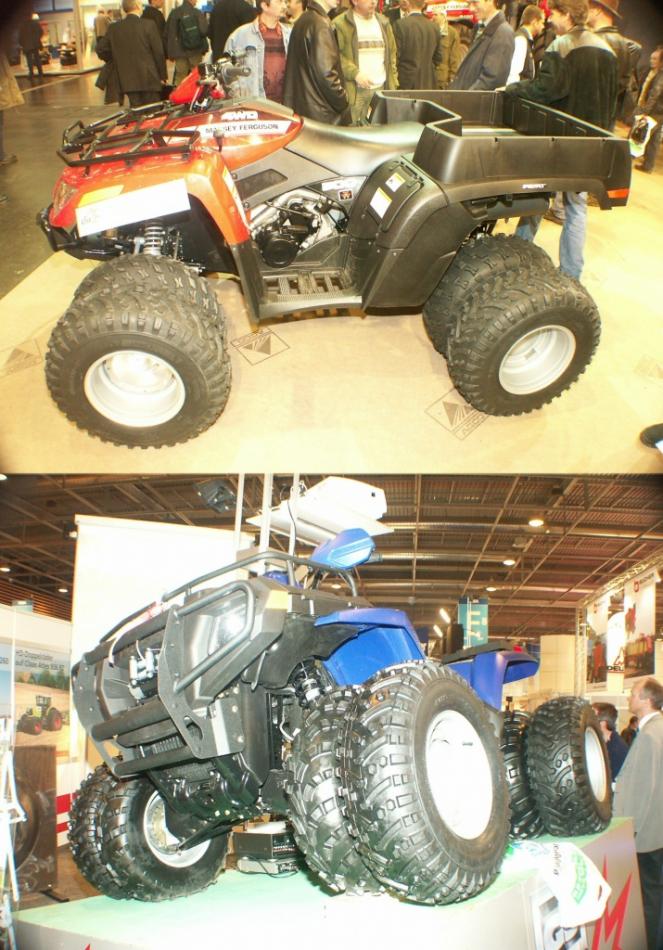

Terra-Jet VA-6 with dual tyres. This model dates from the 80s. It is named 'King of the Louisiana Bayou'

Terra-Jet

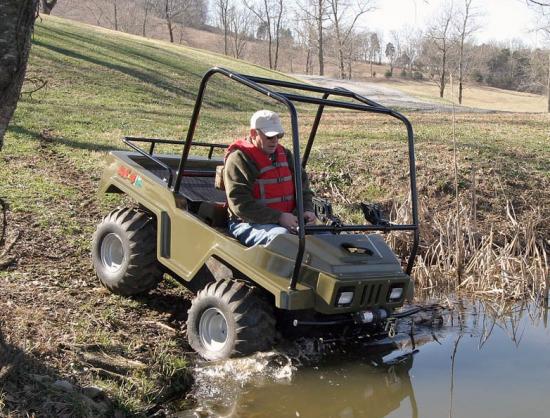

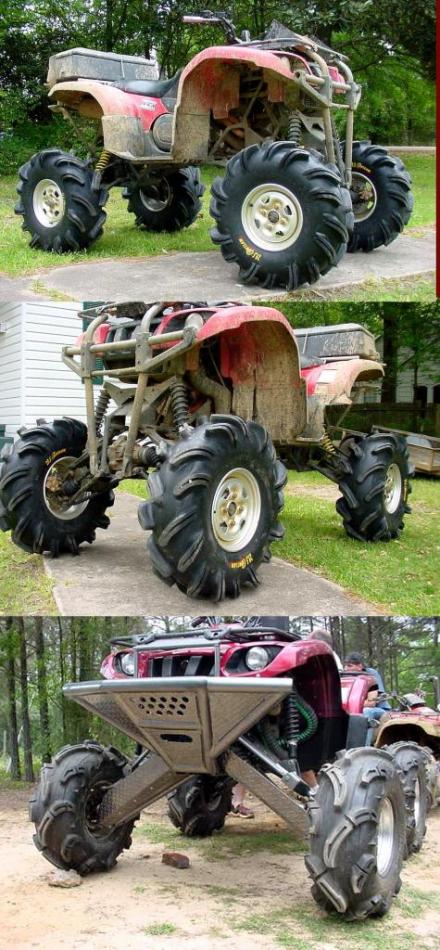

Amphibious ATV 4x4. 16 or 23 hp engine, KT-35 skid-steering transmission. From AV4ATV, Monroe, La. in mid-2000.

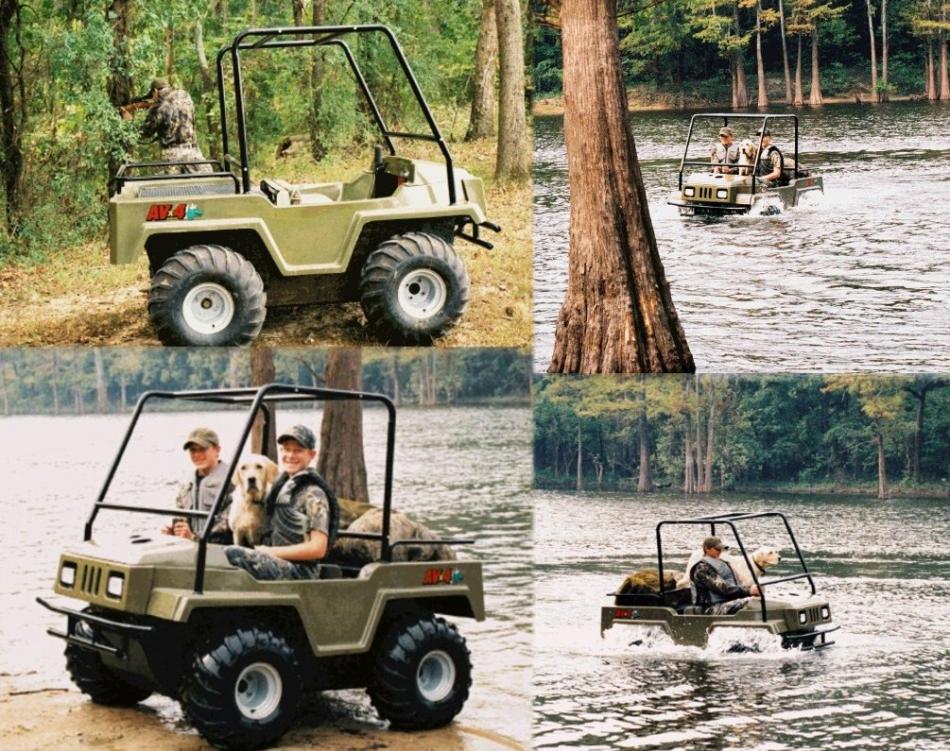

AV4 Lil Critter 4x4 Amphibious from mid-2000 at Monroe, La. Speed 25 km/h, in water 6,5 km/h, It seems it is no more manufactured.

http://www.truevalueauto.ca/used-cars-trucks/listings/l0112.html

http://www.6x6world.com/forums/content/section/363-av4-4x4.html

Frescia F18

 http://lunohodov.net/forum/viewtopic.php?t=2967

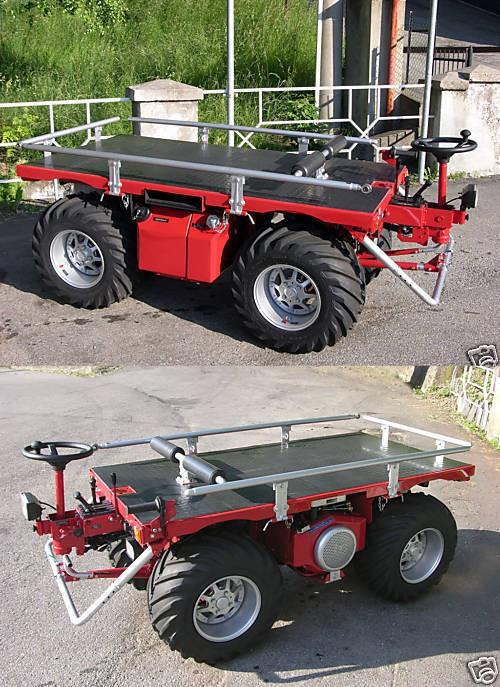

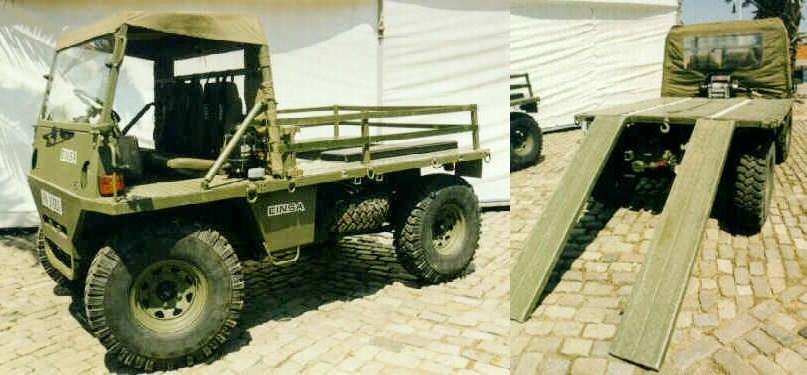

Fresia 4x4 F18, 550kg payload mountain power truck, it was delivered to Italian Mountain Units Army in 1978. Hydrostatic drive, power assisted steering and independent suspension on each wheel. The operator can walk behind. http://www.fresia.it/en/difesa.htm

Fresia 4x4 F18 Mountain Power Truck. Pict Ground Defense International, March 1984. Pict J M M collection.

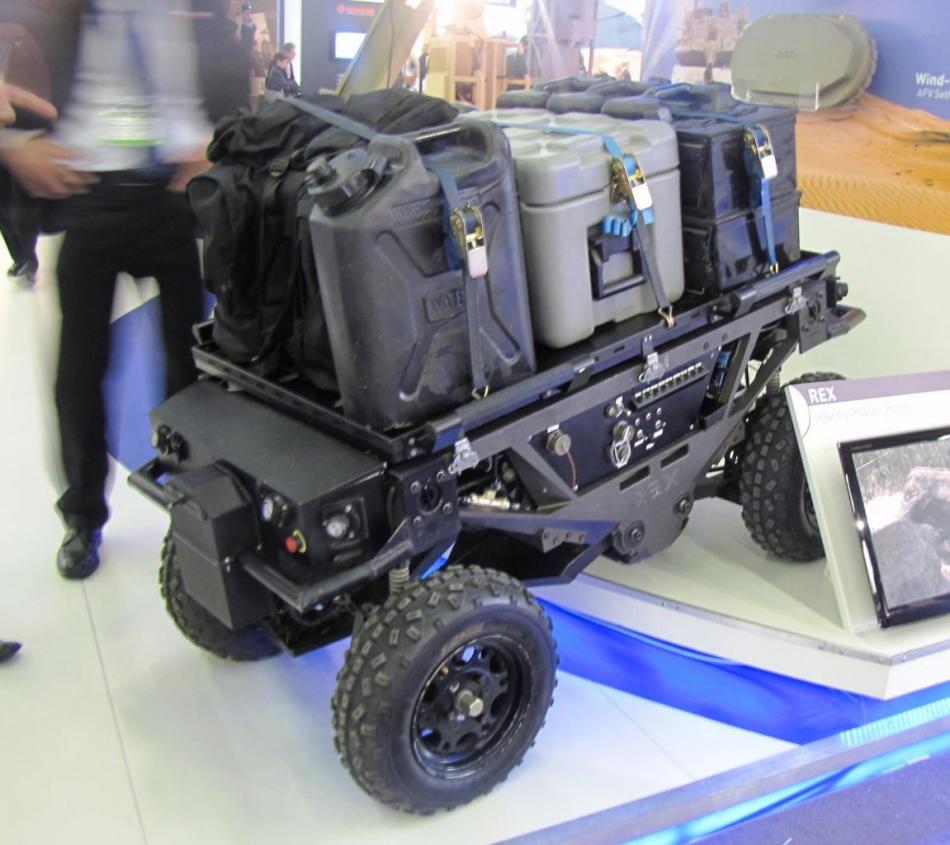

Rex Infantry Robotic Porter from Industrial Techno-logic Solutions LTD, Kfar Saba, Israel. Payload 250 kg, speed 12 km/h. Pict J M M at Villepinte, June 2012.        http://www.its-eng.com/logistic-robot

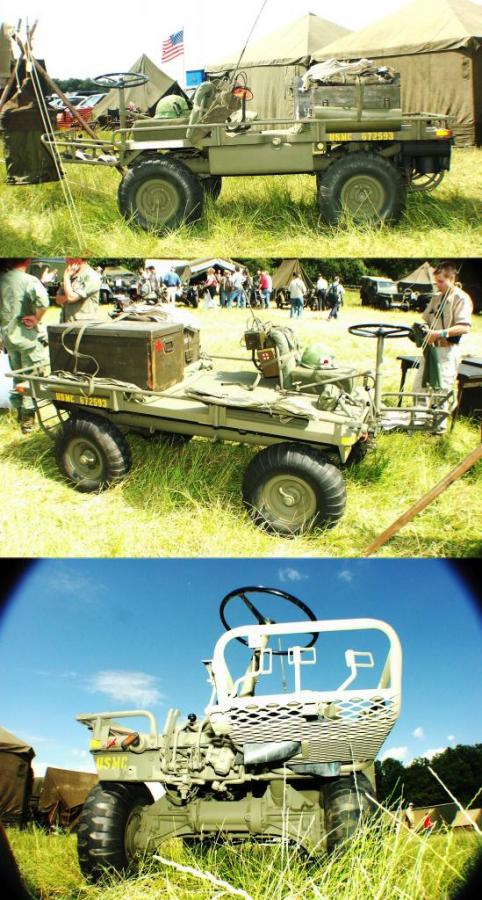

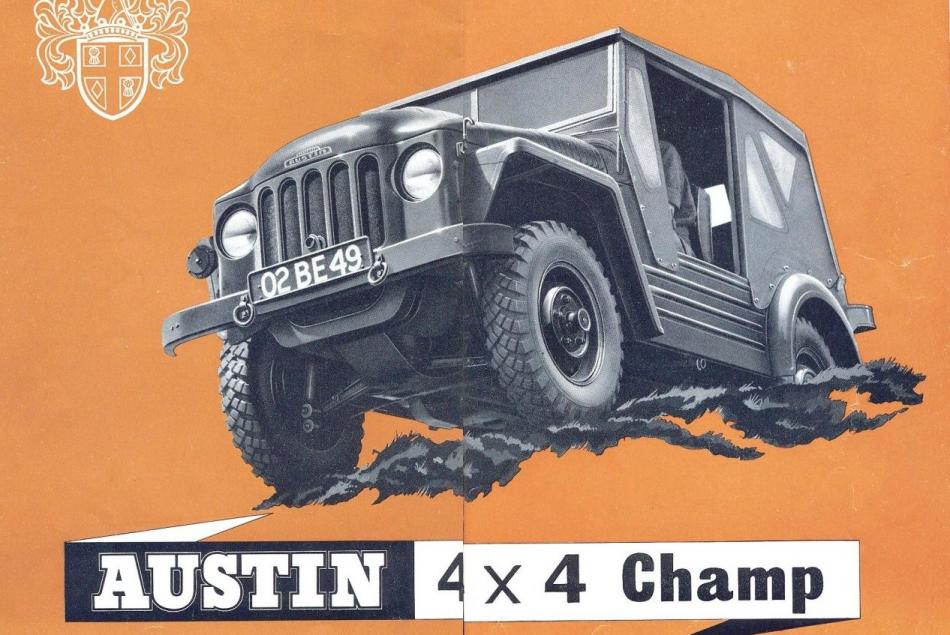

Austin Champ manufactured by Austin Motor Company since 1951 in 13.000 copies for civilian markets and British Army from 1953 to 1956 at Glasgow in Scotland. Roll Royce engine of 80 hp, independent suspension on all wheels. Nevertheless, Land Rover was half price.

Austin Champs

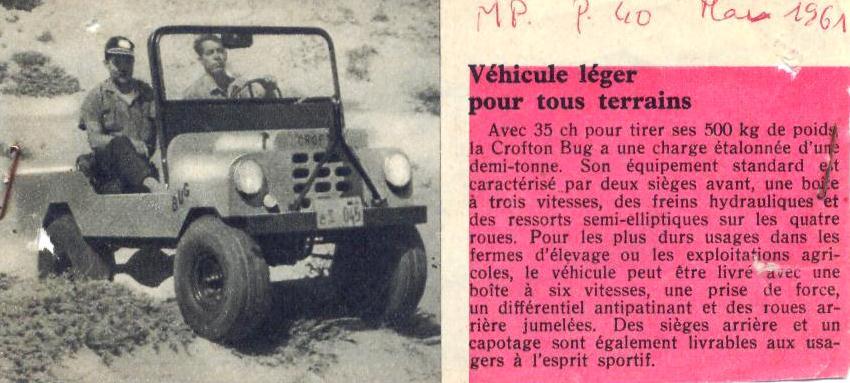

Crofton Bug of 35 hp in 1961 seen in 'Mécanique Populaire' of May 1961.

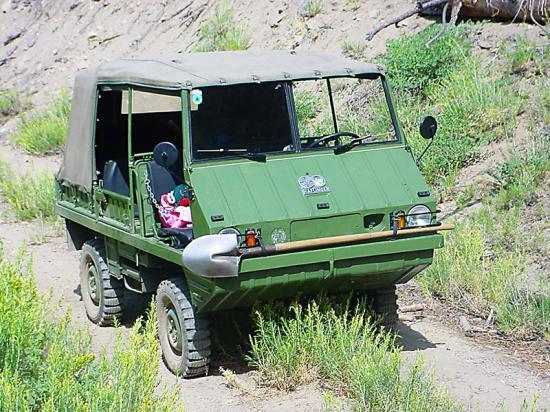

Haflinger 700 AP Steyr Puch manufactured between 1959 and 1971 in Graz , Austria. Independent suspensions, 24 hp, good ground clearance thanks to portal axles, transfer box, lockable differentials front and rear ; 16.700 copies have been built.

http://www.coldwar

remarketing.com/gallery.asp

Haflinger Steyr Puch

 Haflinger 700 AP Steyr Puch

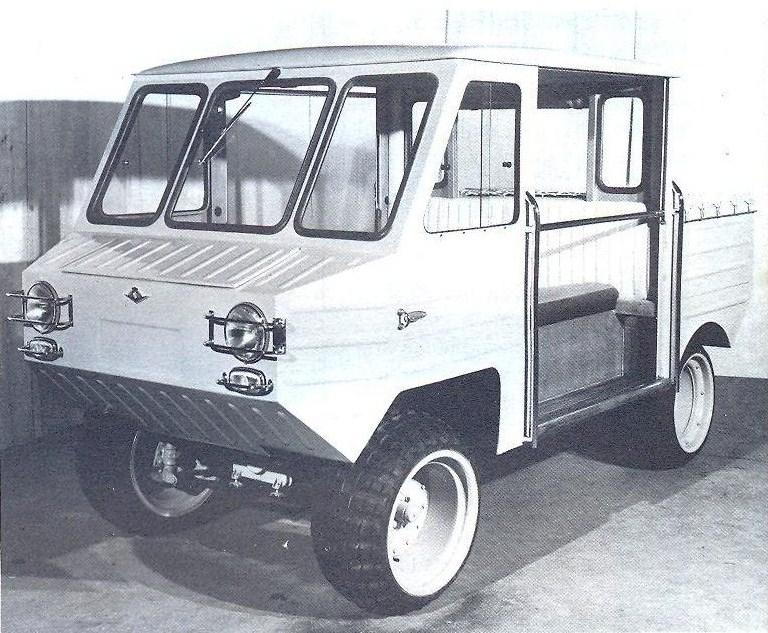

Diana of MV Motorcycle in Italy in the mid 60's was issued from the German Kraka. Rear engine, 6 seats. Tyres were Straussler Lysoïd. The Ferves looks like the Diana and was built in Turin from 1968 to 1971. Picture from book of Nick Baldwin 'The Illustrated History of Off-Road Vehicles' Haynes Publishing, 1987.

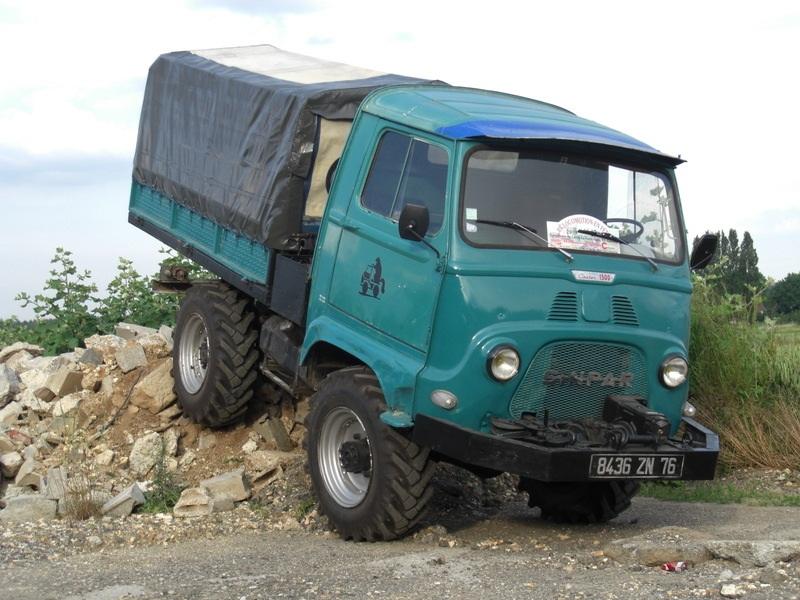

Castor 4x4 built by Société Sinpar from 1965 to the 70's. Petrol engine of 68 hp or diesel of 75 ch. Total weight 3480 kg for 1480 kg payload. This Company, part of Renault from 1980, manufactured many 4x4 conversions for this brand, Saviem and Peugeot.

Off-road Show

Amphibious and their history.pdf

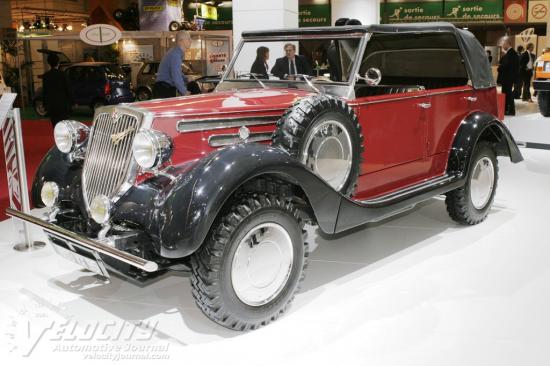

Mitsubishi PX33 full time 4x4 manufactured in Japan from 1934 to 1937. First direct injection diesel engine 6,7 l, 69 hp.

http://www.velocityjournal.com/journal/1933/mitsubishi/16357/index.html

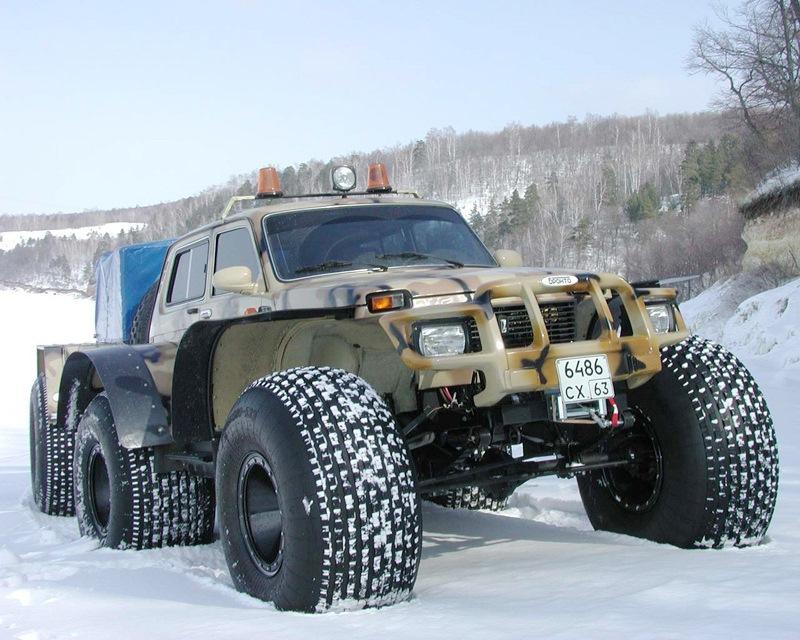

Bronto CTB 1922. Since 1993, JSC PSA Bronto, from Surgut, produced 6500 units. Issued from VAZ-2121 with Trecol tires.

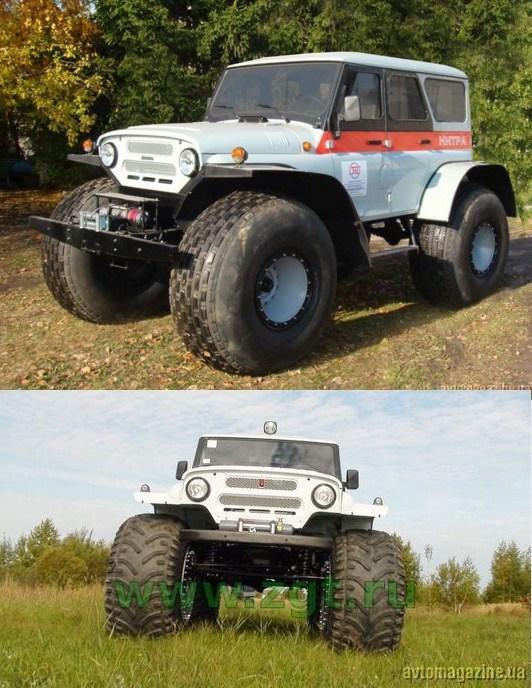

NITRA LTD TTM-2903 'Nitro', amphibious moving by its wheels, on low ground pressure tires. 2,5 m wide is not out code.  It is issued from UAZ.

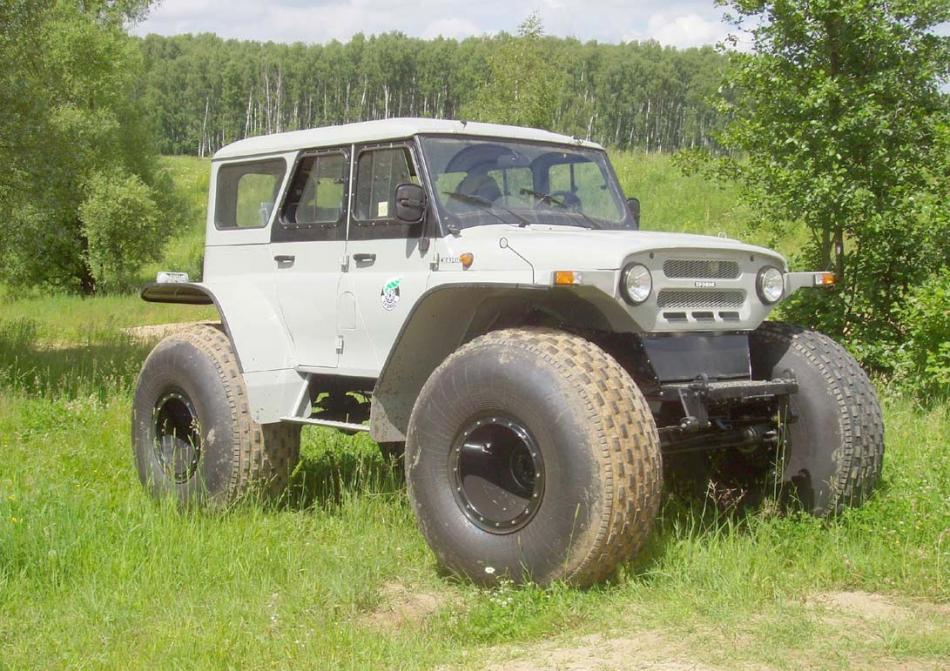

Trecol 39041, 4x4 using series vehicles components GAZ and UAZ. Trecol is leader of low pressure tires vehicles with many models 4x4 and 6x6. Trecol Company built 5000 vehicles since 1996.

http://www.trecol.ru/

Lada 4x4 with Green Frog like arms suspensions seen in the Internet in 2010. www.sadtler.de/GEKNIPST/GEKNIPST_1/GEKNIPST_2/Ladoga_Trophy_2006/hauptteil_ladoga_

trophy_2006.html

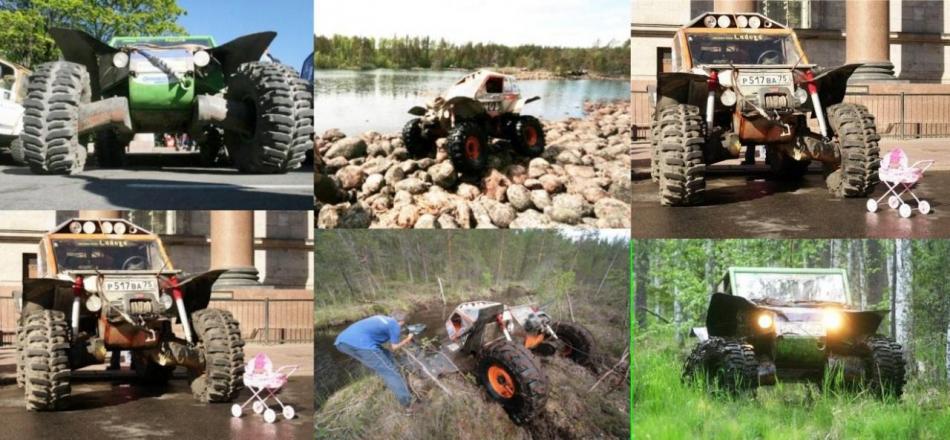

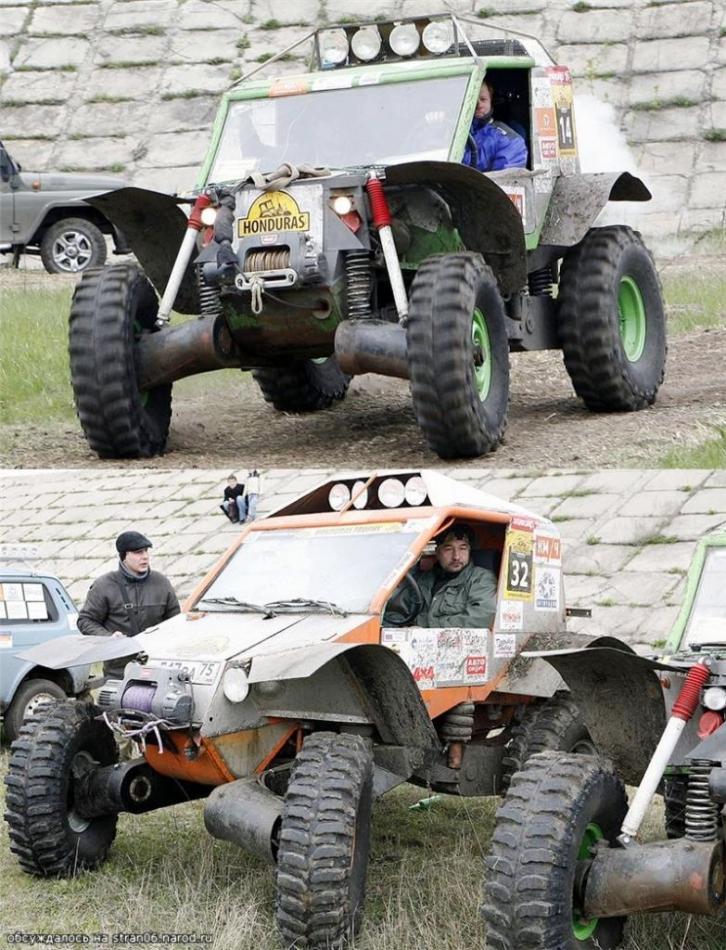

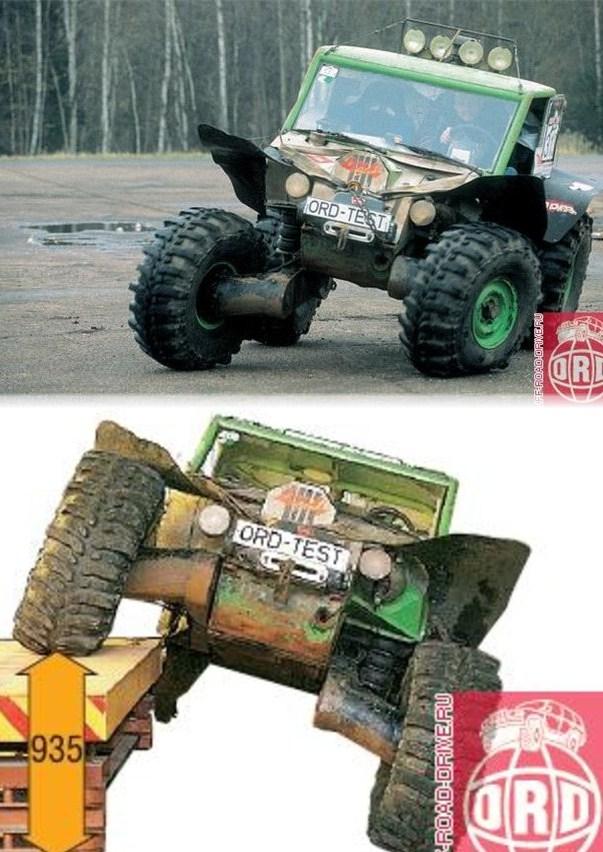

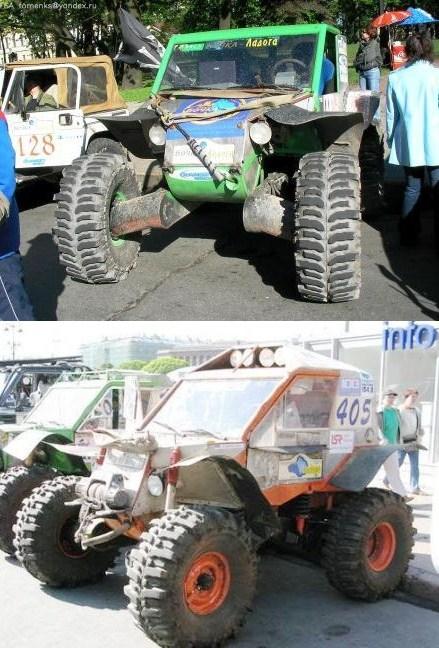

4x4 Frog of Ladoga Trophy driven by Jez is fitted with suspended portal lateral arms and wheels are chain driven. He won the international Ladoga Trophy in 2006. The rig was built at St Petersburg with Audi engine, front axle fully hydro-steered, high speed winch. The bottom is flat and not constrained by axles.

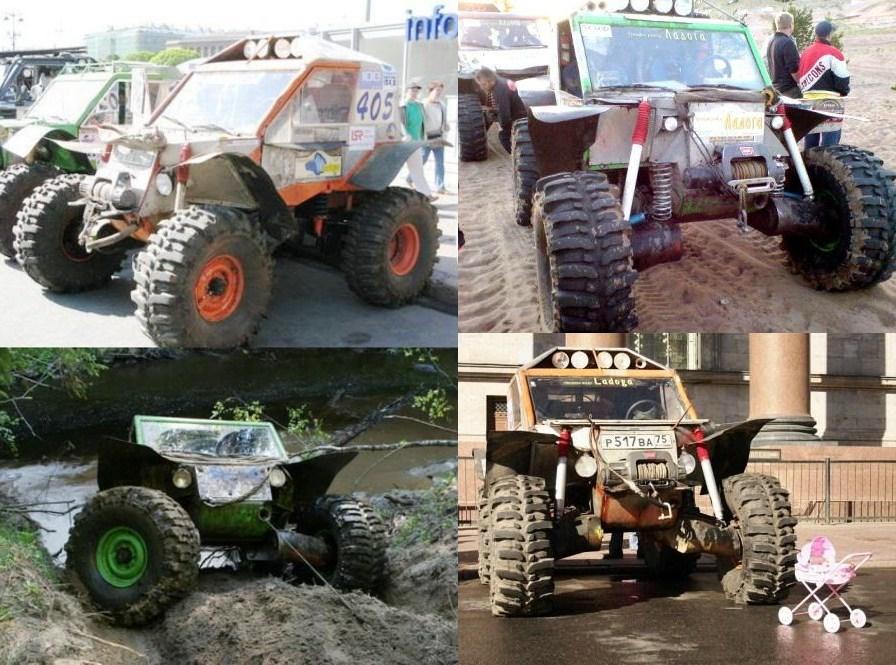

Green Frog 4x4 at Ladoga

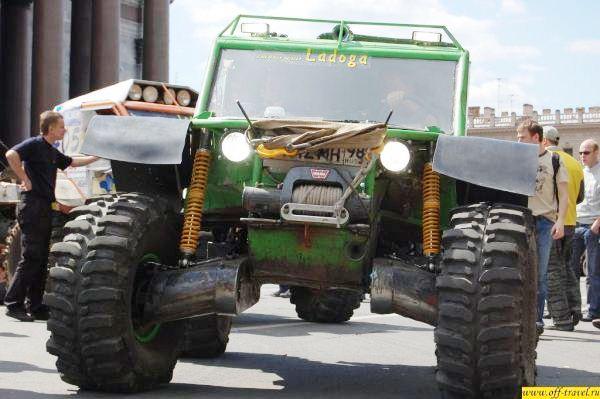

Green Frog at Ladoga Lake Rally, 2008. http://www.off-travel.ru/site/index.php/otchetyi/sorevnovaniya/ladoga-trofi-2008-video-foto-otchet/Page-2.html

Green Grog 4x4 of Ladoga Trophy

Suspensions of 4x4 Frog of Ladoga Trophy. Arms are suspended by coil spring and air cushion. Wheels are chain drive.

4x4 Frog of Ladoga Trophy

Green Frog at Ladoga Trophy. Remix 59 writes :  clearance will reduce the draft, will significantly improve the stability and resistance to movement in the water, as well as access to the beach and on the ice.    http://radikal.ru/F/i048.radikal.ru/1108/44/3111db255fcf.jpg.html

 http://lunohodov.net/forum/viewtopic.php?p=229092

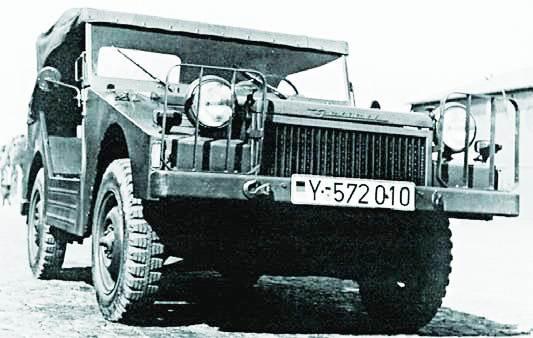

Goliath 4x4 Jagdwagen Typ 34, 1956, built at 100 units in 1959. 95 km/h, 50 hp, total mass 1800 kg. DKW Munga F91 has been chosen for German Army.

http://www.powerful-cars.com/php/borgward/1957-goliath-typ-34-jagdwagen.php

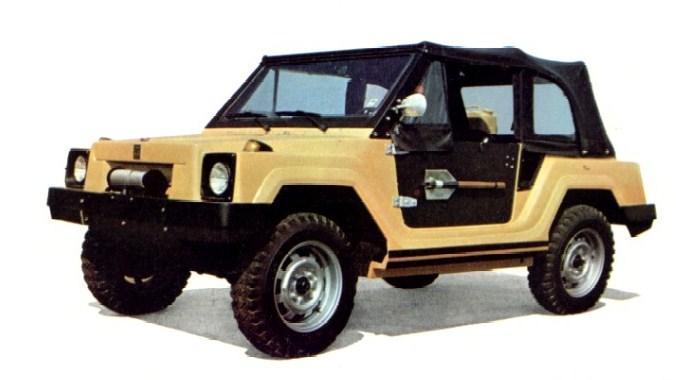

Gurgel X-12, Some thousands produces in the 80s in Brazil. Gurgel was founded in 1969 and closed in 1994.

http://blogmotor.net/2010/03/motorcast-25-%E2%80%93-a-historia-do-gurgel/

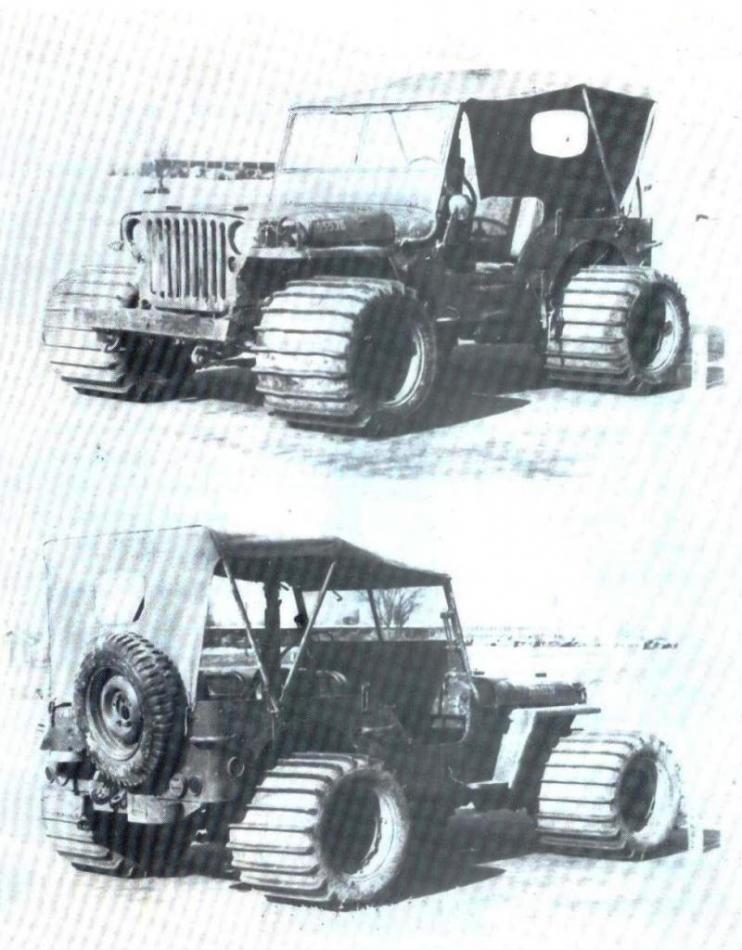

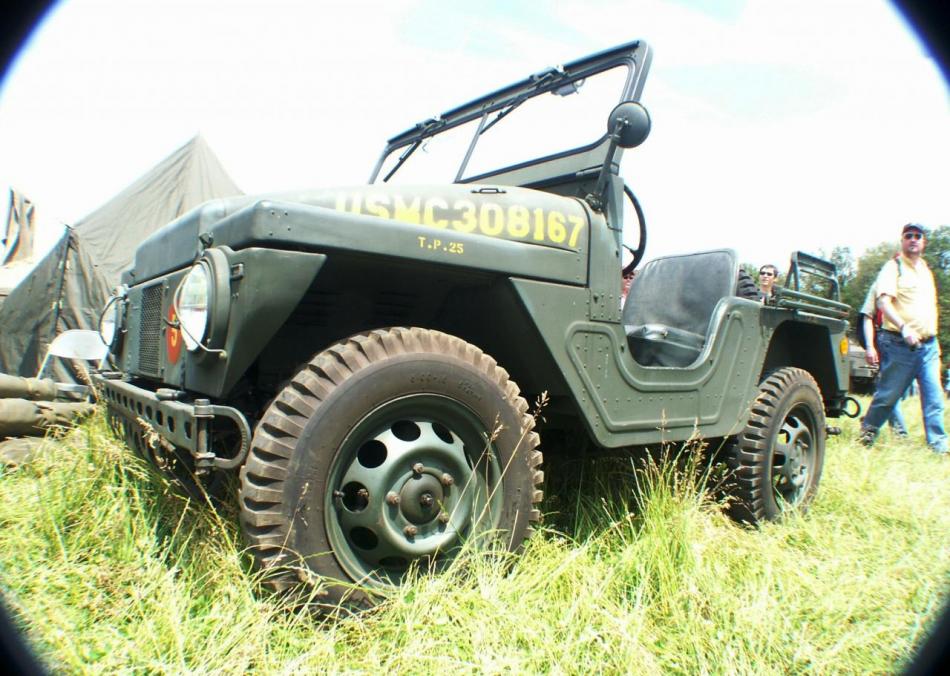

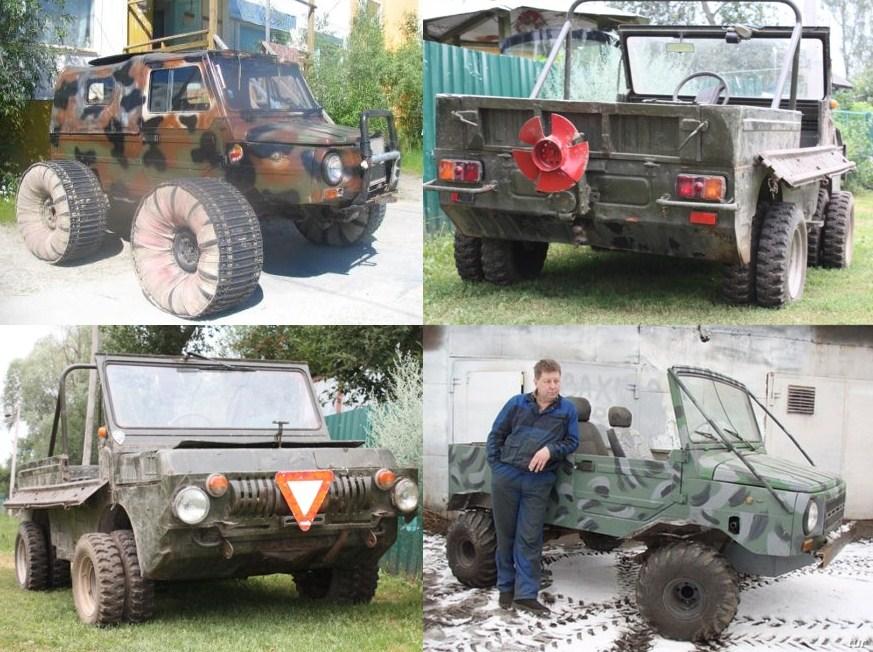

Willys MB with Firestone Cylindrical Tires was tested during WWII for jungle conditions. It was reported that a winch was more useful than exotic tires and tracks more suited in this environment.

 Picture from book of Fred Crismon ‘US Military Wheeled Vehicles’, Supplement, Crestline Publishing (Motorbook), 1983.

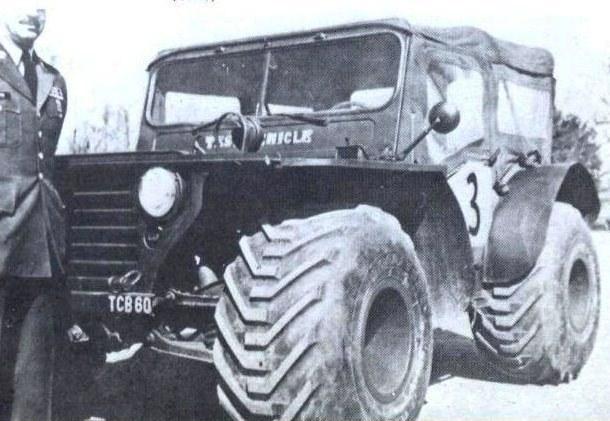

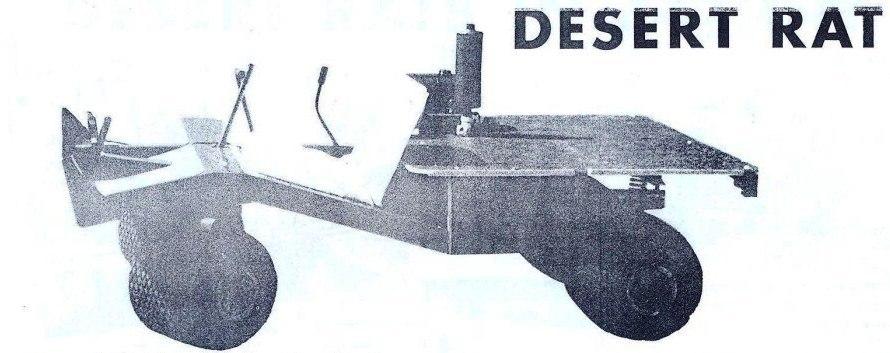

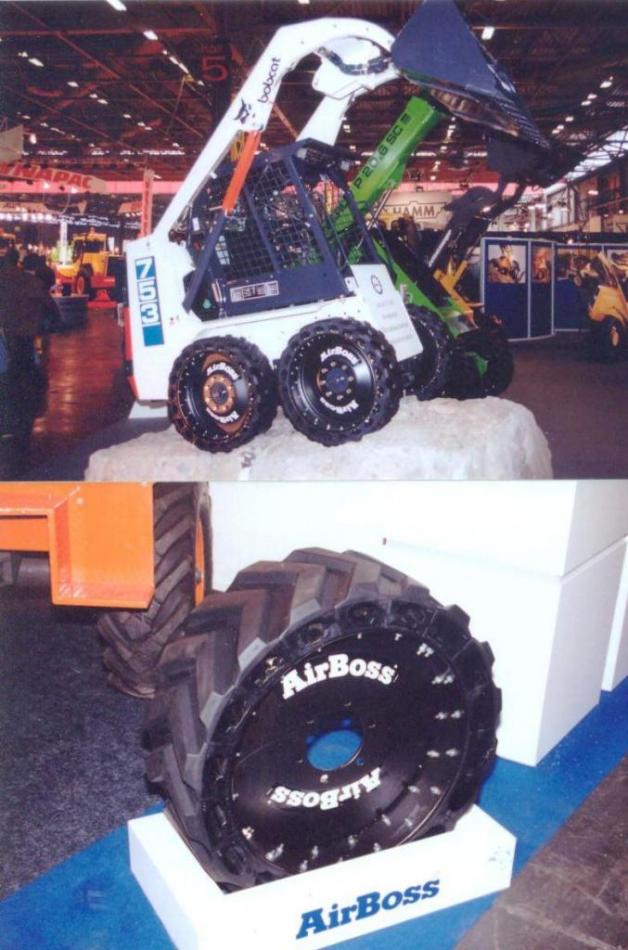

Ford M151 with Terra-Tires of Goodyear, 1962. This project 'Wheeltrack' had been commercially available. Ground pressure : 0,17 kg/cm².

 Picture from book of Fred Crismon ‘US Military Wheeled Vehicles’, Crestline Publishing (Motorbook), 1983.

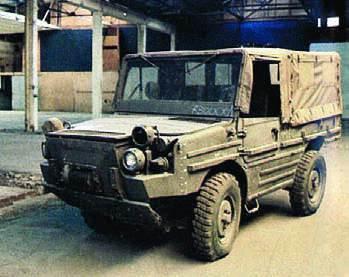

Hotchkiss-Lancia-Bussing, 1971.

http://www.offroadvehicle.ru/AZBUCAR/Bussing/Bussing%20txt.html

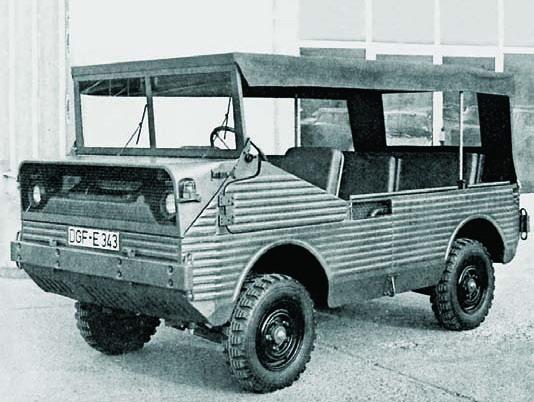

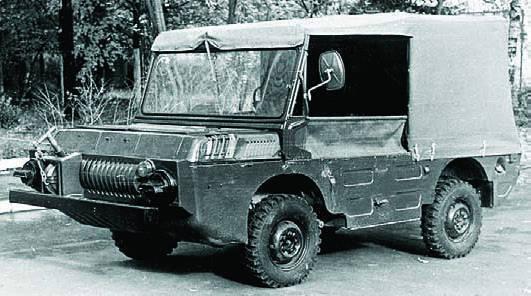

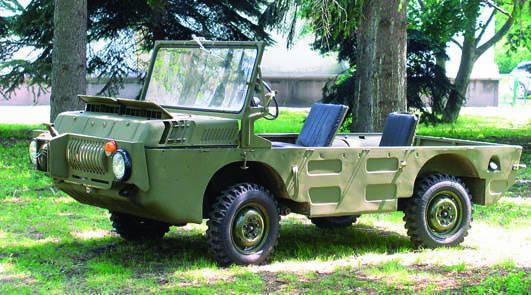

Europa-Jeep, Amphibious, 1968, designed by Fiat, MAN, Saviem, 700 built for Germany and Italia until 1979.

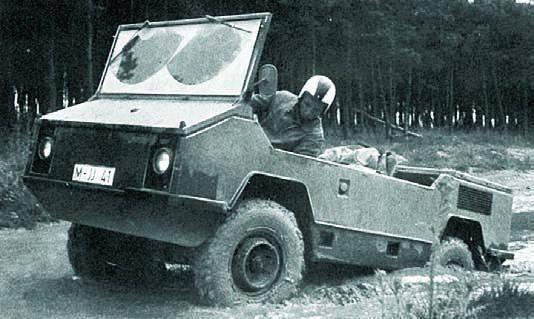

Euro-jeep MBB, amphibian, 4x4, 1971, from Germany.

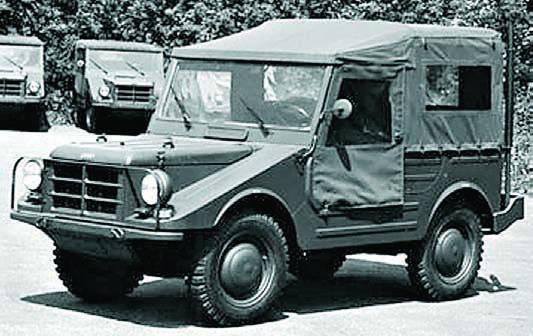

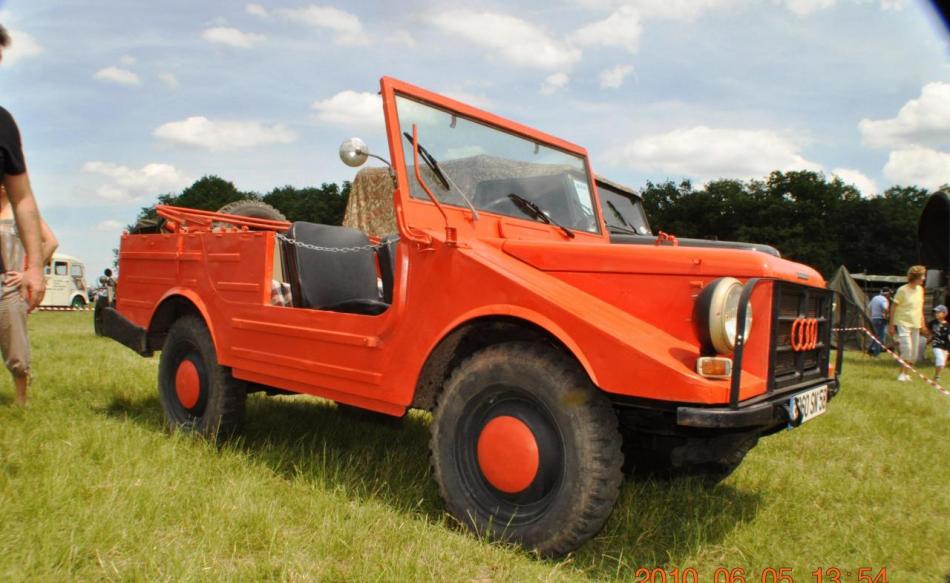

DKW F91, 4x4, 1956, from Germany.

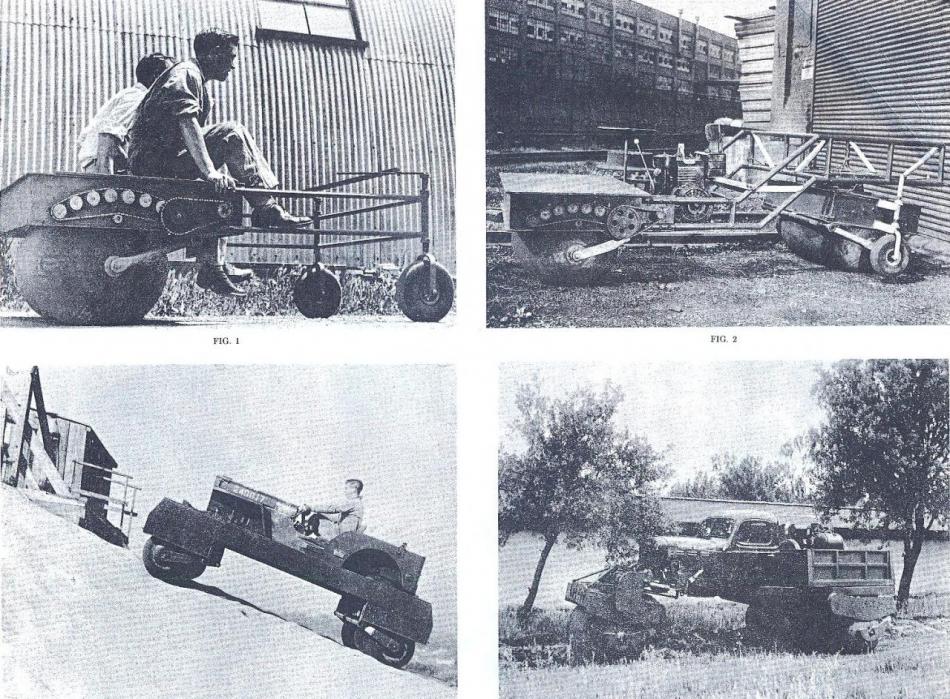

First Rolligon Prototypes of William Albee in early 50s. Pict F. Pierre archives.

Rod Millen 4x4 about 2000.

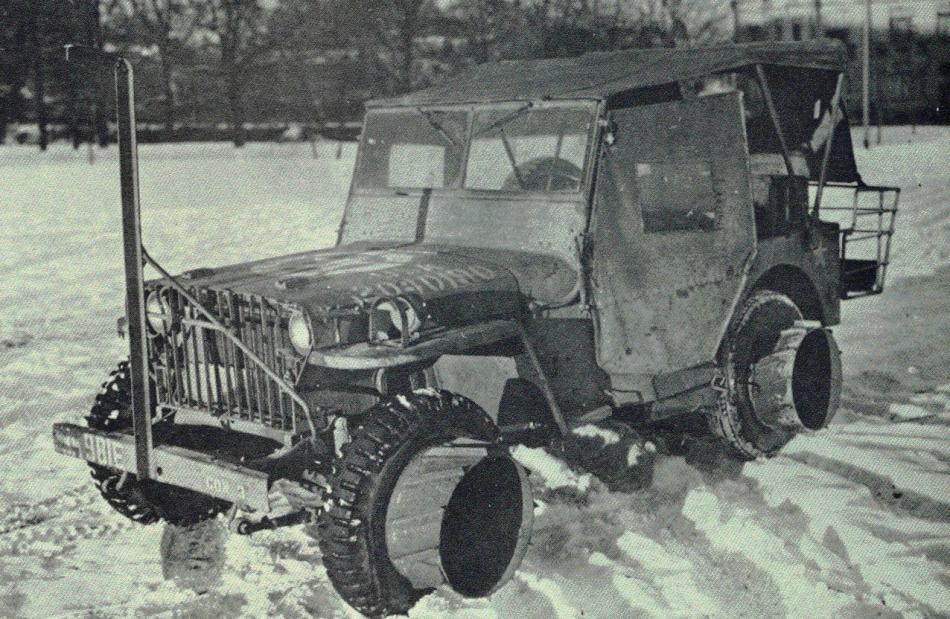

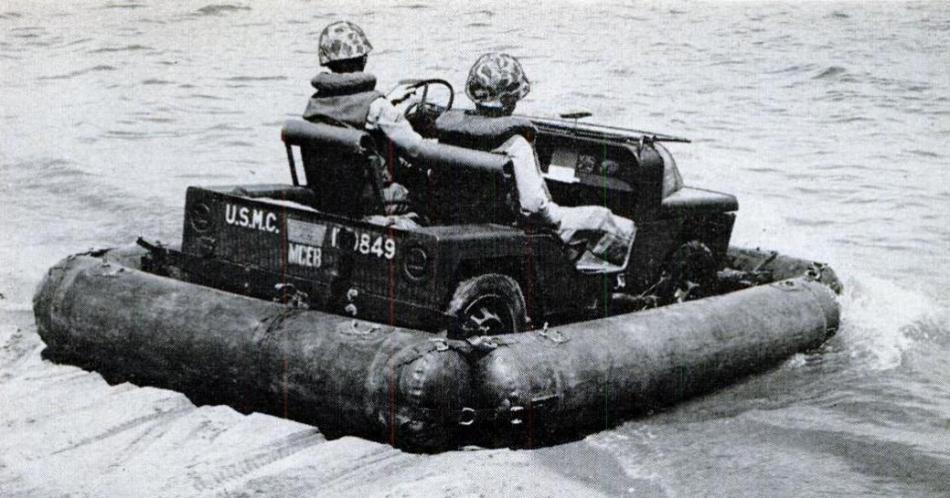

Jeep, early Willys MB,  with Mud Flotation Adaptors designed by Capt. L.S. Rainhart of US Army during WWII to improve mobility, . Pict from the book of Bart H. Vanderveen 'The Jeep', Warne, about 1970.

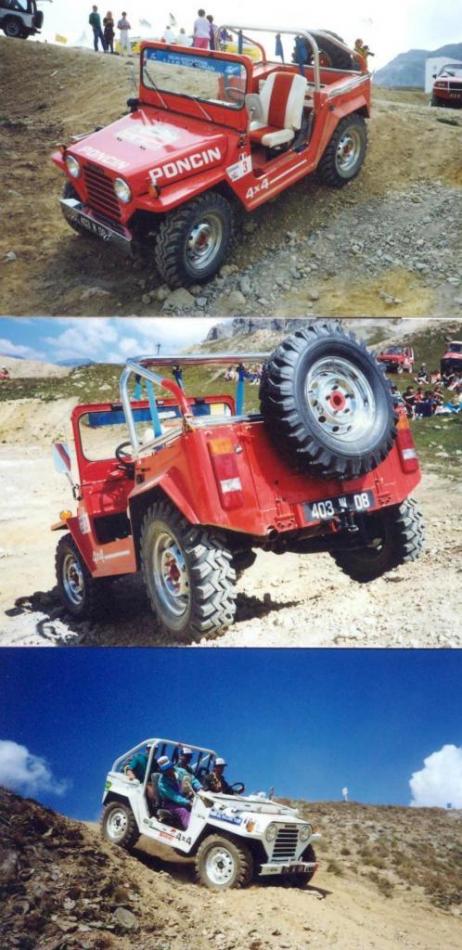

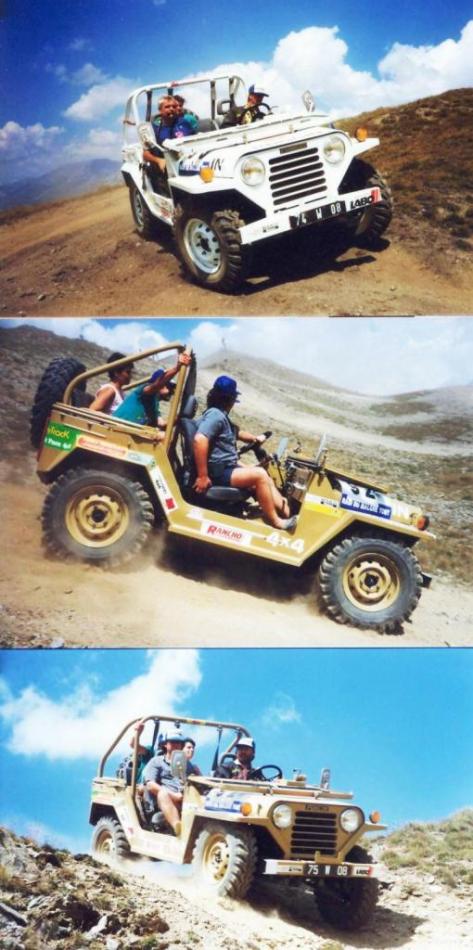

Poncin MUT 4x4 at Val d'Isère in August 1990. Pict. J M M.

Mutt-4x4-from-poncin-1.pdf

Mutt-4x4-from-poncin.pdf

Poncin MUT 4x4 at Val d'Isère in August 1990. Pict J M M.

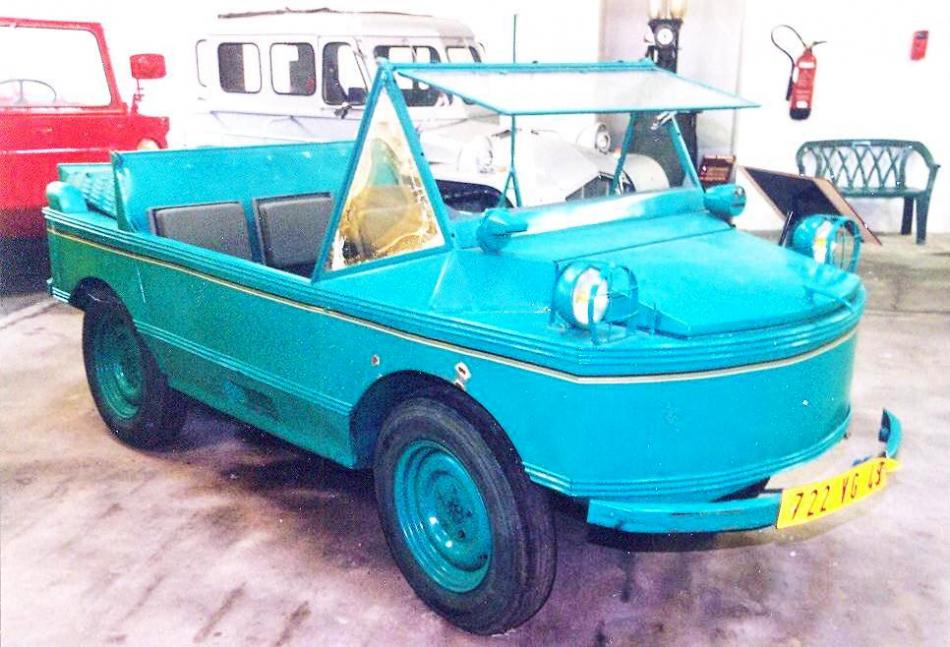

'Voiture du Bled' Georges Irat, Saumur Museum, Feb 2002. Pict J M M.

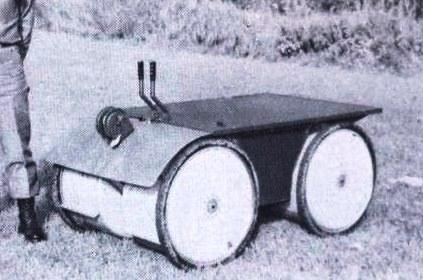

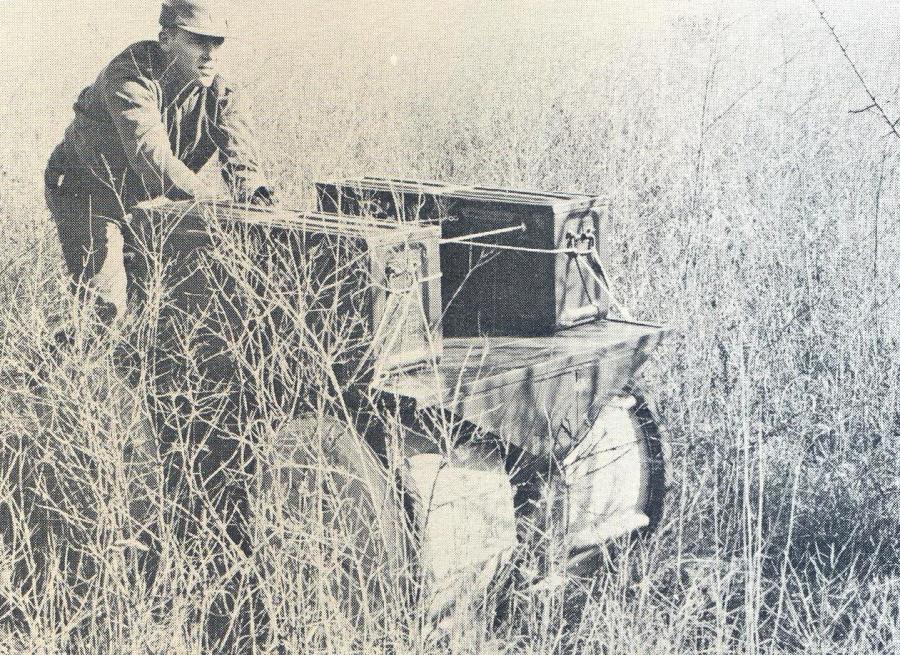

Amphibious Supply Platform, ASP from Jered Industries, Birmingham, Michigan. Picture from the booklet RAVE I (Remote Area Vehicle Evaluation I at Pontiac, Michigan), US ATAC Research and Engineering Directorate, 29 Oct 1962.

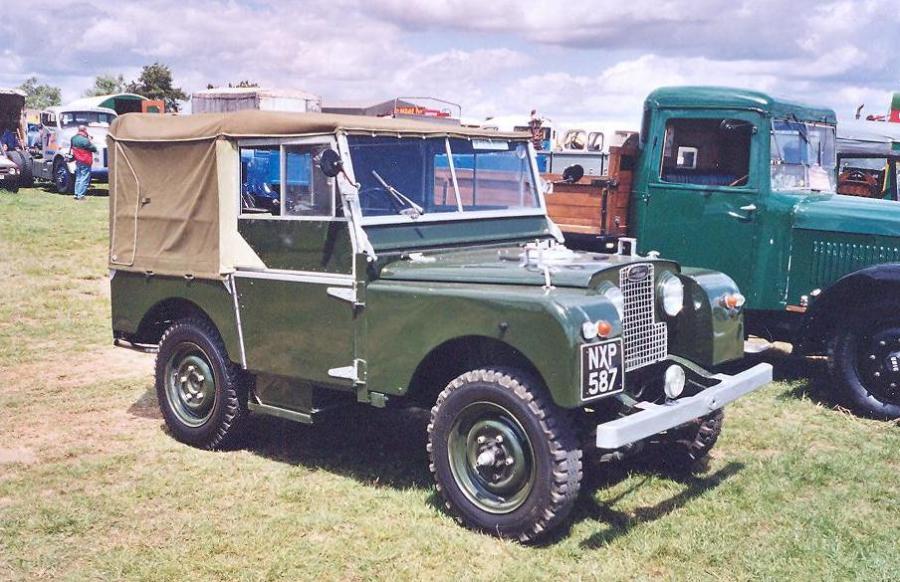

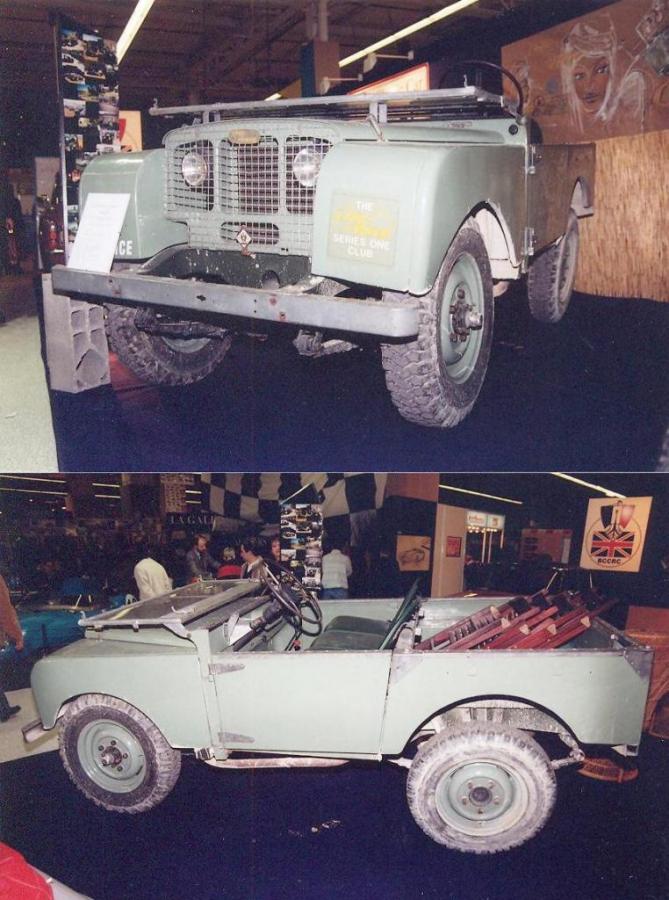

Land Rover Series One of early 50s. J M M at Rétromobile, Paris, 1998 03.

Land Rover Series 1, early 50s. J M M at La Ferté Alais, 2000 06.

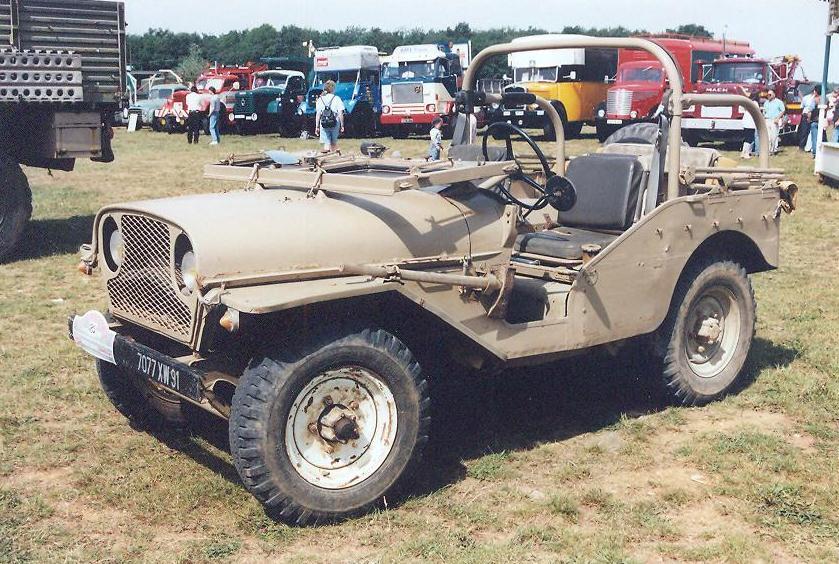

Delahaye 4x4. J M M at La Locomotion en Fête, La Ferté Alais, 1998 06.

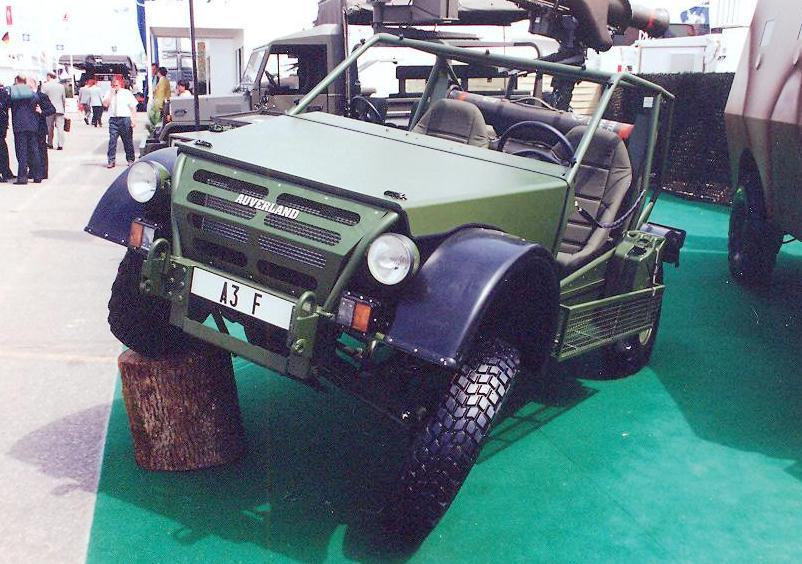

Auverland A3 F. J M M, Le Bourget, 1994.

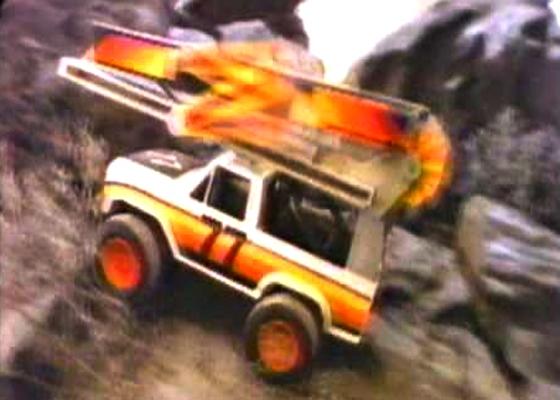

 Cross Boss Toy. In front of a gap, the bridge was dropped automatically and the Cross Boss could roll over it, and put the bridge back. From the 80s.    http://gadgets.gunaxin.com/awesome-toy-autos-80s/115250

 Animal Blazer 4x4 from Glasslite, 1984. Hidden claws got out automatically when a wheel met an obstacle.  Lansay and Monogram of Lewis Galoob Toys Inc. also made one Animal 4x4.

http://www.flickr.com/photos/roadranger/2716942698/sizes/m/in/photostream/

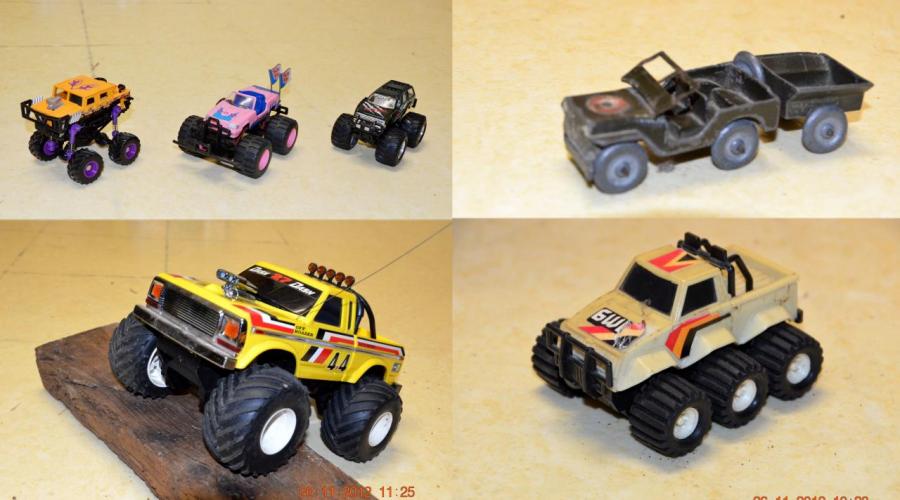

 4x4 and 6x6 toys of the 70-80s. The Jeep with the trailer dates from the late 40s.
