8X8 WHEELED RIGID VEHICLES, HEAVY
-
10x10 proto Object 560U
10x10 proto Objet 560U, late 50s, from Mytinchinskiy Engineering, not far from Moscow.
-
BAZ-69099, 12x12
BAZ-69099, 12x12. http://www.offroadvehicle.ru/AZBUCAR/BZKT/BZKT%20txt.html
-
-
-
BAZ-135L4, 8x8, 1964-65
BAZ-135L4, 8x8, 1964-65, which led to series production of 135LM. http://denisovets.narod.ru/baz/bazpages/baz135l4.html
-

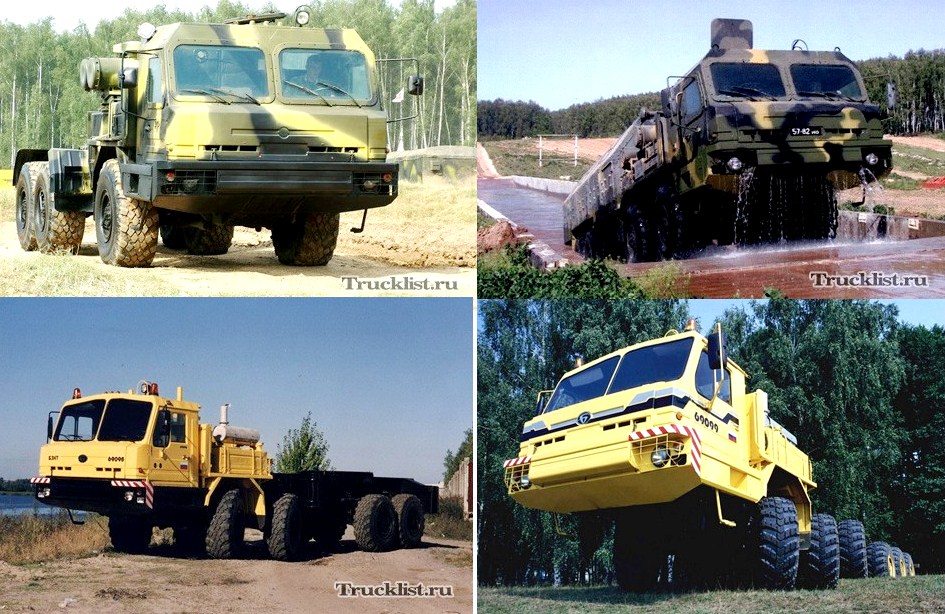

BAZ 6909, 8x8, 1992
BAZ 6909, WAX-1, 8x8, 1992, 21 t capacity, 500 hp, torsion bars suspension.
-
-
BAZ-6944, 8x8, amphibious
BAZ-6944, 8x8, amphibious of the 80s, torsion bar suspension, hydro-mechanical transmission.
-
-

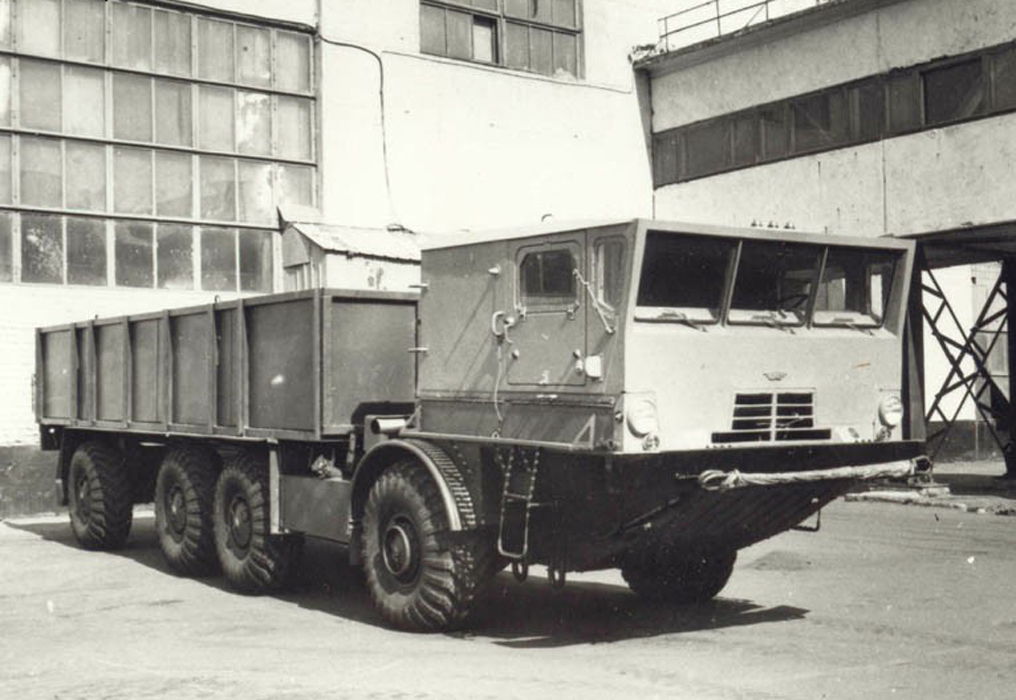

BAZ-135MBL, 8x8, 1991
BAZ-135MBL, 8x8, 1991, 12 t capacity, could tow a trailer of 12 t.. http://denisovets.narod.ru/baz/bazpages/baz135mbk.html
-
BAZ-135L4
BAZ-135L4 was the civilian version of BAZ 135 this later lasted from 1963 to 1993. Two engines, one per side and no suspension on central wheels, torsion bars on others, tire pressure control. http://en.valka.cz/viewtopic.php/t/63032
-
-
BAZ 930, 8x8, 1961
BAZ 930, 8x8, 1961 proto, 10 t capacity. No production since 135LM of SKB was series produced. http://denisovets.narod.ru/baz/bazpages/baz930.html
-
BAZ-69099, 12x12
BAZ-69099, 12x12, late 2000s, capacity 36 t, 50 km/h. Used among others by petroleum industry. http://www.offroadvehicle.ru/AZBUCAR/BZKT/BZKT%20txt.html
-
BAZ-69481M 10 × 8 amphibious
BAZ-69481M 10 × 8 amphibious, 1987. http://www.offroadvehicle.ru/AZBUCAR/BZKT/BZKT%20txt.html
-
ZIL 135, 8x8, Amphibious, 1958
ZIL 135, 8x8, amphibious proto, 1958, then ZIL 135B, 1959, 2 proto built. Two engines, flat bottom, ground clearance 500 mm, hydrodynamic transmission with creeper without discontinuity. http://denisovets.narod.ru/zil/zilpages/zil135b.html
-
ZIL135L, 8x8, 1960
ZIL135L, 8x8, 1960, had torsion bars suspensions and steering on extreme axles and 2 middle axles were not suspended. Speed 72 km/h on road. Series manufactured from 1963 to 1994 at Briansk Automobile Plant under the name ZIL-135LM.
-
ZIL-135LN 2, 8x8
ZIL-135LN, 8x8, based on ZIL-135K, early 60s. http://denisovets.narod.ru/zil/zilpages/zil135ln.html
-
ZIL-135LN, 8x8
ZIL-135LN, 8x8 in 1965 and 1971. http://denisovets.narod.ru/zil/zilpages/zil135ln.html
-
ZIL-135P or VMS-135 II 8x8 Amphibious,
ZIL-135P, 8x8 Amphibious, 1965. Speed on sea 14 km/h, on land 65 km/h, a record for this type of machine, 2 engines and 2-keeled propellers, total mass 20 t. No production because PSE-1, more classic has been chosen. www.denisovets.narod.ru
-
ZIS E134 or VMS-E134 N° 2, 8x8, 1956 2
ZIS E134 N° 2, 8x8, 1956. It was amphibious with hydrojet and had no suspension but adjustable pressure tire. Mass 7,8 t, 130 hp, speed 60 km/h. http://denisovets.narod.ru/zil/zilpages/zile134_2.html
-

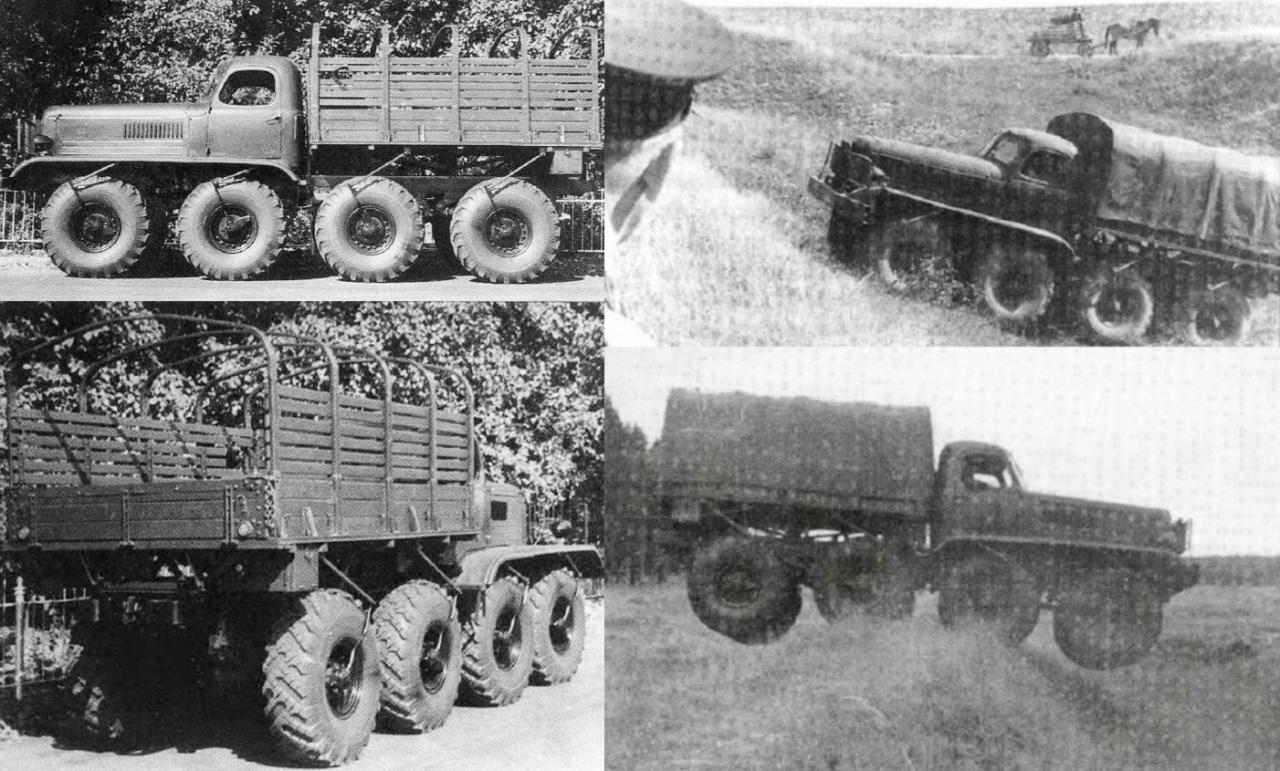

ZIS-E134 N° 1, 8x8, 1954
ZIS-E134 N° 1, 8x8, 1954. http://denisovets.narod.ru/zil/zilpages/zile134.html
-
ZIS-E134 N°1, 8x8, 1954
ZIS-E134 N°1, 8x8, 1954. http://denisovets.narod.ru/zil/zilpages/zile134.html
-
ZIL 134, 8x8, 1957
ZIL 134, 8x8, 1957, 240 hp, hydromechanical transmission, long travel torsion bar suspension, power steering. Financial problems dropped the project. http://denisovets.narod.ru/zil/zilpages/zil134.html
-
BAZ-69502 and BAZ-6954, 8x8, 1990
BAZ-69502 and BAZ-6954, 8x8, 1990, 17 t capacity, enhanced suspension and large metal cabs. http://tortuga.angarsk.su/fb2/kochne05/Sekretnyie_avtomobili_Sovetskoy_Armii.fb2_24.html
-
KZKT-80051 of Rusich
KZKT-80051 8x8, 24 t capacity, of OJSC Rusich, at Kurgan. In 1964, Kurgan Plant KZKT manufactured also MAZ vehicles of Minsk and became Rusich in 1990. http://www.offroadvehicle.ru/AZBUCAR/KZKT/KZKT%20txt.html
-
KZKT-Rusich 8014, 10x10
KZKT-Rusich 8014, 10x8, 40 t capacity, speed 60 km/h, 475 hp Cummings engine (or TMZ), fording depth 1,1 m, total mass 66 t, designed for petroleum industries. http://www.offroadvehicle.ru/AZBUCAR/KZKT/KZKT%20txt.html
-
-
Kenworth C500 oilfield truck
Kenworth C500 oilfield truck. http://www.commercialmotor.com/big-lorry-blog/kenworth-trucks-for-the-canadi
-
Unipower 8x8
Unipower 8x8. See Chap 8x8 Rigid Vehicles, Heavy. http://photostp.free.fr/phpbb/viewtopic.php?f=6&t=7475, http://www.commercialmotor.com/big-lorry-blog/ale-heavylifts-unipower-heavy-,
-
T21-15 8x8 prototype truck, 1962
T21-15 8x8 prototype truck, 1962 from Scientific Test Research Institute, Bronnitsy, Russia (21 N-III, 1954), This Institute tested also MAZ trucks with gas turbine and electro-hydraulic steering in the 70s.
-
-
NAMI 058, 8x8, 1958
NAMI 058, 8x8, 1958. See chap '8x8 Rigid Vehicles, Heavy'. http://statehistory.ru/books/Evgeniy-Kochnev_Sekretnye-avtomobili-Sovetskoy-Armii/66
-
NAMI 0127, 8x8, 1968
NAMI 0127, 8x8, 1968. http://fotki.yandex.ru/users/alexpzkpfw6/view/390195/?page=5
-
-
8x8 Sinotruck
8x8 Sinotruck, Steyr type from Shandong, China. http://www.alibaba.com/showroom/8x8-sinotruck.html
-
10x10 Sinotruck, Huanghe model
10 x10 Sinotruck, Huanghe model of special off-road truck from Shandong, China. 20 T payload, 550 hp, www.truckeden.en.alibaba.com
-
-
10x10 Sinotrucks
10x10 Sinotruck, Zhejiang, China. http://sinoman.en.alibaba.com/product/516665119-0/10X10_Cargo_Truck.html
-
12x12 GW2900 Super heavy duty truck
12x12 Super heavy duty truck WKK GW2900, tyre inflation running, for -40 to +50° C. www.tradev.com
-
12x12 GW2900 Super heavy duty truck
12x12 Super heavy duty truck GW2900, tyre inflation running, for -40 to +50° C. www.tradev.com
-
-
Howo 10x10 Truck
Howo 10x10 Truck. CNHTC Jinan Jinlitai Machinery of Jinan, Shandong, China. http://sinoman.en.alibaba.com/product/516665119-0/10X10_Cargo_Truck.html
-
Howo 10x10 Truck
Howo 10x10 Truck. CNHTC Jinan Jinlitai Machinery of Jinan, Shandong, China. This company also manufactures mechanical parts, construction machinery, trucks and oil equipment. www.cnhtc.com.hk
-
TAS5690, 12x12, 42 t
TAS5690, 12x12, 42 t, from China. http://www.offroadvehicle.ru/AZBUCAR/Taian.html
-
-
-
KRAZ-6316, 8x8, 1989
KRAZ-6316, 8x8, 1989, from Krementchug, Poltava District. http://cartruckbus.narod.ru/foto_ryazan-kraz.htm
-
KRAZ-CHR-3120,8x8
KRAZ-CHR-3120, 8x8, 1982. http://www.cardesign.ru/forum/diskussii/obschenie/1857/page383/
-
KRAZ 6E6316, 8x8
KRAZ 6E6316, 8x8, 1989. http://denisovets.narod.ru/kraz/krazpages/kraz6316.html
-
-
Experimental chassis T-103, 12x12, 1966
Experimental chassis T-103, first 12x12, 1966, designed by Scientific Test Research Institute, Bronnitsy (21 N-III, 1954), Russia. Payload 22 t, 300 hp diesel UTD-20, speed 70 km/h. http://profismart.ru/web/bookreader-116616-44.php
-
Cook T20 8x8, 1945
Cook T20 8x8, 1945. Wagon steer type. See article in 'Wheels and Tracks' N° 2, about 1982.
-
Chrysler XM410E1, 8x8, 1960
Chrysler XM410E1, 8x8, 1960. http://www.jedsite.info/transport-xray/xray/xm410_series/xm410e1/xm410e1-intro.html
-
BAZ-6950, 8x8, 1976
BAZ-6950, 8x8, 1976. http://megaobzor.com/fotografii-baz-6950-osnova-1-seriya-sovremennaya-voennaya-tehnika.html
-
-
BAZ-69507
8x8 rigid chassis vehicle from Bryansk, Russia. http://veriana.narod.ru/proch/Mashina/MashGlav.htm
-
BAZ-930, 8x8, tractor truck, 1961
BAZ-930, 8x8, tractor truck, 1961. http://alternathistory.org.ua/avtomobili-dlya-bezdorozhya-universalnyi-vezdekhodnyi-avtomobil
-
GAZ 44 8x8 1972 Prototype
GAZ 44 8x8 1972 Prototype. http://www.conceptcar.ee/ru/83-gaz/203-gaz-44-prototype-1972.html
-
Gaz 44 8x8
Gaz 44, 8x8 of 1972. http://www.yaplakal.com/forum14/st/1025/topic439944.html ; http://www.autowp.ru/picture/k4mwy9
-
-
Ural 8x8 special product
Ural 8x8 issued from Ural 4320-1912-41, special product for oil industry. Built on demand by MZSA Ltd, Miass, Chelyabinsk District. Total Mass 28650 kg, Payload 18.000 kg, 300 hp engine. http://www.automzsa.ru/autofurgons.php?id=68
-
KRAZ 7E6316 Siberia 8x8 tested in 1988
KRAZ 7E6316 Siberia 8x8 tested in 1988-89, 15 T CU, independant suspension, multi-fuel engine. http://denisovets.narod.ru/kraz/krazpages/kraz6316.html
-
