4X4 WHEELED ARTICULATED VEHICLES, HEAVY
-
MoAZ-49011 tractor
MoAZ-49011 tractor, SM Kirov plant, Mogilev, Belarus, for agriculture. Mass 13,5 t, Hydromechanics transmission, speed 35 km/h. This Society built mainly construction equipment. http://www.moaz.ru/tractor.htm
-
Anfibio of Nicho's Lodge 2
Anfibio of Nicho's Lodge, Bronsville, TX, designed and constructed by Nicho in the late 90s http://nichoslodge.com/albums/1999-2000/66anfibio5-18.jpg
-
Panien Spreader
Panien Hamm spreader. See Chap 'Articulated 4x4 vehicles, Heavy'. J M M at Intermat, Villepinte, May 2000.
-
-
Lime speader Panien PR 300
Lime speader Panien PR 300, based on Renault truck. J M M at SIMA, Villepinte Feb 1999.
-
Letourneau Tournacrane
Letourneau Tournacrane. J M M at Marshall Museum, Zwijndrecht, The Netherlands on Mars2003. This museum moved at Overloon.
-
-
-
Lauster 4x4 articulated
Lauster 4x4 articulated vehicle with wheels and rolls. J M M at Sinsheim Museum, Germany, Dec 2000.
-
Kockum KL 411
Kockum KL 411 from Kokum, Sweden, built from 1967 to 1970 at 77 copies. Payload 15 t. Volvo tooke it over in 1982. http://www2.landskrona.se/kultur/landsverk/grav/kockmaskiner/klmidje/kl411.html
-
-
-
-
-
-
-
Euclid B3 SH Scraper
Euclid B3 SH Scraper in action. J M M at Rétromobile, Cordelle, France, August 2002.
-
Euclid B3 SH Scraper 3
Euclid B3 SH Scraper. J M M at Rétromachines, Cordelle, France, August 2003.
-
-
Timberjack 208D
Timberjack 208D of the 70s. J M M at la Locomotion en Fête, La Ferté Alais, on June 1996.
-
Akera 17E Rabaud Spreader
Akera 17E Rabaud Spreader. J M M at Intermat, Villepinte, May 2003.
-
Waker articulated amphibious vehicle
Waker articulated amphibious vehicle with retractable wheels. Who knows more ? It was on good site www.amphibiousvehicle.net
-
Doe Triple D conversion of Ford Super Major
Doe Triple D conversion of Ford Super Major. About 290 units were built between 1958 and 1964. http://www.eyefetch.com/image/1247635
-

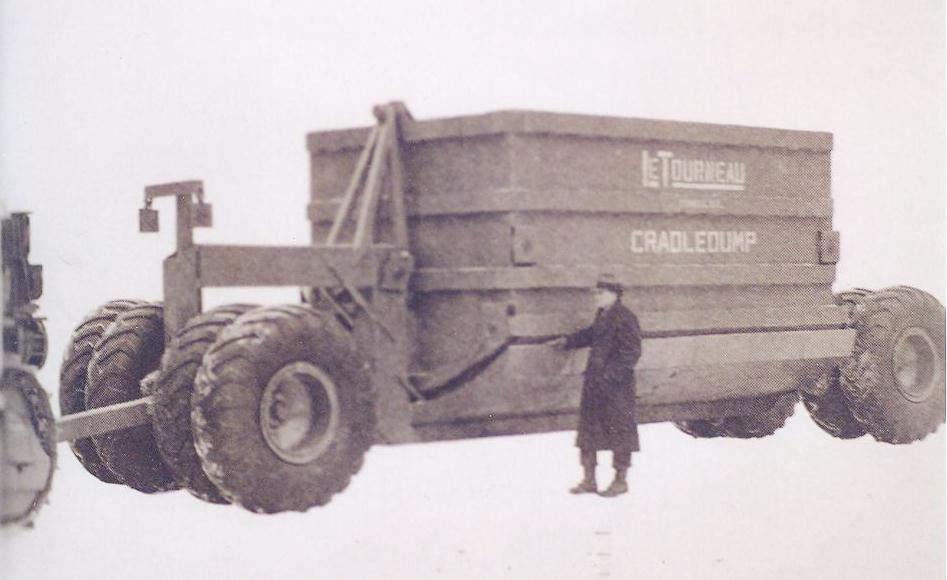

Cradle Dump Letourneau, 1935
Cradle Dump Letourneau, 26 m3, was, in 1935, an early design for off-road hauling. It was side and bottom dumping pulled by a Caterpillar RD8 tractor. Pict from book of Eric C. Orleman : 'R.G. LeTourneau Heavy Equipment, 1921-1953', Iconografix, I
-
Terra-Gator
Terra-Gator from Agco Group. http://www.agcocorp.com/products/terragator.aspx
-
Mamuth M Arctictrans
Mamuth M Arctictrans has rigid chassis, here with trailer. http://arctictrans.ru/vezde/mam/pricep
-
Mammoth Arctictrans
Mammoth Arctictrans articulated vehicle with componants of GAZ 66. ground pressure 0.2 kg/cm2, leaf springs suspension, 5.3 T empty, 2 t payload, 107 hp, 55 km/h, It could move in 80 cm of fresh snow. http://arctictrans.ru/vezde/mam
-
Mammoth Arctictrans 199
Mammoth Arctictrans of 1996 built in 2 copies, www.arctictrans.ru
-
Young Mammouth from Association Arktiktrans
Young Mammouth articulated amphibian was made in small series by Arktiktrans Association. Empty mass : 4.3 T, payload : 2 T, engine Mercedes 72 ch, Gaz-66 cab, speed 55km/h and 5 km/h on water. http://www.autoreview.ru/sv_glaz/num019/mamont.htm
-
Mammoth VTT
Mammoth VTT, 4x4 articulated vehicle first appeared in 2003. Now, Arktiktrans, Moscow, associated to the Agricultural Department, manufactures it. Payload 2,5 T, empty mass : 5.5 t, 107 hp engine. Arktiktrans makes also Lopasnya. www.arctictrans.ru
-
-
-
Mertz Seismic Vehicle M18-612
Mertz Seismic Vehicle M18-612 Universal Vibrator of Mertz Inc, subsidiary of Sercel (CGG), Nantes. http://lockhartgeo.com/equipment.html ; http://www.sercel.com/Products/sources/nomad_vibrators.php
-
Rolligon RA-15 4x4
Rolligon RA-15 4x4. http://www.nov.com/Brands/Rolligon/Rolligon_4X4_RA-15.aspx
-
Rolligon RA-15 4x4
Rolligon RA-15 4x4. http://www.nov.com/Brands/Rolligon/Rolligon_4X4_RA-15.aspx
-
Rolligon RA-15 4x4
Rolligon RA-15 4x4. http://www.nov.com/Brands/Rolligon/Rolligon_4X4_RA-15.aspx
-
Rolligon Roughneck 4x4
Rolligon Roughneck 4x4. http://www.nov.com/Brands/Rolligon/Rolligon_4X4_RA-15.aspx
-
Athey AT-15
Athey AT-15 articulated truck of the 50s. Athey was known for its tracked trailers during WWII. http://forum.index.hu/Article/showArticle?go=70415512&t=9020005
-
Based on GAZ 66 articulated low-ground pressure truck
Based on GAZ 66 articulated low-ground pressure truck. http://www.autoreview.ru/sv_glaz/num019/mamont.htm
-
Clark-Michigan XM-520 Goer 4x4 1959
Clark-Michigan articulated XM-520 Goer 4x4, 1959. Caterpillar Goer was chosen. http://www.jedsite.info/transport-golf/golf/goer_series/xm520/xm520.html. Pict from the review 'Classic Military Vehicle', May 2006.
-
Keable dumper KK 50
Keable dumper KK 50. http://forum.index.hu/Article/showArticle?go=70415512&t=9020005
-
CJSC St Peterburg tractor Plant K700A
CJSC St Petersburg tractor Plant K700A, 230 or 300 HP, 30 km/h, 400.000 were built. http://en.wikipedia.org/wiki/Kirovets_K-700
-
-
CMF D 101 dumper
CMF D 101 dumper, 12 m3. J M M at Rétromachines, Cordelle, France, August 2002.
-

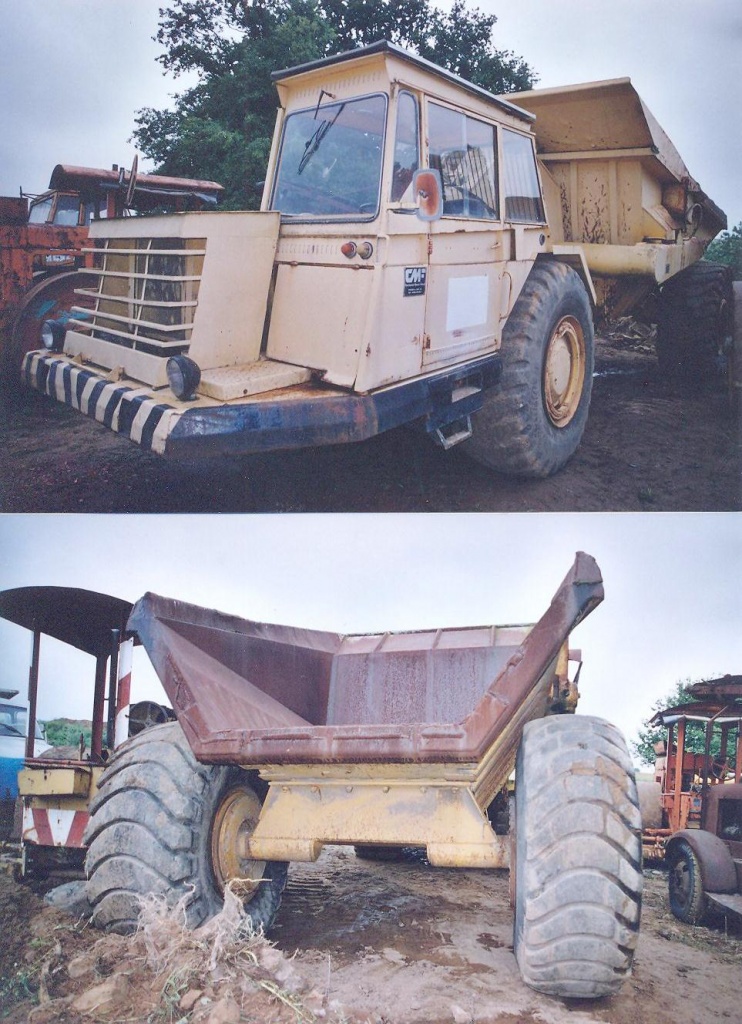

CMF D 101 dumper 3
CMF D 101 dumper. J M M at Rétromachines, Cordelle, France, August 2003.
-

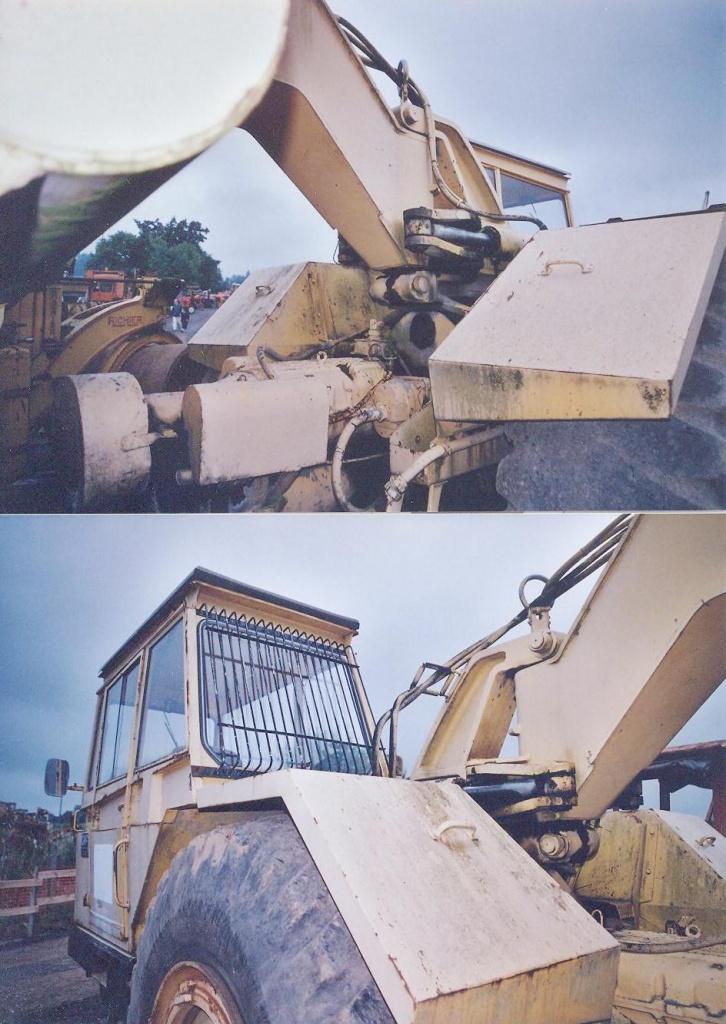

CMF D 101 dumper 2
CMF D 101 dumper. J M M at Rétromachines, Cordelle, France, August 2003.
-

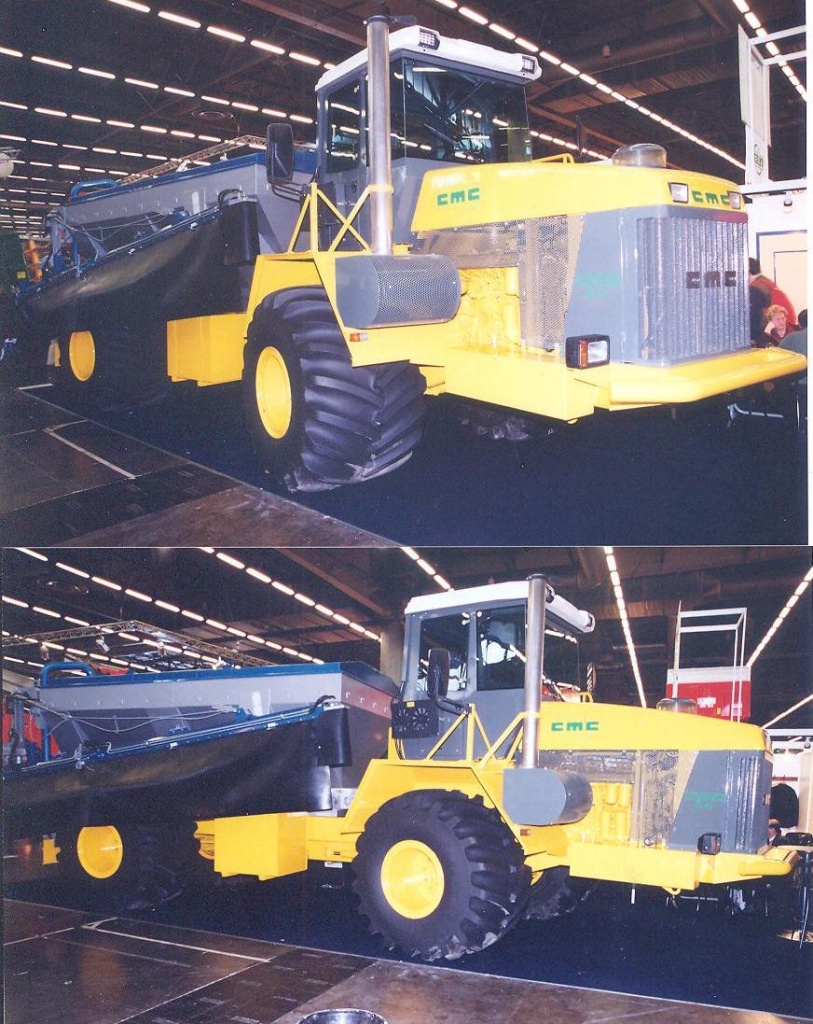

CMC 4x4 articulated Megatrac Spreader
CMC, Constructions Mécaniques Champenoises, Epernay, France, 4x4 articulated Megatrac Spreader. J M M at SIMA, Villepinte, Feb 2001.
-
Claas Xerion 2500 tractor
Claas Xerion 2500 articulated 4x4 tractor. J M M at SIMA on March 1999.
-

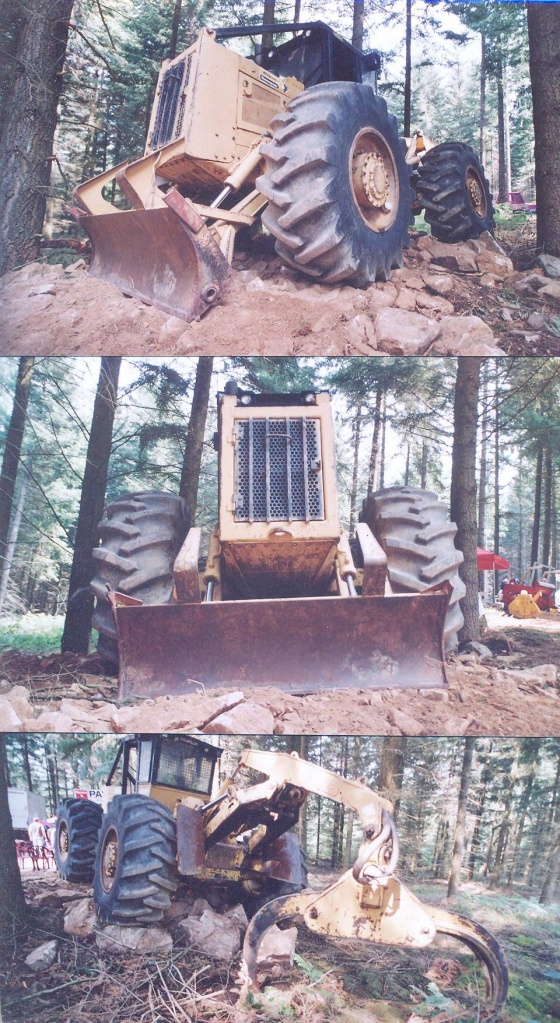

Caterpillar Grapple skidder
Caterpillar Grapple skidder. J M M at Euroforest, St Bonnet de Joux, June 2003.
-
Caterpillar 988 wheeled dozer
Caterpillar 988 wheeled dozer built from 1963 to late 70s. J M M at La Ferté Alais on June 1997.
-

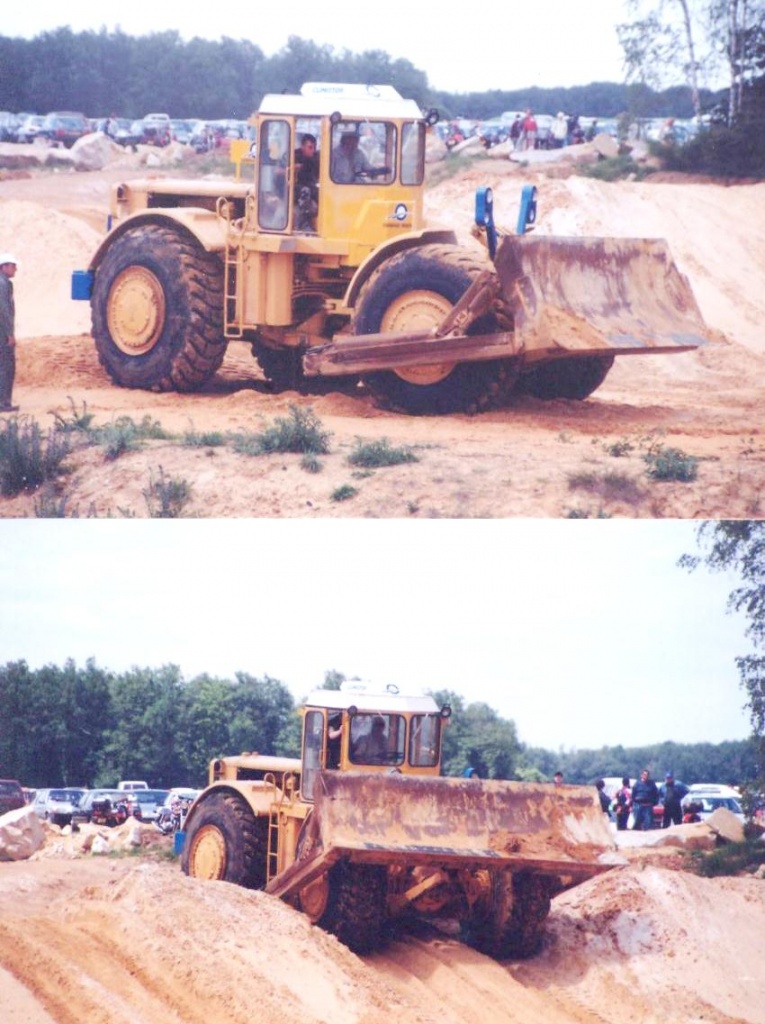

Caterpillar 988 wheeled dozer 2
Caterpillar 988 wheeled dozer built from 1963 to late 70s. Pictured at La Ferté Alais on June 1997.
-
Caterpillar 550 Harvester 4x4
Caterpillar 550 Harvester 4x4, designed for mountain forestry work. J M M at Forexpo, Bordeaux, June 2002.
-

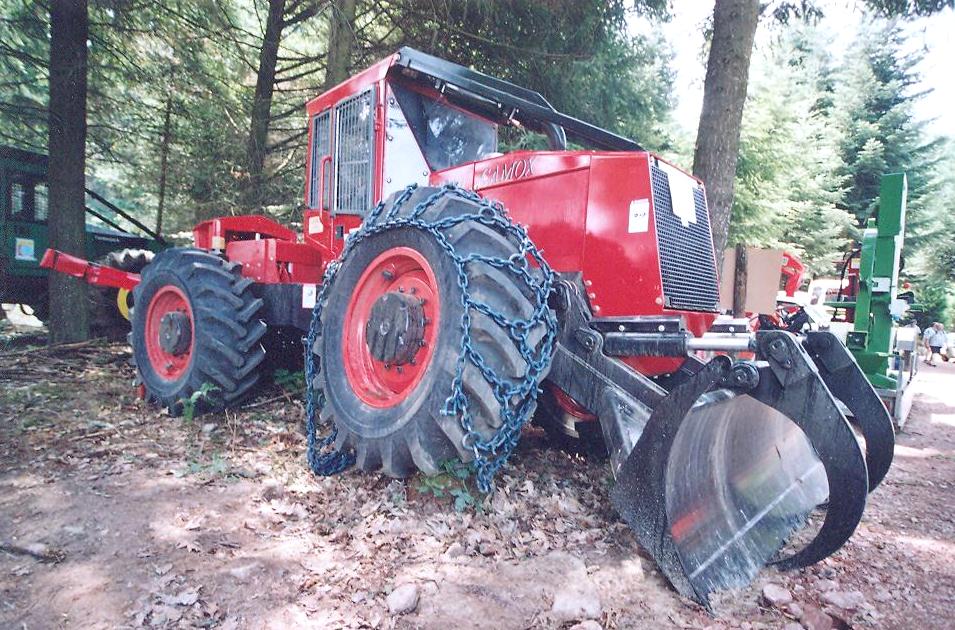

Camox skidder
Camox skidder manufactured by Pialleport SA, St Simeon de Bressieux, France. It markets Komatsu harvesters and forwarders. J M M at Euroforest, St Bonnet de Joux, June 2003.
-
Bomag BC601RB Trash Compactor
Bomag BC601RB Trash Compactor. J M M at auction of Moerdjick, The Netherlands, on March 2003.
-
Steiger panther Twin ST650 of 1977
Steiger panther Twin ST650 test model of 1977. Two 3406 Caterpillar engines for 650 HP. http://toytractorshow.com/Steiger4.htm
-
TGC Mini-Buggy vibrator
TGC (Tidelands Geophysical Company, Plano, Texas). Mini-Buggy vibrator for petroleum Industry. http://www.tgcseismic.com/972.881.1099/State-of-the-Art_page.html
-
Quality Industries Inc wheeled Buggy.
Quality Industries Inc. wheeled Buggy with special wheels. Now, amphibious vehicles are tracked and Quality Industries are replaced by Wilco Manufacturing, LLC, La Fayette, LA. http://www.amphibiousvehicle.net/frame.html
